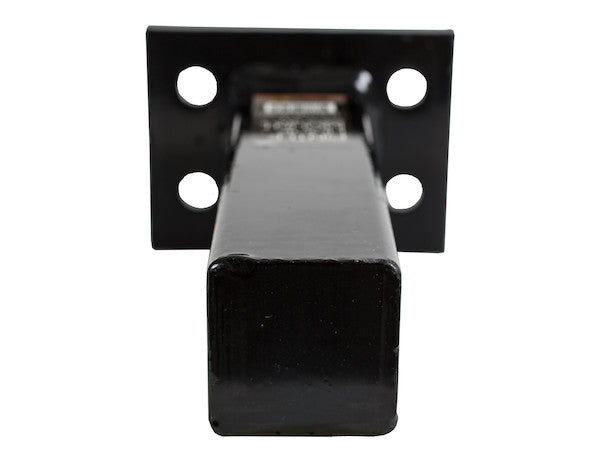

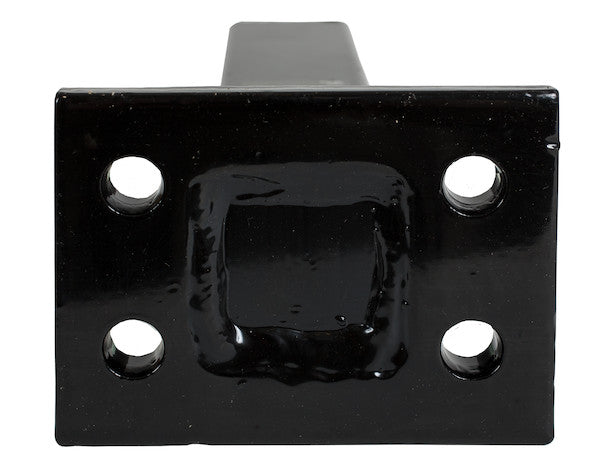

PM84 - 2 Inch Pintle Hitch Mounting Plate - 1 Position, 9 Inch Shank

Buyers Products 2 Inch Pintle Hook Mounting Plate slides into a 2 in. receiver to provide a mounting plate for a variety of pintle hooks and combination hitches. You can mount a pintle hook at either a high or low position to accommodate trailer height. The strong, durable construction features continuous welds and a black powder-coated finish for corrosion resistance.

Specifications

Advanced Technical Overview: The Buyers Products 2-Inch Pintle Hitch Mounting Plate with 9-Inch Solid Shank

In the realm of commercial and heavy-duty towing operations, the integrity and performance of every component within the hitch system are paramount. The Buyers Products 2 Inch Pintle Hook Mounting Plate represents a critical interface component, meticulously engineered to facilitate the secure and adaptable attachment of pintle hooks and combination hitches to vehicles equipped with a standard 2-inch receiver. This detailed technical description will delve into the design, material science, performance specifications, and practical applications of this essential towing accessory, highlighting its robust construction and unparalleled reliability.

Foundational Integration: The 2-Inch Receiver Standard

The ubiquity of the 2-inch receiver hitch across a broad spectrum of utility vehicles, pickup trucks, and commercial chassis necessitates a precisely dimensioned and robust mounting solution. This Buyers Products pintle hook mounting plate is designed to integrate seamlessly into any standard 2-inch by 2-inch receiver tube, providing a foundational anchor point for heavy-duty towing operations. The precision of this fit minimizes play and slop, which are critical factors in reducing dynamic stress on the hitch system and ensuring optimal power transfer from the tow vehicle to the trailer. The 9-inch solid shank extends sufficiently to provide adequate clearance for various bumper configurations and trailer tongue designs, without introducing excessive leverage that could compromise the receiver or the tow vehicle's frame integrity. This optimal length balances projection with structural stability, a key engineering consideration for high-capacity towing.

Versatile Coupling: Accommodating Pintle and Combination Hitches

The primary function of this mounting plate is to serve as a robust platform for pintle hooks and combination hitches. Pintle hitches are renowned for their exceptional strength, durability, and articulation capabilities, making them the preferred choice for towing heavy equipment, military trailers, and off-road applications where significant vertical and lateral movement is anticipated. The design of the mounting plate, featuring a single designated mounting position with two pairs of vertical holes, allows for secure attachment of a wide range of industry-standard pintle hooks. The specific horizontal hole spacing of 3.375 inches and vertical hole spacing of 1.75 inches, coupled with mounting hole sizes of 0.531 inches, ensures compatibility with commonly available pintle hooks and combination hitches utilizing 1/2-inch or 5/8-inch grade 8 bolts for secure fastening. This standardized hole pattern facilitates interchangeability and ease of installation, providing fleet managers and operators with flexibility in their towing equipment choices. The ability to mount the pintle hook at either a "high or low position" refers to utilizing the two vertical holes to achieve a minor but often critical adjustment in the pintle hook's vertical alignment, enabling operators to achieve better trailer leveling and optimize tongue weight distribution across diverse trailer configurations and load scenarios.

Material Science: The Strength of Carbon Steel

At the core of this mounting plate's impressive 20,000 lbs Maximum Gross Trailer Weight (M.G.T.W.) rating is its construction from high-grade carbon steel. Carbon steel is selected for its superior mechanical properties, particularly its high tensile strength and yield strength, which are crucial for resisting the immense pulling forces and dynamic stresses inherent in heavy-duty towing. This material offers an excellent balance of strength, ductility, and machinability, ensuring that the plate can withstand sustained heavy loads, sudden impacts, and prolonged operational use without fracturing or deforming. Unlike cast materials, the structural integrity of carbon steel components, especially when fabricated with continuous welds, provides predictable performance under extreme conditions, a non-negotiable requirement for safety-critical towing applications. The inherent toughness of carbon steel also contributes to its resistance against abrasive wear, particularly beneficial in environments where the hitch system is exposed to road debris, dirt, and other particulate matter.

Structural Integrity Through Advanced Fabrication: Continuous Welds

The mention of "continuous welds" is a critical indicator of the product's superior structural integrity. In contrast to intermittent or spot welds, continuous welds provide an uninterrupted metallurgical bond along the entire length of the joint between components. This method of fabrication is vastly superior for load-bearing applications as it distributes stress more evenly across the joint, significantly reducing stress concentration points that could lead to fatigue failure. For a pintle hitch mounting plate subjected to constant pulling, braking, and torsional forces, continuous welds ensure maximum strength, rigidity, and durability. This meticulous welding process prevents potential points of weakness, enhancing the overall resilience of the assembly and contributing directly to its impressive M.G.T.W. and M.V.L. ratings. The quality of these welds is a testament to the rigorous manufacturing standards employed by Buyers Products, ensuring that each unit meets stringent performance and safety criteria.

Durability and Protection: The Black Powder-Coated Finish

Environmental exposure is a significant challenge for any exterior vehicle component, especially those involved in towing. The Buyers Products pintle hitch mounting plate is safeguarded by a robust black powder-coated finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded component. The part is then cured in an oven, where the powder melts and flows into a smooth, durable, and uniform coating. This process offers several advantages over traditional liquid painting:

• Superior Corrosion Resistance: The thick, continuous layer of powder coat creates an impermeable barrier against moisture, road salts, chemicals, and other corrosive agents, dramatically extending the lifespan of the steel.
• Enhanced Chip and Scratch Resistance: The flexibility and hardness of the cured powder make it highly resistant to chipping, scratching, and abrasion, which are common occurrences in towing operations.
• UV Stability: The black powder coat maintains its aesthetic and protective properties even with prolonged exposure to ultraviolet radiation, preventing fading and degradation.
• Environmental Benefits: Powder coating emits zero or near-zero volatile organic compounds (VOCs) into the atmosphere, making it a more environmentally responsible finishing choice.

The black color is not merely aesthetic; it is a practical choice for heavy-duty equipment, providing a professional appearance that conceals minor scuffs and dirt, while offering excellent light absorption characteristics in various operational environments. This durable finish ensures the mounting plate remains functional and visually appealing for years, minimizing maintenance requirements and costs associated with rust prevention.

Performance Specifications: Understanding M.G.T.W. and M.V.L.

The provided specifications for Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs and Maximum Vertical Load (M.V.L.) of 4,000 lbs are crucial metrics that define the operational capacity and safety parameters of this mounting plate. These ratings are not arbitrary; they are determined through rigorous testing and engineering calculations to ensure the component can safely handle the specified loads under various operating conditions.

• M.G.T.W. (Maximum Gross Trailer Weight): This rating specifies the maximum total weight of the trailer, including its cargo, that the mounting plate is designed to safely tow. A 20,000 lbs M.G.T.W. positions this plate firmly in the heavy-duty category, suitable for commercial equipment trailers, large utility trailers, and even some smaller agricultural or construction machinery transport. Adhering to this rating is critical for preventing structural failure of the hitch system, maintaining vehicle control, and ensuring compliance with transportation regulations. Exceeding this limit can lead to catastrophic failure, loss of control, and severe safety hazards.
• M.V.L. (Maximum Vertical Load), also known as Tongue Weight: This rating indicates the maximum downward force that the trailer's tongue can exert on the mounting plate. A 4,000 lbs M.V.L. capacity is exceptionally high, reflecting the robust design and material strength. Proper tongue weight is vital for stable towing; too little can cause trailer sway, while too much can overload the tow vehicle's rear axle and suspension, affecting steering and braking. This high M.V.L. rating provides significant flexibility for trailers with heavy front-end loads or those requiring specific weight distribution to achieve optimal towing dynamics.

These ratings, when combined with the solid carbon steel construction and continuous welds, affirm the mounting plate's capability to manage the substantial forces and stresses inherent in heavy-duty towing, offering operators confidence in its performance and reliability.

Dimensional Precision for Optimal Fit and Function

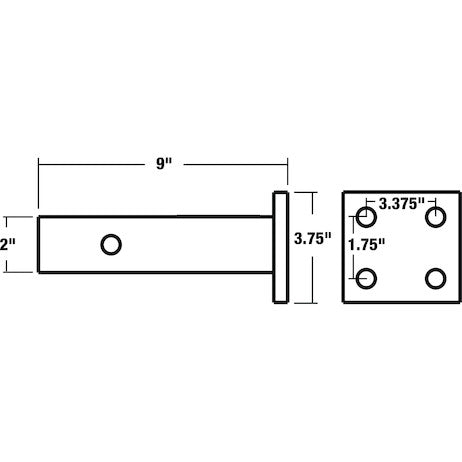

The detailed dimensions of the Buyers Products 2 Inch Pintle Hook Mounting Plate are meticulously engineered to ensure both compatibility and optimal performance:

• Receiver Size (2.0 in.): This confirms its direct compatibility with standard Class III, IV, and V hitch receivers, which are ubiquitous on trucks and commercial vehicles designed for substantial towing.
• Shank Type (Solid): A solid shank offers superior strength and rigidity compared to hollow shanks. This design choice is paramount for heavy-duty applications as it resists bending, twisting, and torsional forces more effectively, especially under dynamic loads and sudden changes in direction or speed.
• Length (9.0 in.): The 9-inch length provides an optimal extension from the receiver, allowing sufficient clearance for truck tailgates, spare tires, and various trailer tongue configurations, while minimizing the lever arm effect on the receiver.
• Height (3.75 in.): This compact height for the mounting plate portion ensures that the overall assembly remains as streamlined as possible, reducing potential interference with ground clearance or vehicle components.
• Mounting Hole Specifications:
  • No. of Mounting Positions: 1: This refers to a single designated vertical column or channel on the plate for attaching the pintle hook.
  • Pairs of Holes: 2: Within that single channel, there are two vertically aligned holes provided for mounting the pintle hook.
  • Vertical Hole Spacing (1.75 in.): This specific spacing between the two holes allows for a minor, but often crucial, vertical adjustment of the pintle hook. This feature enables operators to fine-tune the hitch height to achieve proper trailer leveling, which is essential for safe handling, tire wear, and load distribution.
  • Horizontal Hole Spacing (3.375 in.): This standard spacing accommodates the vast majority of pintle hooks and combination hitches available on the market, ensuring broad compatibility.
  • Mounting Hole Size (0.531 in.): Precisely sized to accept 1/2-inch or 5/8-inch bolts (with minimal clearance), ensuring a snug and secure fit for the fasteners used to attach the pintle hook to the plate. This precision minimizes movement and wear at the bolt points.

These precise dimensions are critical for ensuring not only a perfect fit with the vehicle's receiver and the chosen pintle hook but also for optimizing the entire towing system's geometry for safety and performance.

Practical Applications and Operational Versatility

The Buyers Products 2 Inch Pintle Hook Mounting Plate is an indispensable component for a wide array of heavy-duty towing applications. Its robust design and high capacity make it ideally suited for:

• Commercial Fleets: Transporting heavy construction equipment, utility trailers, and specialized machinery.
• Agricultural Sector: Moving farming implements, livestock trailers, and other heavy equipment across varied terrains.
• Municipal Operations: Hauling trailers for landscaping, road maintenance, and public works projects.
• Construction Industry: Towing dump trailers, skid steer loaders, excavators, and other heavy plant equipment to job sites.
• Specialized Towing: Applications requiring high articulation and durability, such as certain military or off-road trailer configurations.

The ability to adjust the pintle hook to "high or low position" provides critical versatility. For instance, a vehicle with a lifted suspension might require a pintle hook mounted in a lower position on the plate to maintain a level trailer, preventing excessive tongue weight or a nose-up trailer attitude. Conversely, a lower-profile tow vehicle might benefit from a higher mounting position. This adjustability ensures optimal trailer alignment, which translates to enhanced stability, improved braking performance, and reduced stress on both the tow vehicle and the trailer components.

Installation, Safety, and Maintenance Protocols

Proper installation and diligent maintenance are paramount for maximizing the lifespan and ensuring the safe operation of the Buyers Products pintle hitch mounting plate. Installation involves inserting the 2-inch solid shank into the vehicle's receiver hitch and securing it with an appropriately rated hitch pin and clip. The pintle hook or combination hitch is then bolted securely to the mounting plate using high-grade fasteners (typically Grade 8 bolts, washers, and nuts), torqued to the manufacturer's specifications.

Regular inspection is crucial. Operators should routinely check for:

• Wear and Tear: Inspect the shank, mounting plate, and bolt holes for signs of excessive wear, elongation, or deformation.
• Corrosion: While the powder coat offers significant protection, any chips or scratches should be addressed promptly to prevent rust formation.
• Weld Integrity: Visually inspect all welds for cracks, fractures, or signs of fatigue.
• Fastener Security: Ensure all bolts, pins, and clips are correctly installed, free from damage, and securely fastened.

Adherence to the M.G.T.W. and M.V.L. ratings is not merely a recommendation but a critical safety requirement. Overloading can compromise not only the hitch components but also the tow vehicle's chassis, suspension, braking system, and overall stability, leading to hazardous situations. Compliance with local and national towing regulations is also essential for safe and legal operation.

Conclusion: A Cornerstone for Professional Towing

The Buyers Products 2 Inch Pintle Hook Mounting Plate with its 9-inch solid shank represents a robust, precisely engineered, and highly reliable solution for demanding towing applications. Its carbon steel construction, reinforced by continuous welds and a durable powder-coated finish, guarantees exceptional strength, longevity, and resistance to environmental degradation. With a substantial 20,000 lbs M.G.T.W. and 4,000 lbs M.V.L. rating, coupled with versatile mounting options and precise dimensions, this mounting plate provides the foundational integrity required for safely transporting heavy loads. For professionals who demand uncompromising performance, durability, and adaptability from their towing equipment, this Buyers Products pintle hitch mounting plate stands as an essential investment, ensuring operational efficiency and peace of mind on every tow.
