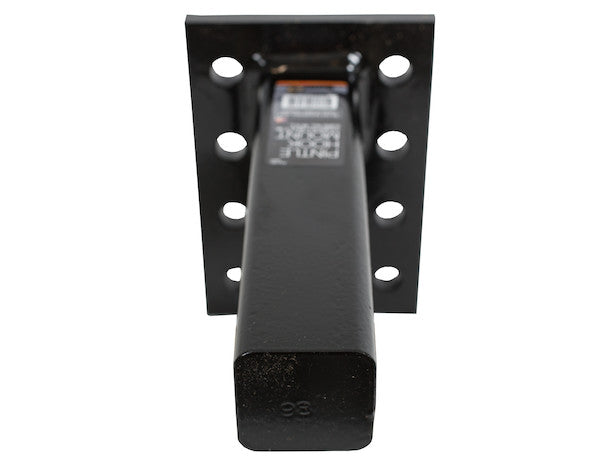

Buyers Products 2 Inch Pintle Hook Mounting Plate slides into a 2 in. receiver to provide a mounting plate for a variety of pintle hooks and combination hitches. You can mount a pintle hook at either a high or low position to accommodate trailer height. The strong, durable construction features continuous welds and a black powder-coated finish for corrosion resistance.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| Height (in.) | 7.38 |
| Horizontal Hole Spacing | 3.375 |
| Length (in.) | 9.0 |
| M.G.T.W. (lbs) | 14,000 |
| M.V.L. (lbs) | 2,800 |
| Material | Carbon Steel |
| Mount Type | Pintle Mount |
| Mounting Hole Size (in.) | 0.531 |
| No. of Mounting Positions | 3 |
| Pairs of Holes | 4 |
| Receiver Size (in.) | 2.0 |
| Shank Type | Solid |
| Vertical Hole Spacing | 1.75 |
Advanced Engineering and Performance Analysis: The 2 Inch Pintle Hitch Mounting Plate with 3-Position Adjustability and 9-Inch Solid Shank
The Buyers Products 2 Inch Pintle Hitch Mounting Plate represents a meticulously engineered solution for heavy-duty towing applications, designed to integrate seamlessly with standard 2-inch receiver hitches. This product is not merely an accessory but a critical component within a sophisticated towing system, providing a robust, adjustable, and durable interface for pintle hooks and combination hitches. Its design and construction are underpinned by rigorous material selection, advanced manufacturing processes, and adherence to demanding performance specifications, ensuring optimal safety and operational efficiency across a diverse range of commercial and industrial environments.
Material Science and Structural Integrity
At the core of this pintle hitch mounting plate's exceptional durability is its construction from high-grade Carbon Steel. Carbon steel is specifically chosen for its superior strength-to-weight ratio, excellent fatigue resistance, and inherent toughness, making it ideally suited for applications subjected to significant dynamic loads and repetitive stress. The precise composition of the carbon steel used ensures a balance between hardness and ductility, preventing brittle fracture while offering substantial resistance to deformation under extreme towing forces. The material undergoes stringent quality control checks to confirm its mechanical properties, including tensile strength, yield strength, and impact resistance, all of which are paramount for components handling substantial trailer weights.
The structural integrity is further enhanced by the application of continuous welds. Unlike intermittent welds, continuous welds create an uninterrupted metallurgical bond along the entire joint line, maximizing the load-bearing capacity and distribution of stress. This advanced welding technique minimizes stress concentrations and potential points of failure, providing a homogenous structure that can withstand the severe torsional, shear, and tensile forces characteristic of heavy-duty towing. Each weld is performed to exacting standards, often utilizing advanced robotic welding or highly skilled manual processes, followed by rigorous inspection to verify weld penetration, bead quality, and absence of defects, ensuring a robust and reliable connection throughout the product's operational life.
To mitigate the detrimental effects of environmental exposure, the entire assembly is finished with a high-performance black powder-coat. This sophisticated coating process involves electrostatically applying a fine powder, typically a thermoplastic or thermoset polymer, to the metal surface, which is then cured under heat to form a hard, protective layer. The powder-coat finish provides superior resistance to corrosion, abrasion, chipping, and UV radiation compared to conventional liquid paints. Its excellent adhesion properties create an impermeable barrier against moisture, road salts, chemicals, and other corrosive agents frequently encountered in towing operations. The choice of black not only offers a professional aesthetic but also contributes to the longevity of the finish by absorbing less UV light and reducing visible imperfections over time, maintaining the product's appearance and protective qualities even in harsh conditions.
Ergonomic Design and Functional Adaptability
The 2 Inch Pintle Hitch Mounting Plate is engineered for maximum utility and adaptability, primarily characterized by its 3-position adjustability. This design feature allows the operator to precisely match the height of the pintle hook or combination hitch to various trailer heights, ensuring optimal tongue angle and load distribution. Proper tongue angle is crucial for stable and safe towing, preventing excessive downward or upward forces on the tow vehicle's hitch receiver, which can lead to premature wear, reduced handling, and increased risk of trailer sway. The ability to select from multiple mounting positions significantly enhances the versatility of the towing system, accommodating trailers with different coupler heights, from utility trailers to heavy equipment haulers.

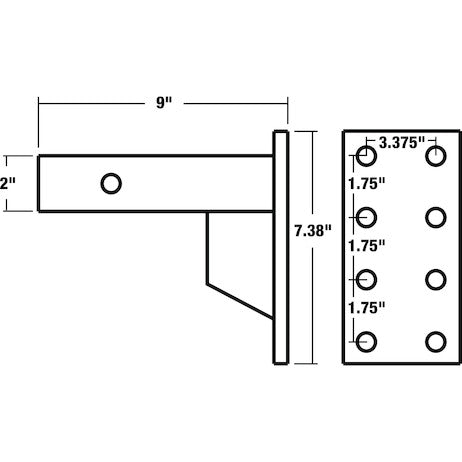

The mounting plate features a total height of 7.38 inches, providing ample vertical range for adjustment. The internal design incorporates 4 pairs of mounting holes, with a consistent vertical hole spacing of 1.75 inches. This standardized spacing is critical for compatibility with a wide array of commercially available pintle hooks and combination hitches, ensuring a secure and standardized attachment. The horizontal hole spacing is 3.375 inches, adhering to industry-standard dimensions for pintle hook mounting patterns. Each mounting hole possesses a diameter of 0.531 inches, precisely sized to accommodate standard Grade 8 mounting hardware, which is essential for achieving the specified load ratings and preventing hardware shear or loosening under dynamic loads.
The solid shank design, measuring 9.0 inches in length, is a deliberate engineering choice to maximize strength and minimize deflection. A solid shank provides superior bending and torsional rigidity compared to hollow shank designs, which is critical when towing heavy loads. The 9-inch length offers sufficient clearance between the tow vehicle's bumper and the trailer tongue, facilitating tighter turns and preventing interference during articulation. This length also positions the pintle hook far enough back to allow for proper maneuvering without compromising the structural integrity of the hitch receiver or the mounting plate itself. The shank is designed to slide precisely into a standard 2.0-inch receiver, providing a snug fit that minimizes play and slop, contributing to a more stable and controlled towing experience.
Performance Metrics and Safety Standards
The performance specifications of this pintle hitch mounting plate are a testament to its robust engineering. With a Maximum Gross Trailer Weight (M.G.T.W.) rating of 14,000 lbs, this unit is designed to handle substantial loads, making it suitable for a wide range of heavy-duty applications, including agricultural equipment, construction machinery, and large utility trailers. This rating indicates the maximum allowable weight of a fully loaded trailer that the mounting plate can safely accommodate, reflecting the combined strength of the carbon steel material, continuous welds, and the solid shank design. Adhering to this M.G.T.W. is paramount for preventing structural failure and ensuring the safety of the towing operation.
Equally important is the Maximum Vertical Load (M.V.L.), also known as tongue weight, rated at 2,800 lbs. The M.V.L. specifies the maximum downward force that the trailer tongue can exert on the hitch receiver. Proper tongue weight distribution, typically 10-15% of the M.G.T.W. for conventional trailers, is critical for maintaining vehicle stability, braking effectiveness, and steering control. An M.V.L. of 2,800 lbs indicates the plate's capacity to endure significant vertical stress without deformation or fatigue, accommodating trailers with heavy front-end loading. Exceeding either the M.G.T.W. or M.V.L. can lead to dangerous towing conditions, including loss of control, hitch failure, and severe structural damage to both the tow vehicle and the trailer. The robust construction of this mounting plate ensures that it can safely manage these forces within its rated capacities, providing a reliable foundation for heavy-duty towing.
These ratings are not arbitrarily assigned but are the result of extensive static and dynamic testing, simulating real-world towing conditions. Such testing often involves applying sustained and cyclic loads that exceed the rated capacities to determine the ultimate failure points and establish appropriate safety factors. Compliance with industry standards, such as those set by SAE International (Society of Automotive Engineers) for trailer hitches, ensures that the product meets or surpasses established performance benchmarks for durability, strength, and safety. This commitment to rigorous testing and adherence to standards provides end-users with confidence in the product's ability to perform reliably under demanding operational requirements.
Installation and System Integration
The installation of the 2 Inch Pintle Hitch Mounting Plate is straightforward, designed for seamless integration into any vehicle equipped with a standard 2-inch receiver tube. The solid shank slides directly into the receiver, and it is secured by a standard hitch pin and clip (not included, as these are typically supplied with the vehicle's receiver or purchased separately based on pin diameter requirements). The precise dimensions of the shank ensure a tight fit, minimizing movement within the receiver, which contributes to a more stable towing platform. Prior to installation, it is crucial to inspect both the vehicle's receiver and the mounting plate for any signs of damage or wear that could compromise the connection.
Once the mounting plate is secured, the chosen pintle hook or combination hitch can be attached to one of the three available mounting positions on the plate. This selection should be based on the specific trailer's coupler height, aiming to achieve a level towing configuration. Using Grade 8 bolts, nuts, and washers for attachment is strongly recommended, as these fasteners are engineered for high strength and shear resistance, critical for the severe forces involved in pintle towing. Proper torque application for these fasteners, as specified by the pintle hook manufacturer, is essential to prevent loosening under vibration and dynamic loads, thereby ensuring the integrity of the hitch connection.
This mounting plate is designed to be compatible with a broad spectrum of pintle hooks and combination hitches that adhere to standard mounting patterns. Its universal design characteristics make it an adaptable component for various towing setups, reducing the need for specialized equipment. This interoperability ensures that fleet managers and individual operators can easily interchange or upgrade pintle hooks as their specific towing needs evolve, without requiring a complete overhaul of their hitch system. The professional-grade construction ensures that it can serve as a dependable base for any compatible towing apparatus.
Applications and Operational Contexts
The robust design and high load capacity of the 2 Inch Pintle Hitch Mounting Plate make it indispensable across a multitude of heavy-duty applications. In the construction industry, it is frequently employed for towing equipment trailers laden with excavators, skid steers, scissor lifts, and other heavy machinery to and from job sites. Its durability and corrosion resistance are particularly valuable in harsh construction environments where exposure to dirt, debris, and adverse weather conditions is common. Agricultural operations also benefit significantly, utilizing the plate for hauling large implements, livestock trailers, and supply trailers across varied terrain.
Utility companies rely on this type of pintle mount for transporting utility poles, cable reels, and specialized service equipment, often across uneven or unpaved roads where the articulation provided by a pintle hitch is advantageous. Government agencies, including municipal public works departments and military logistics, find the plate suitable for a wide range of tasks, from snow removal equipment to tactical vehicle support. The ability to adjust the pintle hook height makes it versatile for diverse fleet compositions and trailer types. Its engineering ensures that it can withstand the continuous demands of commercial use, providing a reliable towing solution day in and day out.
Maintenance and Longevity
While the Buyers Products 2 Inch Pintle Hitch Mounting Plate is engineered for exceptional durability and features a protective powder-coat finish, proper maintenance is essential to maximize its service life and ensure continued safe operation. Regular inspection of the mounting plate, especially after severe towing tasks or prolonged exposure to harsh conditions, is highly recommended. Points of inspection should include the shank for any signs of bending or cracking, the mounting plate itself for deformation or stress fractures, and particularly the weld areas for integrity. The powder-coat finish should be checked for deep scratches, chipping, or areas where corrosion might be starting to form. Minor abrasions to the powder coat can be touched up with a corrosion-resistant paint to prevent rust proliferation.
The mounting holes should be kept free of debris and rust, ensuring that mounting hardware can be properly seated and torqued. Periodically, removing the pintle hook and thoroughly cleaning the mounting surfaces can prevent galvanic corrosion if dissimilar metals are in contact. Lubrication is generally not required for the mounting plate itself, but any associated pintle hook mechanisms should be lubricated according to their manufacturer's recommendations. Ensuring that the hitch pin and clip are always securely in place and free from damage is also critical. Adhering to these simple maintenance practices will extend the functional life of the pintle hitch mounting plate, maintaining its high performance and contributing to overall towing safety for many years.
Conclusion
The Buyers Products 2 Inch Pintle Hitch Mounting Plate with its 3-position adjustability and 9-inch solid shank is a paramount component for heavy-duty towing applications. Its meticulous construction from carbon steel, fortified with continuous welds and a protective powder-coat finish, ensures unparalleled strength, durability, and resistance to environmental degradation. The precise engineering of its dimensions, coupled with a robust 14,000 lbs M.G.T.W. and 2,800 lbs M.V.L. rating, underscores its capability to manage substantial loads safely and efficiently. Designed for seamless integration into 2-inch receiver hitches and offering critical height adjustability, this mounting plate provides exceptional versatility and performance across demanding commercial, industrial, and agricultural contexts. It represents an investment in reliability, operational efficiency, and, most importantly, the safety of your towing operations, making it an indispensable asset for any professional requiring steadfast heavy-duty towing solutions.
