SW710 - 50 Amp Heavy Duty Momentary On/Off Rotary Switch

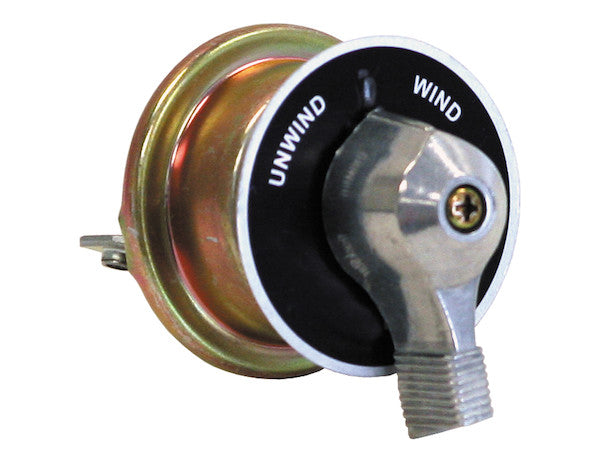

Buyers Products 50 Amp Rotary Switch is easy to use and controls winding and unwinding the tarp on your dump body or trailer. Its momentary ON-OFF-ON function is controlled by a lever-type, "crow's foot" actuator that comes with an aluminum name plate featuring UNWIND-WIND directions. The switch is built tough to last long. The zinc-plated case features four screw terminals with silver laminated contacts.

Specifications

Advanced Technical Overview: The Buyers Products 50 Amp Heavy-Duty Momentary ON-OFF-ON Rotary Switch for Tarp System Control

In the demanding environment of commercial vehicle operation, particularly for dump bodies and trailers equipped with automated tarp systems, the selection of robust and reliable electrical components is paramount. The Buyers Products 50 Amp Heavy-Duty Momentary ON-OFF-ON Rotary Switch represents a critical interface component engineered to provide precise, durable, and safe control over electric tarp motors. This detailed technical description aims to elucidate the design principles, material science, operational characteristics, and application benefits that position this switch as an indispensable asset for heavy-duty fleet operations.

Core Functionality: Momentary ON-OFF-ON Action for Bidirectional Motor Control

At the heart of this switch’s utility is its momentary ON-OFF-ON rotary function. Unlike a maintained switch that latches into an "ON" position until manually toggled "OFF," a momentary switch returns to its neutral "OFF" position upon release. This specific configuration, "ON-OFF-ON," is precisely tailored for bidirectional motor control applications, such as the winding and unwinding of tarps on commercial vehicles. In practice, the operator rotates the lever to one "ON" position (e.g., "UNWIND") to activate the tarp motor in one direction. Releasing the lever causes it to spring back to the central "OFF" position, deactivating the motor. Similarly, rotating the lever to the opposite "ON" position (e.g., "WIND") engages the motor in the reverse direction, with the same momentary return to "OFF" upon release. This mechanism offers several significant advantages:

• Enhanced Operator Control: The momentary action ensures that the operator maintains continuous, active engagement with the tarp system. This direct, tactile feedback is crucial for precise positioning and for preventing accidental over-winding or over-unwinding of the tarp, which could lead to mechanical stress or damage to the tarp material or the motor itself.
• Safety Interlock: By requiring constant operator input for motor activation, the switch inherently serves as a safety feature, reducing the risk of unattended or unintended tarp movement. In emergency situations, immediate release of the switch instantaneously halts the tarp operation.
• Reduced Wear and Tear: Precise control over the start and stop points of the tarp system can minimize sudden jolts and stresses on the motor, gears, and tarp fabric, thereby extending the overall lifespan of the entire system.

The "crow's foot" lever-type actuator design contributes to this precise control. This ergonomic design provides a substantial grip and a clear directional indicator, facilitating intuitive operation even when wearing work gloves or in low-light conditions. The tactile feedback inherent in the lever's movement and return to the center detent further reinforces operational clarity.

Robust Electrical Engineering: 50 Amp Heavy-Duty Rating

The designation "50 Amp Heavy Duty" is not merely a descriptive label but a fundamental indicator of the switch's electrical integrity and capacity for demanding applications. Tarp motors, particularly those used in commercial vehicles, are inductive loads characterized by significant inrush currents during startup. While the continuous current rating is 50 Amperes, this high capacity inherently provides a substantial margin for handling transient peak currents that can be several times the continuous rating. This robust current handling capability is crucial for preventing premature failure due to electrical arcing, overheating, or contact welding, common issues with underspecified switches in motor control circuits.

• Silver Laminated Contacts: The choice of silver laminated contacts is a testament to the switch's high-performance electrical design. Silver is renowned for its exceptional electrical conductivity and superior resistance to oxidation and corrosion, ensuring minimal contact resistance over the lifespan of the switch. Furthermore, silver exhibits excellent arc quenching properties, which is vital in high-current DC applications where breaking an inductive load can generate significant electrical arcs. The lamination process enhances the durability and mechanical strength of the silver contacts, optimizing cost-effectiveness without compromising performance. This design ensures consistent electrical connection reliability, even after thousands of operational cycles, which is critical in frequently used tarp systems.
• Four Screw Terminals: The implementation of four screw terminals offers a secure and highly conductive connection point for the heavy-gauge wiring typically required for 50 Amp circuits. Screw terminals provide a robust mechanical connection that is resistant to vibration and thermal cycling, common stressors in vehicle applications. This connection method allows for easy field installation and maintenance, enabling technicians to achieve optimal electrical conductivity by properly torquing the terminal screws, thereby minimizing resistance and heat generation at the connection points. The number of terminals supports the ON-OFF-ON functionality, typically allowing for dedicated power input, and separate outputs for "WIND" and "UNWIND" motor directions, facilitating straightforward wiring for reversing motor applications.

While a specific voltage rating isn't listed, a 50 Amp switch for vehicle applications is typically designed for 12V DC or 24V DC systems. The heavy-duty nature implies its ability to manage the power requirements for standard commercial vehicle electrical architectures without degradation.

Engineered for Extreme Durability: Construction and Material Science

The operational environment of commercial vehicles exposes components to a relentless barrage of environmental stressors, including moisture, dirt, road salt, temperature extremes, and constant vibration. The Buyers Products rotary switch is meticulously engineered to withstand these conditions, ensuring prolonged operational life and reliability.

• Zinc-Plated Case: The zinc-plated case provides exceptional corrosion resistance, a critical attribute for components exposed to the elements on dump bodies and trailers. Zinc plating creates a sacrificial barrier that protects the underlying base metal from rust and chemical degradation, significantly extending the switch's lifespan in harsh, corrosive environments. Beyond corrosion protection, the case offers robust mechanical protection for the internal electrical contacts and mechanisms, shielding them from impact and abrasion.
• Plastic Material (Actuator and Housing Components): While generally specified as "Plastic," the heavy-duty nature and application context strongly imply the use of high-grade engineering thermoplastics. Materials such as Nylon (Polyamide), ABS (Acrylonitrile Butadiene Styrene) blends, or high-impact Polycarbonate would be typical choices. These materials are selected for their superior mechanical properties, including high impact strength, excellent resistance to UV radiation (preventing embrittlement and discoloration from sun exposure), broad temperature resistance (from extreme cold to high heat), and good chemical resistance against common automotive fluids and cleaning agents. The black color specified is a practical choice, as it is resistant to showing dirt and grease, maintaining a professional appearance over time, and offering good contrast for the aluminum nameplate.
• Panel Mount Style: The panel mount configuration ensures secure integration into the vehicle's control console or dashboard. This mounting style protects the majority of the switch body from direct exposure to the environment, allowing only the actuator and nameplate to be visible and accessible. A proper panel mount also contributes to the overall rigidity of the control system, preventing unwanted movement or damage from operational forces and vibrations. Precise panel cutouts and secure fastening methods are crucial for maximizing the benefits of this mounting style.

Operational Clarity and User Experience

Beyond its robust construction and electrical performance, the design of this switch prioritizes operational clarity and ease of use, which directly translates to improved efficiency and safety for the operator.

• Aluminum Name Plate with "UNWIND-WIND" Directions: The inclusion of an aluminum name plate is a thoughtful detail that significantly enhances the user interface. Aluminum is a durable, corrosion-resistant material that withstands wear, fading, and chemical exposure much better than plastic labels or decals. The clearly marked "UNWIND-WIND" directions, likely etched or screen-printed, provide unambiguous instructions, minimizing operator confusion and reducing the potential for errors, especially under stressful conditions or for new operators. This clear labeling is critical for quick and efficient tarp deployment and retraction, directly impacting productivity on job sites.
• "Easy to Use" Philosophy: The combination of the ergonomic "crow's foot" lever, the clear, durable labeling, and the intuitive momentary ON-OFF-ON action collectively embodies an "easy to use" philosophy. In the fast-paced and often challenging environment of commercial hauling, components that are simple to operate reliably contribute to a smoother workflow and reduce operator fatigue.

Installation and System Integration

The "Pre-fused (y/n): No" and "Pre-Wired (y/n): No" specifications highlight the product's design for maximum flexibility in system integration. This approach allows installers and vehicle manufacturers to:

• Customized Fusing: Integrate the switch into the vehicle's existing electrical protection scheme, utilizing circuit breakers or fuses that are appropriately sized for the specific tarp motor and wire gauge, ensuring compliance with relevant electrical codes and safety standards. This flexibility avoids redundant fusing and ensures proper coordination with the vehicle's overall electrical system.
• Tailored Wiring: Utilize custom wiring harnesses that meet the specific length, routing, and connection requirements of the vehicle, optimizing installation time and material usage. This approach also allows for the use of high-quality, application-specific wiring and connectors, enhancing overall system reliability and performance.

When installing this switch, it is imperative to use appropriately sized wiring (e.g., 6 AWG or larger for 50 Amp circuits, depending on cable length and voltage drop considerations) and to ensure all connections are clean, secure, and properly insulated to prevent shorts, arcing, and thermal issues. Adhering to manufacturer's recommendations for panel cutout dimensions and terminal screw torque values will optimize mechanical stability and electrical integrity.

Applications and Operational Benefits

While primarily designed for the control of tarp systems on dump bodies and trailers, the robust specifications and momentary ON-OFF-ON functionality of this switch make it suitable for a range of other heavy-duty bidirectional motor control applications on commercial, agricultural, and industrial equipment. Examples could include winch controls, hoist controls, or other automated cover systems that require precise, operator-controlled movement.

The overarching benefits derived from integrating the Buyers Products 50 Amp Heavy-Duty Momentary ON-OFF-ON Rotary Switch into equipment include:

• Optimized Efficiency: Facilitates rapid and reliable tarp deployment and retraction, directly reducing loading/unloading times and improving overall operational throughput.
• Enhanced Safety: The momentary action and clear labeling reduce the potential for operational errors and provide immediate control, minimizing risks to personnel and equipment.
• Reduced Maintenance and Downtime: The heavy-duty construction, superior electrical contacts, and corrosion-resistant materials contribute to an extended service life, reducing the frequency of replacements and associated maintenance costs and vehicle downtime.
• Compliance and Reliability: As a robust, purpose-built component, it helps ensure that critical vehicle functions operate reliably and in accordance with best practices for commercial vehicle safety and performance.

Conclusion: A Benchmark in Heavy-Duty Control

The Buyers Products 50 Amp Heavy-Duty Momentary ON-OFF-ON Rotary Switch is more than just an electrical component; it is a precisely engineered solution for the rigorous demands of commercial vehicle operations. Its combination of a high current rating, advanced contact material technology, durable mechanical construction, and user-centric design provides unparalleled reliability and control. For fleet managers, equipment manufacturers, and owner-operators, this switch represents a strategic investment in the longevity, safety, and efficiency of their dump body and trailer tarp systems. It stands as a testament to the meticulous attention to detail required to produce components that not only meet but exceed the expectations of the heavy-duty sector.
