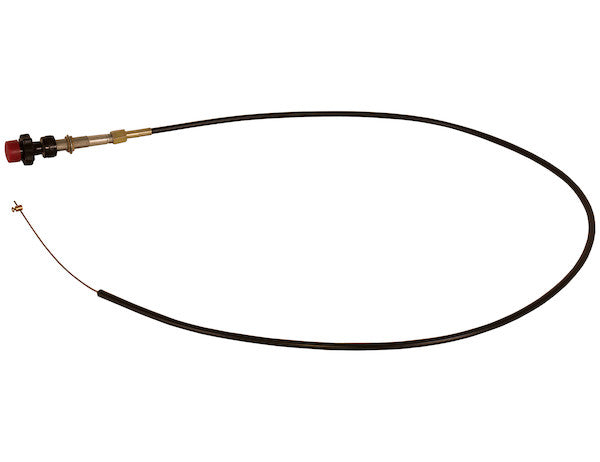

The 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable from Buyers Products offers smooth, reliable control for many PTO and dump applications. It's easy to use and install, and its detachable head makes adjustments fast and simple. The dual-ball locking mechanism secures the cable while in use. The large, easy-to-grab knob allows for fine tuning for precise settings. The cable's solid .088 in. diameter stainless steel core keeps tension strong. Cables are available in lengths of 6 ft to 35 ft to cover a wide range of applications. You can custom set the cable's travel length to fit your needs. Simply trim back the sheath and core wire to your desired length.
Specifications
| Cable Length (ft.) | 6.00 ' |
| End Type | Plain |
| Rod End Thread Size | - |
| Knob Material | Polymer |
| Detent Type | Adjustable Locking |
| Cable Diameter (in.) | 0.088 " |
| Bulkhead Thread Size | - |
| Mount Thread Size | 3/4-16 |
| Cable Core Material | Stainless Steel |
| Conduit Material | PVC |
| Conduit Color | Black |
| Total Travel (in.) | 3.25 " |
| Conduit Diameter | 0.375 " |
| Knob Thread Size | - |
| Cable Series | 4100 Series Vernier |
Advanced Technical Overview: 6 Foot Heavy Duty Vernier Adjustable Locking Control Cable (4100 Series)
The Buyers Products 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable, specifically the 6-foot variant, represents a pinnacle of precision engineering and robust construction designed for demanding operational environments. This control cable is meticulously crafted to deliver unparalleled accuracy and reliability in applications requiring fine-tuned, positive-locking control. As an essential component in a multitude of industrial, commercial, and heavy-duty mobile equipment scenarios, its design integrates advanced materials and mechanisms to ensure longevity, consistent performance, and superior user interaction.
Precision Control: The Vernier Adjustment Mechanism
At the core of the 4100 Series cable's superior performance is its Vernier adjustment mechanism, a sophisticated system that allows for minute, incremental positioning beyond what traditional detent-based controls can offer. Unlike standard push-pull cables with fixed detents, the Vernier system provides continuous, stepless adjustment over its entire 3.25-inch total travel. This is achieved through a finely threaded engagement between the control knob and the cable assembly, permitting operators to "dial in" an exact position with exceptional accuracy. The large, ergonomically designed polymer knob facilitates this precise manipulation, offering a comfortable and secure grip even when wearing work gloves. The polymer material is chosen not only for its durability and resistance to common industrial solvents and extreme temperatures but also for its tactile feedback, ensuring a confident operational experience. This capability for fine-tuning is critical in applications where even slight variations in cable position can significantly impact system performance, such as engine RPM control, hydraulic valve feathering, or delicate PTO engagement points. The Vernier principle fundamentally enhances operational control, enabling operators to achieve optimal performance parameters with minimal effort and maximum accuracy.
Robust Construction: The Heavy-Duty Stainless Steel Core
The "Heavy Duty" designation of the 4100 Series is underpinned by its exceptionally robust internal construction, centered around a solid .088-inch diameter stainless steel core wire. This choice of material and geometry is paramount to the cable's strength, durability, and operational characteristics. Stainless steel, specifically, offers outstanding resistance to corrosion, a critical factor in outdoor, marine, or otherwise harsh environments where exposure to moisture, chemicals, and road salts is common. Its inherent high tensile strength ensures that the cable can withstand significant pull forces without stretching or fracturing, maintaining the integrity of the control input. Furthermore, the solid core design provides superior compressive strength compared to stranded cable alternatives. This is crucial for push-pull applications, preventing buckling or compression of the cable under load, thereby ensuring precise and responsive actuation in both directions. The solid core also contributes to reduced internal friction and minimal lost motion, translating directly into a more direct and reliable connection between the operator's input and the controlled mechanism. This robust core is engineered for an extended service life, minimizing maintenance requirements and reducing the total cost of ownership over the product's lifespan.
Integrated Conduit System and Environmental Protection
Encasing the high-strength stainless steel core is a robust .375-inch diameter PVC conduit, integral to the cable's smooth operation and protection. The PVC (Polyvinyl Chloride) conduit material is selected for its excellent balance of flexibility, durability, and resistance to environmental degradation. It provides a low-friction pathway for the internal core wire, ensuring smooth actuation with minimal effort and hysteresis. Beyond mechanical guidance, the conduit acts as a critical protective barrier, shielding the stainless steel core from external contaminants such as dust, dirt, moisture, road debris, and corrosive agents, which are prevalent in heavy-duty applications. PVC's inherent resistance to abrasion, UV radiation, and many common industrial fluids further contributes to the cable's longevity and reliability in diverse operating conditions. The black color of the conduit is also UV stabilized, preventing material degradation and discoloration over time. This comprehensive protection system ensures that the internal components remain clean and functional, preserving the integrity of the control input and extending the operational life of the entire cable assembly.
Secure Engagement: The Dual-Ball Locking Mechanism
The 4100 Series cable incorporates a highly effective dual-ball locking mechanism, engineered to provide a secure and steadfast hold on any selected Vernier setting. Once the desired position is achieved via the Vernier knob, the dual-ball system engages, creating a positive lock that resists accidental movement, vibration-induced creep, or displacement under dynamic loads. This mechanism is critical for applications where maintaining a precise setting is paramount to operational safety and efficiency, such as maintaining a specific engine RPM, holding a hydraulic valve in an intermediate position, or securing a PTO in an engaged state. The dual-ball design enhances the locking force and provides a more distributed clamping action, ensuring a more reliable and consistent lock than single-point locking systems. This robust locking capability contributes significantly to operational safety by preventing unintended changes in control settings, thereby reducing the risk of equipment malfunction or operator error in critical situations. The intuitive design allows for quick and effortless engagement and disengagement, enhancing user experience while never compromising on security.
Versatile Applications: Engineered for Demanding Environments
While specifically highlighted for PTO (Power Take-Off) and dump applications, the 6-foot 4100 Series Heavy Duty Vernier Adjustable Locking Control Cable offers immense versatility across a broad spectrum of heavy-duty industrial and commercial equipment. In PTO systems, precise engagement and disengagement are crucial for the efficient operation of auxiliary equipment like hydraulic pumps, air compressors, winches, snowplows, and spreaders. The Vernier adjustment allows for fine-tuning the PTO engagement point, which can be critical for optimizing power transfer or modulating accessory speed. For dump applications, this cable provides precise control over hydraulic lift and lower functions for dump bodies and trailers, enabling operators to accurately position loads or feather descent rates. Beyond these core uses, its robust construction and precision control make it ideal for throttle control on diesel engines, allowing for precise RPM adjustments in stationary or mobile equipment. It can also be employed for choke control, particularly on larger engines, or as a reliable mechanism for actuating valves, engaging clutches, or selecting gears in complex machinery. Its "Plain" end type offers flexibility for integration into existing systems or custom linkages, requiring the attachment of specific clevises, clamps, or custom fabricated connections to the cable's plain end. The 6-foot length is particularly suitable for shorter runs within a vehicle's cabin or chassis, where the control point is relatively close to the actuated mechanism, minimizing excess cable and optimizing routing efficiency.
Installation Flexibility and Customization Potential
A key attribute of the 4100 Series cable is its inherent design for simplified installation and unparalleled customization. The robust 3/4-16 mount thread size on the main body of the control head ensures secure and industry-standard mounting to bulkheads, dashboards, or control panels, facilitating stable integration into a wide array of equipment platforms. The detachable head feature significantly simplifies initial installation and subsequent adjustments. This design allows the main control assembly to be mounted independently, with the cable then easily attached or detached, streamlining the routing process and making post-installation modifications or service tasks remarkably straightforward. Furthermore, the cable's design allows for custom setting of the travel length. This invaluable feature means that while the core cable is 6 feet long as supplied, users can precisely trim back both the outer PVC conduit and the inner stainless steel core wire to achieve the exact length required for their specific application. This customization capability minimizes excess cable slack, which can lead to inefficient routing, snags, and increased friction, thereby optimizing system responsiveness and reducing potential wear points. The trimming process is straightforward, typically requiring standard wire cutters for the core and a utility knife for the conduit, followed by proper end finishing to ensure longevity and prevent fraying. This adaptability reduces the need for multiple inventory SKUs for various lengths and allows for on-site modifications, providing significant logistical and installation benefits.
Operational Excellence and Performance Metrics
The combination of a solid stainless steel core, low-friction PVC conduit, Vernier adjustment, and dual-ball locking mechanism culminates in a product that delivers exceptional operational excellence. The cable's performance is characterized by exceptionally smooth and consistent operation, achieved through meticulous material selection and precise manufacturing tolerances that minimize internal friction. This translates into reduced operator fatigue and enhanced control feel. The high degree of precision offered by the Vernier adjustment ensures that critical settings can be replicated consistently, leading to improved system efficiency and reduced operational variance. Its heavy-duty construction guarantees outstanding durability and reliability, even when subjected to continuous use, heavy vibrations, and exposure to harsh environmental elements. The 3.25-inch total travel is a carefully engineered parameter, providing sufficient linear displacement for a wide range of control inputs while maintaining compactness. This balance between travel and form factor ensures that the cable can effectively actuate mechanisms without requiring excessive operator input or an overly long installation footprint. Ultimately, the 4100 Series cable is designed to provide a predictable, repeatable, and robust control solution that operators can depend on, day in and day out, in the most demanding applications.
Engineered for Lasting Value
Buyers Products is renowned for its commitment to quality and engineering excellence, and the 4100 Series Vernier control cable is a testament to this philosophy. Each component, from the high-grade stainless steel to the durable polymer knob and PVC conduit, is selected based on its ability to withstand the rigors of heavy-duty use. The design process incorporates stringent testing protocols to ensure that the cable meets or exceeds performance expectations for tensile strength, compressive load, fatigue resistance, and environmental durability. This meticulous approach to design and manufacturing ensures that the 6-foot Heavy Duty Vernier Adjustable Locking Control Cable delivers not just immediate functionality but long-term reliability and significant value to the end-user. It represents a sound investment for any application requiring a high-performance, precision push-pull control cable that can endure the toughest operational challenges.
