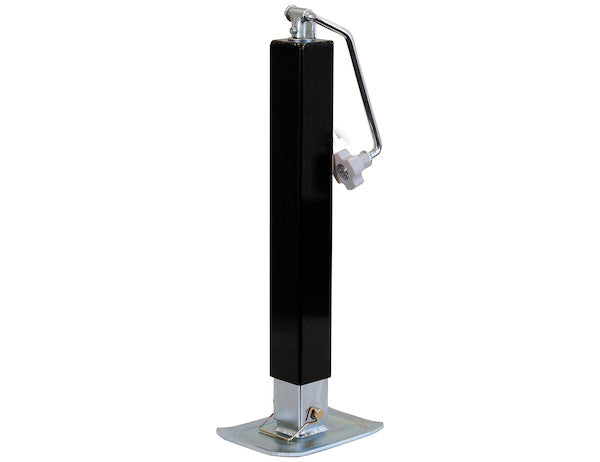

The Square Drop-Foot Jack from Buyers Products gives you extra height when using both the crank and quick-drop foot. With both, the jack can achieve a lift height of 26 in. The jack welds to the trailer tongue. Choose the crank location that works best for you. Both the top-mount and side-mount handles are ergonomic and easy-to-use. The sturdy square jack has a 7,000 lb tongue capacity for handling many towing applications.
Specifications
| Capacity | 7,000 |
|---|---|
| Color | Black |
| Extended Length (in.) | 51.10 |
| Finish | Powder-Coat |
| Material | Carbon Steel |
| Retracted Length (in.) | 22.60 |
| Square/Round | Square |
| Travel (in.) | 15.38 |
| Type | Weld On |
| Wind | Top Wind |
Advanced Technical Overview: Square Drop-Foot Trailer Jack
The Square Drop-Foot Trailer Jack, featuring a 2-1/2 inch square tube design and a robust top-wind mechanism, is engineered for superior performance and durability in demanding towing and support applications. This meticulously designed component offers an impressive 7,000 lb static tongue capacity, making it an indispensable asset for a wide range of utility, commercial, and industrial trailers. Its weld-on attachment type ensures a permanent and exceptionally strong connection to the trailer frame, optimizing load transfer and structural integrity. This jack represents a synthesis of advanced material science, precision manufacturing, and ergonomic design, providing unparalleled reliability and ease of use.
Design and Construction Excellence
Robust Square Tube Profile
The core structural element of this trailer jack is its 2-1/2 inch square outer tube. This square profile offers significant advantages over traditional round tube designs. Firstly, the inherent rigidity of a square cross-section provides superior resistance to torsional forces and lateral deflection, ensuring enhanced stability under heavy loads. This is particularly crucial during trailer coupling and uncoupling operations where dynamic side loads can occur. Secondly, the flat surfaces of the square tube facilitate a more secure and aesthetically pleasing weld-on attachment to the trailer frame, distributing stress evenly across the contact area. The precision-engineered inner tube fits snugly within the outer tube, minimizing play and maximizing vertical stability throughout the entire range of travel.
High-Strength Carbon Steel Material
Constructed from high-grade carbon steel, this jack guarantees exceptional strength-to-weight ratio and long-term durability. Carbon steel is specifically chosen for its excellent mechanical properties, including high tensile strength, yield strength, and resistance to fatigue under repetitive loading cycles. These characteristics are critical for components subjected to significant vertical and dynamic loads, such as trailer jacks. The material's inherent weldability also ensures that the weld-on installation creates a monolithic bond with the trailer's structural members, eliminating potential points of failure often associated with bolted connections in high-stress applications. The material composition is optimized to withstand the harsh environmental conditions typically encountered by trailers, from extreme temperatures to abrasive road debris.
Durable Powder-Coat Finish
To provide maximum protection against corrosion, abrasion, and environmental degradation, the jack is treated with a resilient black powder-coat finish. This advanced coating process involves electrostatically applying a dry powder to the steel surface, which is then cured under heat to form a hard, durable layer. Unlike traditional liquid paints, powder coating offers superior chip resistance, scratch resistance, and excellent chemical resistance, ensuring the jack maintains its structural integrity and aesthetic appeal over an extended service life. The black finish also contributes to UV stability, preventing fading and degradation when exposed to prolonged sunlight, thereby prolonging the lifespan and functional reliability of the unit in various outdoor environments.
Secure Weld-On Attachment
The design specifies a weld-on attachment, which is the preferred method for permanent and high-capacity trailer jacks. Welding provides a direct, uninterrupted load path from the jack to the trailer's structural frame, eliminating potential slippage or loosening that can occur with bolt-on alternatives. For optimal performance and safety, professional welding is recommended, adhering to industry standards such as AWS D1.1 for structural steel welding. Proper welding ensures that the jack becomes an integral part of the trailer chassis, maximizing its rated capacity and preventing any compromise in stability, particularly when supporting heavy trailer tongue weights during storage or hitching procedures. This permanent attachment method also offers superior theft deterrence compared to removable designs.
Performance Metrics and Operational Capabilities
Exceptional 7,000 lb Capacity
This trailer jack is rated with a robust 7,000 lb static tongue capacity, indicating its ability to safely support a substantial vertical load from the trailer tongue when stationary. This high capacity accommodates a wide array of heavy-duty trailers, including large utility trailers, livestock haulers, commercial equipment trailers, and certain marine applications. It is critical for operators to adhere strictly to this capacity rating to ensure operational safety and prevent premature wear or catastrophic failure. The design incorporates sufficient safety factors to account for minor dynamic loads during the coupling process, but deliberate overloading should always be avoided. The structural integrity of the square tube, combined with the high-strength carbon steel, underpins this impressive load rating, providing operators with confidence in its long-term performance.
Extended Operational Range: 26 inches Total Lift
The product offers a substantial operational height adjustment range, capable of achieving a 26-inch total lift. This critical specification is the sum of the mechanical screw travel and the adjustable quick-drop foot mechanism. The mechanical screw travel itself provides 15.38 inches of precise, controlled vertical movement. The quick-drop foot further extends this range, allowing for rapid, coarse height adjustments over approximately 10 to 11 inches. This combined travel ensures ample clearance for coupling to vehicles with varying hitch heights, as well as providing sufficient ground clearance when the trailer is uncoupled and parked, even on uneven terrain. This extensive range minimizes the manual effort required and enhances versatility across different operational scenarios.
Precision Mechanical Travel and Dimensions
The jack provides a mechanical travel of 15.38 inches, facilitated by a robust internal screw mechanism. This precise travel allows for fine adjustments during hitching and unhitching operations. The jack's retracted length is 22.60 inches, providing a compact profile for road clearance during transport. When fully extended, utilizing both the mechanical travel and the drop-foot, the jack reaches an extended length of 51.10 inches. These dimensions are crucial for planning installation, ensuring adequate ground clearance in the retracted position, and confirming sufficient extension to accommodate various trailer and tow vehicle height configurations. The precise engineering of these dimensions ensures seamless integration and optimal functionality.
Mechanism and Ergonomics
Efficient Top-Wind Operation
This jack features a top-wind crank mechanism, known for its ergonomic advantages and operational efficiency. The top-wind configuration positions the crank handle above the trailer tongue, making it easily accessible and operable even when the trailer is in close proximity to a tow vehicle or other obstructions. This design minimizes the need for an operator to bend or reach awkwardly, reducing physical strain and improving overall user experience. The integrated gear system within the top-wind housing is designed for smooth, low-effort operation, providing a mechanical advantage that allows for easy lifting of heavy trailer tongues. The handle itself is engineered for comfortable grip, further enhancing usability during repetitive operations.
Rapid Quick-Drop Foot Engagement
A key feature enhancing the functionality and efficiency of this jack is its quick-drop foot. This mechanism allows for rapid, tool-free height adjustments without the need to excessively crank the handle. The drop foot typically features multiple pre-drilled pin holes, enabling operators to quickly set the initial height close to the desired level. Once pinned in place, only minimal cranking is required to fine-tune the final height. This significantly reduces the time and effort involved in raising or lowering the trailer, particularly when dealing with substantial height differences or when frequent adjustments are necessary. The foot itself is designed for stability, often incorporating a broad base to prevent sinking into soft ground, further enhancing the jack's utility.
Precision Internal Gearing and Screw Mechanism
The internal mechanics of this jack are engineered for maximum efficiency and durability. It typically incorporates a high-efficiency screw drive system, often an ACME threaded screw, known for its ability to convert rotational motion into linear motion with high load-carrying capacity and self-locking properties. This means that once the trailer is lifted, the screw mechanism inherently resists backward rotation under load, maintaining the desired height without slippage. The gearing system, enclosed within the top-wind housing, is precisely machined to deliver optimal mechanical advantage, ensuring smooth and effortless operation even when approaching the maximum 7,000 lb capacity. High-quality bushings or bearings are strategically placed to minimize friction and wear, contributing to the jack's extended service life and consistent performance.
Installation and Maintenance Protocol
Professional Weld-On Installation Guidelines
The weld-on nature of this jack necessitates professional installation to ensure structural integrity and operational safety. The mounting surface on the trailer tongue must be clean, free of paint, rust, or grease, to allow for a strong, penetrating weld. The jack should be positioned to provide adequate clearance in both its retracted and extended states, avoiding interference with other trailer components, vehicle bumpers, or potential ground obstructions. Proper welding techniques, utilizing appropriate welding wire/rods, amperage, and shielding gases, are critical to forming a robust, continuous bead that distributes load effectively across the trailer frame. Post-weld inspection should confirm full penetration and the absence of defects such as cracks or porosity. It is recommended to consult the trailer manufacturer's guidelines for specific welding procedures and placement.
Routine Maintenance for Optimal Longevity
While designed for minimal maintenance, periodic inspection and lubrication are essential to ensure the jack's long-term performance and reliability. Operators should regularly inspect the jack for any signs of wear, damage, or corrosion, particularly on the internal screw mechanism, drop foot pin, and external tubing. The internal screw mechanism should be lubricated annually, or more frequently in harsh environments, using a high-quality, weather-resistant grease. This lubrication reduces friction, prevents rust buildup, and ensures smooth operation. The drop foot pin and its associated holes should also be kept clean and free of debris. Any signs of structural compromise, such as bent components or severe corrosion, warrant immediate replacement to prevent operational failure and ensure safety.
Versatile Applications and Safety Considerations
Diverse Application Suitability
The 7,000 lb capacity and robust design of this square drop-foot jack make it highly versatile for a broad spectrum of trailer applications. It is ideally suited for heavy-duty utility trailers, ensuring stable support for construction materials, landscaping equipment, or agricultural implements. Livestock trailers benefit from its reliable lifting and stabilization capabilities, providing a secure platform for animal loading and unloading. Smaller commercial trailers, such as those used for vending or specialized equipment transport, also gain significant operational advantage from this jack's dependable performance. Its rugged construction makes it suitable for environments where exposure to dirt, moisture, and impact is common, including off-road and construction sites.
Prioritizing Operational Safety
Safety is paramount when operating any trailer jack. Users must always ensure the trailer is parked on a level, stable surface and that the wheels are properly chocked before initiating any lifting or lowering operations. Never exceed the rated 7,000 lb capacity. During coupling or uncoupling, ensure the tow vehicle's parking brake is engaged. Avoid placing any body parts or objects underneath the trailer while the jack is in use. Regular inspections for structural integrity, signs of damage, or operational issues are crucial. Promptly addressing any concerns ensures the safety of operators and the longevity of the equipment. Adherence to these safety protocols prevents accidents and ensures consistent, reliable performance from the jack.
Conclusion
The Square Drop-Foot Trailer Jack, with its 2-1/2 inch square tube, top-wind mechanism, and 7,000 lb capacity, stands as a testament to robust engineering and practical design. Its carbon steel construction, powder-coat finish, and weld-on attachment provide a foundation of durability and reliability. Offering a substantial 26-inch total lift with precise mechanical travel and a quick-drop foot, this jack delivers exceptional operational flexibility. Designed for ease of use, long-term performance, and critical safety, it is an indispensable component for any heavy-duty trailer, reflecting a commitment to quality and functional excellence.
