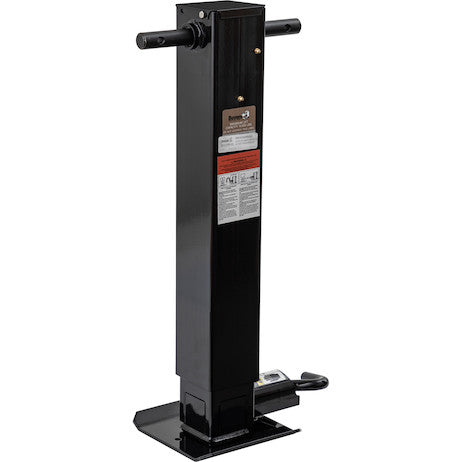

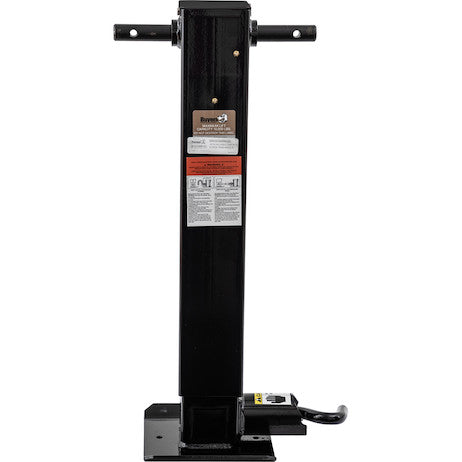

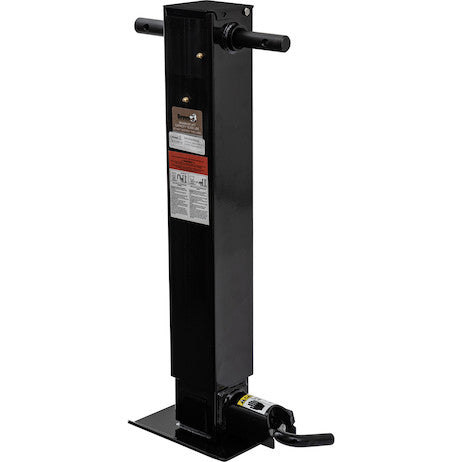

The Side-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy side-mounted pin to drop the leg. Ideal for RVs, construction trailers and triaxial trailers, each jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity. The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad. Note: If using dual jacks, use the front pin style of this product. 39.72" fully extended; 27.28" fully retracted.
Specifications
| Color | Black |
|---|---|
| Dynamic Capacity | 10,000 |
| Extended Length (in.) | 54 |
| Finish | Powder-Coat |
| Foot | Spring assist foot return: Foot pad retracts with spring assist when locking pin is disengaged. |
| Material | Carbon Steel |
| Retracted Length (in.) | 28.5 |
| Square/Round | Square |
| Static Capacity (lbs) | 12,000 |
| Travel (in.) | 13 |
| Type | Weld On |
| Wind | Side Wind |
The 12-inch Heavy-Duty Side Pin 4 Inch Square Jack from Buyers Products represents a robust and indispensable component engineered for the demanding requirements of commercial and recreational trailer applications. Designed without a conventional handle or winding mechanism, this specific model prioritizes rapid deployment and secure static support through its highly efficient spring-return drop leg system. Its specialized design caters to users requiring dependable ground engagement and stabilization without the need for incremental height adjustments typically achieved with screw-type jacks, making it ideal for scenarios where quick setup and robust static holding are paramount.
At its core, this jack features a substantial 4-inch square outer tube, a critical design choice that significantly contributes to its heavy-duty classification. Square tubing offers superior torsional rigidity and resistance to bending compared to round alternatives, ensuring exceptional stability under heavy asymmetrical loads. This structural advantage is particularly beneficial in applications such as construction trailers, where dynamic forces during loading and unloading, or the inherent instability of uneven terrain, can impose considerable stress on the support system. The material composition, high-grade carbon steel, is selected for its optimal balance of strength, ductility, and weldability, facilitating secure integration into the trailer frame and ensuring long-term structural integrity.
The operational mechanism is centered around a robust side-mounted pin and a spring-return drop leg. This "side pin" design simplifies the extension and retraction process: the operator merely pulls the sturdy pin to disengage the locking mechanism, allowing the inner leg to drop quickly to the desired height. The integral spring-return system ensures the footpad, which is included, retracts automatically upon pin disengagement, preventing it from catching on obstacles during transit and enhancing overall user convenience and safety. This system provides approximately 13 inches of vertical travel, offering sufficient range for leveling trailers on varied terrains or adjusting coupling heights. The fully retracted length of the jack stands at 28.5 inches, providing ample ground clearance when the trailer is in motion, while extending to approximately 41.5 inches when the drop leg is fully deployed (calculated from retracted length plus travel). This precise control over vertical positioning without a handle streamlines operations, particularly in environments where speed and straightforward functionality are prioritized over fine-tuning.
Load capacity is a critical performance metric for any trailer jack, and this model excels with impressive ratings. It boasts a dynamic capacity of 10,000 pounds and a static capacity of 12,000 pounds. Understanding the distinction between these two specifications is crucial for safe and effective operation. Dynamic capacity refers to the maximum load the jack can sustain while the trailer is subjected to movement, vibration, or minor impacts, reflecting its ability to absorb kinetic energy without structural failure. This is particularly relevant when a trailer is being hitched, unhitched, or moved short distances on uneven ground. Static capacity, conversely, represents the maximum weight the jack can safely support when the trailer is stationary, such as during long-term parking or when supporting heavy machinery on a job site. These robust capacities ensure that the jack can reliably support a wide range of heavy-duty trailers, from large recreational vehicles to fully loaded construction and industrial transport platforms, providing an ample margin of safety even under challenging conditions.
Durability against environmental factors is paramount for outdoor equipment. The jack features a high-quality black powder-coated finish. Powder coating is an advanced dry finishing process that involves electrostatically applying finely ground particles of pigment and resin to the carbon steel surface. The part is then cured under heat, causing the powder to melt and flow into a smooth, uniform, and extremely durable coating. This finish provides superior resistance to chipping, scratching, fading, and general wear compared to traditional liquid paints. Crucially, it offers excellent protection against corrosion from moisture, road salts, chemicals, and UV radiation, which are common deteriorating agents in outdoor and vehicular applications. This weather-resistant finish not only maintains the aesthetic appeal of the jack but, more importantly, extends its operational lifespan, minimizing maintenance requirements and replacement costs over time.
The design includes a robust footpad, an essential accessory for stability and ground protection. The footpad disperses the load over a larger surface area, preventing the jack from sinking into soft ground, asphalt, or damaging delicate surfaces. This feature is particularly vital for RVs parked on grass or gravel, and for construction trailers positioned on uneven or loose soil, ensuring consistent and secure support. Its spring-assist return mechanism further streamlines operation, allowing for effortless retraction with the simple pull of the side pin.
The installation method for this jack is "weld-on," indicating that it is designed for permanent and robust attachment directly to the trailer frame. Weld-on installation offers several advantages over bolt-on alternatives, including superior load transfer, increased structural rigidity, and a more secure, tamper-resistant connection. This method ensures that the jack becomes an integral part of the trailer's chassis, capable of withstanding the immense forces associated with heavy loads and dynamic operational environments. Professional welding is recommended to ensure proper fitment and to maintain the integrity of both the jack and the trailer frame, guaranteeing that the full rated capacity can be safely utilized.
Versatility in application is a hallmark of this heavy-duty jack. It is explicitly recommended for RVs, construction trailers, and triaxial trailers. For RVs, it provides critical stabilization, minimizing sway and tilt when parked, enhancing comfort and safety for occupants. On construction sites, these jacks are invaluable for leveling and supporting heavy equipment trailers, mobile offices, or temporary structures, ensuring a stable platform for work operations. For triaxial trailers, which handle exceptionally heavy and often disproportionately distributed loads, the robust capacity and stable support of this square jack are essential for safe loading, unloading, and static positioning. Beyond these primary applications, its design makes it suitable for various other heavy-duty trailers, including agricultural trailers, industrial equipment carriers, utility service trailers, and cargo trailers, where reliable, high-capacity static support is frequently required.
Operational considerations and safety guidelines are critical for maximizing the performance and longevity of the 12-inch Heavy-Duty Side Pin 4 Inch Square Jack. While designed for robust performance, adherence to the specified dynamic and static capacities is paramount to prevent overloading, which can lead to structural damage or catastrophic failure. When utilizing multiple jacks for larger trailers, it is imperative to ensure even load distribution across all support points to prevent undue stress on any single jack or section of the trailer frame. The manufacturer's recommendation to use front-pin style jacks for dual applications suggests a design consideration related to clearance, operational ergonomics, or specific mounting requirements that optimize performance in tandem configurations. Users should always ensure the jack is deployed on firm, level ground. If soft ground conditions are unavoidable, supplementary support, such as sturdy wooden blocks or metal plates beneath the footpad, should be used to further distribute the load and prevent sinking.
The absence of a handle, as clearly stated in the product title, underscores its specific functional profile: a manual drop leg jack. This design simplifies the mechanism, removing the complexity and potential failure points associated with gear-driven screw jacks. While it lacks the fine-tuning capability of a screw jack, its primary benefit lies in rapid, straightforward height adjustments and unparalleled static support strength for its class. This makes it an excellent choice for applications where the primary need is robust, unyielding support rather than incremental lifting or lowering.
In summary, the 12-inch Heavy-Duty Side Pin 4 Inch Square Jack offers a compelling combination of strength, durability, and practical functionality. Its heavy-duty carbon steel construction, substantial 4-inch square tube, and protective black powder-coated finish ensure longevity and reliable performance in demanding environments. With impressive 10,000 lb dynamic and 12,000 lb static capacities, coupled with a highly efficient 13-inch spring-return drop leg mechanism, this jack provides swift, secure stabilization for a wide array of heavy-duty trailers. The integrated footpad enhances stability across diverse terrains, and its weld-on installation type guarantees a permanent and robust attachment. This jack is an ideal solution for professionals and enthusiasts who prioritize uncompromising strength, rapid deployment, and minimal maintenance for their heavy-duty trailer applications.
