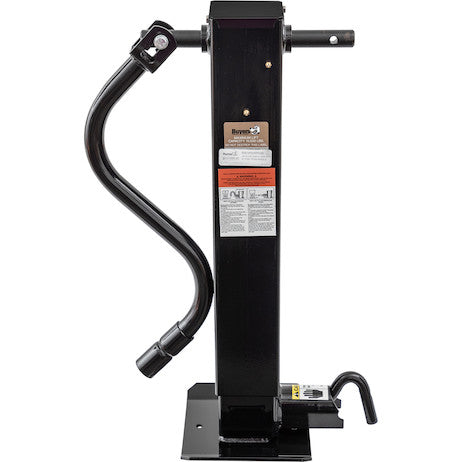

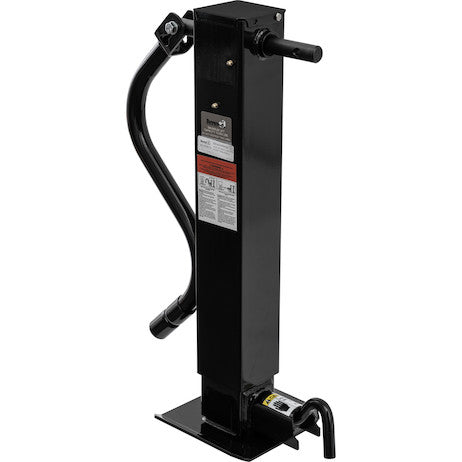

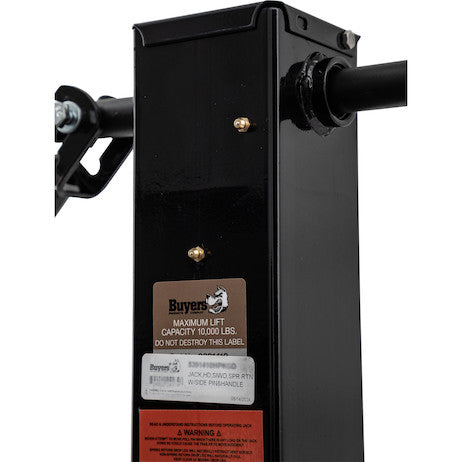

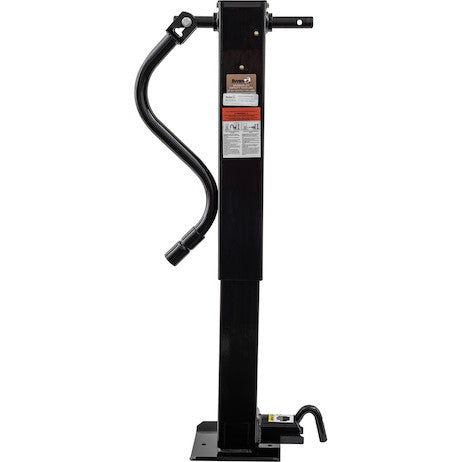

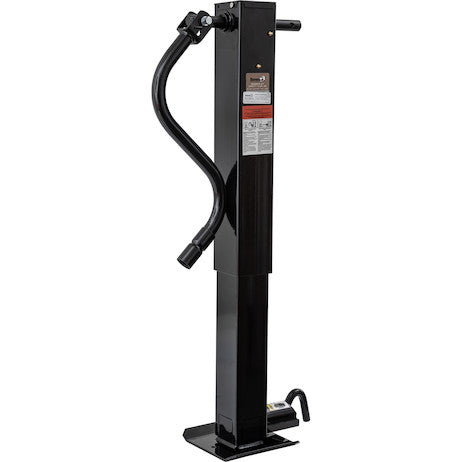

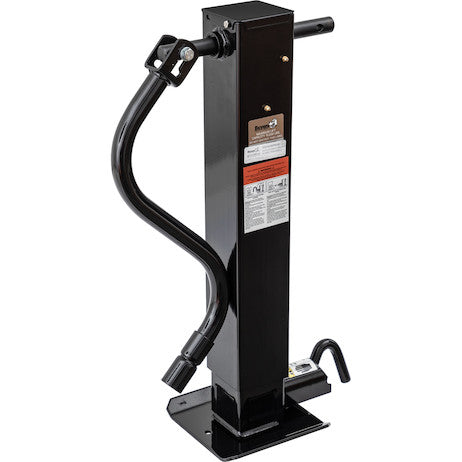

The Side-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy side-mounted pin to drop the leg. Ideal for RVs, construction trailers and triaxial trailers, each jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity. The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad. Note: If using dual jacks, use the front pin style of this product. 39.72" fully extended; 27.28" fully retracted.
Specifications
| Color | Black |
|---|---|
| Dynamic Capacity | 10,000 |
| Extended Length (in.) | 54 |
| Finish | Powder-Coat |
| Foot | Spring assist foot return: Foot pad retracts with spring assist when locking pin is disengaged. |
| Material | Carbon Steel |
| Retracted Length (in.) | 28.5 |
| Square/Round | Square |
| Static Capacity (lbs) | 12,000 |
| Travel (in.) | 13 |
| Type | Weld On |
| Wind | Side Wind |
The 12-inch Heavy-Duty Side Pin 4-inch Square Jack with Handle by Buyers Products represents a robust and technically advanced solution for trailer stabilization and leveling requirements across a diverse range of demanding applications. Engineered for superior performance and longevity, this jack is a critical component for maintaining operational efficiency and safety in environments ranging from recreational vehicle (RV) deployments to heavy-duty construction and specialized triaxial trailer operations. Its design integrates several key engineering principles to deliver exceptional load-bearing capability, ease of use, and resistance to environmental degradation.
At the core of this jack's design is its substantial load capacity, featuring a dynamic rating of 10,000 lbs and a static rating of 12,000 lbs. Understanding these ratings is crucial for proper application. The dynamic capacity refers to the maximum load the jack can effectively support and operate under while the trailer is in motion or being adjusted. This accounts for the stresses and movements associated with raising and lowering operations. The static capacity, conversely, indicates the maximum load the jack can safely support when the trailer is stationary and at rest. These figures underscore the jack's heavy-duty classification, positioning it as an ideal choice for trailers with significant gross vehicle weight ratings (GVWRs) and those carrying substantial payloads. The substantial difference between dynamic and static capacity provides an inherent safety margin, ensuring structural integrity even under varied operational stresses.
The mechanical architecture of this jack is defined by its 4-inch square tube construction. This square profile offers distinct advantages over traditional round tube designs, primarily in terms of torsional rigidity and structural stability. The four-sided geometry distributes stress more evenly across its cross-section, significantly enhancing resistance to bending and twisting forces that are commonly encountered during trailer stabilization. This increased rigidity is particularly beneficial when the jack is subjected to uneven ground conditions or lateral loads, ensuring the trailer remains stable and level. Manufactured from high-grade carbon steel, the structural integrity of the main tube is further bolstered, providing exceptional tensile strength and fatigue resistance necessary for prolonged heavy-duty use.

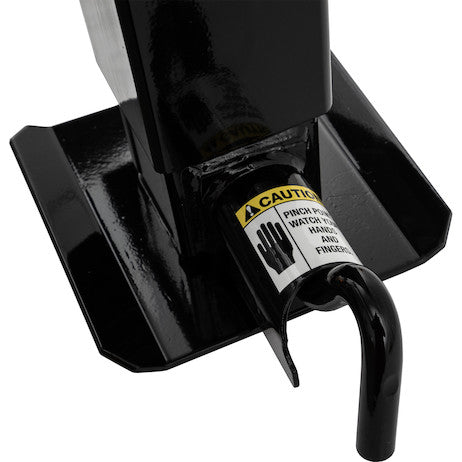

A hallmark feature of this jack is its innovative side-pin spring-return drop leg mechanism. This system is designed for enhanced user convenience and operational efficiency. The drop leg functions as an initial height adjustment component, allowing for rapid reduction or extension of the jack's effective length before the main screw mechanism is engaged. By simply pulling the sturdy side-mounted pin, the spring-return mechanism facilitates the swift and controlled retraction or expansion of the footpad. This spring-assist function minimizes manual effort and accelerates the process of setting up or stowing the jack, a valuable attribute in fast-paced operational environments. The precise engagement of the side pin ensures secure locking of the drop leg at desired height increments, preventing accidental slippage during critical operations. The stated travel of 13 inches refers to the range of vertical adjustment provided by the screw mechanism, while the drop leg extends the overall operational height range. With an extended length of 54 inches and a retracted length of 28.5 inches, the jack offers significant versatility for trailers of varying coupler heights.
Durability and environmental protection are paramount for equipment used in outdoor and often harsh conditions. This 12-inch heavy-duty jack addresses these concerns through its robust black powder-coated finish. Powder coating is a superior finishing process compared to conventional liquid painting, offering enhanced resistance to chipping, scratching, fading, and general wear. More importantly, it provides a formidable barrier against corrosion, rust, and chemical degradation, which are critical considerations for components exposed to road salts, moisture, UV radiation, and various industrial solvents. This protective layer ensures the carbon steel structure remains intact and functional over an extended service life, reducing maintenance requirements and preserving the aesthetic integrity of the unit. The inherent properties of carbon steel combined with this advanced finish contribute significantly to the jack's long-term reliability and reduced total cost of ownership.
The operational interface of the jack is engineered for user comfort and efficiency, featuring a side-wind handle. This handle position offers ergonomic benefits, allowing for natural body posture during cranking and minimizing strain, especially when considerable force is required to lift heavy loads. The gearing mechanism within the jack, though not explicitly detailed, is designed to translate rotational input from the handle into powerful linear vertical movement of the inner tube. High-quality internal components, likely including an Acme screw and durable bushings or bearings, ensure smooth, consistent operation with minimal friction. This contributes to the jack's ability to maintain its rated capacity without excessive user effort, even after prolonged use. The integration of a footpad at the base of the drop leg further enhances stability by providing a broad, flat contact surface that effectively distributes the load over various terrains, preventing the jack from sinking into soft ground or damaging paved surfaces. The spring-assist feature for the foot return ensures that the footpad retracts seamlessly with the drop leg when the locking pin is disengaged, preventing obstruction during movement or storage.
This particular model is designed as a "Weld On" type, signifying its intended method of installation onto the trailer frame. Weld-on jacks offer superior structural integration and load transfer capabilities compared to bolt-on alternatives. When properly welded by a qualified professional, the jack becomes an integral part of the trailer's chassis, ensuring maximum strength and stability under load. This method eliminates the potential for loosening bolts, stress concentrations around bolt holes, or shear forces that can compromise the connection over time, particularly in applications involving dynamic loads or significant vibration. The direct fusion of the jack to the trailer frame via welding creates a robust, permanent attachment that is essential for heavy-duty applications where reliability cannot be compromised.
In addressing specific application scenarios, the 12-inch Heavy-Duty Side Pin 4-inch Square Jack proves its versatility. For RVs, it provides indispensable support for leveling and stabilizing the vehicle when parked, mitigating rocking and improving comfort. Its substantial capacity is well-suited for larger travel trailers, fifth-wheel campers, and motorhomes, ensuring a secure and stable foundation for extended stays. In construction environments, trailers often serve as mobile workshops, storage units, or transport platforms for heavy machinery. The robust design and high capacity of this jack allow construction trailers to be securely decoupled and stabilized on uneven job sites, facilitating safe loading, unloading, and personnel movement without risk of tipping or instability. For triaxial trailers, which present unique challenges due to their extended length and distributed weight, the need for robust and reliable support is amplified. This jack offers the necessary strength to manage the complex load distribution of such trailers, preventing unwanted articulation or instability during unhitching and parking.
Furthermore, the detailed specifications provide a clear outline of the product's attributes. The "Color: Black" and "Finish: Powder-Coat" speak to its aesthetic and protective qualities. The "Material: Carbon Steel" reinforces its foundational strength. The "Square/Round: Square" and "Wind: Side Wind" precisely define its form factor and operational mechanics. These technical data points are critical for professionals who require precise information for integration into trailer designs or for maintenance and replacement considerations.
When considering the operational note regarding dual jacks, it's essential to understand its implication. For synchronized operation and proper load distribution in dual-jack setups, utilizing a front-pin style jack alongside this side-pin model often ensures that both mechanisms are accessible and operate smoothly without interference. This consideration highlights Buyers Products' attention to practical user scenarios and system compatibility.
Maintenance for the 12-inch Heavy-Duty Side Pin 4-inch Square Jack is straightforward, primarily involving periodic inspection and lubrication. Regular checks of the side-pin mechanism, the drop leg, and the screw assembly for any signs of wear, damage, or foreign debris are recommended. Applying a suitable lithium-based grease to the screw and internal gears, typically through access points if provided, will ensure continued smooth operation and extend component life. The integrity of the powder-coated finish should also be periodically inspected, and any deep scratches or chips should be addressed to prevent localized corrosion, although the robustness of the finish makes this less frequent than with conventional paint. Adhering to these simple maintenance practices will ensure the jack performs reliably for many years, upholding its intended heavy-duty function.
In summary, the 12-inch Heavy-Duty Side Pin 4-inch Square Jack with Handle from Buyers Products is a meticulously engineered piece of equipment designed to meet the rigorous demands of heavy-duty trailer applications. Its combination of high dynamic and static capacities, robust carbon steel construction, weather-resistant black powder coat finish, and user-centric features like the side-pin spring-return drop leg and side-wind handle, position it as a premier choice for professionals. The weld-on installation type ensures maximum structural integration and reliability, while its versatility makes it suitable for RVs, construction trailers, and specialized triaxial units. This jack is not merely a component; it is a critical investment in the safety, stability, and operational efficiency of any heavy-duty trailer system, engineered to perform consistently and reliably under the most challenging conditions. Its design reflects a deep understanding of the forces and environmental factors involved in trailer support, providing a durable, efficient, and secure foundation for various mobile platforms.
