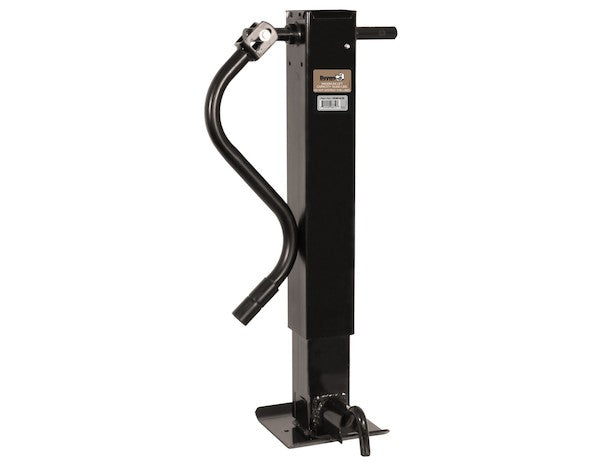

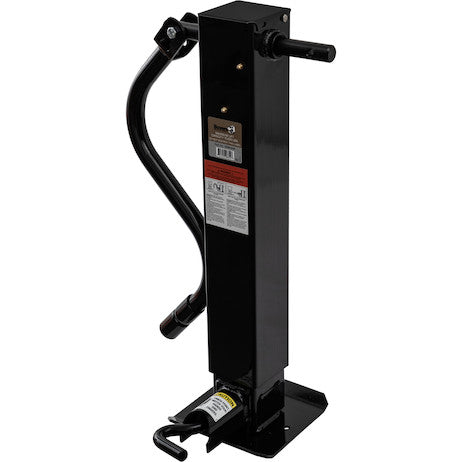

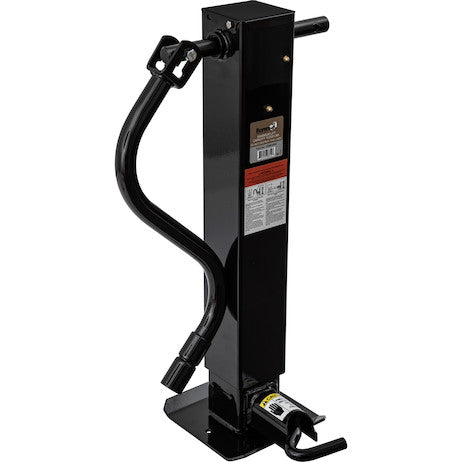

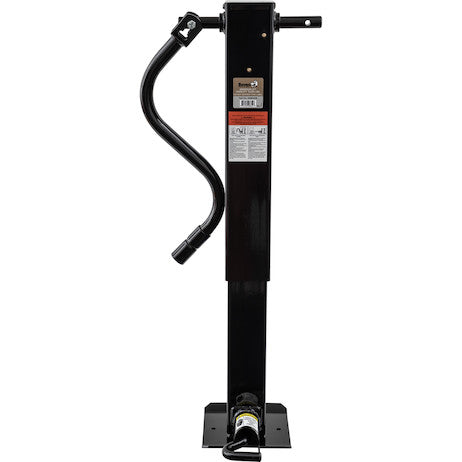

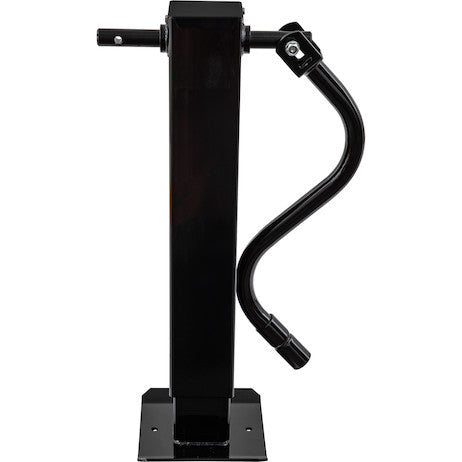

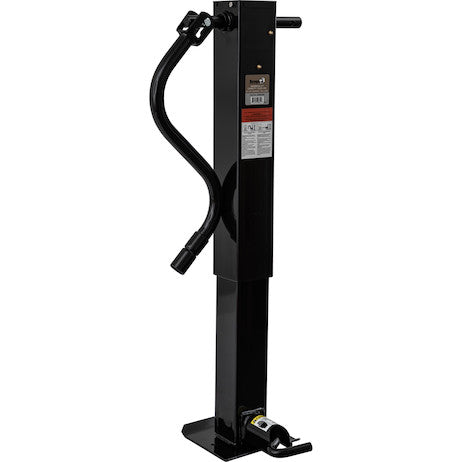

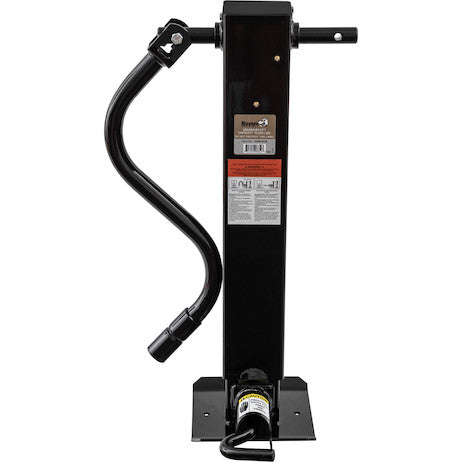

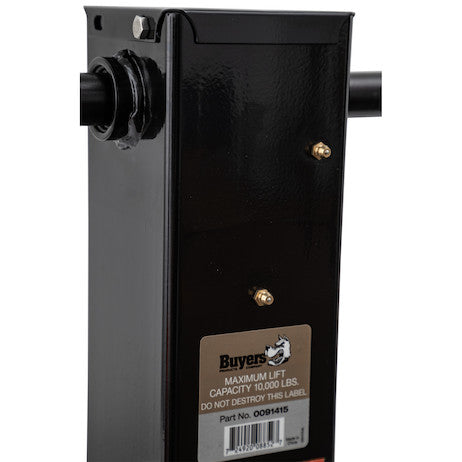

The Front-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy front-mounted pin to drop the leg. The Square Jack is often used in pairs, connected to each other, for the heaviest duty lifting. Ideal for RVs, construction trailers and tri-axial trailers, the jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity. The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad. It can be ordered with or without a handle.
Specifications
| Color | Black |
|---|---|
| Dynamic Capacity | 10,000 |
| Extended Length (in.) | 54 |
| Finish | Powder-Coat |
| Foot | Spring assist foot return: Foot pad retracts with spring assist when locking pin is disengaged. |
| Material | Carbon Steel |
| Retracted Length (in.) | 28.5 |
| Square/Round | Square |
| Static Capacity (lbs) | 12,000 |
| Travel (in.) | 13 |
| Type | Weld On |
| Wind | Side Wind |
Unveiling the 12-Inch Heavy-Duty Front Pin 4-Inch Square Jack: Precision Engineering for Demanding Applications
In the realm of commercial and industrial trailer operations, the stability and reliability of landing gear are paramount. The 12-Inch Heavy-Duty Front Pin 4-Inch Square Jack with Handle represents a pinnacle of robust engineering, meticulously designed to meet the rigorous demands of heavy-duty lifting and stabilization. This comprehensive technical overview delves into the advanced features, material science, operational mechanics, and diverse applications that position this jack as an indispensable component for professionals across various sectors. From its impressive load capacities to its user-centric design, every aspect of this jack has been optimized for superior performance and longevity.
Core Design Philosophy: Strength, Stability, and User Efficiency
The fundamental design of this heavy-duty jack is rooted in a commitment to delivering maximum strength, unwavering stability, and operational efficiency. The choice of a 4-inch square tube construction, rather than a round profile, is a deliberate engineering decision. Square tubes inherently offer superior torsional rigidity and resistance to bending under eccentric loads. This enhanced structural integrity is critical when supporting significant weights, particularly those prone to shifting or encountering uneven terrain. Crafted from high-grade carbon steel, the jack’s core structure provides an exceptional strength-to-weight ratio, ensuring it can withstand substantial static and dynamic forces without compromise. This material selection also facilitates a robust weld-on installation, creating a monolithic connection with the trailer frame for maximum load transfer and security.
Understanding Load Capacities: Dynamic vs. Static Performance
A crucial aspect of any heavy-duty lifting device is its specified load capacity, which for this jack, is bifurcated into dynamic and static ratings. The 10,000 lb dynamic capacity signifies the maximum weight the jack can competently lift and lower during active operation. This rating accounts for the stresses and forces encountered while the screw mechanism is engaged and the load is in motion. It considers factors such as friction, mechanical advantage, and the structural integrity of the components under operational stress. Conversely, the 12,000 lb static capacity refers to the maximum weight the jack can safely support when stationary, without any active manipulation. This higher rating reflects the jack's ability to maintain a stable posture under sustained load, where the mechanical components are not undergoing active movement. These specifications underscore the jack's capability to manage substantial weights both during transit and when parked, making it suitable for a wide array of heavy trailers including large RVs, fully-loaded construction trailers, and multi-axle industrial platforms.
Advanced Front-Pin Drop Leg Mechanism with Spring Assist

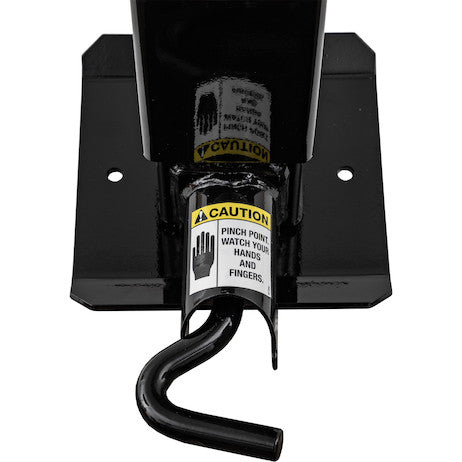

A standout feature of this heavy-duty square jack is its innovative front-pin spring-return drop leg mechanism. This system significantly enhances user safety and operational convenience. The traditional method of manually extending or retracting a drop leg often involves awkward positioning and considerable physical effort. This jack simplifies the process: by merely pulling a sturdy, front-mounted pin, the spring-return mechanism is activated. This activation allows the lower leg to rapidly extend or retract under its own spring tension, significantly reducing the manual intervention required. The spring assist for the foot return ensures that once the locking pin is disengaged, the foot pad quickly retracts, preventing it from dragging or interfering during trailer movement. This design not only saves time but also minimizes the risk of back strain or injury for the operator, providing an ergonomic advantage in frequent coupling and uncoupling operations.
Precision Gearing and Side Wind Operation
The internal gearing mechanism is a critical component influencing both the effort required for operation and the precision of lift. This jack utilizes a side wind operation, meaning the handle is positioned horizontally and rotates parallel to the ground. This configuration offers several advantages:
- Ergonomics: Side wind handles generally provide a more natural and less strenuous operating posture compared to top wind designs, especially when extended cranking is required.
- Clearance: It often allows for better clearance in tight spaces, as the handle rotation does not extend vertically.
- Efficiency: The internal gear ratios are precisely engineered to translate rotational input from the handle into substantial vertical lifting force with minimal operator effort. This mechanical advantage ensures that even heavy loads can be lifted smoothly and progressively.
Durability Through Advanced Surface Protection: Black Powder-Coated Finish
The harsh conditions inherent in trailer operations necessitate robust protection against environmental degradation. The 4-inch square tube and associated components are treated with a high-quality black powder-coated finish. This advanced coating technique offers superior performance compared to traditional liquid paints:
- Corrosion Resistance: Powder coating provides an exceptionally thick and uniform layer of protection, creating an impenetrable barrier against moisture, road salts, chemicals, and other corrosive agents that can lead to rust and material degradation.
- Impact and Abrasion Resistance: The polymeric nature of powder coating renders it highly resistant to chipping, scratching, and abrasion, preserving the aesthetic and structural integrity of the jack even in demanding conditions.
- UV Stability: The finish is formulated to resist fading and degradation from prolonged exposure to ultraviolet radiation, maintaining its appearance and protective qualities over the jack's lifespan.
Integrated Footpad for Enhanced Stability
Stability is paramount when a heavy trailer is decoupled. This jack is equipped with an integrated footpad, a crucial feature designed to distribute the load effectively over a larger surface area. This broad base significantly reduces the ground pressure exerted by the jack, preventing it from sinking into soft soil, asphalt, or gravel. The footpad's robust construction ensures a stable foundation, minimizing the risk of the trailer shifting or tipping, which is a significant safety concern. Its spring-assist return further streamlines operation, ensuring it retracts cleanly when the leg is lifted, preventing accidental dragging or damage during transit.
Versatile Application Spectrum: RVs, Construction, and Tri-Axial Trailers
The robust construction and high capacity of this 12-inch square jack make it exceptionally versatile across a range of heavy-duty applications:
- Recreational Vehicles (RVs): Large fifth-wheel or gooseneck RVs require sturdy and reliable landing gear for safe parking and leveling. This jack provides the necessary capacity and stability to support the significant weight of luxury RVs, ensuring a secure setup at campgrounds or temporary stops. The ease of the front-pin drop leg is particularly valued in this context for quick deployment and retraction.
- Construction Trailers: Utility trailers, equipment trailers, and mobile workshops on construction sites often carry substantial tools, materials, and machinery. The jack's dynamic and static capacities are well-suited to handle these heavy loads, while its durable, weather-resistant finish ensures operational reliability in harsh construction environments. Its robust weld-on attachment provides the permanent, strong connection needed for continuous duty.
- Tri-Axial Trailers: These trailers, commonly used for transporting heavy machinery, boats, or industrial goods, impose immense loads on their landing gear. The recommendation to use these square jacks in pairs, connected to each other, highlights their suitability for tri-axial and other multi-axle configurations. This dual setup distributes the load more evenly across multiple points, enhances longitudinal and lateral stability, and provides redundant support, which is critical for the heaviest duty lifting and prolonged static support.
Customization for Operational Needs: With or Without Handle
Recognizing the diverse operational setups and user preferences, this heavy-duty jack is available for order with or without a handle. This flexibility is a practical consideration for fleet managers and equipment operators. For new installations or as a standalone replacement, including the handle offers a complete, ready-to-operate solution. However, in situations where existing handles are already available, or specific handle configurations (e.g., custom lengths, specialized grips) are preferred, or where a power drive system is integrated, the option to purchase without a handle allows for cost savings and seamless integration into existing infrastructure. This customization capability ensures that the product fits precisely into the user's operational ecosystem without redundant components.
Dimensional Specifications and Installation Considerations
The precise dimensions of this jack are critical for proper integration and functionality. With a retracted length of 28.5 inches and an extended length of 54 inches, it offers a substantial range of vertical adjustment. The 13-inch travel provides sufficient lift for most hitching and leveling requirements, allowing operators to easily decouple trailers from tow vehicles of varying heights or to achieve a level stance on uneven ground. The "Weld On" type designation emphasizes that this jack is designed for permanent, structural integration with the trailer frame. Weld-on jacks offer superior strength and load transfer capabilities compared to bolt-on alternatives, making them the preferred choice for truly heavy-duty and long-term applications. Professional welding is recommended to ensure the integrity of the attachment, maximizing safety and performance.
Material Science and Engineering Principles
The selection of carbon steel for the main construction material is deliberate. Carbon steel offers an excellent balance of strength, ductility, and weldability, making it ideal for structural components that must endure dynamic loads and stresses. The square tube profile, as mentioned, further optimizes the material's properties by enhancing resistance to buckling and twisting. Internally, the screw mechanism is typically comprised of a robust ACME screw and nut system, often made from high-strength alloy steels, designed for high wear resistance and efficient power transmission. The gear train, integral to the side wind mechanism, is engineered with precision-cut gears to minimize backlash and maximize mechanical efficiency, ensuring smooth and reliable operation over thousands of cycles. Lubrication of these internal components is critical for longevity and is typically achieved through sealed housings containing appropriate greases, protecting against contamination and wear.
Safety and Maintenance Protocols
While engineered for durability, proper safety protocols and routine maintenance are essential to maximize the lifespan and operational safety of the 12-Inch Heavy-Duty Front Pin 4-Inch Square Jack.
- Regular Inspection: Operators should routinely inspect the jack for any signs of damage, deformation, corrosion, or excessive wear on the square tubes, pin mechanism, footpad, and weldments. Any structural compromises must be addressed immediately.
- Lubrication: Although often sealed, external moving parts or exposed sections of the screw mechanism should be kept clean and adequately lubricated according to manufacturer guidelines to ensure smooth operation and prevent premature wear.
- Load Limits: Never exceed the specified dynamic or static load capacities. Overloading can lead to catastrophic failure, posing severe safety risks.
- Stable Ground: Always deploy the jack on firm, level ground. The footpad helps, but uneven or soft surfaces can still compromise stability. Consider using additional blocking if ground conditions are poor.
- Paired Use: When lifting the heaviest loads, particularly on tri-axial or large construction trailers, using jacks in connected pairs is highly recommended to distribute weight, enhance stability, and prevent excessive stress on individual components.
The Investment in Reliability and Performance
Choosing the 12-Inch Heavy-Duty Front Pin 4-Inch Square Jack with Handle is an investment in unparalleled reliability, robust performance, and operator efficiency. Its meticulous engineering, high-grade materials, and thoughtful design features—from the spring-return drop leg and powerful load capacities to the durable powder-coated finish and adaptable handle option—collectively deliver a product that stands apart. For businesses and individuals operating demanding trailer applications, this jack provides the critical support infrastructure necessary to ensure safe, stable, and efficient operations, ultimately contributing to enhanced productivity and reduced downtime. It is not merely a component; it is a foundation for heavy-duty operational success.
