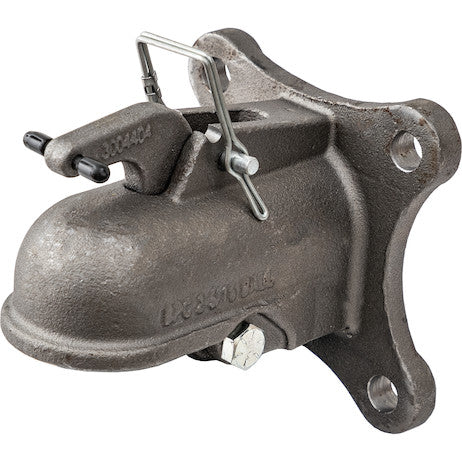

0091558 - 2-5/16 Inch One-Piece Cast Coupler

The One-Piece Cast Coupler from Buyers Products features a spring-loaded latch for fast, one-hand operation, taking the chore out of coupling your trailer. The latch can be pinned opened for ease of uncoupling. The coupler features a standard 4-1/2 in. bolt pattern for bolting to a trailer nose plate (sold separately). Made of heavy duty cast steel, the coupler can handle loads of 18,000 lb. It includes a zinc-plated latch with safety pin and cable.

Specifications

Advanced Technical Overview: 2-5/16 Inch One-Piece Cast Coupler for Heavy-Duty Applications

The 2-5/16 Inch One-Piece Cast Coupler from Buyers Products represents a pinnacle of engineering and material science, specifically designed to meet the rigorous demands of heavy-duty towing applications. This component is not merely an attachment point; it is a critical safety and performance element engineered for unwavering reliability under significant stress. Its robust design, characterized by a singular cast steel construction and an impressive 18,000 lb. Maximum Gross Trailer Weight (M.G.T.W.) rating, positions it as an indispensable choice for commercial, industrial, agricultural, and large recreational towing scenarios requiring a Class V coupling solution.

Superior Material and Construction: One-Piece Cast Steel Integrity

At the core of this coupler's exceptional performance is its one-piece cast steel construction. Unlike fabricated couplers that rely on welded assemblies, the casting process creates a homogeneous structure devoid of stress concentrations inherent in multiple weld points. This monolithic design significantly enhances the coupler's structural integrity, distributing forces uniformly across its entire body, thereby minimizing the risk of fatigue cracks and material failure under dynamic loading conditions. Cast steel, known for its superior strength-to-weight ratio and inherent ductility compared to cast iron, offers excellent resistance to impact, abrasion, and cyclic loading. The metallurgical properties of the heavy-duty cast steel employed ensure high tensile strength, which refers to the maximum stress the material can withstand before breaking, and a substantial yield strength, which indicates the stress at which permanent deformation begins. These attributes are paramount in maintaining structural integrity when subjected to the torsional, compressive, and tensile forces characteristic of heavy trailer towing. The casting process also allows for complex geometries to be formed efficiently, enabling optimized load paths and reinforcing critical areas without resorting to multi-component fabrication, ultimately leading to a more durable and reliable product with a prolonged service life even in the most challenging environments.

Optimized Load Capacity and Class V Rating

With an M.G.T.W. of 18,000 lbs., this coupler is engineered for towing applications that far exceed typical light-duty requirements. The M.G.T.W. rating specifies the maximum allowable weight of a fully loaded trailer that the coupler can safely manage. This substantial capacity places the coupler firmly within the Class V towing category, which encompasses the heaviest towing duties, typically ranging from 10,000 lbs. to over 20,000 lbs. Understanding the implications of a Class V rating is crucial: it signifies that the component has undergone rigorous testing and adheres to stringent safety standards to manage the immense forces associated with hauling large construction equipment, multi-axle commercial trailers, heavy industrial machinery, or substantial recreational vehicles. The 2-5/16 inch ball diameter is the industry standard for such heavy-duty applications, providing a robust interface that maximizes contact area and minimizes localized stress concentrations at the ball-coupler connection point. This combination of material strength, structural design, and precise dimensioning ensures that the coupler provides an ample safety margin, crucial for preventing catastrophic failures and ensuring the security of the towed load and the safety of all road users.

Ergonomic Design and Operational Efficiency: The Spring-Loaded Latch System

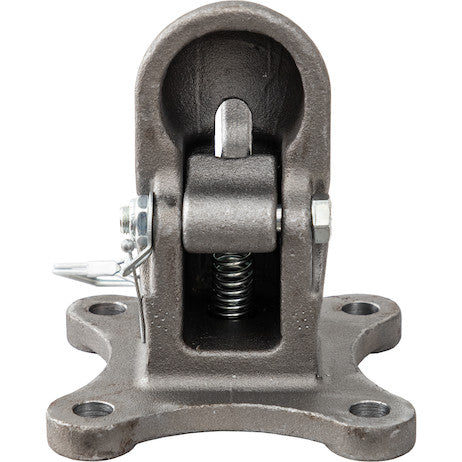

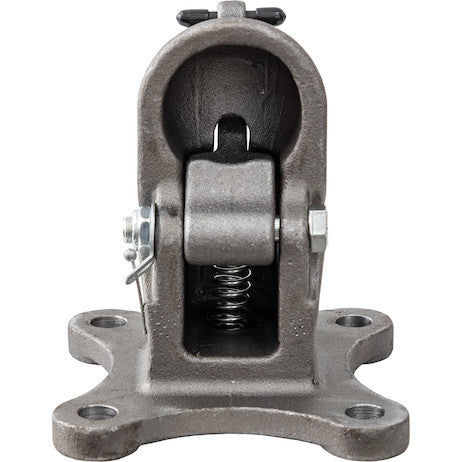

Beyond sheer strength, the coupler's design incorporates intelligent features aimed at enhancing user experience and operational efficiency. The spring-loaded latch mechanism exemplifies this commitment. This design provides for fast, one-hand operation, significantly reducing the physical effort and time required for coupling and uncoupling procedures. The internal spring mechanism ensures a positive engagement with the hitch ball, automatically locking into position upon proper seating, often accompanied by an audible click that confirms a secure connection. This immediate and tactile feedback is vital for operator confidence and safety, eliminating ambiguity in the coupling process. Furthermore, the latch is engineered to be pinned in the open position. This feature is particularly beneficial in scenarios requiring frequent uncoupling and recoupling, or when precise maneuvering is necessary to align the trailer tongue with the hitch ball. By pinning the latch open, operators can guide the trailer more freely without needing to manually hold the latch open, streamlining repetitive tasks and minimizing potential for strain or injury during operations.

Corrosion Resistance and Enhanced Security

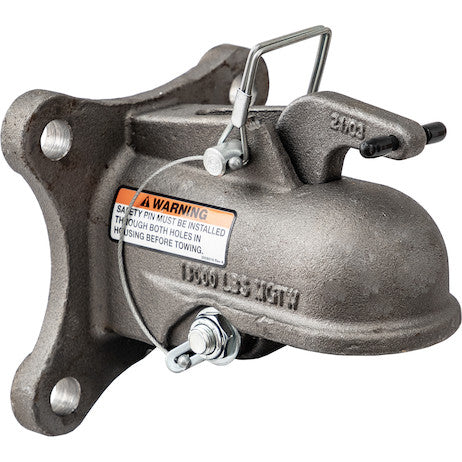

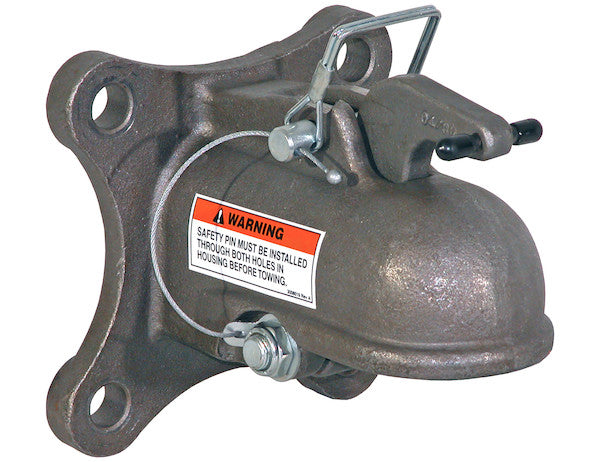

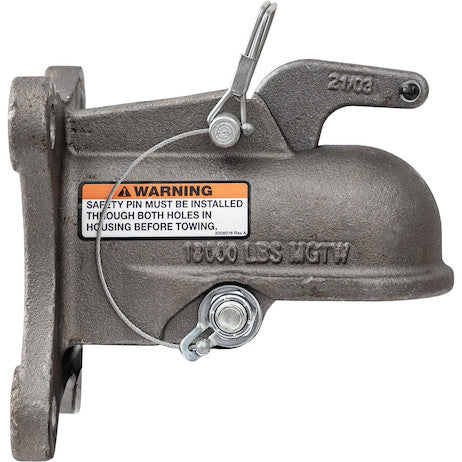

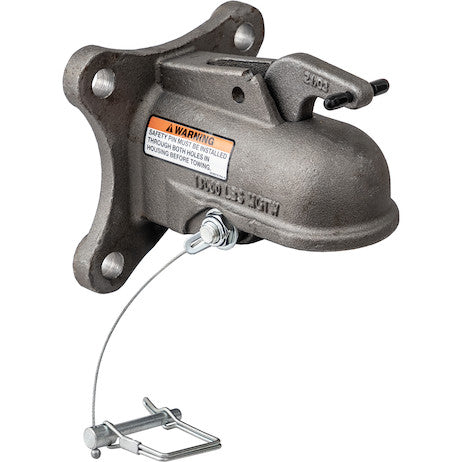

Durability extends to every component of this coupler, including the latch and its associated safety features. The latch itself is zinc-plated, providing a sacrificial coating that offers excellent resistance against corrosion, rust, and environmental degradation. Zinc plating works by acting as an anode, corroding preferentially to the underlying steel, thereby extending the functional life of the critical latch mechanism, especially when exposed to road salts, moisture, and varying atmospheric conditions. Complementing this is the inclusion of a robust safety pin and cable. The safety pin serves as a secondary locking mechanism, preventing accidental disengagement of the coupler from the hitch ball even if the primary latch mechanism were to be compromised. The tethered cable ensures that the safety pin remains attached to the coupler, preventing loss and ensuring it is always available for use. This multi-layered approach to security underscores the product's design philosophy, prioritizing user safety and load integrity above all else.

Versatile Mounting and Adjustable Configuration

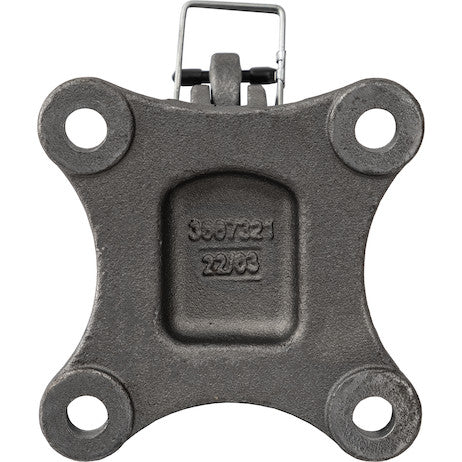

The coupler's bolt-on mount style provides significant advantages in terms of installation flexibility and long-term maintenance. Unlike welded couplers that require specialized tools and skills for installation or replacement, a bolt-on design allows for straightforward attachment to a trailer nose plate (sold separately). This facilitates easier repair or replacement should the coupler ever be damaged, minimizing downtime and labor costs. The standard 4-1/2 inch square bolt pattern, with mounting holes precisely spaced center-to-center at 4.50 inches and a diameter of 0.656 inches, ensures broad compatibility with a wide range of industry-standard trailer nose plates and adjustable channels. This standardization simplifies sourcing of complementary components and guarantees a secure, load-bearing interface. The designation "Adjustable Coupler Style" further enhances its versatility. This typically means the coupler body is designed to bolt onto an adjustable channel, allowing for vertical height adjustment. This critical feature enables the trailer's tongue height to be precisely matched to the varying hitch heights of different towing vehicles, ensuring level towing. Level towing is paramount for optimal weight distribution across all trailer axles, proper tire wear, and stability, reducing sway and promoting safer handling characteristics, particularly with heavy loads.

Engineering for Performance and Longevity

The "Plain" finish of the coupler refers to the raw cast steel, sometimes with a protective oil coating for transport. This finish provides a cost-effective solution while allowing end-users the flexibility to apply their own paint or specialized coatings to match their trailer's aesthetics or to provide additional corrosion protection tailored to specific environmental demands. The inherent robustness of the cast steel provides excellent protection against physical damage and wear, ensuring long-term operational integrity. The engineering considerations extend to the mitigation of fatigue, a common failure mode in components subjected to repeated stress cycles. The one-piece casting minimizes potential initiation points for cracks, while the material's properties are selected for high fatigue strength, allowing the coupler to endure countless towing cycles without compromise. Rigorous quality control during the manufacturing process ensures dimensional accuracy and material consistency, meeting or exceeding industry performance standards. This meticulous attention to detail at every stage of design and production translates into a product that delivers consistent, reliable performance throughout its extended service life.

Safety Protocols and Best Practices for Operation

While the 2-5/16 Inch One-Piece Cast Coupler is designed for maximum safety, adherence to proper operating procedures and maintenance practices is essential. Operators must always ensure that the hitch ball diameter precisely matches the coupler size (2-5/16 inches) to prevent unsafe connections and excessive wear. The spring-loaded latch must be fully engaged, and the safety pin securely inserted through the designated holes before any towing operation commences. Regular visual inspections are recommended to check for any signs of wear, deformation, cracks, or corrosion, particularly in high-stress areas around the ball socket and mounting points. Bolts used for installation should be torqued to manufacturer specifications, and periodically re-checked, to maintain secure attachment to the trailer nose plate. Furthermore, it is critical to ensure that the Gross Vehicle Weight Rating (GVWR) of the towing vehicle, the Gross Axle Weight Rating (GAWR) of the trailer, and the capacity of the hitch assembly all meet or exceed the M.G.T.W. of the loaded trailer to create a fully integrated and safe towing system. This holistic approach to safety, combining superior product design with diligent operational practices, ensures the highest level of security and peace of mind for every towing task.

Diverse Applications for Uncompromising Performance

The capabilities of this 2-5/16 Inch One-Piece Cast Coupler make it ideally suited for a broad spectrum of demanding applications. In the construction industry, it is the preferred choice for heavy equipment trailers, dump trailers, and material haulers, where reliability under immense loads and challenging off-road conditions is non-negotiable. Agricultural sectors benefit from its robustness for towing large livestock trailers, farm implements, and grain wagons, ensuring secure transport across varied terrain. Commercial utility and cargo trailers, often transporting heavy machinery, supplies, or specialty equipment, will find its 18,000 lb. capacity and durable construction indispensable. Large recreational vehicles, particularly fifth-wheel or gooseneck style trailers converted to bumper pull with an appropriate adapter, requiring substantial towing power, also fall within its purview. Furthermore, industrial applications, ranging from site preparation to specialized logistics, where heavy loads are routinely moved, rely on the unyielding strength and consistent performance of such a critically engineered component. Its adaptability and high load rating render it a universal solution for nearly any heavy-duty towing requirement, promising unparalleled performance and durability across diverse operational contexts.

Conclusion: The Benchmark in Heavy-Duty Couplers

In summary, the 2-5/16 Inch One-Piece Cast Coupler from Buyers Products stands as a testament to advanced engineering in trailer component design. Its singular cast steel construction provides unparalleled strength and fatigue resistance, while the 18,000 lb. M.G.T.W. rating confirms its suitability for Class V heavy-duty applications. The integration of a user-friendly, spring-loaded latch system with one-hand operation, combined with a crucial pin-open feature, enhances both efficiency and safety. The zinc-plated latch, secured by a reliable safety pin and cable, ensures long-term operational integrity and redundancy against accidental uncoupling. Designed for versatile bolt-on installation with a standard 4-1/2 inch square pattern and adjustable configuration options, it offers flexibility and precision in trailer setup. This coupler is not merely a component; it is a meticulously engineered system designed to deliver maximum performance, enduring durability, and unwavering safety for the most demanding towing operations, establishing itself as the benchmark for reliability in heavy-duty trailer coupling technology.
