Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.
Specifications
| Bolt Dia. (in.) | 0.50 |
|---|---|
| Bolt Finish | Zinc Plated |
| Bolt Height | 0.88 |
| Bolt Length (in.) | 1.03 |
| Bolt Material | Carbon Steel |
| Handle Finish | Zinc Plated |
| Handle Length | 3.88 |
| Handle Material | Carbon Steel |
| Housing Finish | Smooth |
| Housing Height (in.) | 1.75 |
| Housing Length (in.) | 3.00 |
| Housing Material | Carbon Steel |
| Housing Width (in.) | 1.75 |
| Keeper (y/n) | Yes |
| Latch Style | Spring Latch |
| Mount Type | Bolt-On |
| Mounting Hole Diameter | 0.28 |
| Mounting Holes Center to Center | 1.25 |
| Pin Length | 5.19 |

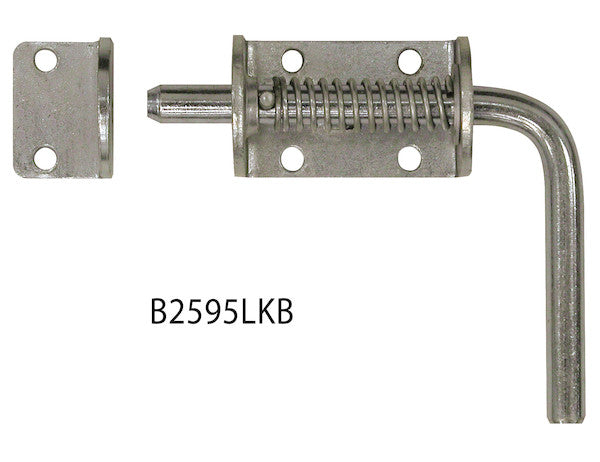

Individuall Packaged B2595LKB Spring Latch Assembly: Precision Engineering for Secure and Efficient Closure Systems
The Individually Packaged B2595LKB Spring Latch Assembly represents a pinnacle of mechanical fastening technology, engineered for robust performance in a multitude of industrial, commercial, and utility applications. This comprehensive description delves into the technical specifications, operational advantages, material science, and diverse applications of this critical hardware component, emphasizing its design for rapid, secure, and reliable engagement and disengagement of doors, compartments, and panels.
Fundamental Operational Principle and Design Excellence
At the core of the B2595LKB Spring Latch Assembly is its elegantly simple yet highly effective spring-loaded bolt mechanism. This design is paramount for scenarios demanding both quick access and absolute security. The bolt, under constant spring pressure, is engineered to project into a receiving aperture or keeper, thereby securing the object it is intended to fasten. Its primary advantage lies in the instantaneous engagement; once the bolt is released from its retracted position, it snaps forward with determined force, ensuring a positive lock without manual alignment or intricate locking procedures.
A key ergonomic and functional feature is the ability to lock the bolt in an open, or retracted, position. This is typically achieved via a cam or detent mechanism integrated into the handle or housing, which holds the bolt against its spring tension. This "open" state is invaluable during periods requiring extended access, loading, unloading, or maintenance, preventing the bolt from prematurely engaging. Releasing the bolt from this open position is achieved by a simple manipulation of the lever—a precise turn or depress action—which disengages the holding mechanism, allowing the intrinsic spring force to drive the bolt forward into its closed and secure state. This intuitive operation minimizes user effort and significantly reduces the risk of improper engagement, a critical factor in safety-sensitive environments.
Material Science and Construction Integrity
The selection of materials and their respective finishes for the B2595LKB Spring Latch Assembly is a testament to its design for durability and longevity, especially in challenging operational conditions. The primary components—the bolt, handle, and housing—are all constructed from carbon steel, a material renowned for its high tensile strength, excellent hardness, and resistance to deformation under load. Carbon steel provides the structural integrity necessary to withstand the repetitive stresses of latch operation, as well as the external forces exerted on secured panels or doors.
-
Bolt Material and Finish: Carbon Steel with Zinc Plating
The bolt, with a robust diameter of 0.50 inches, a length of 1.03 inches, and a height of 0.88 inches, is precisely dimensioned to provide substantial shear strength and engagement depth. Its carbon steel composition ensures that it can resist shearing forces and maintain its shape even when subjected to significant impacts or attempts at forced entry. The zinc-plated finish applied to the bolt is a crucial protective layer. Zinc plating offers superior corrosion resistance by creating a sacrificial barrier that oxidizes preferentially to the underlying steel, thereby preventing rust and extending the functional life of the component in environments exposed to moisture, chemicals, or varying temperatures. This electroplated coating also enhances surface hardness and provides a smooth, low-friction interface for seamless operation within the housing.
-
Handle Material and Finish: Carbon Steel with Zinc Plating
The handle, measuring 3.88 inches in length, is also fabricated from carbon steel and finished with zinc plating. The length of the handle is optimized for ergonomic leverage, allowing operators to easily retract and engage the bolt with minimal hand strain, even when wearing gloves. The zinc plating on the handle not only protects against corrosion but also provides a clean, professional aesthetic while contributing to a tactile, secure grip. The robust material choice ensures the handle can endure repeated forceful actuation without bending or breaking, maintaining operational reliability over thousands of cycles.
-
Housing Material and Finish: Carbon Steel with Smooth Finish
The housing, which encloses the spring mechanism and guides the bolt, features dimensions of 1.75 inches in height, 3.00 inches in length, and 1.75 inches in width. Its carbon steel construction provides a sturdy foundation for the entire assembly, ensuring dimensional stability and resistance to external impacts. The smooth finish on the housing is not merely aesthetic; it aids in minimizing points where dirt and grime can accumulate, simplifying cleaning and reducing potential interference with moving parts. While the specific finish for the housing isn't explicitly listed as zinc-plated in the table, it aligns with typical industrial practices to protect the carbon steel components from environmental degradation, likely through a similar protective coating or robust powder coating designed for durability.
Precision Engineering and Dimensional Specifications
The B2595LKB Spring Latch Assembly is manufactured to precise tolerances, ensuring consistent performance and interchangeability. The detailed specifications provided highlight the meticulous engineering that underpins its reliability:
- Bolt Dimensions: A 0.50-inch diameter bolt guarantees substantial load-bearing capacity and resistance to shear forces. The 1.03-inch bolt length provides ample engagement depth, ensuring that the secured element remains firmly latched, even under vibration or dynamic loads. The 0.88-inch bolt height is crucial for integrating the bolt smoothly within its housing and the overall latch profile.
- Handle Length: The 3.88-inch handle length is designed for optimal mechanical advantage, allowing for easy and effective retraction of the bolt against the spring tension. This balance between leverage and compactness makes the latch suitable for integration into various equipment designs without protruding excessively.
- Housing Dimensions: With a height of 1.75 inches, length of 3.00 inches, and width of 1.75 inches, the housing provides a compact yet robust enclosure. These dimensions are critical for planning installation locations and ensuring structural integrity when the latch is subjected to external forces.
- Pin Length: The 5.19-inch pin length, a critical internal dimension, often refers to the overall length of the bolt shaft or the actuating rod that connects the handle to the bolt mechanism. This extended length allows for sufficient travel and articulation of the bolt, accommodating the "locked open" feature and ensuring a full range of motion for secure engagement.
-
Mounting Specifications: Bolt-On Application
The B2595LKB is designed for a bolt-on mounting type, which is preferred in many industrial applications due to its superior strength and reliability compared to weld-on or clip-on alternatives. The mounting hole diameter is precisely 0.28 inches, compatible with standard industrial fasteners such as 1/4-inch bolts or screws, allowing for strong, secure attachment to the host structure. The center-to-center distance for the mounting holes is 1.25 inches, providing a clear and repeatable template for installation, simplifying fabrication and assembly processes. While mounting hardware is sold separately, this specification guides users in selecting appropriate bolts, nuts, and washers that match the structural material and intended load requirements, ensuring a robust installation.
Integrated Keeper and Versatility
This particular B2595LKB Spring Latch Assembly includes a keeper (indicated by "Yes" in the specifications). The keeper, also known as a strike plate, is an essential counterpart to the bolt. It is a precisely formed component designed to receive and securely hold the bolt when the latch is engaged. The inclusion of the keeper in this package simplifies procurement and ensures perfect compatibility between the latch and its receiving mechanism, eliminating the need for custom fabrication or guesswork during installation. For scenarios where an existing hole or custom receiving surface is already present, the option to order the latch without a keeper is available, offering flexibility for specific project requirements.
The product's versatility is further enhanced by the availability of various sizes and material options (stainless steel or zinc-plated steel). While this specific model features zinc-plated carbon steel, the option for stainless steel provides an alternative for extremely corrosive environments, such as marine applications, chemical processing plants, or pharmaceutical facilities, where superior inherent corrosion resistance is non-negotiable, albeit at a different cost profile.
Extensive Applications Across Industries
The B2595LKB Spring Latch Assembly's robust design, reliable operation, and material durability make it exceptionally well-suited for a broad spectrum of demanding applications:
- Transportation and Logistics: Essential for securing doors on utility trailers, cargo containers, truck toolboxes, recreational vehicles (RVs), and service body compartments. Its ability to withstand constant vibration and environmental exposure ensures that contents remain secure during transit.
- Industrial Equipment and Machinery: Utilized on access panels for heavy machinery, safety guards on manufacturing equipment, inspection hatches on industrial ovens, and secure enclosures for pneumatic or hydraulic systems. The quick engagement mechanism facilitates efficient maintenance and operational checks.
- Agricultural Sector: Found on farm implements, tractor compartments, livestock trailers, and storage bins, where resilience against dirt, moisture, and rough handling is paramount.
- Construction and Building Trades: Employed on temporary fencing gates, job site storage boxes, secure access doors on portable generators, and access panels for HVAC systems or electrical conduit runs.
- Marine Applications (with appropriate material selection): While this unit is zinc-plated carbon steel, the existence of stainless steel variants signifies its suitability for marine environments, securing boat hatches, compartment doors, and storage lockers against saltwater corrosion and constant motion.
- Public and Commercial Infrastructure: Used on utility boxes, municipal equipment enclosures, public access gates, and vending machines where robust security and ease of operation are key.
- HVAC and Electrical Enclosures: Provides secure yet accessible closures for electrical panels, control boxes, and air handling unit access doors, ensuring safety and compliance while allowing for quick technician access.
Installation and Maintenance Considerations
The bolt-on design of the B2595LKB Spring Latch Assembly, coupled with precise mounting hole specifications, simplifies installation. For optimal performance and longevity, professional installation practices are recommended:
- Surface Preparation: Ensure the mounting surface is clean, flat, and structurally sound to prevent misalignment or undue stress on the latch.
- Pre-Drilling: Utilize the specified 0.28-inch mounting hole diameter and 1.25-inch center-to-center spacing to accurately pre-drill holes in the host structure. Precise alignment is crucial for the bolt to engage smoothly with the keeper.
- Fastener Selection: As mounting hardware is sold separately, select fasteners (e.g., bolts, nuts, washers) that are appropriate for the material of the host structure and capable of handling the anticipated loads. For carbon steel components, grade 5 or grade 8 fasteners are often recommended for robust installations.
- Alignment: Carefully align the latch assembly with its corresponding keeper or receiving aperture before tightening fasteners to ensure free movement of the bolt and positive engagement.
- Torque Specification: Apply appropriate torque to fasteners as specified by the fastener manufacturer or engineering guidelines to secure the latch without deforming the housing or stripping threads.
Maintenance for the B2595LKB Spring Latch Assembly is minimal due to its robust construction and protective finishes. Periodic inspection for signs of wear, especially on the bolt and spring mechanism, is recommended. Cleaning with a mild detergent and water, followed by drying, will help maintain the integrity of the zinc plating. In highly abrasive or dusty environments, occasional lubrication of the bolt with a dry lubricant or light grease may enhance operational smoothness and prolong life.
Advantages and Value Proposition
Investing in the Individually Packaged B2595LKB Spring Latch Assembly offers numerous tangible benefits:
- Enhanced Security: The spring-loaded bolt provides a positive, secure lock that resists accidental disengagement, offering peace of mind for valuable contents or critical access points.
- Operational Efficiency: The quick engage/disengage mechanism with a "locked open" feature significantly reduces operational time, particularly in applications requiring frequent access.
- Superior Durability: Constructed from carbon steel with a protective zinc plating, the latch is built to withstand rigorous use, environmental exposure, and heavy-duty applications, leading to a long service life.
- Cost-Effectiveness: The longevity and reliability of the B2595LKB reduce the need for frequent replacements and maintenance, contributing to lower total cost of ownership over the product's lifespan.
- Versatility: Its adaptable design, available in various sizes and material options (zinc-plated or stainless steel), makes it suitable for a vast array of industries and specific operational challenges.
- Ease of Installation: The standardized bolt-on mounting type with precise hole specifications simplifies integration into existing or new designs.
Conclusion
The Individually Packaged B2595LKB Spring Latch Assembly is more than just a fastening device; it is a meticulously engineered component designed to deliver dependable security and efficient operation in the most demanding environments. Its thoughtful combination of high-strength carbon steel, corrosion-resistant zinc plating, precise dimensions, and intuitive spring-loaded mechanism makes it an indispensable asset for securing doors, panels, and compartments across industrial, commercial, and transportation sectors. By prioritizing robust construction, ease of use, and long-term reliability, the B2595LKB Spring Latch Assembly stands as a superior choice for professionals seeking uncompromised performance and lasting value in their critical closure systems.
