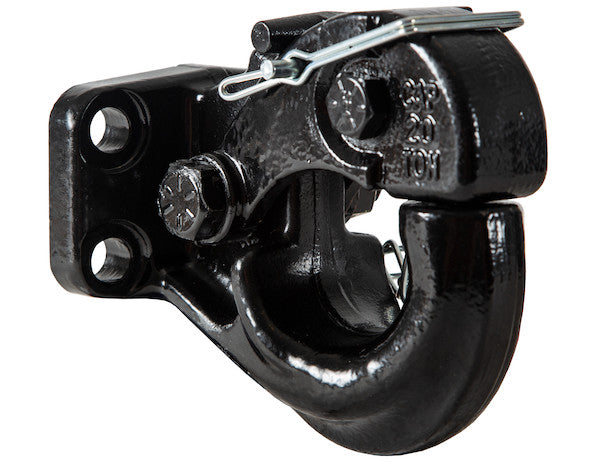

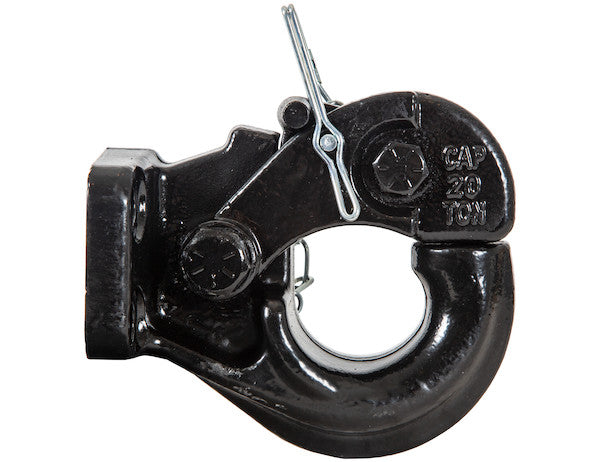

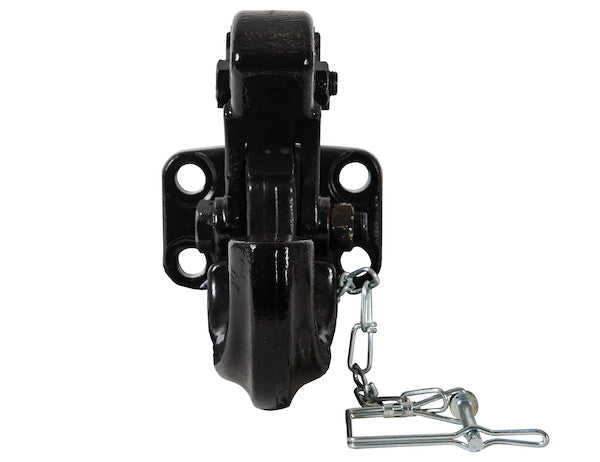

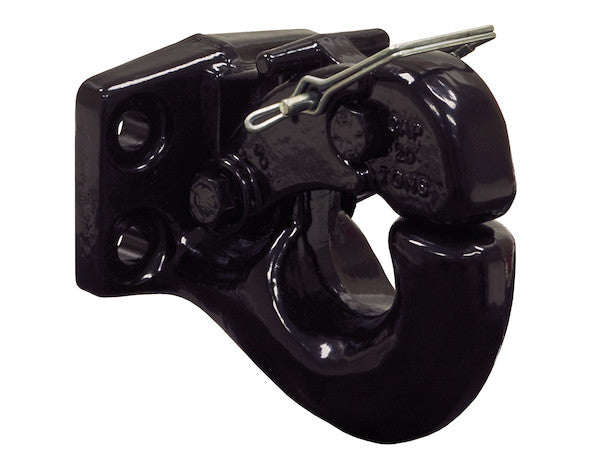

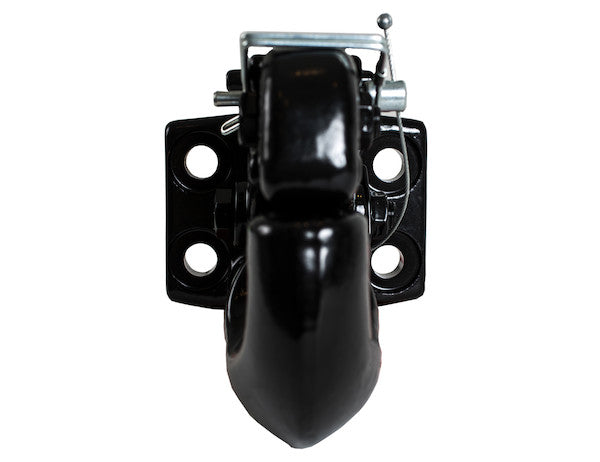

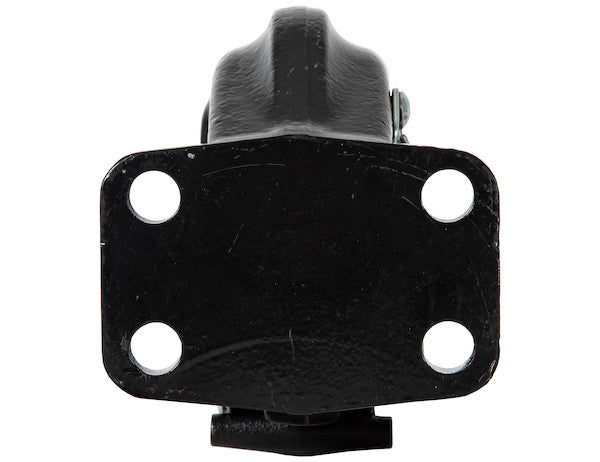

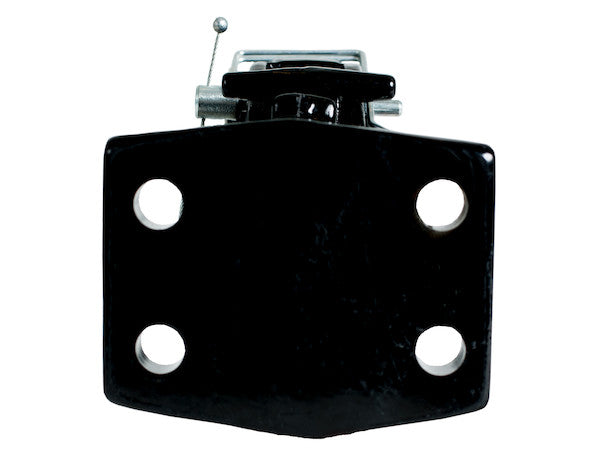

10042 - 20 Ton Pintle Hook With Mounting Kit

The bolt-on 20 ton Pintle Hook from Buyers Products features tough, drop-forged steel construction and a black powder-coated finish for maximum durability and resistance to corrosion. Ideal for contractors and haulers of heavy equipment, the pintle hook will handle maximum gross towing weights of up to 40,000 lb. Each pintle hook includes mounting information, specs sheet, drilling template, and vehicle capacity decal. It is available with just the pintle hook or sold with a mounting kit.

Specifications

The Buyers Products 20 Ton Pintle Hook, offered with an optional comprehensive mounting kit, represents a pinnacle of engineering excellence in heavy-duty towing solutions. Designed for the most rigorous applications, this robust coupling device is specifically engineered to facilitate the secure and reliable transport of substantial loads, catering primarily to professionals in the construction, agriculture, utility, and heavy haulage sectors. Its formidable 20-ton (40,000 lb) Maximum Gross Towing Weight (M.G.T.W.) rating, coupled with an impressive 8,000 lb Maximum Vertical Load (M.V.L.) capacity, positions it as an indispensable component for operations demanding uncompromised strength and unwavering dependability. This product is not merely a piece of hardware; it is a critical safety and efficiency enhancement for any fleet engaged in heavy transport, providing the assurance that valuable equipment and materials are moved with paramount security and control across diverse and challenging terrains.

At the core of this pintle hook's exceptional performance lies its construction from tough, drop-forged steel. The forging process, a metallurgical technique involving the shaping of metal while it is in a solid state through localized compressive forces, imparts unparalleled mechanical properties. Unlike casting, which can introduce internal voids and inconsistent grain structures, or fabrication, which relies on welds that can be points of weakness, drop forging aligns the material’s internal grain structure to follow the contour of the hook. This optimized grain flow significantly enhances the steel's tensile strength, yield strength, and most critically, its resistance to impact and fatigue. In high-stress towing applications where dynamic loads, shock forces, and continuous vibrations are commonplace, the inherent strength and ductility of forged steel are paramount. This meticulous manufacturing process ensures that the pintle hook can withstand the immense stresses associated with towing 40,000 pounds, providing a robust, long-lasting, and intrinsically safer connection point than components produced by less rigorous methods. The material selection is a direct reflection of Buyers Products' commitment to engineering components that not only meet but exceed the stringent demands of professional heavy-duty service.

Complementing its superior structural integrity, the 20 Ton Pintle Hook features a resilient black powder-coated finish. This advanced surface treatment is applied via an electrostatic process, where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded metal substrate. Subsequently, the item is cured under heat, allowing the powder to flow and form a "skin" that results in a uniform, durable, and aesthetically pleasing finish. This method provides significantly superior protection compared to conventional liquid paint applications. The powder coat creates a robust barrier against a multitude of environmental aggressors, including road salts, moisture, chemical spills, abrasive debris, and harmful UV radiation. Its excellent chip and scratch resistance ensure that the underlying forged steel remains shielded from corrosion, preserving the structural integrity and extending the operational lifespan of the pintle hook. This finish is particularly vital for equipment regularly exposed to harsh outdoor conditions, ensuring that the critical coupling component maintains its functionality and appearance through years of demanding service, thereby reducing the frequency of maintenance and replacement.

Understanding the specified load capacities is crucial for safe and compliant operation. The Maximum Gross Towing Weight (M.G.T.W.) of 40,000 lbs (equivalent to 20 tons) represents the total permissible weight of the fully loaded trailer that this pintle hook is engineered to safely manage. This rating is derived from extensive engineering analysis, including Finite Element Analysis (FEA) and rigorous physical testing, accounting for static, dynamic, and shock loads. Adherence to this rating is critical to prevent structural failure of the hook and to maintain the integrity of the towing system. Simultaneously, the Maximum Vertical Load (M.V.L.) of 8,000 lbs specifies the maximum permissible downward force exerted by the trailer’s tongue onto the pintle hook. This vertical load, often referred to as tongue weight, is a critical factor in maintaining towing stability, particularly at highway speeds or during braking maneuvers. An improperly distributed vertical load can lead to dangerous trailer sway (insufficient MVL) or excessive stress on the tow vehicle’s rear axle and suspension components (excessive MVL). The 8,000 lb M.V.L. rating ensures that the pintle hook is designed to robustly accommodate significant vertical forces without compromising its structural integrity or the stability of the towing configuration. These ratings, when properly observed, guarantee optimal performance, safeguard against equipment damage, and, most importantly, protect personnel and other road users.

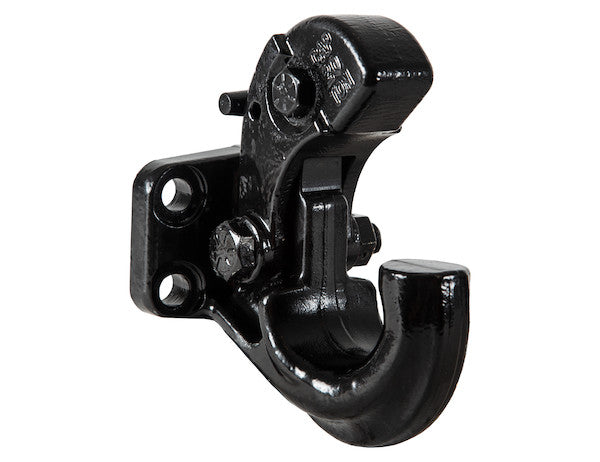

The design of this pintle hook adheres to the "Standard Pintle Hook Type," a widely recognized and proven mechanism for heavy-duty towing. It consists of a rigid main body with an integrated jaw and a hinged, spring-loaded upper jaw or latch. This mechanism engages with a lunette ring, also known as a drawbar eye, which is affixed to the trailer. The specifications indicate compatibility with a drawbar eye inner diameter ranging from 2.0 to 3.0 inches, allowing for versatility across various heavy-duty trailers. The primary advantage of a pintle hook system over traditional ball hitches in high-capacity applications is its superior robustness and articulation. The interlocking design provides a secure, positive mechanical connection that is exceptionally resistant to disconnection under dynamic and off-road conditions. Furthermore, the inherent design allows for significant angular movement between the tow vehicle and trailer, both horizontally and vertically. This enhanced articulation is invaluable when navigating uneven terrain, construction sites, or unpaved roads, preventing binding and reducing stress on the coupling point, thereby extending the lifespan of both the hook and the trailer’s lunette ring. The robust locking mechanism, typically featuring a safety pin or bolt, provides an additional layer of security, ensuring that the connection remains inviolate throughout the towing operation.

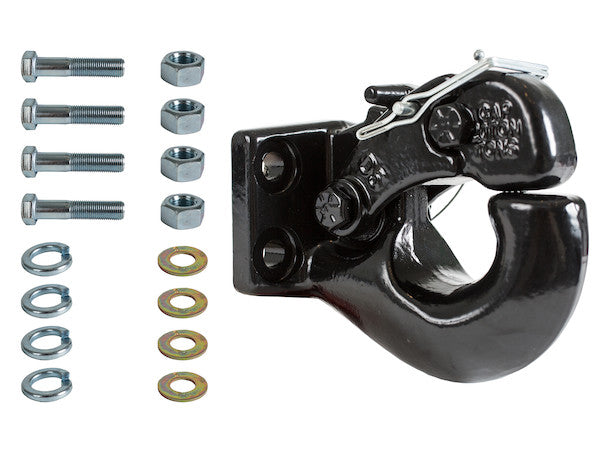

Installation versatility and precision are key considerations for professional-grade towing equipment. This 20 Ton Pintle Hook features a bolt-on design, which offers distinct advantages over welded alternatives, including ease of replacement, simplified maintenance, and consistent structural integrity without the thermal stresses associated with welding. The mounting specifications are precisely defined to ensure secure and compatible integration with standard heavy-duty tow vehicles and mounting plates. The Horizontal Hole Spacing is 3.375 inches, while the Vertical Hole Spacing is 1.75 inches. Each mounting hole has a diameter of 0.594 inches, dimensioned to accommodate robust fasteners, typically 5/8-inch Grade 8 bolts, which are essential for achieving the specified load capacities. The availability of the pintle hook with an optional comprehensive mounting kit streamlines the installation process for users, providing all necessary high-strength hardware specifically selected to complement the hook’s robust construction. This kit often includes appropriately sized bolts, washers, and nuts, ensuring that the integrity of the mounting point matches the strength of the hook itself. Furthermore, each unit is supplied with detailed mounting information, a comprehensive specs sheet, and a drilling template, facilitating accurate and safe installation regardless of whether it’s a new setup or a replacement. The inclusion of a vehicle capacity decal serves as a vital safety feature, providing clear and immediate visual confirmation of the tow vehicle’s permissible towing parameters to operators and regulatory inspectors, thereby promoting compliance and preventing inadvertent overloading.

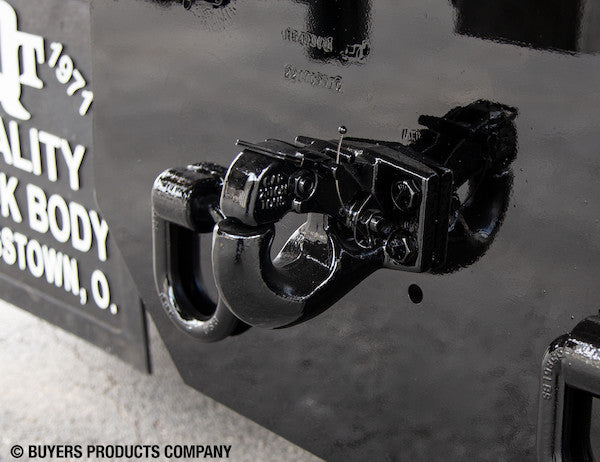

The operational versatility of the Buyers Products 20 Ton Pintle Hook makes it an indispensable asset across a broad spectrum of industries requiring heavy equipment transport. In the construction sector, it is ideally suited for hauling large excavators, bulldozers, skid steers, concrete mixers, mobile generators, and various utility trailers that are fundamental to project execution. Agricultural professionals benefit from its robust capacity for transporting heavy farm implements, livestock trailers, irrigation systems, and grain carts across diverse field conditions. Utility and municipal departments utilize it for moving air compressors, cable spool trailers, road maintenance equipment, and other specialized machinery vital for infrastructure upkeep. Its rugged design also finds application in logging and forestry for hauling timber and heavy wood processing equipment, as well as in general heavy industrial settings for specialized machinery relocation. The inherent ability of a pintle hook to articulate significantly better than conventional ball hitches makes it particularly advantageous in these demanding environments, where uneven terrain, steep inclines, and off-road conditions are frequently encountered. The secure, positive coupling mechanism ensures that even in challenging dynamic situations, the trailer remains firmly attached, minimizing operational risks and maximizing productivity.

Safety and regulatory compliance are paramount in heavy-duty towing operations, and the Buyers Products 20 Ton Pintle Hook is designed with these principles at its forefront. Regular inspection of the pintle hook for signs of wear, cracks, deformation, or corrosion is essential to maintain its operational integrity. Particular attention should be paid to the latch mechanism, ensuring it functions freely and securely. The drawbar eye on the trailer must also be regularly inspected for wear and proper fit within the hook. All mounting bolts must be periodically checked for correct torque specifications to prevent loosening under vibration and stress. Adherence to federal, state, and local towing regulations is non-negotiable, and the included vehicle capacity decal aids in maintaining compliance by providing clear visibility of the established weight ratings. By strictly observing the Maximum Gross Towing Weight and Maximum Vertical Load limits, operators mitigate the risks of equipment failure, loss of control, and potential accidents. The combination of high-strength forged steel, a durable powder-coat finish, and a proven coupling mechanism contributes to a product that not only meets but helps enforce rigorous safety standards, thus protecting investments in equipment and ensuring the well-being of operators and the public.

The explicit comparison to a "Wallace 20 Ton" pintle hook in the specifications is a clear indicator of the Buyers Products offering’s market positioning and quality benchmark. Wallace Forge Company has long been recognized as a premier manufacturer of heavy-duty towing components, setting industry standards for durability and performance. By drawing this comparison, Buyers Products confidently asserts that its 20 Ton Pintle Hook meets or exceeds the engineering, material quality, and performance characteristics of a leading competitor. This provides prospective buyers with an immediate understanding of the product’s caliber, reassuring them that they are investing in a component that adheres to the highest industry benchmarks. It implies rigorous design, manufacturing excellence, and a commitment to reliability that parallels established market leaders, offering a premium solution that can be trusted for the most demanding heavy-duty applications. This strategic comparison underscores the value proposition: a top-tier pintle hook designed for professional use, capable of delivering exceptional long-term performance and reliability.

In conclusion, the Buyers Products 20 Ton Pintle Hook with its optional Mounting Kit stands as an exemplar of robust design and advanced manufacturing in the heavy-duty towing sector. From its meticulously drop-forged steel construction, engineered for unparalleled strength and fatigue resistance, to its advanced black powder-coated finish providing superior corrosion and abrasion protection, every aspect of this component is designed for extreme durability and longevity. With a formidable 40,000 lb M.G.T.W. and an 8,000 lb M.V.L., it offers the reliable capacity required for transporting the heaviest of equipment across the most challenging environments. The precision bolt-on mounting, complemented by comprehensive documentation and the convenience of an optional mounting kit, ensures straightforward and secure installation. This pintle hook is more than just a coupling device; it is an integral safety and efficiency component, ensuring that valuable assets are transported securely, reliably, and in full compliance with operational safety standards. For professionals who cannot compromise on strength, safety, or longevity, the Buyers Products 20 Ton Pintle Hook represents the definitive choice, delivering uncompromising performance for all heavy-duty towing requirements.
