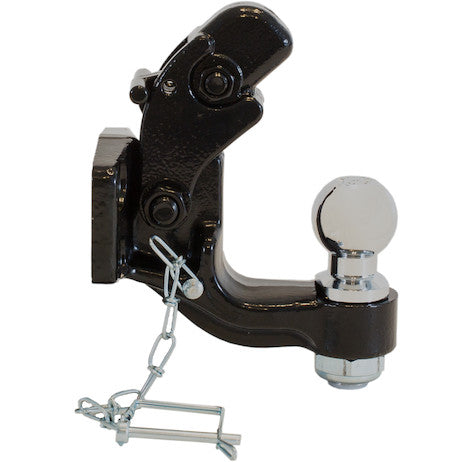

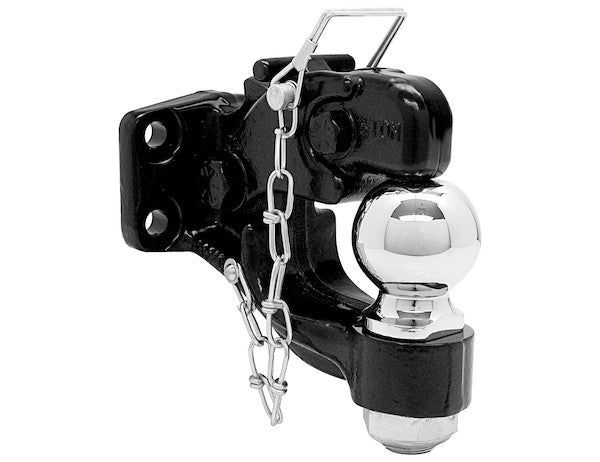

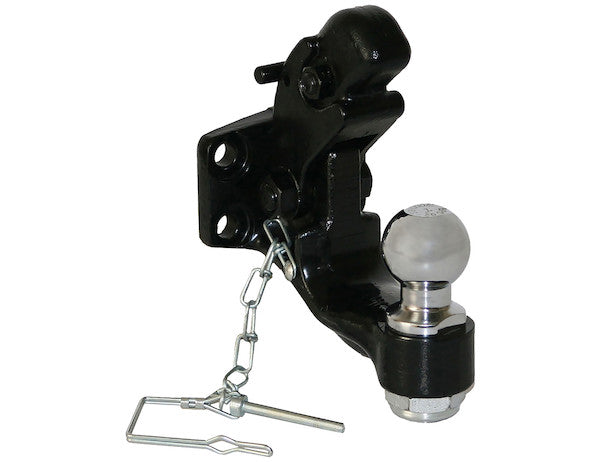

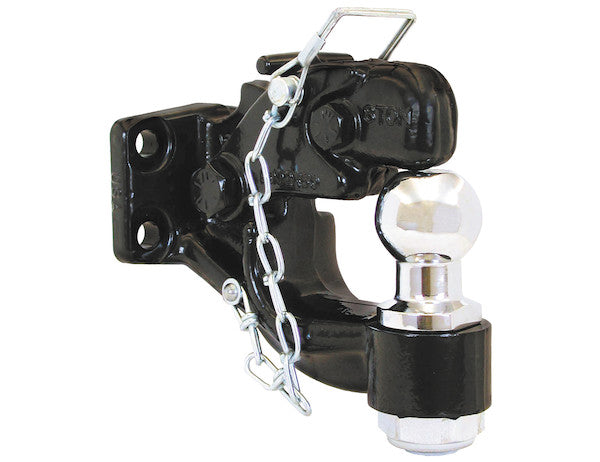

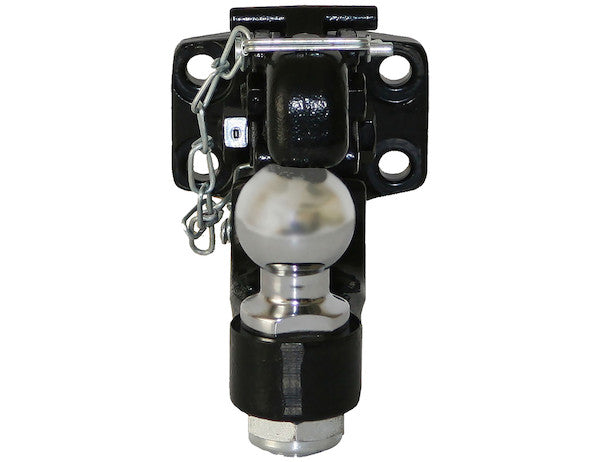

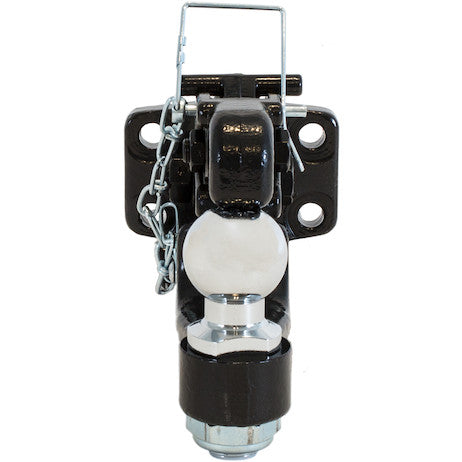

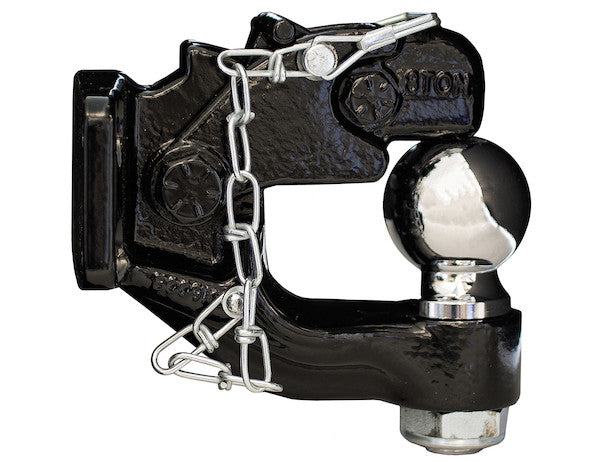

Buyers Products 8 Ton Combination Hitch combines both a ball hitch and pintle hook into one product. It allows you to pull loads that have either a coupler or a drawbar/pintle ring without having to change hitches. The hitch is ideal for contractors, tradesmen and haulers who tow a range of construction equipment. The hitch is available with 1-7/8 in., 2 in., or 2-5/16 in. ball sizes to accommodate different size couplers. It is bolt-mounted (drilling template included). A mounting kit with Grade 8 fasteners is available to order separately or as a set.
Specifications
| Ball Diameter (in.) | 1-7/8 |
|---|---|
| Ball Finish | Chrome |
| Ball Material | Forged Steel |
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.5-3.0 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 3.375 |
| M.G.T.W. (lbs) | 12,000 |
| M.V.L. (lbs) | 3,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 1.75 |
The Apex of Towing Versatility: Buyers Products BH8 Series Combination Hitch with 1-7/8 Inch Ball and Mounting Kit
In the rigorous landscape of commercial and industrial towing, efficiency, adaptability, and unwavering strength are paramount. The Buyers Products BH8 Series Combination Hitch, configured with a 1-7/8 inch ball and provided with a comprehensive mounting kit, stands as an exemplar of engineering precision designed to address the multifaceted demands of contemporary hauling operations. This robust solution masterfully integrates the capabilities of a traditional ball hitch with the formidable strength of a pintle hook into a single, cohesive unit. This ingenious design empowers operators to tow an expansive array of trailers—from light-duty utility to heavy-duty construction equipment—without the customary need for multiple hitches or time-consuming changeovers, thereby significantly enhancing operational throughput and reducing costly downtime.
Dual-Mode Towing Excellence: Seamless Transition and Enhanced Productivity
The fundamental advantage of the BH8 Series combination hitch lies in its inherent dual-mode functionality, offering unparalleled flexibility in trailer coupling. This singular device eradicates the logistical complexities associated with a diverse fleet of trailers, each potentially requiring a different coupling mechanism. By accommodating both standard couplers and heavy-duty drawbar/pintle rings, the hitch ensures operators are consistently prepared for any load. This adaptability is pivotal for professionals whose daily tasks involve a variety of towing scenarios, directly contributing to heightened productivity and optimized equipment utilization across all operational domains.
Integrated Ball Hitch: Precision and Stability for Standard Loads
The integrated 1-7/8 inch forged steel ball serves as the primary coupling interface for trailers equipped with conventional receiver-type couplers. This specific ball diameter is optimally suited for a broad spectrum of lighter to medium-duty applications, including enclosed cargo trailers, utility trailers, and various compact construction tools. The spherical design facilitates a smooth, controlled towing experience, minimizing transient shock loads and promoting stable tracking, particularly critical during highway transit and precise maneuvering. The secure mechanical lock provided by a properly engaged coupler ensures optimal control and prevents inadvertent disengagement, a crucial safety factor.
Robust Pintle Hook: Unyielding Strength for Heavy-Duty Applications
Complementing the ball hitch, the standard pintle hook component is engineered for the most demanding towing tasks. This robust mechanism is designed to securely engage with a drawbar eye or pintle ring, characteristic coupling devices found on heavy construction equipment, large industrial trailers, and off-road utility vehicles. The pintle hook's inherent design allows for greater articulation compared to traditional ball hitches, making it exceptionally well-suited for traversing uneven terrain, navigating challenging job sites, and absorbing significant vertical and lateral forces. This resilient connection ensures an exceptionally secure coupling, significantly reducing the risk of disengagement even under severe dynamic loads, thereby enhancing safety and operational continuity when hauling substantial assets.
Advanced Engineering: Materials and Protective Finishes
The structural integrity and long-term reliability of the Buyers Products BH8 Series combination hitch are directly attributable to its meticulously selected materials and advanced manufacturing processes, designed to withstand aggressive environmental and operational conditions.
Forged Steel: Superior Strength and Durability
Both the main hitch body and its integral 1-7/8 inch ball are precision-crafted from high-grade forged steel. The forging process refines the internal grain structure of the steel, eliminates micro-voids, and enhances its density. This results in components possessing superior tensile strength, exceptional fatigue resistance, and remarkable impact toughness—qualities indispensable for towing heavy loads under fluctuating stress conditions. Forged steel ensures the hitch maintains structural integrity and performs reliably throughout its extensive service life, resisting deformation and fracture under rigorous demands.
Chrome Finish: Enhanced Performance and Corrosion Resistance
The 1-7/8 inch forged steel ball features a high-quality chrome finish, a strategic application extending beyond aesthetics. This chromium plating creates an incredibly hard, smooth, and low-friction surface. This reduction in frictional resistance minimizes wear between the hitch ball and the trailer coupler, prolonging the lifespan of both components and ensuring consistent, effortless coupling. Furthermore, chrome provides outstanding resistance to corrosion, effectively shielding the steel from rust, oxidation, and corrosive environmental effects. Maintaining the ball's surface integrity is vital for consistent performance and safety.
Powder-Coat Protection: Enduring Resilience for the Hitch Body
The primary hitch body is fortified with a durable black powder-coat finish. This advanced dry finishing process utilizes electrostatically charged powder particles meticulously applied and then thermally cured, forming a tenacious, uniform coating. This sophisticated finish offers substantial advantages over conventional paint:
- Superior Corrosion Protection: An impenetrable barrier against rust, chemical exposure, and environmental degradation.
- Exceptional Chip and Abrasion Resistance: The resilient polymer matrix withstands impacts from road debris, preserving the underlying metal's integrity.
- Extended Service Life: Provides a longer-lasting protective layer, reducing maintenance frequency and ensuring the hitch retains its professional appearance and structural protection.
The black color ensures a professional aesthetic and offers inherent UV stability, contributing to the coating's longevity and performance.
Meticulous Load Capacity Ratings and Safety Directives
Adherence to engineered load capacities is the cornerstone of safe and lawful towing operations. The Buyers Products BH8 Series combination hitch is precision-rated to ensure optimal performance and mitigate safety risks.
Maximum Gross Trailer Weight (M.G.T.W.): 12,000 lbs
For this specific configuration utilizing the 1-7/8 inch ball, the hitch is rated for a Maximum Gross Trailer Weight (M.G.T.W.) of 12,000 lbs. This metric denotes the absolute maximum permissible weight of the fully laden trailer, encompassing both the trailer's tare weight and its cargo. While the BH8 Series is conceptually designed for an overall strength profile that can support up to 8 tons (16,000 lbs) in alternative configurations with larger ball sizes, it is imperative to strictly observe the 12,000 lbs rating associated with the 1-7/8 inch ball. Exceeding this M.G.T.W. can severely compromise the structural integrity of the hitch, tow vehicle, and trailer, leading to catastrophic failure and significant safety hazards.
Maximum Vertical Load (M.V.L.): 3,000 lbs
The Maximum Vertical Load (M.V.L.), or tongue weight, is specified at 3,000 lbs. The M.V.L. quantifies the downward force exerted by the trailer’s tongue onto the hitch receiver. Maintaining an appropriate tongue weight—typically between 10% and 15% of the M.G.T.W. for conventional trailers—is fundamental for achieving stable and controlled towing dynamics. A 3,000 lbs M.V.L. capacity confirms the hitch’s capability to handle substantial downward forces, common with heavy-duty construction and industrial trailers. Exceeding the M.V.L. can induce adverse effects on the tow vehicle’s steering, braking, and suspension systems, jeopardizing control and potentially causing severe damage to the hitch or vehicle frame. Strict adherence to both M.G.T.W. and M.V.L. is a critical safety directive, mandating regular inspection and adherence to proper loading practices.
Engineered for Secure Mounting and Simplified Installation
The integrity of any towing system begins with its secure attachment to the tow vehicle. The Buyers Products BH8 Series combination hitch is meticulously engineered for a robust bolt-mounted installation, prioritizing both stability and straightforward integration.
Bolt-Mounted Design with Precision Drilling Template
The hitch utilizes a bolt-mounted design, offering distinct advantages including ease of installation, simplified maintenance, and avoidance of frame modifications associated with welding. To guarantee optimal alignment and structural integrity, each unit is supplied with a precision drilling template. This template is indispensable for accurately marking the mounting hole positions on the vehicle's frame or mounting plate. Correct hole placement ensures towing forces are distributed uniformly across all connection points, mitigating stress concentrations that could otherwise lead to material fatigue and premature failure. The template significantly reduces installation errors, ensuring the hitch is secured precisely to engineering specifications.

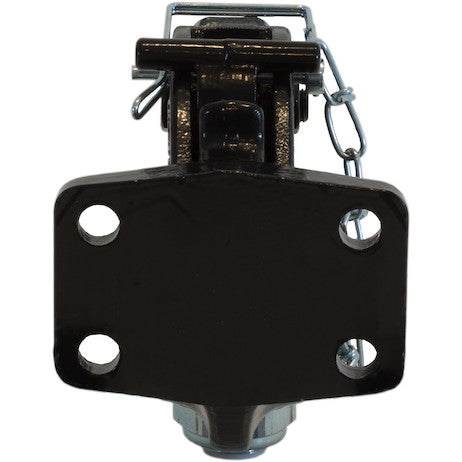

Key Mounting Dimensions and Fastener Specifications
The design incorporates specific, industry-standard mounting dimensions to ensure broad compatibility and robust attachment:
- Horizontal Hole Spacing: 3.375 inches – Facilitates alignment with common vehicle frame configurations and universal mounting plates.
- Vertical Hole Spacing: 1.75 inches – Complements the horizontal spacing to create a secure bolt pattern, critical for torsional stability.
- Mounting Hole Diameter: 0.531 inches – Precisely sized to accommodate high-strength fasteners, ensuring minimal play and maximum shear resistance.

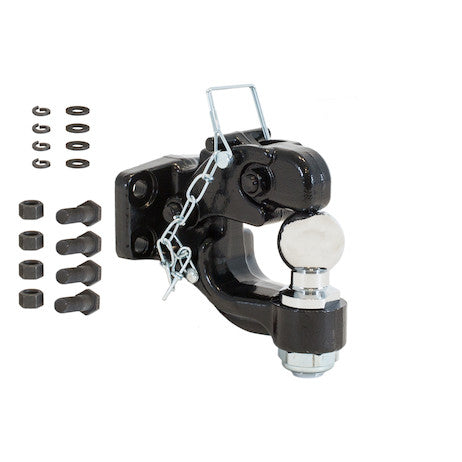

The accompanying mounting kit, available separately or as a set, includes Grade 8 fasteners. These specialized bolts are manufactured from heat-treated medium carbon alloy steel, delivering superior tensile and shear strength. Grade 8 fasteners are essential for heavy-duty towing applications due to their exceptional ability to withstand extreme pulling forces, shear loads, and repetitive stress cycles without material degradation. Proper torque application for these fasteners, as specified in the installation guidelines, is absolutely critical for maintaining the hitch’s rated capacities and overall operational safety.
Expansive Applications: Versatility for Diverse Fleets
The versatility inherent in the Buyers Products BH8 Series combination hitch positions it as an indispensable asset across a multitude of professional sectors, simplifying fleet management and enhancing operational flexibility.
Optimized for Diverse Professional Segments
- Construction Contractors: Efficiently manage varied equipment, from mini-excavators on pintle trailers to utility trailers carrying tools, without equipment changes.
- Tradesmen: Ensure readiness for any job, towing enclosed cargo trailers, dump trailers, or specialized equipment with varied coupling systems.
- Haulers and Logistics Operators: Streamline transport services for rental equipment, specialized machinery, and diverse cargo, reducing compatibility issues.
This hitch provides the adaptability required for towing an extensive range of trailer types, including standard utility trailers, enclosed cargo trailers, heavy-duty dump trailers, flatbed equipment haulers, and specialized trailers commonly equipped with pintle rings for enhanced durability and articulation. While this specific model is fitted with a 1-7/8 inch ball, the BH8 series is engineered with inherent flexibility to accommodate other common ball sizes (e.g., 2 inch and 2-5/16 inch in other variants), underscoring its thoughtful, modular design to meet evolving towing needs.
Unwavering Commitment to Safety and Enduring Performance
Every facet of the Buyers Products BH8 Series combination hitch reflects a profound commitment to operational safety and an enduring standard of performance, ensuring reliability under the most demanding conditions.
Compliance with Industry Standards and Best Practices
Buyers Products designs and manufactures the BH8 Series to meet or exceed rigorous industry standards for towing apparatus. This commitment ensures the hitch is robustly constructed and performs predictably and safely under its specified load capacities. Adherence to these engineering benchmarks helps minimize risks associated with equipment failure, contributing to a safer operational environment for personnel and assets, while also ensuring compliance with relevant transportation safety regulations.
Essential Maintenance for Prolonged Operational Life
To guarantee the sustained safety and optimal performance of the BH8 Series combination hitch, proactive maintenance and regular inspections are paramount:
- Pre-Trip Visual Inspection: Before each towing operation, meticulously examine the hitch body, ball, pintle hook mechanism, and all mounting fasteners for any indications of wear, deformation, cracks, excessive corrosion, or looseness.
- Lubrication: Periodically apply appropriate lubricant to the pintle hook’s latch and pivot points to ensure smooth, unhindered operation and prevent seizing.
- Fastener Torque Verification: Regularly check and re-torque all mounting bolts to the manufacturer’s specified values, particularly after initial installation and subsequent periods of heavy use, to maintain connection integrity.
- Cleanliness: Keep all hitch components free from accumulations of dirt, mud, and road debris, especially around moving parts and critical connection points, to prevent interference and wear.
Diligently following these maintenance guidelines is crucial for extending the service life of the hitch and upholding maximum towing safety and regulatory compliance.
Buyers Products Advantage: A Legacy of Trust and Innovation
Opting for the Buyers Products 8 TON Combination Hitch with 1-7/8 Inch Ball represents an investment in a heritage of engineering excellence and unwavering dedication to quality. As an established leader in the manufacturing of truck and trailer equipment, Buyers Products has meticulously developed the BH8 Series as a definitive towing solution for professionals who demand unparalleled performance, robust durability, and exceptional versatility from their towing apparatus.
This combination hitch transcends being merely a component; it is a meticulously engineered towing system designed to enhance operational efficiency, simplify fleet management, and consistently uphold the highest safety standards across diverse applications. Its fusion of robust forged steel construction, advanced protective finishes, precise load ratings, and a user-centric design for secure mounting coalesces to deliver a towing solution that is both exceptionally reliable and inherently adaptable. For professionals seeking a single, high-capacity hitch to confidently manage a varied inventory of trailers—from essential utility units to demanding construction equipment—the BH8 Series with its 1-7/8 inch ball provides the conclusive answer, instilling unwavering confidence for every journey.
