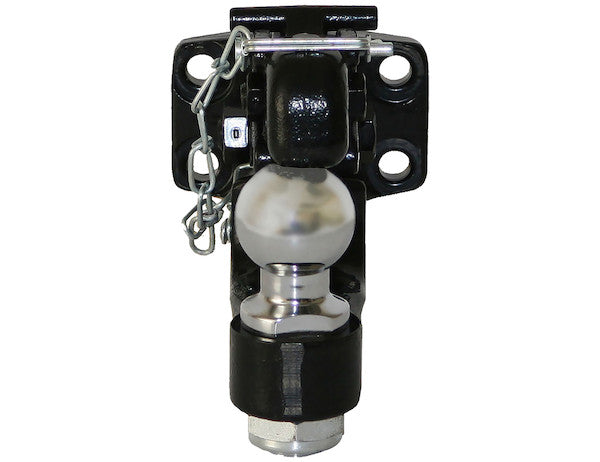

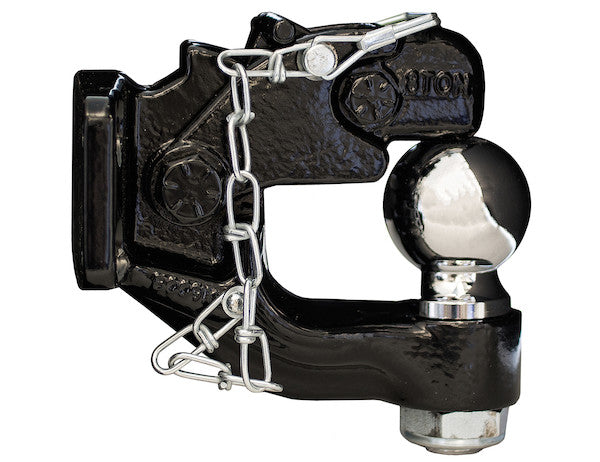

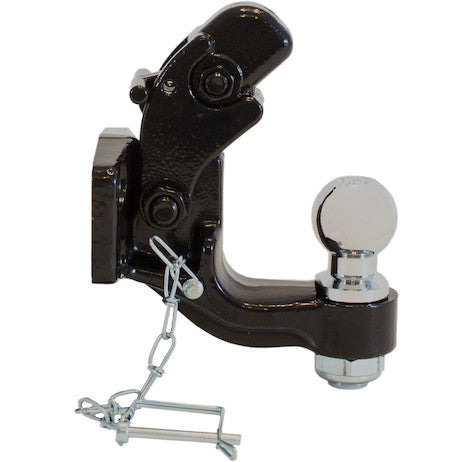

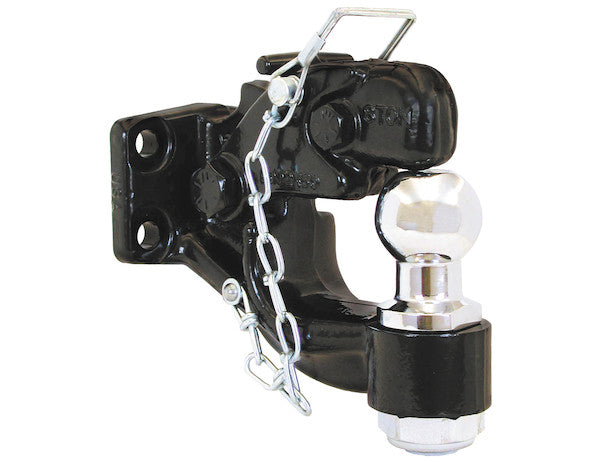

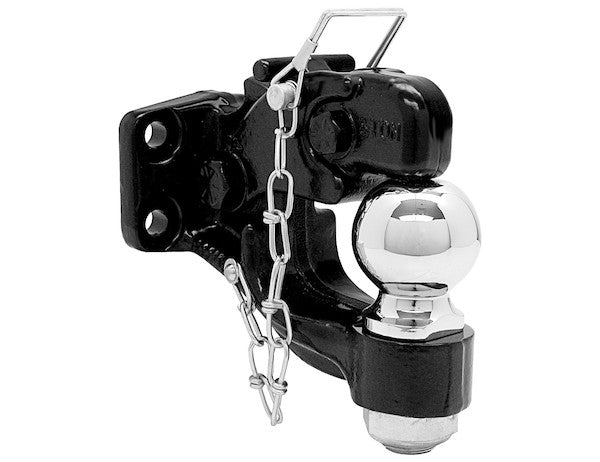

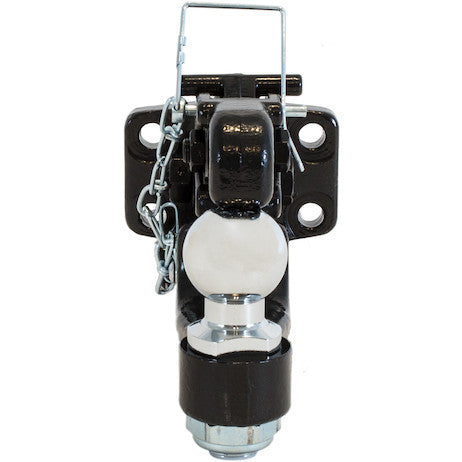

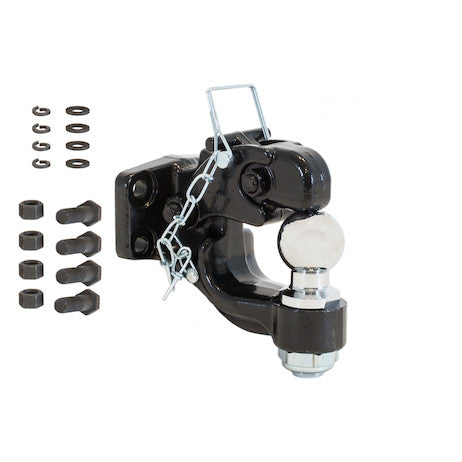

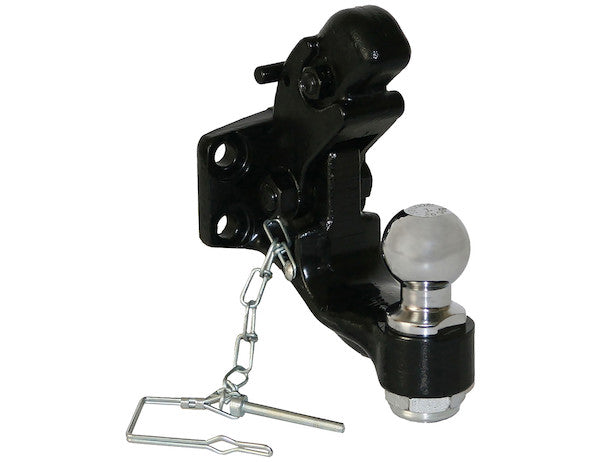

Buyers Products 8 Ton Combination Hitch combines both a ball hitch and pintle hook into one product. It allows you to pull loads that have either a coupler or a drawbar/pintle ring without having to change hitches. The hitch is ideal for contractors, tradesmen and haulers who tow a range of construction equipment. The hitch is available with 1-7/8 in., 2 in., or 2-5/16 in. ball sizes to accommodate different size couplers. It is bolt-mounted (drilling template included). A mounting kit with Grade 8 fasteners is available to order separately or as a set.
Specifications
| Ball Diameter (in.) | 2 |
|---|---|
| Ball Finish | Chrome |
| Ball Material | Forged Steel |
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.5-3.0 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 3.375 |
| M.G.T.W. (lbs) | 12,000 |
| M.V.L. (lbs) | 3,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 1.75 |
Advanced Engineering and Versatility: The Buyers Products BH8 Series 8-Ton Combination Hitch with 2-Inch Ball
The Buyers Products BH8 Series Combination Hitch stands as a testament to intelligent engineering and robust functionality, designed to meet the rigorous demands of professional towing operations. This meticulously crafted component integrates the distinct capabilities of a conventional ball hitch and a heavy-duty pintle hook into a singular, cohesive unit. This unique design liberates operators from the operational inefficiencies and logistical challenges associated with interchanging different hitch mechanisms, thereby streamlining workflow and enhancing productivity across diverse applications. Specified for an impressive Maximum Gross Trailer Weight (M.G.T.W.) of 12,000 lbs and a Maximum Vertical Load (M.V.L.) of 3,000 lbs, this hitch, particularly the model featuring a 2-inch ball, is engineered for superior performance in demanding environments.
Integrated Functionality for Unparalleled Adaptability
The core advantage of the BH8 Series combination hitch lies in its inherent versatility. Modern hauling fleets frequently encounter a variety of trailers, each equipped with differing coupling mechanisms. Traditional ball hitches are designed to engage with coupler-style hitches, typically found on lighter to medium-duty utility trailers, boat trailers, and some commercial equipment. Conversely, pintle hooks are specifically engineered to interface with drawbar/pintle rings, common on heavier-duty construction equipment, agricultural implements, and military-grade trailers. The necessity to switch between these two hitch types based on the trailer being towed often results in lost time, increased labor, and the potential for equipment misplacement or damage.
The Buyers Products 8 Ton Combination Hitch eliminates these obstacles by providing both functionalities within a single, robust housing. This means a single towing vehicle, equipped with the BH8 Series hitch, can seamlessly transition between trailers requiring a 2-inch ball coupling and those requiring a pintle ring connection, without any physical modification or component replacement. This level of adaptability is invaluable for operations where diverse equipment must be towed sequentially or opportunistically, such as in general contracting, landscape services, municipal fleet management, and heavy equipment rental sectors. The 2-inch ball diameter, as featured in this specific model, is one of the most widely utilized sizes, offering compatibility with a vast array of standard trailers and further enhancing the hitch's universal appeal.
Superior Material Science and Construction
At the foundation of the BH8 Series hitch's exceptional performance and longevity is its meticulously selected material composition and advanced manufacturing processes. The primary structure of the hitch is fabricated from high-grade forged steel. Forging is a metalworking process that involves shaping metal using localized compressive forces. This method results in a product with superior grain structure, improved tensile strength, enhanced fatigue resistance, and greater overall durability compared to cast or machined components. The molecular grain flow within the forged steel aligns with the shape of the component, providing unparalleled strength where it is most needed, particularly in areas subject to high stress during towing operations. This inherent strength of forged steel is critical for a component that must reliably bear dynamic and static loads up to 12,000 lbs (M.G.T.W.) and a vertical load of 3,000 lbs (M.V.L.).
Further enhancing its robustness, the hitch body features a durable black powder-coat finish. Powder coating is an advanced dry finishing process that involves electrostatically charging powdered paint particles and spraying them onto a grounded metal surface. The charged powder adheres to the metal and is then cured under heat, melting into a smooth, uniform coating. This finish provides several key benefits:
- Corrosion Resistance: The powder-coat acts as a formidable barrier against environmental aggressors such as moisture, road salts, chemicals, and UV radiation, significantly extending the lifespan of the hitch in outdoor and harsh operational conditions.
- Abrasion and Impact Resistance: Unlike traditional liquid paints, powder coatings are notably thicker and more flexible, offering superior resistance to chips, scratches, and abrasions, which are common occurrences in heavy-duty towing applications.
- Aesthetic Durability: The black powder-coat maintains its aesthetic integrity over time, resisting fading and chalking, ensuring the hitch continues to look professional even after extensive use.
The integral 2-inch ball, crafted from forged steel, receives an additional layer of protection and functionality through its chrome finish. Chrome plating provides an exceptionally hard and smooth surface, reducing friction with the trailer coupler, which minimizes wear on both components. Beyond its functional benefits, the chrome finish offers excellent corrosion resistance and imparts a polished, professional appearance, ensuring the ball remains free from rust and pitting even with prolonged exposure to the elements.
Precision Load Ratings and Safety Margins
Understanding the load ratings of any towing apparatus is paramount for safe and efficient operation. The Buyers Products BH8 Series Combination Hitch is precisely rated with a Maximum Gross Trailer Weight (M.G.T.W.) of 12,000 lbs. This metric represents the total maximum weight of the fully loaded trailer that the hitch can safely pull. Adhering to this limit is crucial to prevent structural failure, loss of control, and potential accidents. The designation of '8 Ton' in the series name signifies the robust design philosophy and the capability for heavy-duty applications, while the explicit 12,000 lbs M.G.T.W. provides the precise operational limit for this specific model.
Equally important is the Maximum Vertical Load (M.V.L.), specified at 3,000 lbs. The M.V.L., often referred to as tongue weight for ball hitches, represents the maximum downward force that the trailer coupler or pintle ring can exert on the hitch. Proper tongue weight is vital for trailer stability and vehicle control. An M.V.L. of 3,000 lbs indicates the hitch's capacity to handle substantial downward forces, common with heavier trailers, especially those with certain weight distribution characteristics. For optimal safety and handling, trailer tongue weight typically falls within 10-15% of the M.G.T.W. for conventional trailers, and often higher for pintle applications. The robust M.V.L. rating of this hitch ensures ample capacity to manage these forces, contributing significantly to stable towing dynamics and reducing the risk of sway or improper vehicle loading.
The standard pintle hook design further facilitates secure engagement with drawbar eyes ranging from 2.5 to 3.0 inches in inner diameter. This range accommodates a wide spectrum of pintle-style trailers, from smaller equipment dollies to heavy-duty construction machinery. The positive locking mechanism inherent to pintle hooks, combined with the robust construction, ensures that the trailer remains securely attached even over rough terrain and during dynamic driving conditions.
Engineered for Secure and Reliable Installation

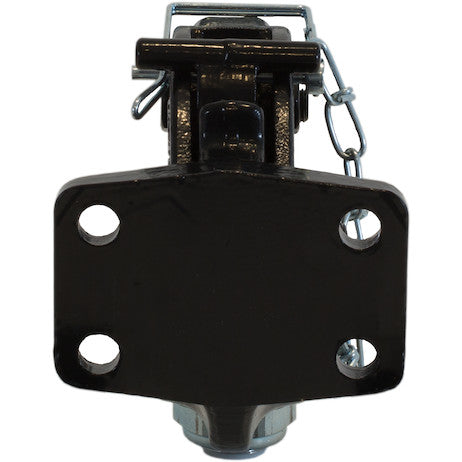

The installation methodology of any heavy-duty hitch is as critical as its construction. The Buyers Products BH8 Series Combination Hitch is designed for bolt-mounted installation, a preferred method for applications requiring high shear strength and robust attachment to the towing vehicle's frame or dedicated mounting plate. The precise engineering for installation is evidenced by the included drilling template, which ensures accurate hole placement, thereby facilitating a secure and geometrically correct attachment. The specifications detail critical mounting dimensions:
- Horizontal Hole Spacing: 3.375 inches
- Vertical Hole Spacing: 1.75 inches
- Mounting Hole Diameter: 0.531 inches
These precise dimensions are crucial for ensuring compatibility with standard mounting plates and for maintaining structural integrity. The 0.531-inch mounting hole diameter accommodates common high-strength bolts, and the precise spacing prevents unnecessary stress concentrations. For optimal safety and performance, a mounting kit featuring Grade 8 fasteners is highly recommended and available either separately or as a complete set. Grade 8 fasteners are heat-treated to achieve a minimum tensile strength of 150,000 psi, offering significantly greater strength and shear resistance compared to standard Grade 5 bolts. The use of such high-grade hardware is imperative for safely securing a hitch rated for 12,000 lbs, ensuring the connection withstands the immense forces generated during acceleration, braking, and traversing uneven terrain.
Proper installation, utilizing the correct bolt torque specifications and following the provided template, is fundamental to the operational safety of the hitch. Incorrect mounting can compromise the load-bearing capacity and lead to premature wear or catastrophic failure. The design anticipates these critical factors, providing the necessary tools and specifications for a professional-grade installation.
Applications Across Industrial and Commercial Sectors
The versatility and robust design of the Buyers Products 8 Ton Combination Hitch with a 2-inch ball make it an indispensable asset across a multitude of industrial and commercial sectors:
- Construction Industry: Contractors frequently tow excavators, skid steers, mini-loaders, concrete mixers, and material trailers. The combination hitch allows them to switch between a ball coupler for a utility trailer and a pintle ring for a heavy-duty equipment trailer without downtime.
- Landscaping and Arboriculture: Professionals in this field often tow chippers, stump grinders, large utility trailers, and enclosed equipment trailers. The hitch's dual functionality provides the flexibility needed to manage diverse fleets of specialized equipment.
- Municipal and Utility Services: City, county, and state maintenance departments, as well as private utility companies, utilize a wide range of trailers for maintenance, emergency response, and infrastructure projects. This hitch supports the towing of generators, aerial lifts, traffic signal trailers, and various repair vehicles.
- Agriculture: Farmers and agricultural businesses can benefit from towing trailers for livestock, grain, hay, and implements, often encountering both ball and pintle ring connections depending on the age and type of equipment.
- Heavy Equipment Rental: Rental companies providing towing solutions must accommodate a broad spectrum of customer needs. A combination hitch on their rental trucks or tow vehicles simplifies operations and expands service capabilities.
- General Hauling and Fleet Operations: Any business that manages a diverse fleet of trailers and requires frequent switching between light-duty and heavy-duty towing applications will find this hitch provides significant operational advantages.
Maintenance and Longevity
While engineered for durability, proper maintenance ensures the maximum service life and safety of the Buyers Products BH8 Series Combination Hitch. Regular inspection should include:
- Visual Inspection: Check for any signs of fatigue, cracks, excessive wear, deformation, or corrosion on the hitch body, ball, and pintle hook mechanism.
- Fastener Integrity: Verify that all mounting bolts are securely tightened to their specified torque values and show no signs of loosening or corrosion.
- Pintle Mechanism Functionality: Ensure the pintle hook latch operates smoothly and securely, engaging and disengaging correctly without binding.
- Lubrication: Periodically apply appropriate grease to pivot points and moving parts of the pintle mechanism to ensure smooth operation and prevent wear.
- Finish Condition: Though durable, inspect the powder-coat and chrome finishes for deep scratches or areas where the base metal might be exposed, and touch up as necessary to prevent rust.
Adhering to these simple maintenance practices, coupled with never exceeding the specified M.G.T.W. and M.V.L. ratings, will ensure that the BH8 Series Combination Hitch provides years of reliable and safe service.
Conclusion
The Buyers Products BH8 Series 8 Ton Combination Hitch with a 2-inch ball represents an investment in efficiency, safety, and versatility for any professional towing operation. Its robust forged steel construction, protected by a durable powder-coat finish and a chrome-plated ball, guarantees exceptional longevity and resistance to harsh working conditions. With a substantial M.G.T.W. of 12,000 lbs and an M.V.L. of 3,000 lbs, this hitch is engineered to handle demanding loads with confidence. The integrated design, offering both ball hitch and pintle hook functionalities, eliminates the need for multiple hitches, saving time and simplifying logistics. Coupled with its precise bolt-mounted installation specifications and the option for a high-strength Grade 8 fastener kit, the BH8 Series offers a comprehensive, high-performance towing solution for contractors, tradesmen, haulers, and any industry requiring maximum adaptability and reliability from their towing equipment. This combination hitch is not merely a component; it is a strategic asset designed to optimize fleet operations and ensure the safe transport of diverse trailer types.
