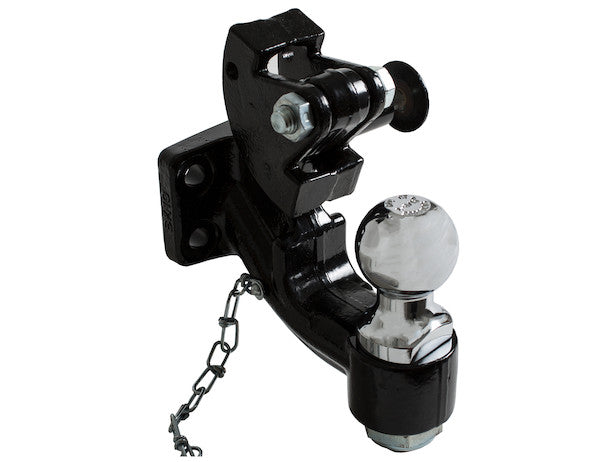

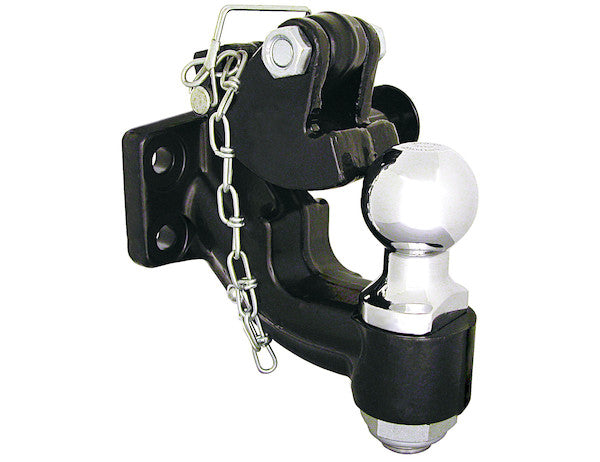

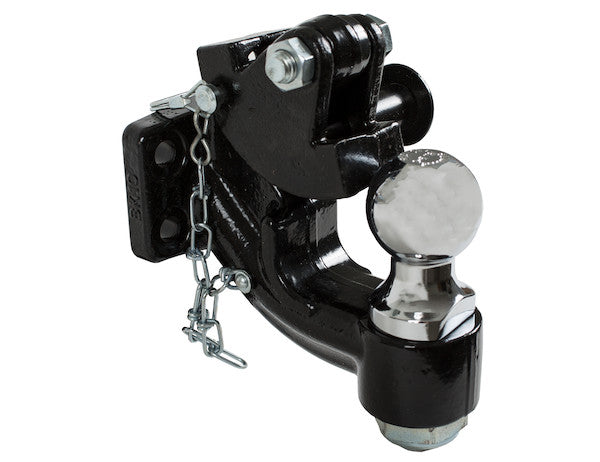

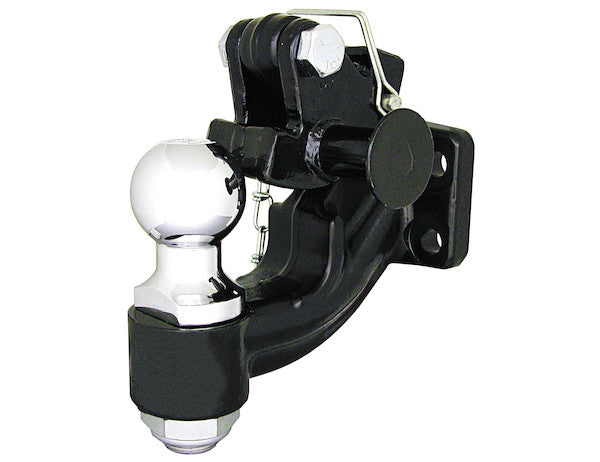

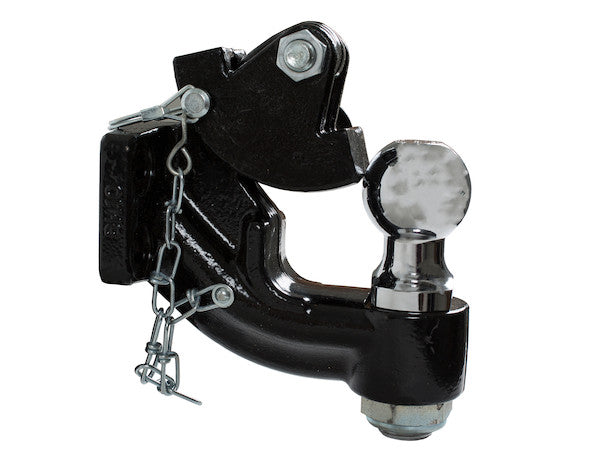

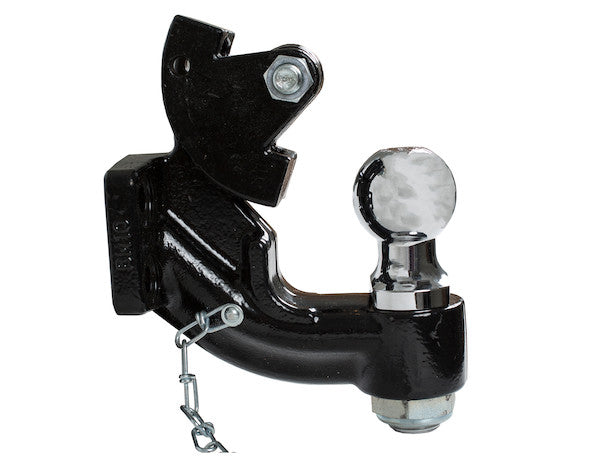

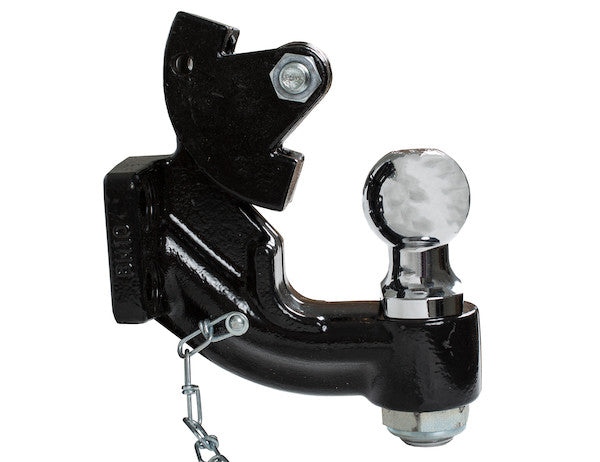

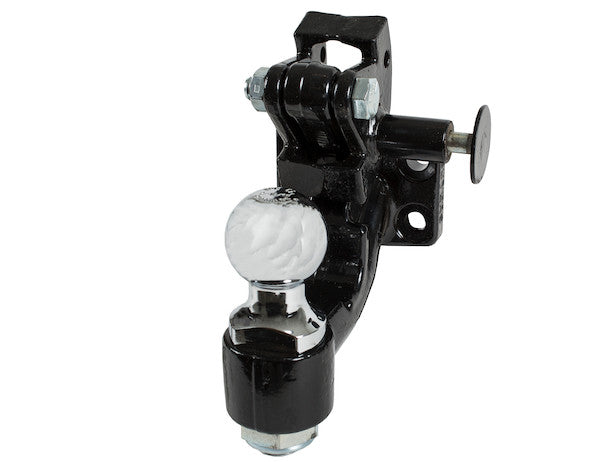

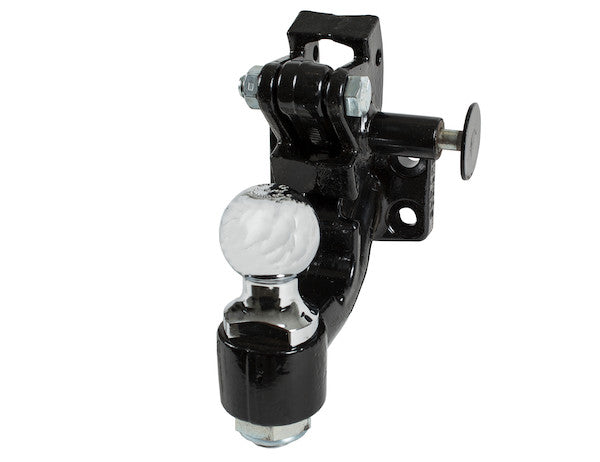

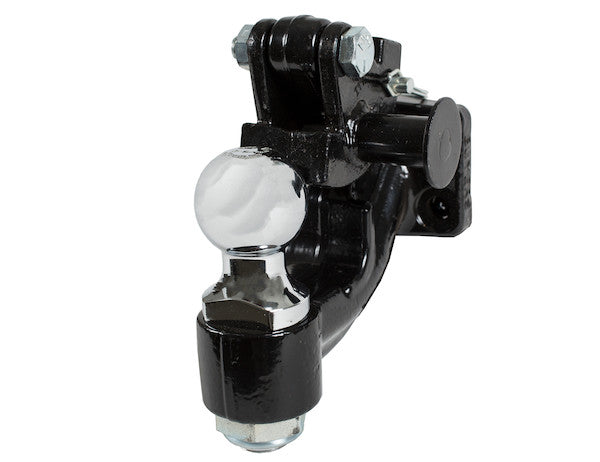

Buyers Products 10 Ton Combination Hitch combines both a ball hitch and pintle hook in one product. It allows you to pull loads that have either a coupler or a drawbar/pintle ring without having to change hitches. This hitch is ideal for contractors, tradesmen and haulers who tow a range of medium duty loads, e.g., ditch diggers, skid steers and other similar equipment. The hitch is available with 2 in. or 2-5/16 in. hitch balls to accommodate different size couplers. It is bolt-mounted (drilling template included).
Specifications
| Ball Diameter (in.) | 2-5/16 |
|---|---|
| Ball Finish | Chrome |
| Ball Material | Forged Steel |
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.0 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 3.375 |
| M.G.T.W. (lbs) | 20,000 |
| M.V.L. (lbs) | 4,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.594 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 1.75 |
The BH10 Series: Engineered Versatility for Demanding Professional Towing
The Buyers Products 10 Ton Combination Hitch with a 2-5/16 Inch Ball, part of the distinguished BH10 Series, represents a pinnacle of towing technology designed for the most rigorous professional applications. This expertly engineered component integrates two primary towing mechanisms – a robust ball hitch and a heavy-duty pintle hook – into a single, unified system. This innovative design eliminates the need for frequent hitch changes, thereby optimizing operational efficiency and enhancing adaptability across diverse towing scenarios. Tailored specifically for the professional sector, including contractors, tradesmen, municipal operators, and commercial haulers, this combination hitch is an indispensable tool for managing a broad spectrum of medium to heavy-duty loads, from compact construction equipment like skid steers and mini excavators to utility trailers, material haulers, and specialized agricultural machinery.
Unparalleled Dual-Mode Towing Capability
The core advantage of the BH10 Series combination hitch lies in its inherent versatility. It is meticulously designed to accommodate trailers equipped with either a standard ball coupler or a drawbar/pintle ring, providing seamless transition between different trailer types without requiring equipment downtime for hitch reconfiguration. This dual functionality is not merely a convenience but a critical operational advantage for fleets that encounter varied towing requirements daily.
Integrated 2-5/16 Inch Ball Hitch System
At the heart of its ball hitch functionality is a precision-machined, 2-5/16 inch forged steel ball. This specific diameter is a widely adopted standard for heavy-duty trailers, capable of handling substantial loads with utmost security. The ball's construction from high-grade forged steel provides exceptional tensile strength, impact resistance, and fatigue life, critical attributes for maintaining structural integrity under dynamic towing forces. Furthermore, the ball is meticulously finished with a durable chrome plating. This surface treatment serves multiple purposes: it significantly enhances corrosion resistance, protecting the steel from rust and environmental degradation; it provides a low-friction surface that facilitates smoother coupling and uncoupling operations; and it contributes to extended wear life by minimizing abrasion against the trailer coupler. This chrome finish ensures that the ball maintains its structural and aesthetic integrity even after thousands of hitching cycles and exposure to harsh elements. The 2-5/16 inch ball is ideal for towing equipment such as larger utility trailers, car haulers, smaller gooseneck trailers, and various construction equipment trailers that utilize a coupler interface, offering a secure and stable connection essential for safe transit.
Robust Standard Pintle Hook Mechanism
Complementing the ball hitch is a rugged standard pintle hook, engineered for superior performance in demanding environments. The pintle hook system is specifically designed to engage with drawbar eyes, accommodating an inner diameter range of 2.38 to 3.0 inches. This wide compatibility ensures secure attachment to a vast array of commercial and industrial trailers, including those used for heavy machinery, military applications, and off-road utility. The pintle hook's design inherently allows for greater articulation between the towing vehicle and the trailer compared to ball couplers, which is particularly beneficial when traversing uneven terrain, navigating construction sites, or operating in agricultural fields. This enhanced articulation reduces stress on both the hitch and the trailer's tongue, contributing to increased component longevity and safer operation in challenging conditions. The locking mechanism of the pintle hook ensures a firm, rattle-free connection, minimizing wear and maximizing control during transport. Its robust construction makes it the preferred choice for applications where extreme durability and reliability are paramount, often seen with trailers carrying generators, compressors, heavy-duty material spreaders, or large landscaping equipment.
Uncompromising Strength Through Superior Material Science and Construction
The BH10 Series combination hitch is a testament to advanced engineering and material selection, ensuring maximum strength, durability, and operational safety. Every aspect of its design, from raw material to protective coatings, is optimized for sustained performance under strenuous conditions.
Forged Steel: The Foundation of Durability
Both the main body of the hitch and the integrated ball are constructed from high-quality forged steel. The forging process, distinct from casting or fabrication, involves shaping solid steel through immense compressive forces, often at elevated temperatures. This process refines the steel's grain structure, eliminating internal voids and improving its metallurgical integrity. The resulting material exhibits significantly superior mechanical properties, including enhanced tensile strength, yield strength, impact resistance, and fatigue life. Forged steel components are inherently tougher and more resistant to sudden shocks and repeated stresses, making them ideal for high-load applications like towing heavy equipment. This meticulous material selection directly underpins the hitch's impressive Gross Trailer Weight (GTW) capacity of 20,000 lbs, ensuring it can safely manage substantial payloads over extended periods without compromise to structural integrity.
Advanced Corrosion Protection: Powder Coating and Chrome Finish
To withstand the corrosive elements common in outdoor and industrial environments, the BH10 Series hitch features a multi-layered protective finishing system. The main body of the hitch is treated with an industrial-grade black powder coat finish. Powder coating is a superior finishing technique where dry powder is electrostatically applied to the metal surface and then cured under heat to form a hard, durable, and aesthetically pleasing finish. This process creates a significantly thicker and more uniform coating than traditional liquid paint, providing exceptional resistance to chipping, scratching, abrasion, UV radiation, and chemical exposure. This robust protection ensures that the hitch maintains its structural integrity and appearance, even when exposed to road salts, moisture, dirt, and harsh weather conditions. The integral 2-5/16 inch ball, as previously mentioned, benefits from a resilient chrome plating. This galvanic coating process deposits a layer of chromium onto the forged steel, creating a very hard, smooth, and highly corrosion-resistant surface. This dual-finish strategy provides comprehensive protection, ensuring long-term reliability and reducing maintenance requirements throughout the product's operational lifespan.
Precision Performance: Capacity and Load Dynamics
The performance metrics of the BH10 Series hitch are meticulously engineered to meet and exceed industry standards for heavy-duty towing, providing users with absolute confidence in its capabilities.
Gross Trailer Weight (M.G.T.W.) - 20,000 lbs (10 Tons)
With a maximum Gross Trailer Weight (M.G.T.W.) rating of 20,000 lbs, equivalent to 10 tons, this combination hitch is certified to manage a significant range of heavy-duty trailers and equipment. This capacity rating indicates the maximum permissible weight of the fully loaded trailer that the hitch can safely tow. This makes it exceptionally well-suited for towing mid-sized excavators, larger skid steer loaders, multi-utility trailers laden with construction materials, portable asphalt equipment, heavy-duty chippers, and industrial generators. Adherence to this rating is paramount for operational safety and regulatory compliance. The robust design and forged steel construction are specifically engineered to endure the dynamic stresses associated with towing at this elevated capacity, ensuring stable and secure transport even under challenging road conditions.
Maximum Vertical Load (M.V.L.) - 4,000 lbs (Tongue Weight)
The hitch also boasts an impressive Maximum Vertical Load (M.V.L.) capacity of 4,000 lbs. The M.V.L., commonly referred to as tongue weight, represents the downward force exerted by the trailer's tongue onto the hitch of the towing vehicle. Proper tongue weight distribution is critically important for stable and safe towing. An inadequate tongue weight can lead to trailer sway, reduced steering control, and braking inefficiencies, while excessive tongue weight can overload the towing vehicle's rear axle, affecting its suspension, braking, and handling. The 4,000 lbs M.V.L. rating ensures that the BH10 Series hitch can comfortably support the substantial tongue weights typical of heavy construction and commercial equipment trailers. This high capacity provides a crucial safety margin, minimizing the risk of instability and enhancing overall vehicle control, especially when towing large, unbalanced, or dynamically loaded trailers. This engineering consideration aligns with best practices and recognized standards for towing safety and performance, contributing to a more predictable and secure towing experience.
Integrated Mounting System and Installation Protocol
The functionality and safety of any high-capacity hitch are directly dependent on its mounting integrity. The BH10 Series addresses this critical aspect by providing a comprehensive, precision-engineered mounting solution.
Complete Bolt-Mounted Kit with Precision Specifications
This 10-ton combination hitch is designed for a secure bolt-mounted installation, a method favored for its exceptional strength, reliability, and ease of maintenance compared to welding or other attachment methods. The hitch features precisely engineered mounting hole specifications to ensure a robust and unyielding connection to the vehicle's frame or a dedicated mounting plate. The horizontal hole spacing is standardized at 3.375 inches, and the vertical hole spacing is 1.75 inches. These precise dimensions are crucial for ensuring compatibility with a wide range of industry-standard truck frames and mounting brackets. The mounting holes themselves have a diameter of 0.594 inches, indicating compatibility with high-strength bolts, typically 5/8 inch or M16, which are essential for transferring the immense towing and vertical loads safely to the vehicle's chassis. The use of precisely sized, high-grade fasteners, tightened to specific torque values, is paramount to achieve the rated capacities and maintain structural integrity over time.
Included Drilling Template for Professional Installation
To facilitate accurate and efficient installation, each BH10 Series combination hitch includes a drilling template. This invaluable accessory guides the precise placement and drilling of mounting holes, significantly reducing installation time and mitigating the risk of errors that could compromise the hitch's performance or the vehicle's structural integrity. The template ensures that all mounting points align perfectly, allowing for a stress-free, direct bolt-on application once the holes are prepped. Proper installation, following the provided instructions and utilizing the drilling template, is crucial for maximizing the hitch's operational life, ensuring compliance with warranty conditions, and, most importantly, guaranteeing the safety of towing operations. It is recommended that installation be performed by qualified personnel to ensure all aspects of the mounting process, including chassis reinforcement where necessary, are executed to professional standards.
Optimizing Operational Efficiency for Professional Fleets
The Buyers Products BH10 Series combination hitch is more than just a towing device; it is a strategic asset for businesses seeking to enhance operational flexibility and efficiency.
Streamlined Fleet Management and Diverse Applications
For operations involving varied equipment, the ability to switch between ball coupler and pintle ring connections without changing the entire hitch dramatically streamlines fleet management. This eliminates the need for multiple specialized hitches, reducing inventory costs and complexity. Industries such as general construction, road maintenance, landscaping, utility services (power, telecommunications, water), equipment rental, and even specialized agricultural applications will find immense value in this versatility. Imagine a scenario where a crew needs to haul a skid steer with a ball coupler to one job site, then pick up a heavy-duty water trailer with a pintle ring for dust suppression at another, all with the same vehicle and hitch. This adaptability minimizes vehicle downtime, maximizes productivity, and ensures that the right towing solution is always readily available.
Enhanced Safety and Reliability in Dynamic Environments
Beyond convenience, the integrated design contributes to enhanced safety. By providing a secure, purpose-built connection for both trailer types, operators can proceed with confidence, knowing that their loads are properly secured. The robust forged steel construction, combined with superior protective finishes, ensures that the hitch maintains its structural integrity and performance reliability even in the most demanding and abrasive work environments. This reliability translates into fewer breakdowns, reduced maintenance interventions, and, critically, a safer working environment for operators and surrounding personnel.
Conclusion: The Definitive Solution for Heavy-Duty Towing Versatility
The Buyers Products 10 Ton Combination Hitch with 2-5/16 Inch Ball from the BH10 Series stands as the definitive choice for professionals who demand uncompromising versatility, strength, and reliability in their towing equipment. Its innovative integration of a high-capacity 2-5/16 inch ball hitch and a robust standard pintle hook redefines operational flexibility, allowing seamless transitions between diverse trailer types. Crafted from premium forged steel and safeguarded by advanced powder-coat and chrome finishes, this hitch is engineered to endure the most rigorous conditions while consistently delivering its rated 20,000 lbs Gross Trailer Weight and 4,000 lbs Maximum Vertical Load capacities. The inclusion of a comprehensive, bolt-mounted installation kit with a precision drilling template underscores its design for professional-grade integration and long-term durability. For contractors, tradesmen, and commercial haulers navigating the complexities of varied loads and dynamic work sites, the BH10 Series combination hitch is not merely a component but a strategic investment in efficiency, safety, and unwavering performance. It is the intelligent solution for maximizing productivity and minimizing operational downtime in the demanding world of heavy-duty towing.
