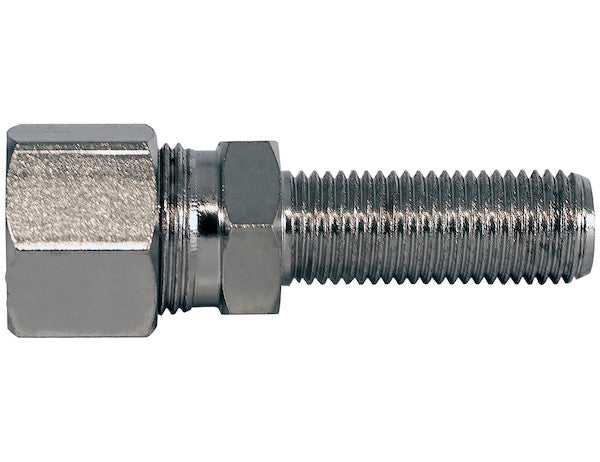

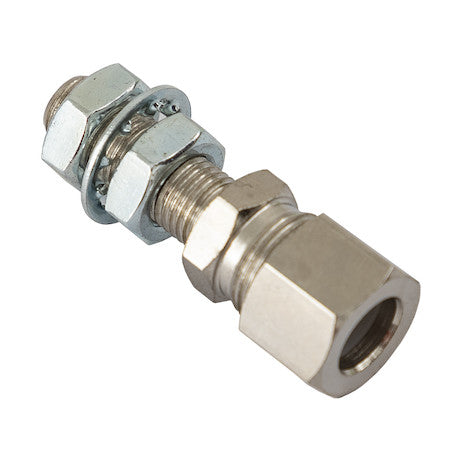

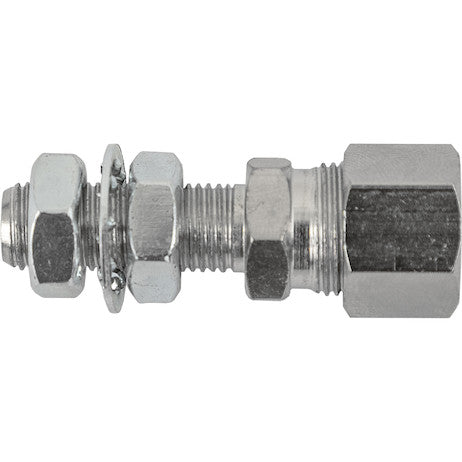

Buyers Products 3/8 Inch-24 Thread Bulkhead Fitting is used to create a bulkhead style attachment on the output end of cables with conduit measuring 3/8 in.
Specifications
| Use WIth | VCGT,RF04D,R38D |
| FInish | Plain |
| Material | Hardened Steel |
The Buyers Products 3/8 Inch-24 Thread Bulkhead Fitting represents a critical component in mechanical control systems, engineered to facilitate the precise and secure passage of control cables through a panel, wall, or enclosure—commonly referred to as a bulkhead. This fitting is specifically designed to accommodate control cables encapsulated within a 3/8-inch conduit, establishing a robust and stable anchor point that is essential for the reliable operation of various mechanical linkages. Its primary function is to transform a flexible conduit connection into a fixed, rigid attachment point, ensuring the integrity and consistent performance of the control cable system.
A bulkhead fitting, in its essence, serves as an interface. It bridges the gap between two distinct environments or zones separated by a structural barrier. In the context of mechanical controls, this barrier could be a vehicle firewall, the wall of an equipment cabin, or an enclosure housing sensitive machinery. The necessity for such a fitting arises from the requirement to transmit mechanical force or motion from one side of the bulkhead to the other, without compromising the structural integrity of the bulkhead itself or subjecting the cable to undue stress at the point of entry. The 3/8 Inch-24 Thread Bulkhead Fitting achieves this by providing a threaded bore that allows the conduit and cable assembly to pass through, secured by an external nut that clamps the fitting firmly against the bulkhead material.
Central to this fitting's design and performance are its specific dimensional and material characteristics. The "3/8 Inch-24 Thread" designation is particularly significant. The "3/8 Inch" refers to the nominal diameter of the thread, indicating its compatibility with conduits and corresponding components designed to this standard. The "-24" specifies the thread pitch, meaning there are 24 threads per inch. This combination signifies a Unified National Fine (UNF) thread series. UNF threads are distinguished by their finer pitch compared to their coarser counterparts (UNC – Unified National Coarse). The advantages of a fine thread in this application are manifold: it provides a greater number of threads per unit of engagement length, which translates into increased resistance against loosening due to vibration, a higher shear strength, and the ability to achieve finer adjustments during installation. The tighter helix angle inherent to fine threads also contributes to a more secure and stable connection, crucial in dynamic environments where mechanical linkages are constantly in motion or subject to external forces.
The choice of "Hardened Steel" as the primary material for this bulkhead fitting is a testament to its intended application in demanding environments. Hardened steel is renowned for its exceptional mechanical properties, which are achieved through specific heat treatment processes such as quenching and tempering. These processes enhance the steel's hardness, tensile strength, yield strength, and wear resistance, while simultaneously improving its fatigue resistance. In a component like a bulkhead fitting, which must withstand significant clamping forces, continuous mechanical stress, and potential impacts, the inherent robustness of hardened steel is paramount. It ensures that the fitting maintains its structural integrity over its operational lifespan, resisting deformation, thread stripping, and material degradation even under severe conditions. The increased hardness also provides superior resistance to abrasion, which can be a concern at contact points with the bulkhead or other mating components.
The "Plain" finish, as specified, indicates that the fitting has not undergone any additional surface treatments such as plating or coating for corrosion protection. While a plain finish might suggest a lack of corrosion resistance, its selection is often strategic. In many applications, particularly within enclosed systems or environments where the component is regularly exposed to lubricating fluids, the inherent corrosion resistance of the hardened steel itself, combined with its operational context, may be sufficient. Alternatively, a plain finish allows for maximum compatibility with custom post-installation treatments, such as painting or specialized coatings applied to the entire assembly, ensuring a uniform finish and targeted protection where needed. It also eliminates the potential for plating build-up that could interfere with precise thread engagement or critical tolerances, ensuring optimal fit and function straight from manufacturing.
Compatibility is a cornerstone of effective mechanical system design, and this fitting is specifically noted for use with VCGT, RF04D, and R38D series cables and conduits. These designations likely refer to specific lines of push-pull control cables and their associated conduits from Buyers Products. Such specialized compatibility ensures perfect mechanical and dimensional matching, guaranteeing optimal performance, ease of installation, and long-term reliability. The internal diameter of the fitting is precisely machined to accept the 3/8-inch conduit without play, while the external threading aligns perfectly with the specified locking nuts and other system components. This seamless integration prevents issues such as cable binding, premature wear, or loss of control responsiveness, which can arise from incompatible or loosely fitted components.
The installation process for the 3/8 Inch-24 Thread Bulkhead Fitting, while seemingly straightforward, requires adherence to best practices to ensure maximum performance and longevity. First, a precisely sized hole must be drilled or punched in the bulkhead material, typically slightly larger than the major diameter of the fitting's external thread but smaller than the flange or shoulder of the fitting. This ensures a snug fit and proper seating. The control cable with its 3/8-inch conduit is then threaded through the fitting and the prepared bulkhead opening. The bulkhead fitting is inserted through the bulkhead, and a retaining nut is typically threaded onto the fitting from the opposite side of the bulkhead. Proper torque application to this retaining nut is critical. Over-tightening can deform the bulkhead material or damage the threads, while under-tightening can lead to a loose connection, allowing the fitting to shift or vibrate, compromising the stability of the control cable. The fine pitch of the 24 threads per inch aids in achieving a precise and secure torque, providing a tactile feel that allows for accurate tightening and a strong resistance to loosening once set. While not explicitly supplied, in certain applications, a gasket or sealing compound may be used between the fitting's flange and the bulkhead surface to enhance environmental sealing against moisture, dust, or contaminants, further protecting the cable and improving system longevity.
Performance characteristics of this hardened steel bulkhead fitting are directly related to its material and design. Its robust construction ensures high tensile and compressive load-bearing capabilities, essential for transmitting forces through the control cable without any slippage or failure at the bulkhead point. The fine thread design, coupled with the inherent strength of hardened steel, provides excellent vibration resistance, maintaining the integrity of the attachment even in highly dynamic operating environments typical of heavy equipment or commercial vehicles. The fitting is designed to operate across a broad spectrum of environmental conditions, maintaining its mechanical properties through varying temperatures and exposures, although the plain finish means its corrosion resistance is solely dependent on the base material's properties or subsequent coatings applied by the user. Its longevity is projected to span the service life of the control cable system it supports, provided it is installed correctly and not subjected to loads exceeding its design parameters.
The applications for the 3/8 Inch-24 Thread Bulkhead Fitting are diverse and span numerous industries where reliable mechanical control systems are paramount. In the automotive and heavy equipment sectors, these fittings are indispensable for critical linkages such as throttle controls, choke cables, PTO (Power Take-Off) engagement, gearshift mechanisms, and various accessory controls. Agricultural machinery relies on them for implement articulation, spreader controls, and other vital operational functions. In the marine industry, they find use in rudder controls, engine acceleration, and auxiliary system engagement, where robustness against vibration and environmental factors is crucial. Industrial machinery, ranging from packaging equipment to material handling systems, often employs such fittings for precise actuator control and safety interlocks. The ability to securely route a control cable through a panel while maintaining operational integrity and resistance to environmental ingress makes this fitting a fundamental component in ensuring the safety, efficiency, and reliability of these complex systems.
Quality assurance in the manufacturing of components like this bulkhead fitting is rigorously maintained. Precision engineering dictates strict tolerances for thread dimensions, material composition, and overall structural integrity. Each fitting undergoes meticulous inspection to ensure that it meets the specified dimensions and material hardness, ensuring consistent performance and interchangeability. Adherence to industry standards, such as those governing thread forms (e.g., ASME B1.1 for Unified Inch Screw Threads) and material specifications (e.g., ASTM standards for hardened steel), ensures that the product performs predictably and integrates seamlessly into existing systems. This commitment to quality minimizes the risk of component failure, reduces downtime, and contributes to the overall safety and reliability of the machinery it serves.
Maintenance and inspection of bulkhead fittings are generally straightforward, primarily involving visual checks for signs of wear, corrosion (if in an exposed environment without further protection), or looseness. Periodic inspection should confirm that the retaining nut remains securely torqued and that the fitting itself shows no signs of deformation or cracking. Any damage or excessive wear warrants immediate replacement to prevent potential control system failure. Given the hardened steel construction and precise threading, the fitting is designed for a long service life with minimal maintenance intervention beyond these routine checks, reinforcing its value as a durable and reliable component.
In conclusion, the Buyers Products 3/8 Inch-24 Thread Bulkhead Fitting is far more than a simple connector; it is a precisely engineered, high-strength component critical to the reliable functioning of mechanical control systems across a vast array of demanding applications. Its hardened steel construction, combined with the advantages of a 3/8 Inch-24 UNF thread, ensures superior strength, exceptional resistance to vibration-induced loosening, and enduring durability. Designed for seamless integration with specific cable series and other 3/8-inch conduit systems, it provides a stable and secure bulkhead attachment point. This fitting embodies a commitment to engineering excellence, offering a robust solution for transmitting mechanical forces through structural barriers, thereby guaranteeing consistent and safe operation in the most challenging industrial and vehicular environments. Its technical specifications and design choices reflect a deep understanding of the requirements for robust mechanical linkages, making it an indispensable part of high-performance control assemblies.
