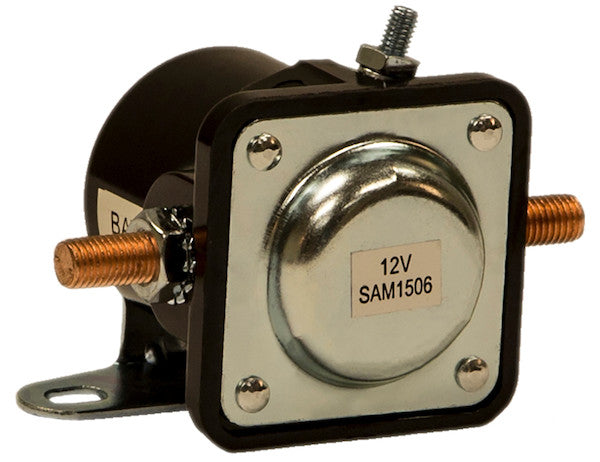

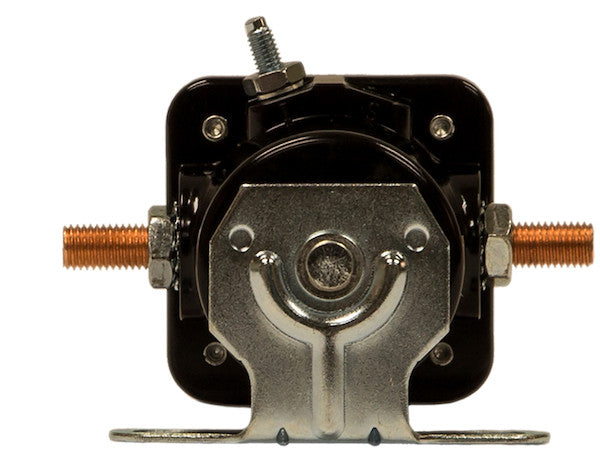

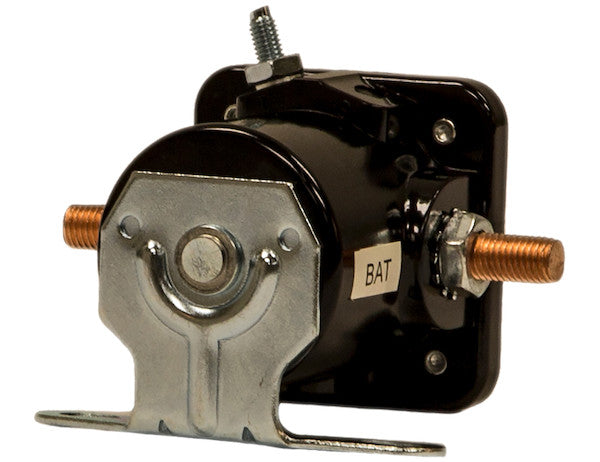

Buyers Products Intermittent Duty 12 Volt Plastic Case Solenoid features low-input, high-output operation ideal for 12V snow plows and lift gates that require heavy duty electric motors. The solenoid is available in a positive 12V-activated or a ground-activated model. Both have threaded terminals and pre-drilled mounting holes that make installation a snap.
Specifications
| Compares To | Western 25634 |
|---|---|
| Current Rating | 100 |
| Duty | Intermittent |
| Housing Material | Polymer |
| Mount Style | Right Angle Bracket |
| Number of Terminals | 3 |
| Switch Style | Ground Switched |
Technical Overview: Buyers Products 12 Volt Plastic Case Insulated Solenoid for Intermittent Heavy-Duty Applications
The Buyers Products Intermittent Duty 12 Volt Plastic Case Insulated Solenoid, specifically engineered for ground-activated control, represents a robust and critical component in various heavy-duty electrical systems. This device is meticulously designed to manage high current loads inherent in demanding 12V applications such as snow plows, lift gates, and other machinery requiring substantial power delivery to electric motors. Its fundamental role is to act as an electromagnetically controlled switch, enabling a low-current input signal to activate a high-current circuit, thereby protecting sensitive control components and ensuring efficient power transmission.
Principle of Operation and Electromagnetic Fundamentals
At its core, a solenoid is an electromechanical transducer that converts electrical energy into linear mechanical motion, which is then utilized to operate a set of electrical contacts. When a current flows through the solenoid's coil, an electromagnetic field is generated. This field attracts a ferromagnetic plunger or armature, causing it to move. In the context of this product, this mechanical movement is precisely calibrated to close a high-current switch, creating a conductive path for power to flow from the battery to the connected load, typically a powerful electric motor. Upon de-energization of the coil, a spring mechanism typically returns the armature to its original position, opening the high-current circuit.
The 12 Volt operating voltage is a ubiquitous standard in automotive and heavy equipment electrical systems. This voltage level offers an optimal balance between current requirements and insulation demands, making it practical for battery-powered applications. The efficiency of a 12V system is critical, as heavy-duty motors can draw significant power, necessitating components capable of reliably handling substantial current surges and sustained loads during operation. The design of this solenoid specifically accommodates the power delivery characteristics of 12V systems, ensuring minimal voltage drop across the contacts and efficient energy transfer to the motor.
Intermittent Duty Cycle: Design and Application Specificity
A crucial characteristic of this solenoid is its Intermittent Duty rating. This classification signifies that the solenoid is engineered for periods of active current flow interspersed with periods of rest, allowing for thermal dissipation. Unlike continuous duty solenoids, which are designed to remain energized indefinitely without overheating, intermittent duty solenoids are optimized for applications where the electrical load is engaged only for specific, relatively short durations. This design allows for a more compact and cost-effective unit compared to a continuous duty solenoid of equivalent current rating, as the thermal management requirements are less stringent.
For applications such as snow plows and lift gates, the motor engagement is typically intermittent. For example, a snow plow's hydraulic pump motor is activated only when the blade needs to be raised, lowered, angled, or moved. Similarly, a lift gate motor operates only during the lifting or lowering cycles. These operational patterns align perfectly with the intermittent duty cycle of this solenoid. The "100 Amp" current rating refers to the maximum current the solenoid can safely switch during its active period. Exceeding the specified duty cycle (e.g., maintaining activation for extended periods beyond the design parameters) can lead to excessive heat generation within the coil and contacts, potentially causing premature failure due to insulation breakdown or contact welding. Proper understanding and adherence to the intermittent duty cycle are paramount for maximizing the operational lifespan and reliability of the unit.
Structural Integrity and Environmental Protection: Plastic Case Insulated Design
The choice of Plastic Case, specifically a high-performance polymer, offers several distinct advantages in the demanding environments where this solenoid operates. Firstly, polymer materials inherently possess excellent electrical insulation properties, enhancing overall safety by preventing accidental short circuits and providing a barrier against electrical shock. This insulation is critical for components that handle high currents, especially in proximity to vehicle chassis or other metallic structures.
Secondly, a polymer housing offers superior corrosion resistance compared to metallic alternatives. Applications like snow plows are frequently exposed to harsh elements, including road salt, moisture, de-icing chemicals, and extreme temperature fluctuations. A plastic case effectively resists oxidation and chemical degradation, thereby prolonging the operational life of the internal electromechanical components. Furthermore, the polymer construction contributes to a reduced overall weight, which can be beneficial in vehicle-mounted applications where weight savings are often desirable.
The term "Insulated" not only refers to the electrical isolation provided by the plastic case but also implies protection against environmental ingress. While specific IP (Ingress Protection) ratings may vary, a well-designed plastic case typically provides a degree of sealing against dust, dirt, and moisture, further enhancing the solenoid's durability and reliability in outdoor or exposed installations. The robust nature of the polymer ensures mechanical durability against impacts and vibrations commonly encountered in heavy equipment operation.
Control Mechanism: Ground To Activate (Ground Switched)
This particular model features a Ground To Activate or Ground Switched control mechanism. This means that the solenoid's coil is energized when a ground signal is applied to its control terminal, typically the smaller of the three terminals. The other two terminals are the main power input from the battery and the main power output to the motor.
In a ground-switched configuration, the control coil usually has one side permanently connected to a positive 12V source (often through an ignition switch or auxiliary power point) and the other side connected to the control wire. When the control switch (e.g., a momentary switch on a joystick or dashboard) closes, it provides a ground path for the coil, completing the circuit and energizing the solenoid. This contrasts with a positive-switched solenoid, where the coil is energized by applying a positive 12V signal to the control terminal while the other side is permanently grounded.
The choice of ground-switched control is common in various vehicle electrical systems and offers certain wiring advantages depending on the specific application's control logic and existing harness design. It simplifies wiring if the control signal originates from a ground-side switched circuit or if minimizing the length of positive control wires is desirable. The three-terminal configuration typically includes two large threaded terminals for the high-current path and one smaller terminal for the ground-activated control signal.
Electrical Performance: 100 Amp Current Rating and Terminal Design
The 100 Amp Current Rating is a critical specification, indicating the maximum continuous current that the main contacts of the solenoid can safely carry during its specified intermittent duty cycle. For heavy-duty electric motors found in snow plows and lift gates, momentary peak currents can often exceed this value during startup or under sudden load changes. While the 100A rating refers to the stable operating current capacity, the solenoid is designed with robust contacts and arc suppression capabilities to manage these transient startup currents effectively without premature degradation. The contact material, often silver alloy, is chosen for its excellent conductivity, low contact resistance, and resistance to arc erosion, ensuring reliable long-term performance.
The use of Threaded Terminals for the main power connections provides a highly secure and low-resistance electrical interface. Threaded connections allow for robust fastening of heavy-gauge power cables using appropriate lug terminals and nuts. This mechanical integrity is crucial in applications subject to vibration and dynamic loads, preventing loosening that could lead to intermittent connections, increased resistance, and heat generation. Proper torqueing of these terminals during installation is essential to ensure optimal electrical contact and prevent localized overheating.
Mounting and Installation Ease: Right Angle Bracket and Pre-drilled Holes
The integrated Right Angle Bracket and Pre-drilled Mounting Holes significantly simplify the installation process. The right-angle bracket provides a versatile mounting solution, allowing the solenoid to be securely affixed to a flat surface, such as a vehicle frame, firewall, or equipment chassis. The pre-drilled holes eliminate the need for custom fabrication or drilling on site, ensuring quick and accurate mounting with standard fasteners. This thoughtful design feature reduces installation time and effort, contributing to overall efficiency in vehicle and equipment assembly or maintenance.
Applications Deep Dive: Snow Plows and Lift Gates
The primary applications highlighted for this solenoid, snow plows and lift gates, exemplify its suitability for challenging environments requiring reliable power switching for heavy-duty electric motors. In snow plow systems, the solenoid typically controls the hydraulic pump motor responsible for lifting, lowering, and angling the plow blade. These operations are intermittent, highly demanding, and expose the solenoid to extreme cold, moisture, and corrosive road treatments. The solenoid's plastic case and robust internal components are specifically engineered to withstand these conditions.
Similarly, on lift gates, the solenoid activates the hydraulic pump motor that raises and lowers the platform. These motors operate under significant load, requiring a durable switch capable of handling high current draw repeatedly. The intermittent nature of lift gate usage aligns perfectly with the solenoid's duty cycle rating. Beyond these core applications, this solenoid is also well-suited for other heavy-duty 12V intermittent power switching tasks, including:
- Winch Motors: Controlling the powerful electric motors of vehicle-mounted winches.
- Auxiliary Hydraulic Power Units: Engaging motors for dump beds, trailer ramps, or other mobile hydraulic systems.
- Starter Solenoids: Though often integrated into the starter motor, similar separate solenoids are used in some configurations for older or custom applications.
- Heavy-Duty Auxiliary Lighting or Equipment: Switching power to large light bars, air compressors, or other high-current accessories that are used for short durations.
Comparative Analysis and OEM Cross-Reference: Western 25634
The specification "Compares To: Western 25634" provides a crucial point of reference for customers, indicating that this Buyers Products solenoid is a direct functional equivalent or superior alternative to a widely recognized OEM part. This cross-reference assures compatibility and simplifies replacement part selection for equipment originally fitted with or designed around the Western 25634 solenoid. Such comparisons are invaluable in the aftermarket, where reliability and interchangeability are paramount. It signifies that the Buyers Products solenoid meets or exceeds the critical performance parameters, physical dimensions, and electrical characteristics required for a seamless integration into existing Western plow systems or other applications specifying this particular solenoid.
Quality, Reliability, and Longevity Considerations
The design and material selection for the Buyers Products 12 Volt Plastic Case Insulated Solenoid are driven by a commitment to quality and long-term reliability in adverse conditions. Components are subjected to rigorous testing to ensure performance across specified voltage, current, and temperature ranges. The robust polymer housing, high-quality internal contacts, and precision-wound coil contribute to a durable unit capable of thousands of operational cycles within its specified intermittent duty. Adherence to industry standards for electrical components ensures that the product performs consistently and safely.
Proper installation and maintenance are key to maximizing the lifespan of any electromechanical component. This includes using appropriately sized wiring for the 100A current rating, ensuring clean and secure terminal connections, and mounting the solenoid in a location that minimizes exposure to direct impact or excessive heat sources, although its design is inherently resilient to harsh environments. Regular inspection of wiring and terminals for corrosion or damage is recommended to maintain optimal electrical performance.
Conclusion
The Buyers Products 12 Volt Plastic Case Insulated Solenoid, with its intermittent duty cycle and ground-to-activate control, stands as an exemplary solution for high-current switching requirements in demanding mobile applications. Its carefully chosen materials, robust construction, and precise electrical characteristics ensure reliable operation in environments characterized by heavy loads, temperature extremes, and corrosive elements. Designed for ease of installation with threaded terminals and a right-angle mounting bracket, and offering a direct cross-reference to common OEM parts, this solenoid delivers exceptional value, performance, and longevity for critical heavy-duty electrical systems.
