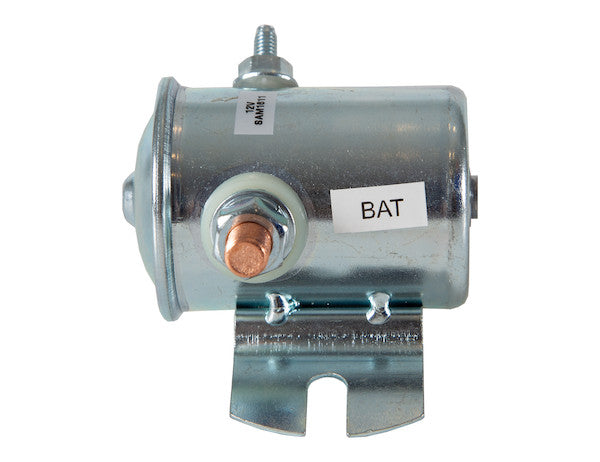

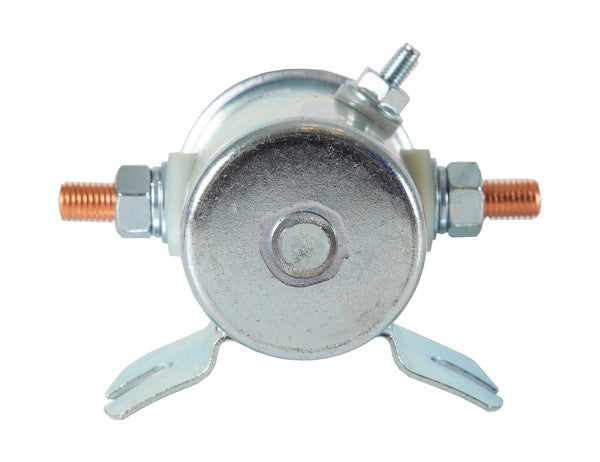

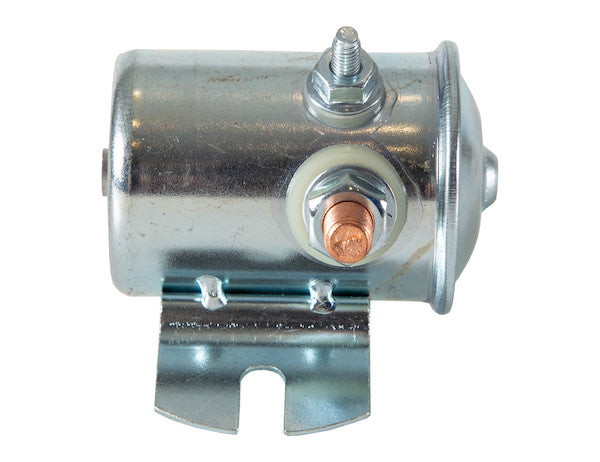

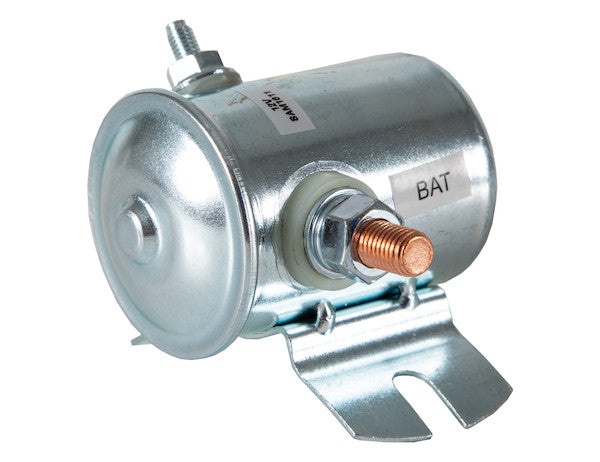

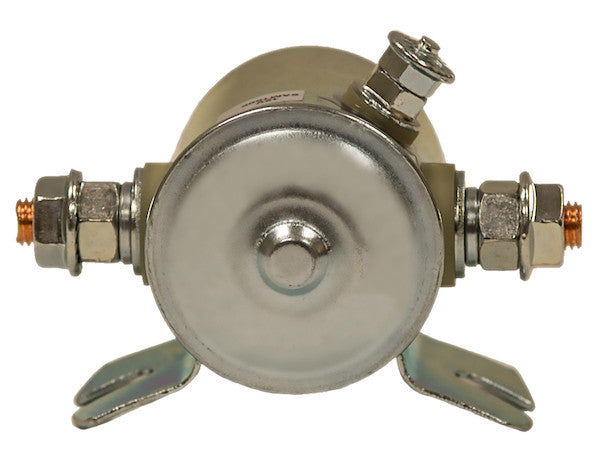

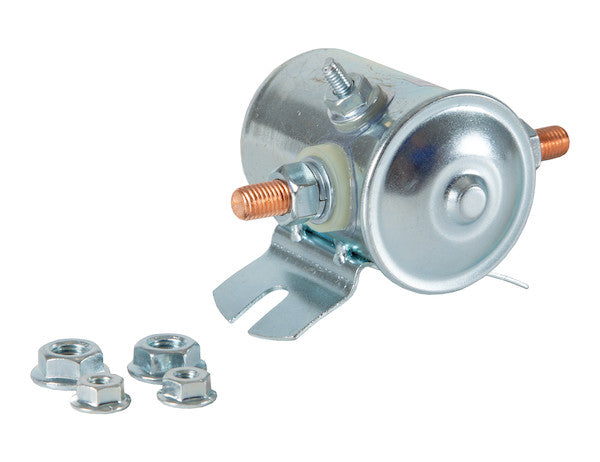

Grounded 12 Volt Steel Case Solenoids from Buyers Products come in a steel case and offer reliable switch operation for your snow plow, lift gate, spreader, or crane. The B98596 unit uses positive 12V of power to activate the solenoid. With the 1306505 unit, a ground connection applied to the center terminal will activate the solenoid. Both feature 5/16 in.-24 thread terminals and are insulated for long-lasting reliability for heavy duty electric motor needs.
Specifications
| Compares To | Monarch 63336 |
|---|---|
| Current Rating | 80 |
| Duty | Continuous |
| Housing Material | Carbon Steel |
| Mount Style | Motor Mount |
| Number of Terminals | 3 |
| Switch Style | Ground Switched |
The Continuous Duty 12 Volt Steel Case Insulated Solenoid, specifically designed for Ground-To-Activate operation (model 1306505), represents a pinnacle of robust electromechanical switching technology engineered for the most demanding heavy-duty applications. This advanced solenoid is meticulously crafted to provide unparalleled reliability and performance in environments where consistent electrical load management is critical. From snow plows confronting harsh winter elements to lift gates managing substantial loads, and spreaders or cranes requiring precise, continuous operation, this solenoid stands as an essential component in ensuring the seamless and safe functioning of heavy machinery.
At its core, a solenoid is an electromechanical device that converts electrical energy into mechanical motion, serving primarily as a high-current switch. In the context of heavy-duty applications, solenoids are indispensable for isolating sensitive control circuits from the high current demands of electric motors. When an electrical signal is applied to the solenoid's control winding, it generates a magnetic field that pulls a ferromagnetic plunger, or armature, thereby closing a set of robust contacts that can handle significantly higher currents. This protective mechanism ensures that smaller, lighter-duty switches used for operator control do not bear the full electrical load, extending their lifespan and enhancing overall system safety.
A defining characteristic of this particular solenoid is its Continuous Duty rating. This specification is paramount, differentiating it from intermittent duty solenoids typically found in starter motor applications, which are designed for brief periods of high current flow. A continuous duty solenoid is engineered to remain energized and conduct its rated current for extended durations without overheating or experiencing premature failure. Achieving this capability requires a sophisticated design that incorporates a robust coil winding capable of dissipating heat efficiently, along with oversized, durable contacts made from materials resistant to arcing and wear. For applications such as hydraulic pump motors on lift gates or electric motors on industrial spreaders, where operation may extend for minutes or even hours, a continuous duty solenoid is not merely an advantage but a fundamental necessity. Its ability to maintain consistent performance under sustained electrical load directly translates into reliable equipment operation and reduced downtime, validating its 80 Amp current rating as a true continuous capability.
The 12-Volt operating specification ensures broad compatibility with the vast majority of mobile equipment, commercial vehicles, and heavy machinery, which typically utilize 12V DC electrical systems. This standard voltage allows for straightforward integration into existing power architectures without the need for complex voltage conversion. The efficiency of power transfer at 12V, combined with appropriate wire gauges and secure connections, facilitates optimal performance of the connected electric motors. This voltage class is carefully chosen to strike a balance between power delivery and safety, making it suitable for a wide range of vehicular and industrial applications.
One of the most distinctive features of this specific unit is its Ground-Activated Switching Mechanism. Unlike many conventional solenoids (such as the B98596, which activates with a positive 12V input), the 1306505 unit is designed to activate when a ground connection is applied to its center terminal. This "GND To Activate" methodology offers specific advantages in certain electrical system designs. In many automotive and heavy equipment electrical systems, control circuits are configured to switch a ground signal rather than a positive voltage. This can simplify wiring, reduce the number of positive wires running through a vehicle, and in some cases, enhance safety by minimizing the presence of live positive voltage in control lines. The 3-terminal configuration—typically two larger terminals for the main power circuit (input and output to the load) and one smaller center terminal for the control signal—facilitates this ground-switched operation. When the control terminal is connected to chassis ground, it completes the circuit for the solenoid's internal coil, energizing it and causing the main power contacts to close, thereby supplying 12V power to the connected motor or load. This precise control mechanism ensures reliable activation even in complex wiring harnesses.
The solenoid's Robust Construction and Material Science are pivotal to its longevity and performance in harsh operational environments. The Carbon Steel Housing Material provides exceptional mechanical protection against physical impact, abrasion, and ingress of contaminants such such as dust, dirt, and moisture. Carbon steel offers superior durability compared to lighter materials like plastic, which can crack or degrade under extreme conditions. This robust casing acts as a protective shield for the delicate internal components, including the coil and contact mechanism, ensuring continuous operation even when exposed to demanding outdoor conditions, corrosive agents, or mechanical stress inherent in heavy machinery. Furthermore, the steel casing can contribute to electromagnetic shielding, reducing interference with other sensitive electronic systems.
Equally critical is the comprehensive Insulation integrated throughout the solenoid's design. This insulation extends beyond mere wire coatings, encompassing the overall dielectric strength of the components that electrically separate the internal circuits from the steel case and from each other. Effective insulation prevents unintended current paths, minimizes the risk of short circuits, and significantly enhances electrical safety. In environments prone to moisture, vibration, or temperature fluctuations, robust insulation is vital for maintaining consistent electrical integrity. It guards against current leakage, protects onboard electronics from stray currents, and ensures the solenoid operates reliably without compromising other vehicle systems. This attention to insulation detail underscores the product's design for long-lasting reliability, particularly for heavy-duty electric motor needs where operational continuity is non-negotiable.
The use of 5/16 in.-24 Thread Terminals for the main power connections is a deliberate design choice that speaks to both practicality and performance. This specific thread size is standard for high-current applications, providing a secure and robust mechanical and electrical connection. The threaded terminals ensure that heavy-gauge wires, necessary to carry the 80 Amps of continuous current, can be fastened tightly and reliably. A secure connection minimizes electrical resistance, which in turn reduces heat generation at the terminals and prevents voltage drops across the connection. This is critical for maximizing power delivery to the motor and prolonging the life of both the solenoid and the connected wiring. The durability of these terminals also simplifies installation and maintenance, allowing for repeated connection and disconnection without compromising integrity.
Considering the Key Specifications and Their Impact, each detail reinforces the solenoid's suitability for severe service. The Current Rating of 80 Amps for continuous duty signifies its capacity to safely and efficiently switch significant electrical loads, making it ideal for powering hydraulic pump motors, winches, or other high-demand actuators without thermal overload. The Duty of Continuous, as previously elaborated, ensures sustained operational capability, a hallmark of reliability for equipment that runs for extended periods. The Housing Material of Carbon Steel guarantees physical resilience against mechanical shock and environmental degradation. The Motor Mount Style suggests a design optimized for direct attachment to, or in close proximity to, electric motors, ensuring stability and resistance to vibration typical in heavy machinery. This mounting style often incorporates specific bolt patterns or bracket designs for seamless integration. The Number of Terminals (3) clearly delineates its functionality: two main power terminals (e.g., battery input and motor output) and one control terminal for the ground-switched activation. Lastly, the explicit Switch Style of Ground Switched confirms the operational logic, making it easy for technicians to identify and integrate into compatible electrical systems.
The Diverse Application Spectrum for this continuous duty, ground-activated solenoid is extensive, extending across various segments of heavy-duty equipment. For snow plows, it is indispensable for controlling hydraulic pump motors that lift and angle the blade, or motors that operate salt and sand spreaders. In these applications, continuous operation is common, and the solenoid must withstand extreme cold, moisture, and corrosive road salts. For lift gates on commercial trucks, the solenoid manages the high current required by hydraulic power units to raise and lower heavy cargo, often operating for extended periods during loading and unloading cycles. Its continuous duty rating ensures it can handle the repetitive demands of daily deliveries. On spreaders, whether for agricultural fertilizers, road de-icing agents, or granular materials, the solenoid controls the electric motors driving the dispersal mechanisms, requiring reliable, continuous operation across varying terrain and environmental conditions. For cranes, especially those with electric winches or hydraulic power packs, the solenoid facilitates the precise control of powerful electric motors responsible for lifting and positioning heavy loads. Beyond these specific examples, this solenoid is ideally suited for any heavy-duty electric motor needs where a robust, continuously rated, ground-activated switch is required. This includes auxiliary power units, industrial pumps, off-road vehicle accessories, and marine applications, all benefiting from its engineered resilience.
Considering Installation, Maintenance, and Longevity, the design of this solenoid prioritizes ease of integration and minimal upkeep. The standard 5/16 in.-24 thread terminals and motor mount style simplify the installation process for qualified technicians. Proper wiring practices, including the use of appropriately gauged cables and ensuring secure, torqued connections, are paramount to achieving optimal performance and preventing overheating. Due to its robust carbon steel housing, internal insulation, and continuous duty design, the solenoid itself requires very little routine maintenance once installed correctly. Its inherent durability is designed to withstand vibrations, temperature extremes, and environmental exposure without compromise, leading to a long operational life. This inherent reliability reduces the total cost of ownership by minimizing potential downtime and replacement frequency, making it an economically sound investment for critical equipment.
In conclusion, the Continuous Duty 12 Volt Steel Case Insulated Solenoid with Ground-To-Activate functionality (model 1306505) represents an expertly engineered solution for heavy-duty electrical switching. Its meticulous design, encompassing a continuous duty rating, robust carbon steel housing, comprehensive insulation, and a precise ground-activated control mechanism, ensures superior performance and longevity. From the demanding applications of snow plows, lift gates, spreaders, and cranes, to a broad spectrum of other high-current electric motor requirements, this solenoid provides the critical reliability and switching integrity that professionals depend on. It is not merely a component but a foundational element that underpins the operational efficiency and safety of vital heavy machinery, delivering consistent power management under the most challenging conditions.
