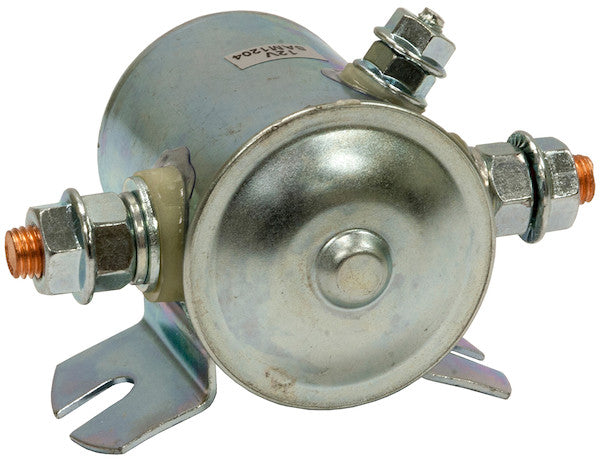

1306510 - Grounded Solenoid - Fits PU3593

Buyers Products Solenoid to fit: PU319LR, PU642LR, PU304LR.

Specifications

Advanced Technical Overview: Grounded Continuous Duty Solenoid for Heavy-Duty Applications

The Grounded Solenoid, specifically engineered to fit the PU3593 and cross-referenced with Monarch 63336, represents a critical electrical switching component designed for robust and demanding operational environments. Manufactured by Buyers Products, a reputable leader in vehicle and equipment accessories, this solenoid is a precision-engineered device that facilitates the controlled flow of high electrical current to vital systems, particularly hydraulic power units such as the PU319LR, PU642LR, and PU304LR. This detailed description will delve into the intricate technical specifications, operational principles, application versatility, and installation considerations that underscore the superior performance and reliability of this essential component.

Fundamental Principles of Solenoid Operation

At its core, a solenoid is an electromagnetic device that converts electrical energy into linear mechanical motion. It consists of a coil of wire wound around a movable ferromagnetic plunger (or armature) contained within a housing. When an electrical current is passed through the coil, it generates a magnetic field. This magnetic field exerts a force on the plunger, causing it to move. In the context of a switching solenoid, this mechanical movement is utilized to open or close electrical contacts, thereby enabling or interrupting the flow of a much larger current to a connected load. This design allows a low-current control signal (e.g., from an ignition switch) to safely and efficiently manage high-current circuits that power motors, pumps, or other heavy-duty equipment.

Detailed Analysis of Key Specifications

Grounded Solenoid Configuration

The term "Grounded Solenoid" signifies a specific internal wiring configuration where one side of the solenoid's coil is permanently connected to the solenoid's metal housing, which is then designed to be connected to the vehicle or equipment's chassis ground. This design simplifies wiring by reducing the number of external connections required for the control circuit. Instead of running a dedicated ground wire to the control side of the solenoid, the control signal typically provides a positive voltage to the other terminal of the coil, completing the circuit through the chassis. This grounded design is common in many automotive and heavy equipment applications, offering reliability and minimizing potential wiring errors. It is crucial to ensure that the system it is integrated into is also designed for a grounded solenoid to prevent short circuits or improper operation.

Continuous Duty Rating: 80 Amps

The "Continuous Duty" rating is a critical specification for solenoids operating in sustained load applications. Unlike intermittent duty solenoids, which are designed for short bursts of operation followed by cooling periods, a continuous duty solenoid is engineered to carry its rated current indefinitely without overheating or experiencing significant degradation. This capability is achieved through superior thermal management, often involving larger coil windings, more robust insulation, and a design that dissipates heat efficiently. The 80 Amp rating indicates that this solenoid can safely switch and sustain a current of up to 80 amperes, making it suitable for powering motors and other electrical loads that draw substantial current for extended durations. Applications such as hydraulic power units, which may operate continuously during plowing, lifting, or spreading cycles, absolutely necessitate a continuous duty solenoid to ensure reliable and long-lasting performance without premature failure due to thermal stress.

3-Post Terminal Configuration

The 3-post configuration of this solenoid is standard for many high-current switching applications. Each post serves a distinct function:

1. Battery Input Post (High Current Input): This heavy-duty terminal is connected directly to the positive terminal of the vehicle's battery or main power source. It is designed to handle the full 80 Amp current draw.
2. Load Output Post (High Current Output): This equally robust terminal is connected to the positive input of the load, such as a hydraulic pump motor, winch motor, or other high-current device. When the solenoid is activated, the internal contacts close, establishing a direct connection between the battery input and the load output, supplying power to the connected equipment.
3. Control/Ignition Post (Low Current Input): This smaller terminal is for the control circuit. It receives a low-current positive signal (typically 12V or 24V, depending on the system voltage) from a switch, relay, or electronic controller. This signal energizes the solenoid's internal coil, causing the plunger to move and the main high-current contacts to close. As a grounded solenoid, the return path for this control circuit is through the solenoid's housing to the chassis ground.

This distinct separation of high-current power switching from low-current control ensures operational safety, protects control electronics from high current surges, and simplifies the overall electrical architecture.

Motor Mounting Style

The "Motor Mounting Style" indicates that this solenoid is designed to be directly mounted onto or in close proximity to the motor it controls. This mounting approach offers several advantages:

• Reduced Cable Length: By mounting the solenoid near the motor, the length of the high-current power cables is minimized. Shorter cables reduce voltage drop, enhance power delivery efficiency, and decrease the risk of electromagnetic interference (EMI).
• Integrated System Design: It promotes a more compact and integrated electrical system, which is particularly beneficial in space-constrained applications common in commercial vehicles and heavy equipment.
• Vibration and Shock Resistance: Solenoids designed for motor mounting are typically built with enhanced resistance to vibration and shock, as they are subjected to the operational dynamics of the motor itself. Their construction accounts for the harsh conditions often found in these environments.
• Environmental Protection: While the solenoid itself provides a degree of environmental protection, its placement near a motor often means it is considered within a larger protected assembly, albeit still requiring resilience against elements like dust, moisture, and temperature fluctuations.

OEM Cross-Reference: Monarch 63336

The inclusion of "Monarch 63336" as the OEM Primary Part Number and Brand is highly significant. Monarch Hydraulics (now part of Bucher Hydraulics) is a renowned manufacturer of hydraulic power units and components, widely recognized for their robust and reliable products used in snowplows, dump trucks, liftgates, and various industrial applications. Cross-referencing with a specific Monarch part number, such as 63336, assures users of exact form, fit, and function compatibility. This means the Buyers Products solenoid is engineered to meet or exceed the performance specifications and physical dimensions of the original Monarch component, ensuring seamless integration and equivalent operational characteristics when used as a replacement or upgrade for systems originally equipped with the Monarch 63336 solenoid. This compatibility extends to hydraulic power units like the PU319LR, PU642LR, and PU304LR, for which this solenoid is expressly designed to fit, as well as the overarching PU3593 system.

Applications and Versatility

Given its technical specifications—80 Amps, continuous duty, grounded, and motor-mount style with Monarch cross-reference—this solenoid is ideally suited for a broad spectrum of heavy-duty applications across various industries:

• Hydraulic Power Units (HPUs): Essential for controlling the motors of HPUs found in snowplows, salt spreaders, dump beds, liftgates, aerial platforms, and various construction equipment. The continuous duty rating is paramount for these applications, as hydraulic systems often operate for extended periods.
• Commercial Vehicles: Used in utility trucks, service vehicles, tow trucks, and emergency vehicles for managing auxiliary power systems, winches, cranes, and specialty lighting circuits.
• Agricultural Equipment: Found in tractors and farm implements for controlling hydraulic systems, sprayers, and other electrically driven components.
• Construction Machinery: Integrated into excavators, loaders, backhoes, and bulldozers to manage power to hydraulic pumps, auxiliary motors, and other high-current accessories.
• Marine Applications: Suitable for boat lift motors, anchor winches, and bilge pump systems, provided it is installed in an environment protected from direct water ingress, though specialized marine-grade components may be preferred for extreme exposure.
• Industrial Equipment: Utilized in various industrial settings for controlling motors, pumps, and other automated machinery where reliable high-current switching is required.

The compatibility with specific units like PU319LR, PU642LR, and PU304LR underscores its direct applicability in hydraulic systems, where reliable motor control is non-negotiable for operational safety and efficiency.

Construction and Durability

A solenoid designed for heavy-duty, continuous operation must exhibit exceptional durability and robust construction. The Buyers Products solenoid is manufactured using premium-grade materials and precision engineering techniques to withstand the harsh conditions typically encountered in its target applications:

• Heavy-Gauge Copper Windings: The coil is wound with high-purity, heavy-gauge copper wire, ensuring low electrical resistance, minimal heat generation, and efficient magnetic field creation. This is crucial for its 80 Amp continuous duty rating.
• Robust Electrical Contacts: The internal contacts, responsible for switching the high current, are typically made from copper or silver-alloy materials with excellent conductivity and arc suppression properties to ensure longevity and reliable operation even under repetitive switching cycles.
• Durable Housing: The external housing is constructed from high-strength materials, often treated or coated to resist corrosion, moisture, and abrasive elements. Its design protects the internal components from physical damage, dirt, and splash.
• High-Temperature Insulation: All internal insulation materials are selected for their ability to withstand high temperatures generated during continuous operation, preventing electrical shorts and maintaining dielectric strength.
• Sealed Construction: While not fully submersible, the solenoid’s construction typically includes seals and gaskets to minimize the ingress of dust, dirt, and moisture, enhancing its reliability in challenging outdoor environments.
• Vibration and Shock Resistance: Internal components are secured to prevent movement and damage under operational vibration and shock, a common occurrence in vehicle-mounted applications.

This meticulous attention to material selection and construction ensures that the solenoid delivers consistent performance and an extended service life, minimizing downtime and maintenance costs.

Installation, Operation, and Maintenance Considerations

Installation Best Practices

Proper installation is paramount for the safe and reliable operation of the solenoid:

1. Safety First: Always disconnect the vehicle's or equipment's main power source (e.g., battery) before beginning any electrical work to prevent accidental short circuits or electrical shock.
2. Mounting: Mount the solenoid securely using appropriate fasteners in a location that provides ample clearance for wiring and is as close as possible to the motor it controls (motor mounting style). Ensure the mounting surface is clean and conductive for proper grounding if the housing serves as a ground path.
3. Wiring - High Current: Use appropriately sized, heavy-gauge wire for the battery input and load output terminals. The wire gauge must be sufficient to handle 80 Amps continuously without excessive voltage drop or overheating. Terminate wires with high-quality crimped lugs, ensuring tight, corrosion-free connections.
4. Wiring - Control Circuit: Connect the control/ignition terminal to a switched positive source. Given it is a grounded solenoid, the negative side of the coil grounds through the housing.
5. Environmental Protection: While designed for durability, position the solenoid to minimize direct exposure to severe elements, such as continuous water spray or extreme heat sources, whenever possible.

Operational Considerations

During operation, the solenoid will emit an audible "click" when activated, indicating the engagement of its internal contacts. A rapid clicking or no clicking at all often points to issues in the control circuit (e.g., low voltage, faulty switch) or the solenoid itself.

Maintenance and Troubleshooting

Solenoids are generally low-maintenance devices, but periodic inspection can extend their lifespan:

• Terminal Inspection: Regularly check all terminal connections for tightness and signs of corrosion. Loose or corroded connections can lead to excessive resistance, heat buildup, and eventual failure.
• Housing Integrity: Inspect the housing for cracks or damage that could compromise its environmental sealing.
• Troubleshooting Common Issues:
  • Solenoid Clicks but Load Does Not Engage: Suggests the control circuit is active, but the main contacts are either worn, pitted, or fused open. Low battery voltage can also cause weak contact engagement.
  • Solenoid Does Not Click: Indicates an issue in the control circuit – possibly a faulty switch, broken control wire, insufficient voltage to the control terminal, or an open coil winding within the solenoid.
  • Solenoid Overheats Significantly: While some warmth is normal for continuous duty, excessive heat points to internal resistance (worn contacts), undersized wiring, or continuous operation beyond its specified rating.

The Buyers Products Advantage

Choosing a solenoid from Buyers Products offers distinct advantages rooted in their commitment to quality and industry expertise. Buyers Products has a long-standing reputation for engineering robust, reliable, and application-specific components for commercial trucks, trailers, and equipment. This solenoid reflects that commitment through:

• Engineered Precision: Designed to exact specifications, ensuring optimal performance and compatibility with OEM systems like Monarch.
• Quality Assurance: Manufactured under stringent quality control standards, utilizing durable materials to withstand the rigors of heavy-duty operation.
• Reliable Performance: The continuous duty and 80 Amp rating guarantee consistent and dependable power switching for critical applications, reducing downtime and enhancing operational efficiency.
• Extensive Support: Backed by the Buyers Products network, ensuring availability and comprehensive customer support.

Conclusion

The Grounded Solenoid, specifically designed for applications like the PU3593 and cross-referenced with Monarch 63336, is an indispensable component for managing high-current circuits in a variety of heavy-duty vehicles and equipment, including specific hydraulic power units (PU319LR, PU642LR, PU304LR). Its 80 Amp, continuous duty rating, 3-post grounded configuration, and motor mounting style are meticulously engineered to deliver exceptional reliability, durability, and performance in the most demanding operational environments. By understanding its technical intricacies and adhering to proper installation and maintenance practices, operators can ensure the longevity and optimal function of their critical electrical systems, leveraging the robust quality synonymous with Buyers Products.
