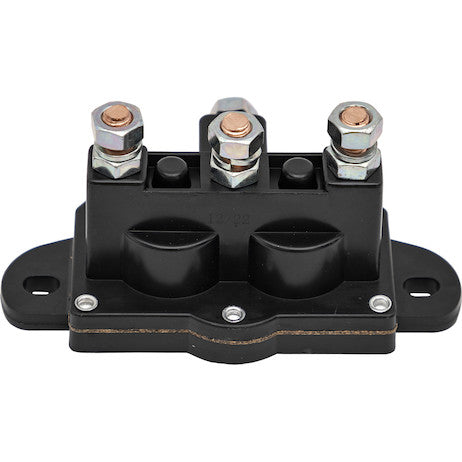

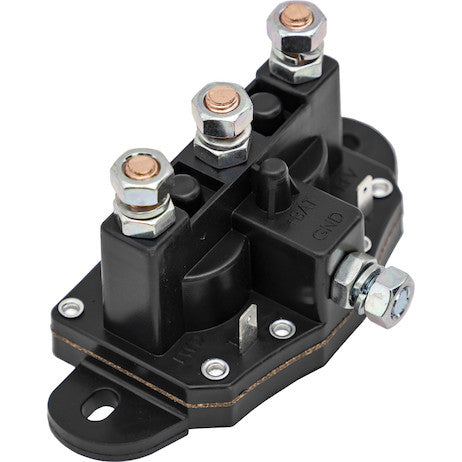

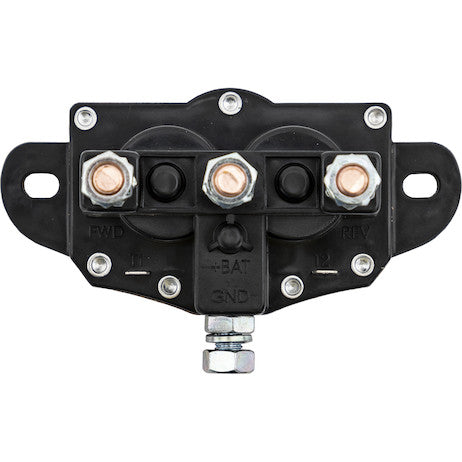

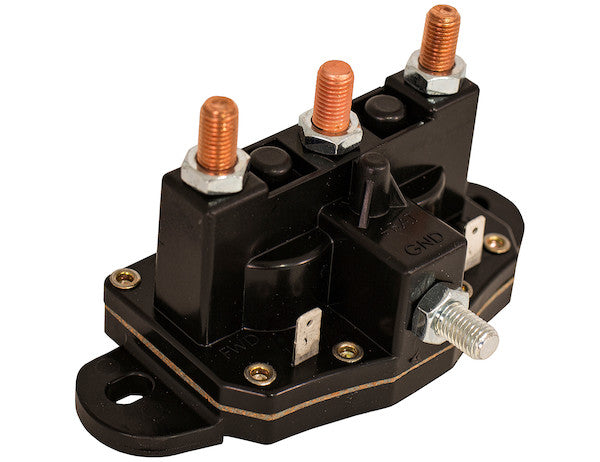

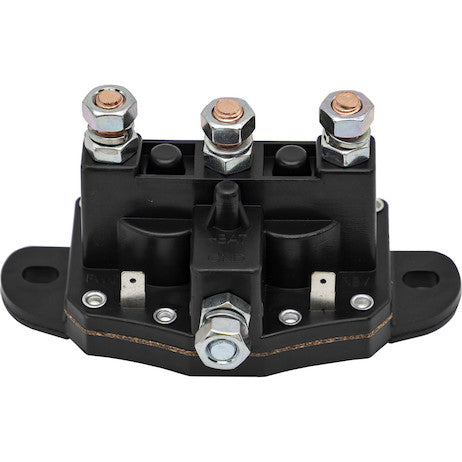

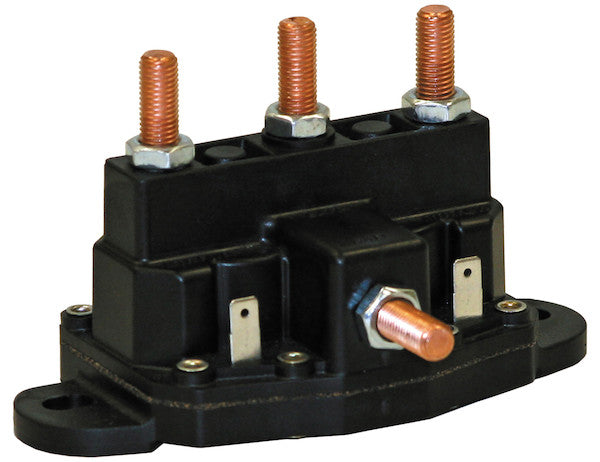

The Solenoid Switch from Buyers Products can be used for any application that requires reversing motion. It's ideal for electric tarp systems. The weather-resistant solenoid switch features 150A ground coils. A switch cover may be ordered separately.
Specifications
| Current Rating | 150 |
|---|---|
| Duty | Continuous |
| Housing Material | Polymer |
| Mount Style | Flat |
| Number of Terminals | 6 |
| Switch Style | Grounded Motor Reversing |
Advanced Technical Overview: Solenoid Switch Kit With Reversing Polarity
The Solenoid Switch Kit With Reversing Polarity, engineered and manufactured by Buyers Products, represents a critical component in advanced electromechanical systems requiring precise directional control of DC motors and other actuators. This robust and versatile device is designed to facilitate the seamless reversal of current flow, thereby enabling bidirectional motion in a myriad of industrial, commercial, and mobile applications. Its inherent design prioritizes reliability, durability, and operational efficiency, making it an indispensable asset for systems where reversing motion is paramount.
Fundamental Principles of Solenoid Operation
At its core, a solenoid switch operates on the principle of electromagnetism. It comprises a coil of wire, often referred to as the winding, wrapped around a movable ferromagnetic core, or plunger. When an electrical current is passed through the coil, it generates a magnetic field. This magnetic field exerts a force on the plunger, causing it to move linearly. This mechanical movement is then harnessed to actuate electrical contacts, either closing them (making a circuit) or opening them (breaking a circuit). In the context of a solenoid switch, this action facilitates the control of higher current circuits with a lower current control signal.
The specific configuration of this Solenoid Switch Kit incorporates a sophisticated arrangement of multiple coils and contacts to achieve its primary function: reversing polarity. Unlike simpler relays that merely open or close a single circuit, a reversing solenoid is engineered with an internal architecture that can effectively reroute the power supply lines to an attached load, most commonly a DC motor. This re-routing fundamentally alters the direction of current flow through the motor's armature, which in turn reverses the motor's rotational direction. The rapid and reliable engagement and disengagement of these contacts are critical for immediate and responsive control, particularly in applications where instantaneous direction changes are required.
Mechanism of Reversing Polarity
The Solenoid Switch Kit achieves reversing polarity through a specialized internal switching matrix, often conceptualized as an H-bridge configuration within the solenoid's contact arrangement. This design allows for two distinct output states for a DC motor: forward and reverse. When actuated for "forward" motion, the solenoid connects the positive input to one motor terminal and the negative input (ground) to the other. Conversely, when actuated for "reverse" motion, the internal contacts shift to connect the positive input to the second motor terminal and the negative input to the first. This precisely orchestrated exchange of polarity across the motor's terminals is what enables bidirectional operation.
The six-terminal configuration specified for this switch provides the necessary connection points for this operation: typically, two large terminals for the main power input (e.g., battery positive and negative), two large terminals for the motor outputs, and two smaller terminals for the low-current control signals that actuate the solenoid coils themselves. This clear demarcation of terminals simplifies wiring and enhances system integration, ensuring that power and control circuits are managed efficiently and safely. The design ensures that at no point do both sets of contacts engage simultaneously in a way that would cause a short circuit, thanks to inherent mechanical or electrical interlocks.
Advanced Features and Performance Specifications
Current Rating: 150 Amperes
The impressive 150 Ampere current rating signifies this solenoid switch's capability to handle substantial electrical loads, positioning it for demanding applications. This high current capacity is critical for driving powerful DC motors commonly found in heavy-duty equipment, such as large electric tarp systems, hydraulic pump motors, or industrial winches. Achieving a 150A rating requires meticulous design and material selection. Key considerations include the use of robust contact materials, typically silver alloy compositions, which offer excellent electrical conductivity and resistance to arc erosion. Furthermore, the internal conductive paths are engineered with ample cross-sectional area to minimize resistive losses and prevent excessive heat generation under full load conditions. This high rating also implies superior thermal management capabilities within the switch's design, ensuring stable performance even during prolonged operation at peak currents.
Continuous Duty Cycle
The "Continuous Duty" specification is a paramount indicator of the switch's robust design and long-term reliability. Unlike intermittent duty devices that are designed for short bursts of operation followed by cooling periods, a continuous duty solenoid is engineered to remain energized and conducting current indefinitely without experiencing thermal overload or premature degradation. This is achieved through optimized coil designs that minimize heat generation, efficient magnetic circuits, and effective heat dissipation strategies within the switch housing. For applications such as electric tarp systems where motors may run for extended periods during deployment or retraction, or in industrial processes requiring continuous actuation, a continuous duty cycle is indispensable for maintaining operational uptime and extending the lifespan of the entire system.
Weather-Resistant Polymer Housing
The housing material, specified as Polymer, plays a critical role in the switch's "weather-resistant" characteristic. Modern engineering polymers offer a combination of advantageous properties including excellent dielectric strength, high resistance to corrosion, immunity to rust, and often, inherent UV stability. This ensures the internal electrical components are shielded from moisture, dust, dirt, and other environmental contaminants that are prevalent in outdoor or harsh industrial settings. The polymer housing is typically engineered with tight tolerances and often includes integrated gaskets or seals at critical junctures to prevent ingress. Its lightweight nature also contributes to ease of installation without adding significant mass to the overall system. This protective enclosure ensures reliable operation across a broad range of environmental conditions, thereby enhancing the overall durability and longevity of the Solenoid Switch Kit.
Grounded Motor Reversing Switch Style
The "Grounded Motor Reversing" switch style indicates a specific safety and operational configuration. In many DC motor applications, especially in vehicular or heavy equipment contexts, one side of the motor's power circuit may be referenced to the chassis ground. This solenoid switch is designed to integrate seamlessly into such grounded systems, providing a secure and reliable means of power delivery and reversal. The grounding aspect is crucial for electrical safety, providing a path for fault currents and reducing the risk of electrical hazards. Furthermore, this design simplifies wiring in systems that already utilize a common ground plane, making installation more straightforward and reducing potential for wiring errors.
Six Terminals for Comprehensive Connectivity
The presence of six terminals on this solenoid switch is indicative of its full functionality for motor reversing applications. Typically, these terminals are categorized as follows:
- Two Large Power Input Terminals: Designed for connection to the main power source (e.g., battery positive and negative). These terminals are robustly constructed to handle the full 150A current rating.
- Two Large Motor Output Terminals: Dedicated for connection directly to the DC motor. The solenoid's internal switching mechanism reconfigures the polarity across these terminals to control motor direction.
- Two Smaller Control Terminals: These are for the low-current control signals that activate the solenoid coils. These inputs typically come from a control panel, toggle switch, or an electronic controller, providing the command to switch between forward, reverse, or off states.
Flat Mount Style for Versatile Installation
The "Flat Mount" style refers to the physical design of the solenoid switch for installation. This typically means the switch has a flat base with pre-drilled holes, allowing it to be securely bolted or screwed onto any flat surface. This mounting configuration offers significant versatility, enabling installation on chassis frames, bulkheads, control panels, or other stable platforms. The flat mount ensures a secure and vibration-resistant attachment, which is vital for components operating in mobile or industrial machinery where mechanical stress is common. The robust mounting also contributes to the longevity of the electrical connections by minimizing strain on the terminals and internal wiring during operation or transit.
Ideal Applications and Beyond
Electric Tarp Systems
As highlighted, this Solenoid Switch Kit is an ideal solution for electric tarp systems. These systems are extensively used on commercial trucks, dump trucks, agricultural trailers, and other vehicles to cover and uncover loads efficiently. The reversing polarity capability is fundamental here, allowing the tarp motor to smoothly extend the tarp to cover the load and retract it to uncover. The 150A rating ensures compatibility with high-torque tarp motors, while the continuous duty cycle is essential for repeated operations throughout the day. The weather-resistant polymer housing is particularly advantageous in this application, protecting the switch from road spray, dust, rain, and extreme temperatures encountered during vehicle operation.
Expanding the Scope of Application
Beyond electric tarp systems, the technical attributes of this Solenoid Switch Kit lend it to a broad spectrum of other critical applications:
- Hydraulic Power Units: Controlling the direction of hydraulic pump motors for lift gates, snow plows, utility vehicle attachments, and other mobile hydraulic systems. The reversing function enables both lifting and lowering, or extending and retracting hydraulic cylinders.
- Electric Winches: Essential for controlling the "spool in" and "spool out" functions of electric winches on ATVs, off-road vehicles, utility trucks, and industrial hoists. The high current rating is crucial for managing the significant power draw of winch motors under load.
- Linear Actuators: Providing precise directional control for linear actuators used in industrial automation, medical equipment positioning, ergonomic workstations, and agricultural machinery, where controlled extension and retraction are necessary.
- Material Handling Equipment: For conveyor systems, automated guided vehicles (AGVs), and other material handling machinery requiring bidirectional motor control for positioning or transport tasks.
- Marine Applications: Suitable for controlling boat lifts, anchor winches, or other auxiliary marine equipment, benefiting from its weather-resistant design in corrosive saltwater environments.
- Battery-Powered Equipment: Any heavy-duty battery-powered equipment requiring robust and reliable motor direction control, from specialized construction vehicles to mobile robotic platforms.
Installation and System Integration Considerations
Proper installation is paramount for maximizing the performance and longevity of the Solenoid Switch Kit. Given its 150A current rating, it is imperative to use appropriate gauge wiring for both the main power input and the motor output terminals to prevent voltage drop and excessive heat generation. Fusing the main power circuit is also a critical safety measure, protecting the system from overcurrent events. The flat mount style simplifies securing the unit, but it should always be mounted in a location that minimizes exposure to direct physical impact and extreme thermal sources, while also allowing for adequate air circulation for cooling, despite its continuous duty rating.
The optional switch cover, available separately, is a highly recommended accessory. It provides an additional layer of protection against accidental contact, environmental exposure, and potential damage to the terminals, further enhancing the safety and reliability of the installation in harsh operating conditions.
Commitment to Quality and Reliability
Buyers Products is renowned for its commitment to engineering excellence and manufacturing robust components designed for the most demanding applications. This Solenoid Switch Kit With Reversing Polarity exemplifies this dedication, built with high-quality materials and subjected to rigorous testing to ensure it meets stringent performance and durability standards. Its technical specifications—150A continuous duty, weather-resistant polymer housing, and a grounded motor reversing configuration—collectively underscore a product engineered for superior performance and extended service life in critical operational roles. Choosing this Solenoid Switch Kit means investing in a solution that provides dependable, precise, and safe bidirectional control for your electromechanical systems.
