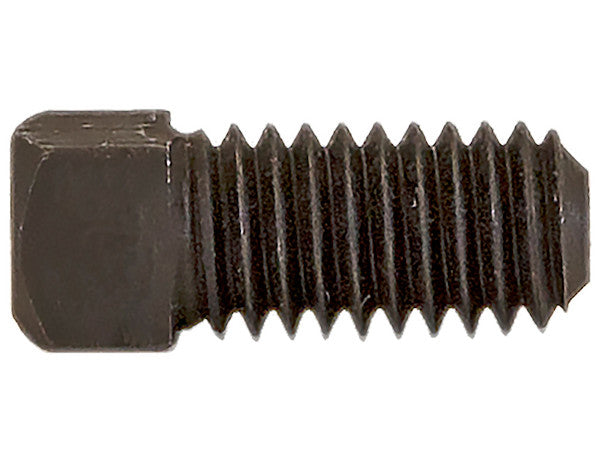

Buyers Products Square Head Set Screw comes in two sizes to fit your drive shaft set screw needs. It's sold in multiples of 100.
Specifications
| Cup Point (y/n) | Yes |
|---|---|
| Screw Length | 0.750 |
| Screw Type | Square |
| Thread Size | 1/4-20 |
Precision Engineering for Robust Fastening: The Square Head Set Screw 1/4-20 x 3/4 Inch with Cup Point
In the realm of mechanical fastening, the selection of the correct component is paramount to ensuring operational integrity, longevity, and safety. The Square Head Set Screw, specifically the 1/4-20 x 3/4 Inch configuration with a Cup Point, represents a highly specialized and robust solution engineered for critical applications requiring secure shaft-to-hub retention. This detailed technical exposition will delve into the intricacies of this fastener, exploring its design philosophy, material considerations, application versatility, and the engineering advantages it confers.
A set screw is fundamentally a headless screw, or one with a head that is designed to be driven entirely below the surface of the part, intended to clamp two parts together without the use of a nut. Its primary function is to resist relative motion between components by creating a compressive force or by direct interference. The Square Head Set Screw distinguishes itself by its external square drive head, which facilitates superior torque transmission compared to internal drive systems when maximum leverage is required. This specific product, offered by Buyers Products, is designed to meet the rigorous demands of drive shaft applications, ensuring reliable performance in various industrial and commercial settings.
Understanding the Square Head Design
The square head is a defining feature of this set screw, offering distinct advantages in specific operational contexts. Unlike more common internal drive mechanisms such as hex sockets or Torx drives, the square head permits the application of significant tightening torque using standard open-end or adjustable wrenches. This external drive configuration provides several key benefits: enhanced grip for installation and removal, reduced risk of cam-out, and suitability for environments where internal drives might become clogged with debris or paint, rendering them difficult to access or operate. The substantial surface area of the square head allows for robust engagement with tooling, minimizing wear on both the fastener and the installation tool, thereby prolonging their service life. Historically, square heads were prevalent before the widespread adoption of internal drives, and they remain critical for applications demanding high torque and ease of field maintenance, especially in heavy machinery, agricultural equipment, and certain legacy systems where compatibility is essential.
Thread Specification: 1/4-20 UNC Coarse Thread
The thread specification "1/4-20" is a crucial identifier that dictates the screw's compatibility and mechanical properties. This refers to a Unified National Coarse (UNC) thread, where "1/4" indicates a nominal major diameter of 0.250 inches, and "20" signifies 20 threads per inch (TPI). UNC coarse threads are characterized by their larger thread pitch, which translates to several engineering advantages. Firstly, they offer superior strength in softer materials and are less prone to stripping during repeated assembly and disassembly. The larger thread profile provides a greater shear area, contributing to higher tensile and shear strength of the threaded joint. Secondly, coarse threads are less susceptible to galling or cross-threading, particularly in environments where cleanliness cannot be guaranteed or during manual assembly. Thirdly, their larger flank angles provide greater resistance to loosening under vibration compared to fine threads, though additional locking mechanisms are often employed for critical applications. The 1/4-20 thread is a ubiquitous standard in North America, ensuring broad interchangeability and ease of sourcing mating components such as tapped holes in shafts or hubs. This standardization simplifies inventory management and maintenance procedures for users.
Length Specification: 3/4 Inch (0.750)
The specified length of 3/4 inch (0.750 inches) for this set screw is critical for determining adequate thread engagement and the overall effectiveness of the fastening mechanism. The length of a set screw is measured from the underside of the head (if present, which in this case, the square head functions as the primary contact surface for tooling) to the point. For a headless set screw, the entire length constitutes the thread. In the context of a 3/4 inch length, this dimension ensures sufficient thread engagement with the tapped hole in the outer component (e.g., a collar or hub) while allowing the cup point to properly engage with the inner component (e.g., a shaft). Optimal thread engagement is typically considered to be a minimum of one full diameter, and often more in critical applications, to maximize the load-carrying capacity of the threaded joint and prevent premature stripping. A length of 3/4 inch for a 1/4-inch diameter screw provides a length-to-diameter ratio of 3:1, which is more than adequate for robust engagement, ensuring that the shear strength of the screw body or the compressive strength of the point engagement will be the limiting factor rather than thread stripping. This specific length is balanced to provide deep engagement without excessive protrusion that could interfere with other components or create an imbalance.
The Critical Role of the Cup Point
The "Cup Point" is another defining characteristic of this set screw and is explicitly confirmed in the specifications. The cup point features a circular, concave indentation at its tip, designed to create a secure, positive grip on a shaft. When tightened, the sharp edges of the cup point cut into the surface of the mating shaft, forming a permanent indent. This mechanical interlock provides superior resistance to axial and rotational movement, making it highly effective in applications subject to vibration, shock loads, or where precise positional locking is required. Unlike flat points, which rely solely on friction, or dog points, which align with pre-drilled holes, the cup point actively "bites" into the shaft material. This aggressive engagement significantly enhances the set screw's holding power, preventing slippage and maintaining the relative position of components. The distinct indent left by a cup point also serves as a visual indicator of proper engagement and can aid in repeatable assembly if the components are disassembled and reassembled. For drive shaft set screw needs, as mentioned in the original description, the cup point is often the preferred choice due to its robust locking capabilities against torque transmission.
Interpretation of "No Hole"
The product title includes the phrase "No Hole." Given the specification of a "Square Head" and the confirmation of a "Cup Point," the most accurate technical interpretation of "No Hole" refers to the absence of an internal drive recess on the head. In contrast to socket set screws (which feature a hex or other internal drive), this square head set screw relies on an external wrenching surface. This distinction is vital for understanding tooling requirements and application suitability. "No Hole" confirms that the fastener does not require specialized internal hex keys or Torx drivers, simplifying tooling requirements to standard wrenches. This can be advantageous in outdoor environments or dirty conditions where internal recesses might accumulate debris, hindering tool insertion. It also implies a solid head structure, which can sometimes contribute to greater resistance against head deformation under extreme torque compared to a thin-walled internal recess, though proper material selection and heat treatment are the primary determinants of such strength.
Material Selection, Finish, and Heat Treatment
While not explicitly detailed in the provided specifications, the performance of any set screw, particularly one designated for drive shaft applications, is heavily dependent on its material composition, finish, and heat treatment. Typically, square head set screws are manufactured from high-grade alloy steels, such as 4140 or equivalent, which are subsequently heat-treated to achieve a specific hardness and strength profile. Heat treatment processes like quenching and tempering impart desirable properties such as high tensile strength, shear strength, and resistance to wear and fatigue. A common hardness range for industrial set screws falls within Rockwell C 45-53, providing excellent resistance to deformation and point crushing. Surface finishes are also critical; black oxide is a prevalent finish that offers a degree of corrosion resistance and reduces light reflection, making it suitable for many industrial environments. Other options might include zinc plating for enhanced corrosion protection in milder environments or specialized coatings for extreme conditions. The choice of material and finish directly impacts the fastener's lifespan, its ability to withstand operational stresses, and its compatibility with the surrounding environment, ensuring the sustained integrity of the mechanical assembly.
Installation Best Practices and Torque Management
Correct installation is paramount to achieving the full performance potential of the 1/4-20 x 3/4 inch Square Head Set Screw with Cup Point. The installation process typically involves threading the set screw into a tapped hole in the outer component until the cup point makes contact with the shaft. It is crucial to apply adequate, but not excessive, tightening torque. Over-tightening can strip threads, damage the screw head, or deform the shaft, while under-tightening will lead to insufficient holding power and potential slippage. For a 1/4-20 UNC set screw made from typical alloy steel, general torque recommendations can range from 80 to 120 inch-pounds, depending on the material of the components and the desired clamping force. However, it is always recommended to consult specific engineering guidelines or manufacturer specifications for the precise application. The use of a calibrated torque wrench is highly recommended to ensure consistent and accurate tightening across multiple fasteners and to prevent stress concentrations. Proper seating of the cup point into the shaft surface is also critical; for optimal engagement, it is sometimes beneficial to create a shallow dimple or flat on the shaft at the set screw location, although the cup point is designed to create its own purchase. This ensures concentricity and maximizes the holding strength.
Applications and Industry Relevance
The Square Head Set Screw 1/4-20 x 3/4 Inch with Cup Point finds extensive use across a diverse range of industries and applications where secure shaft retention and resistance to rotational forces are essential. Its robust design and effective clamping mechanism make it ideal for:
- Power Transmission Systems: Securing gears, pulleys, sprockets, and cams to drive shafts in industrial machinery, conveyors, and agricultural equipment. The cup point's ability to resist rotational slippage is particularly valuable here.
- Fluid Power Components: Fastening impellers in pumps, agitators in mixing equipment, or other rotating elements within hydraulic and pneumatic systems.
- Material Handling Equipment: Locking components on rollers, idlers, and guide shafts in various conveyor systems.
- Robotics and Automation: Ensuring precise alignment and secure attachment of sensors, actuators, and end effectors to drive mechanisms.
- General Machine Building: Any application requiring the precise positioning and secure fastening of one component onto another cylindrical or flat surface, especially in heavy-duty or high-vibration environments where traditional fasteners might loosen.
Adherence to Standards and Quality Assurance
Reliable set screws are manufactured in accordance with established industry standards to ensure dimensional accuracy, material consistency, and predictable performance. For square head set screws, relevant standards often include ASME B18.6.2 (Square Head Set Screws) and potentially ISO standards for material properties and thread forms. Adherence to these standards guarantees that the 1/4-20 x 3/4 Inch Cup Point Set Screw will meet specified tolerances, ensuring proper fit with mating components and delivering the expected mechanical properties. Buyers Products' commitment to providing such components implies a rigorous quality assurance process, encompassing material inspection, dimensional verification, thread gauging, and potentially mechanical testing to confirm tensile and shear strengths. This dedication to quality is crucial for professionals who rely on these fasteners for the structural integrity and operational reliability of their equipment.
Longevity and Maintenance Considerations
While designed for durability, even high-quality set screws can be subject to wear or failure over time due to extreme operational conditions, improper installation, or material fatigue. Regular inspection of set screw applications, especially in high-stress or vibration-prone environments, is a critical part of a comprehensive maintenance regimen. Checks should include assessing for signs of loosening, thread damage, point wear, or deformation of the square head. If a set screw is removed, particularly one with a cup point that has created an indent, it is often recommended to replace it with a new fastener to ensure optimal clamping force and point engagement upon reassembly. Reusing set screws, especially after they have undergone significant tightening or stress, can compromise their integrity and lead to premature failure. The availability of these screws in multiples of 100 supports efficient replacement and ongoing maintenance practices.
Conclusion
The Square Head Set Screw 1/4-20 x 3/4 Inch with a Cup Point from Buyers Products is a precisely engineered fastening solution designed for robust performance in demanding applications, particularly those involving drive shafts. Its square head offers superior torque transmission and ease of tooling, while the 1/4-20 UNC coarse thread provides strength and resistance to stripping. The 3/4 inch length ensures optimal thread engagement, and the cup point delivers an aggressive, secure lock against both axial and rotational movement. Understanding the technical specifications—from thread geometry and point configuration to material considerations and installation protocols—is crucial for harnessing the full potential of this industrial-grade fastener. By selecting this product, users are investing in a component that promises reliability, durability, and a secure connection, vital for the operational efficiency and safety of mechanical assemblies.
