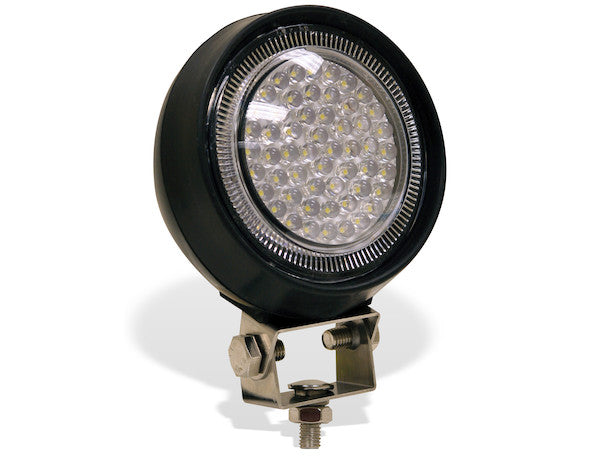

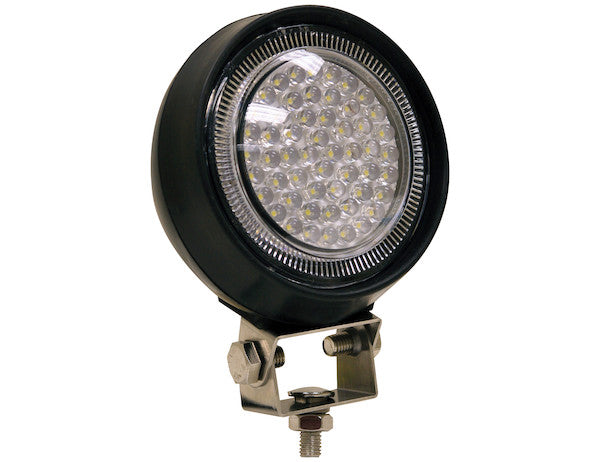

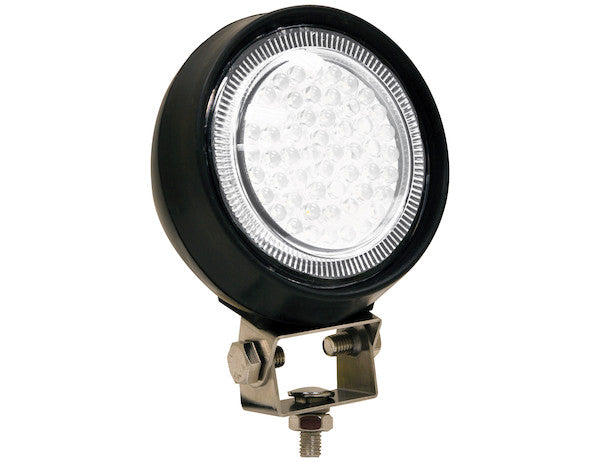

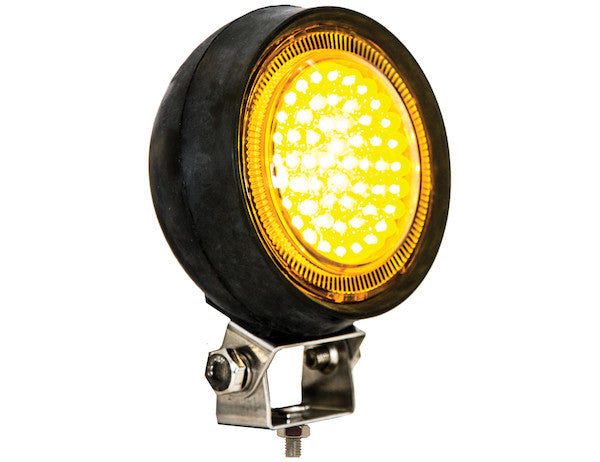

Buyers Products 5 Inch LED Sealed Rubber Flood Light has 54 LEDs giving 375 lumens of light. The 5 in. round light features a clear lens and a blunt cut 36 in. inch wire lead with an 8 mm stainless steel base. It is IP67 rated for water and dust resistance. Lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 3.00 |
|---|---|
| Base / Mount Type | Surface |
| Beam Pattern | Flood |
| Bracket (y/n) | Yes |
| Built-In Switch | No |
| Certification | IP67 and 20G |
| Color | Clear |
| Color Temperature | 6000 |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |
| Height | 6.50 |
| Housing Material | Rubber |
| Lead Length | 36 |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 375 |
| Mount Type | Surface |
| Number of Wires | 2 |
| Operating Temperature | -40 to 122 |
| Overall Width | 5.00 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 36 |
Advanced Technical Overview: 5 Inch Clear LED Sealed Rubber Flood Light
The Buyers Products 5 Inch Clear LED Sealed Rubber Flood Light represents a pinnacle of robust engineering and illumination technology, meticulously designed for demanding operational environments. This comprehensive technical overview details the product’s design philosophy, performance specifications, material science, and applications, affirming its position as a superior lighting solution for professional and industrial use cases.
Illumination Performance and Optical Engineering
At the core of this flood light’s performance are 54 high-efficiency Light Emitting Diodes (LEDs), precisely arranged to deliver a total luminous flux of 375 lumens. This configuration is optimized for a wide, uniform flood beam pattern, essential for area illumination where broad coverage rather than focused intensity is paramount. The clear lens, crafted from durable polycarbonate, ensures maximum light transmission and clarity, minimizing diffusion loss and maintaining the integrity of the emitted light.
The spectral output of the LEDs is characterized by a 6000K color temperature. This cool white light closely mimics natural daylight, offering enhanced visual clarity, improved contrast, and reduced eye fatigue during prolonged use. In professional settings, particularly those involving intricate tasks or safety-critical operations, a 6000K color temperature aids in accurate color perception and object recognition, thereby augmenting operational safety and efficiency. This color temperature is especially beneficial in low-light conditions or during nighttime operations where distinguishing details is crucial. The consistency of the light output, devoid of flickering or dimming over its operational lifespan, further contributes to a stable and reliable visual environment.

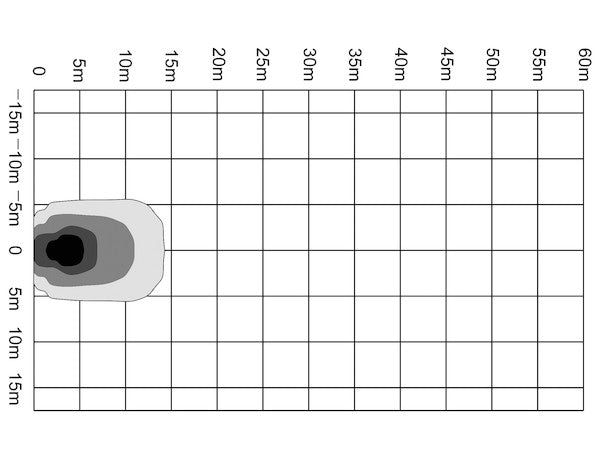

The flood beam pattern is engineered to project light over a wide angle, effectively illuminating expansive work areas, vehicle perimeters, or industrial sites. Unlike spot beams that concentrate light into a narrow, intense cone, the flood beam ensures a more even distribution of light, eliminating harsh shadows and dark spots. This characteristic makes the 5 Inch Clear LED Sealed Rubber Flood Light ideal for applications such as illuminating construction sites, agricultural fields, loading docks, vehicle backing areas, and general outdoor security, where comprehensive visibility across a significant zone is required.
Robust Construction and Environmental Resilience
The foundational design principle of this flood light revolves around unparalleled durability and resistance to harsh environmental conditions. This is primarily achieved through its unique housing and lens materials, coupled with stringent sealing methodologies.

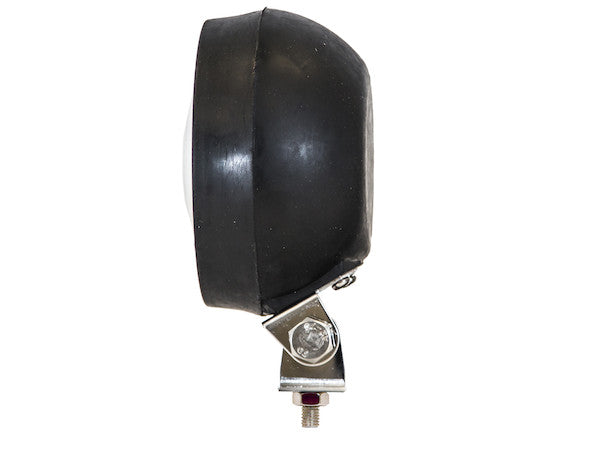

Rubber Housing: Shock Absorption and Vibration Dampening
The choice of rubber as the primary housing material is a critical design decision that sets this product apart. Unlike conventional aluminum or plastic housings, the rubber construction provides exceptional inherent properties for shock absorption and vibration dampening. In environments where equipment is subjected to constant impacts, vibrations from heavy machinery, or rough terrain, the rubber housing acts as a resilient buffer, protecting the internal LED components and circuitry from mechanical stress. This significantly extends the lifespan of the fixture, mitigating failures commonly associated with fatigue cracking or component dislodgement in more rigid materials. Furthermore, rubber is naturally resistant to corrosion from salts, chemicals, and various industrial fluids, making it an ideal choice for marine, agricultural, and chemical processing applications. Its flexibility also contributes to a superior seal, enhancing the overall ingress protection.
Polycarbonate Lens: Impact and UV Resistance
Complementing the robust housing is a polycarbonate lens. Polycarbonate is a thermoplastic polymer renowned for its extraordinary impact strength, often exceeding that of glass or acrylic by many folds. This resistance to shattering or cracking is vital in environments where flying debris, accidental impacts, or vandalism are potential threats. Beyond its mechanical fortitude, polycarbonate offers excellent optical clarity for unimpeded light transmission. It is also inherently resistant to UV radiation, preventing yellowing or degradation over time due to prolonged sun exposure, thus ensuring sustained optical performance throughout the product's operational life. The combination of a rubber housing and a polycarbonate lens creates a virtually indestructible exterior capable of withstanding severe physical and environmental abuses.
IP67 Certification: Ingress Protection
The flood light carries an IP67 certification, a globally recognized standard for ingress protection. This rating signifies an advanced level of resistance against solid particulates and liquids. The '6' in IP67 denotes complete protection against dust ingress, meaning no dust can penetrate the enclosure, ensuring that the internal electrical and optical components remain pristine and functional even in extremely dusty environments like construction sites, quarries, or desert operations. The '7' indicates protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of waterproofing ensures reliable operation through heavy rain, snow, power washing, and incidental submersion, making the light suitable for marine applications, vehicle undercarriages, and agricultural equipment.
20G Certification: Vibration and Shock Resistance
Further reinforcing its ruggedness, the product is certified to withstand 20G of shock and vibration. The 'G' refers to gravitational force, and a 20G rating means the light can endure accelerations 20 times the force of gravity without structural failure or operational compromise. This certification is crucial for applications involving heavy equipment, off-road vehicles, military machinery, or any setting where extreme dynamic forces are commonplace. The rubber housing, by design, plays a significant role in achieving this rating, dissipating energy from impacts and vibrations before it can reach the sensitive internal components. This robust mechanical design guarantees consistent performance in the most challenging operational scenarios, from high-frequency engine vibrations to sudden jolts and impacts.
Operating Temperature Range
The flood light is engineered to perform reliably across an extreme operating temperature range of -40°F to 122°F (-40°C to 50°C). This broad thermal tolerance ensures uninterrupted operation in diverse climates, from arctic conditions to scorching deserts. The selection of materials and electronic components is carefully chosen to maintain stability and efficiency across this spectrum, preventing issues such as LED degradation, material embrittlement in cold, or thermal runaway in heat. This wide temperature range underscores the product's suitability for global deployment in any industrial or mobile application.
Electrical System and Integration
The electrical design of the 5 Inch Clear LED Sealed Rubber Flood Light emphasizes versatility, efficiency, and ease of integration into existing vehicle or machinery electrical systems.
Wide Voltage Compatibility: 12-24 Volts DC
The light is designed to operate seamlessly across a broad voltage range of 12-24 Volts DC. This inherent flexibility makes it universally compatible with most automotive, truck, heavy equipment, and marine electrical systems without the need for external voltage converters or specialized wiring. This dual-voltage capability simplifies inventory management and expands the applicability of the product across a wide array of vehicle types and industrial machinery, from light-duty utility vehicles operating on 12V to heavy-duty construction equipment and commercial trucks often utilizing 24V systems.
Power Consumption: Amp Draw and Wattage
With an amp draw of 3.00 Amps at 12 Volts and a total wattage of 36 Watts, this LED flood light delivers efficient performance. LEDs are inherently more energy-efficient than traditional incandescent or halogen lights, consuming significantly less power while producing comparable or superior light output. The relatively low current draw minimizes the strain on the vehicle's electrical system, reducing the risk of overload and allowing for the installation of multiple units without necessitating major electrical system upgrades. This efficiency translates directly into lower fuel consumption for mobile applications and reduced energy costs for stationary setups, alongside less heat generation, contributing to the overall longevity of the fixture.
Hard-Wired Connection with Blunt Cut Lead
The flood light is supplied with a hard-wired connection featuring a 36-inch blunt cut wire lead and two wires. This configuration offers maximum flexibility for installation, allowing integrators to custom-terminate the wiring to suit specific connectors, switches, or power distribution blocks within their application. The generous lead length provides ample slack for routing wires neatly and securely, accommodating various mounting locations without requiring unsightly wire extensions. The simplicity of a two-wire connection (positive and negative) facilitates straightforward electrical integration, ensuring quick and reliable installation by qualified technicians. The absence of a built-in switch emphasizes its design for integration into existing control systems or external switching mechanisms, typical of professional vehicle and equipment installations.

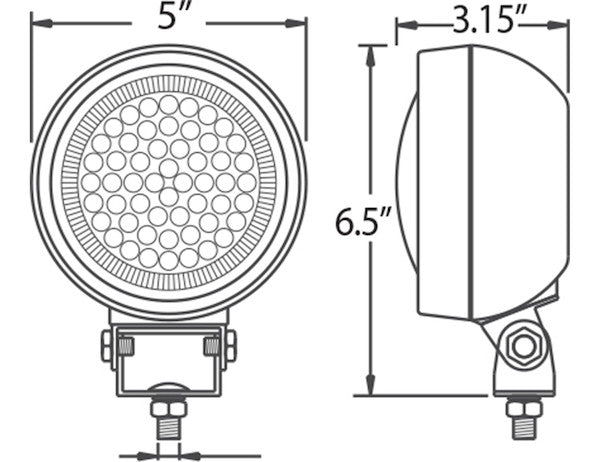

Mounting and Dimensions
The physical attributes and mounting mechanism of the flood light are designed for functional integration and robust securement.
Surface Mount with Included Bracket
The light features a surface mount type and includes a mounting bracket, ensuring a secure and versatile installation. The surface mount design allows for direct attachment to flat surfaces, providing a stable platform for the light fixture. The accompanying bracket facilitates angular adjustment, enabling precise aiming of the flood beam to optimize illumination exactly where it is needed. This combination of surface mount and bracket flexibility ensures that the light can be effectively deployed on various vehicle bodies, equipment frames, roll bars, or fixed structures, adapting to the specific requirements of the application. The overall height of 6.50 inches, which likely includes the mounting bracket, and a width of 5.00 inches indicate a compact form factor that can be accommodated in diverse spaces without protruding excessively, minimizing potential for damage or obstruction.
Quality Assurance and Warranty
Buyers Products demonstrates unwavering confidence in the engineering and manufacturing quality of this 5 Inch Clear LED Sealed Rubber Flood Light by backing it with a comprehensive 5-year warranty. This extensive warranty period serves as a testament to the product's durability, reliability, and the manufacturer's commitment to excellence. It provides end-users with significant peace of mind, assuring them of long-term performance and protection against manufacturing defects or premature failures under normal operating conditions. This warranty also translates into reduced total cost of ownership over the product's lifecycle, as potential repair or replacement costs are mitigated. The combination of rigorous certification (IP67, 20G) and a robust warranty underscores the product's suitability for mission-critical applications where dependable illumination is non-negotiable.
Conclusion
The 5 Inch Clear LED Sealed Rubber Flood Light is an exemplary lighting solution engineered for the most demanding industrial, commercial, and off-highway applications. Its sophisticated design integrates high-performance LED technology, producing 375 lumens of clear 6000K flood light, with a groundbreaking rubber housing and polycarbonate lens for unparalleled environmental resilience. Certifications such as IP67 for dust and water immersion, alongside a 20G shock and vibration rating, guarantee operational integrity in the harshest conditions. The wide 12-24V DC operating range and efficient 36W power consumption, coupled with a flexible hard-wired connection, ensure universal compatibility and easy integration. Backed by a 5-year warranty, this flood light offers a reliable, durable, and high-performance illumination system, representing a strategic investment for any enterprise seeking optimal visibility and operational continuity in challenging environments.
