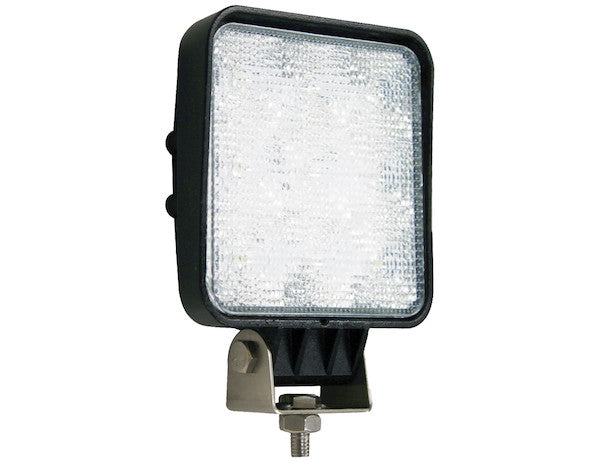

Buyers Products 5 Inch Wide Square LED Flood Light is ideal for agricultural and marine applications as well as on salt spreaders and other work vehicles. The light provides 1500 lumens of light over a 30 meter area. Installation is easy with a stud mount and 36 in. blunt cut lead. The durable light is rated IP67 for water and dust resistance. This makes it perfect for both on-road and off-road applications. It's backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 2.25 |
|---|---|
| Base / Mount Type | Surface |
| Beam Pattern | Flood |
| Bracket (y/n) | Yes |
| Built-In Switch | No |
| Certification | IP67 and 20G |
| Color | Clear |
| Color Temperature | 6000 |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |

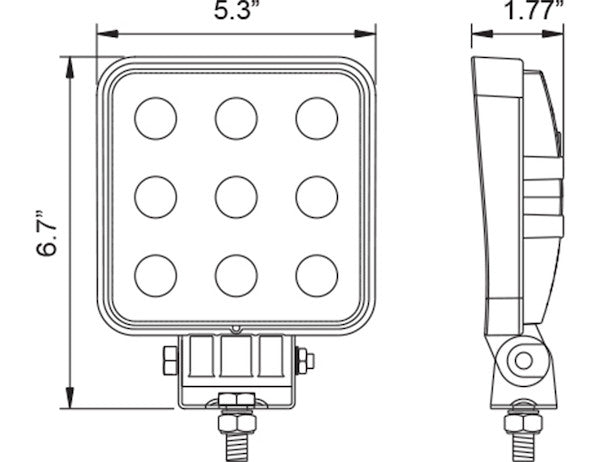

| Height | 6.70 |
| Housing Material | Aluminum |
| Lead Length | 36 |
| Lens Material | Polycarbonate |
| Lens Shape | Square |
| Lumens | 1500 |
| Mount Type | Surface |
| Number of Wires | 2 |
| Operating Temperature | -40 to 122 |
| Overall Width | 5.30 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 27 |
Advanced Technical Overview: 5 Inch Square LED Clear Flood Light
The Buyers Products 5 Inch Square LED Clear Flood Light represents a pinnacle in illumination technology designed for demanding operational environments. Engineered for superior performance and durability, this lighting solution is meticulously crafted to meet the rigorous requirements of diverse applications, ranging from heavy-duty agricultural machinery and commercial marine vessels to vital safety lighting on salt spreaders and other mission-critical work vehicles. Its robust design, coupled with advanced LED technology, ensures reliable, high-output illumination across a broad spectrum of challenging conditions.
Optical Performance and Illumination Characteristics

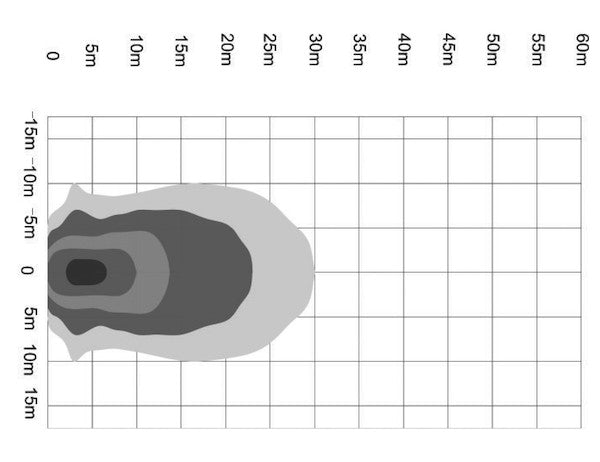

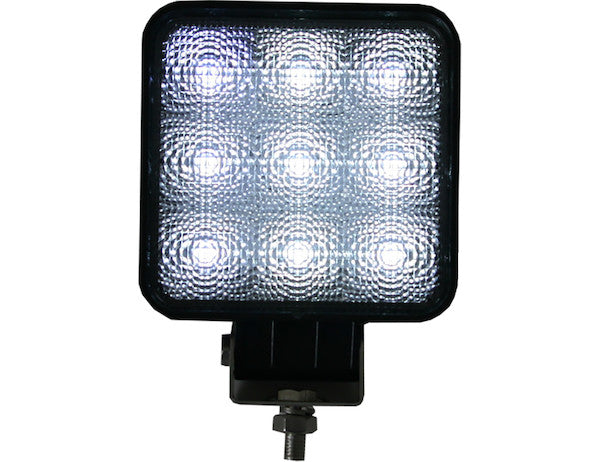

At the core of this flood light's utility is its exceptional optical performance. The unit delivers a potent 1500 lumens of clear, crisp light, ensuring significant visibility and operational safety. This substantial luminous flux is projected through a precisely engineered flood beam pattern, designed to disperse light evenly over a wide area, specifically a 30-meter radius. This expansive coverage is critical for applications requiring broad situational awareness, such as illuminating work sites, maneuvering in confined spaces, or ensuring safety around large equipment.
The light features a clear lens and emits light at a color temperature of 6000 Kelvin. This color temperature corresponds to a bright, cool white light, closely approximating natural daylight. Such a spectral output is scientifically proven to enhance visual acuity, improve contrast, and reduce eye fatigue during prolonged use, particularly beneficial in low-light conditions or during night operations. The clarity of the light minimizes distortions and ensures that operators can distinguish details with precision, contributing to both efficiency and accident prevention. The choice of a clear color rather than an amber or colored light ensures maximum lumen output and truest color rendition of the illuminated environment.
Electrical Specifications and Energy Efficiency
This LED flood light is engineered for compatibility with common vehicle electrical systems, supporting a wide operating voltage range of 12-24 volts DC. This versatility makes it suitable for integration into a vast array of commercial and heavy-duty vehicles without the need for additional voltage converters. At a nominal 12-volt input, the unit exhibits an impressively low amp draw of 2.25 amps. This low current consumption, combined with a total wattage of 27 watts, signifies exceptional energy efficiency. LED technology inherently consumes significantly less power than traditional incandescent or halogen lighting, translating into reduced load on the vehicle's electrical system, decreased fuel consumption, and extended battery life. For fleet operators, these electrical characteristics contribute directly to lower operational costs and enhanced vehicle longevity.
The light is designed for a hard-wired installation, connecting via a 36-inch blunt-cut lead with two wires. This configuration provides installers with the flexibility to integrate the light seamlessly into existing wiring harnesses or to customize connections according to specific vehicle requirements, ensuring a secure and durable electrical connection that can withstand the rigors of heavy-duty use. The absence of a built-in switch or plug allows for full control via the vehicle's electrical system, offering robust and dedicated power management.
Robust Construction and Environmental Resilience

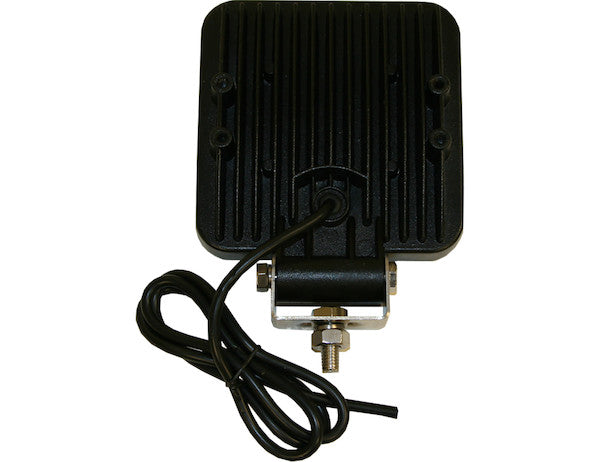

Durability is a cornerstone of the 5 Inch Square LED Clear Flood Light's design. The housing is constructed from high-grade aluminum, a material renowned for its exceptional strength-to-weight ratio, corrosion resistance, and superior thermal dissipation properties. Effective heat management is crucial for the longevity and consistent performance of LED components, and the aluminum housing acts as an efficient heatsink, preventing thermal degradation of the LEDs even during extended operation in elevated ambient temperatures. The overall dimensions, with an overall width of 5.30 inches and a height of 6.70 inches, contribute to a compact yet substantial form factor designed for robust applications.

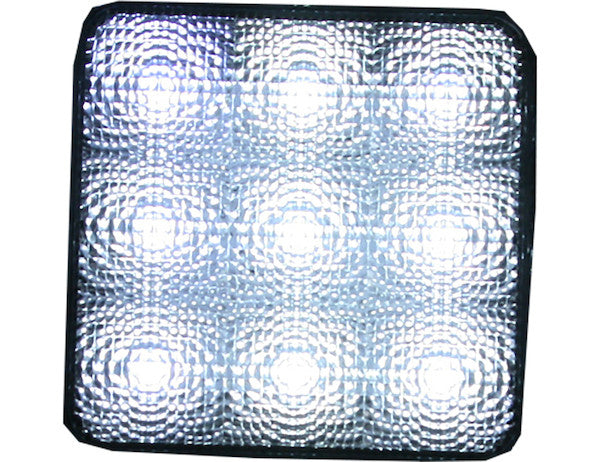

The lens, a critical component for light projection and protection, is fabricated from high-impact polycarbonate. Polycarbonate is an advanced thermoplastic polymer known for its extraordinary impact resistance, optical clarity, and resistance to yellowing or degradation from UV exposure. This ensures the lens can withstand physical impacts, abrasive elements, and prolonged exposure to harsh environmental factors such as direct sunlight, road debris, and chemical splashes without compromising light output or structural integrity. The square lens shape provides a classic aesthetic while effectively directing the flood beam pattern.
Furthermore, this flood light boasts a dual certification for environmental resilience: IP67 and 20G.
- IP67 Rating: The Ingress Protection (IP) code IP67 signifies that the light is completely protected against dust ingress (the '6') and capable of withstanding immersion in water up to 1 meter for 30 minutes (the '7'). This level of sealing makes the light impervious to fine particulate matter often encountered in agricultural fields, construction sites, or dusty industrial environments. More critically, its water immersion resistance ensures reliable operation in marine settings, during heavy rainfall, through snow, or even when subjected to high-pressure washing, protecting internal components from moisture-induced damage and corrosion.
- 20G Certification: This certification indicates the light's exceptional resistance to shock and vibration. Equipment operating in off-road, agricultural, or industrial settings is routinely exposed to severe mechanical stresses, including continuous vibrations, sudden impacts, and harsh jarring motions. A 20G rating confirms that the light has been rigorously tested to withstand forces equivalent to 20 times the force of gravity without failure or degradation in performance. This is a crucial specification for ensuring long-term reliability on vehicles such as heavy trucks, tractors, excavators, and salt spreaders, where structural integrity under dynamic loads is paramount.
The operational temperature range further highlights the light's robust engineering. Rated to perform flawlessly from -40°F (-40°C) to 122°F (50°C), this unit is designed for reliable function in extreme cold and moderate heat environments. This wide temperature tolerance is essential for vehicles operating in diverse climates and industrial applications where temperature fluctuations are common, preventing performance degradation or failure due to thermal stress.
Installation and Mounting Versatility
The design prioritizes ease of installation and flexible deployment. Featuring a surface mount type with an integrated bracket, the light can be securely affixed to a variety of flat surfaces on a vehicle or equipment. The stud mount facilitates straightforward and robust attachment, ensuring the light remains firmly in place even under severe vibration or impact. The included bracket (yes) further simplifies mounting, providing necessary hardware for immediate deployment.
The 36-inch lead length provides ample wire to connect to the vehicle's electrical system, allowing for flexible placement options without requiring extensive cable extensions. The blunt-cut connector is a standard for hard-wired installations, enabling custom wiring and secure, weatherproof connections when properly terminated. The two-wire configuration simplifies the electrical hookup, connecting directly to the vehicle's 12-24V power supply.
Applications and Operational Advantages
The 5 Inch Square LED Clear Flood Light is engineered for maximum utility across a range of demanding sectors:
- Agricultural Applications: In the agricultural sector, where operations often extend into early mornings or late nights, efficient and reliable illumination is critical. This flood light provides the necessary spread of light for tractors, harvesters, sprayers, and other farm equipment, enhancing visibility for fieldwork, navigating uneven terrain, and operating attachments. Its IP67 rating protects against dust from fields and moisture from irrigation or rain, while the 20G certification ensures durability against the constant vibrations of farm machinery.
- Marine Applications: For marine vessels, the IP67 rating is indispensable, providing protection against saltwater spray, rain, and potential submersion. The robust aluminum housing resists corrosion, a common issue in marine environments. The bright 6000K clear light enhances visibility for navigation, docking, deck work, and safety operations, improving situational awareness for commercial fishing boats, workboats, and utility vessels.

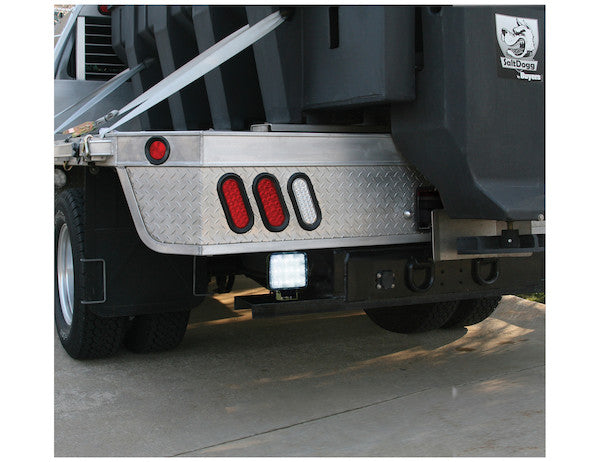

- Salt Spreaders and Winter Maintenance: Salt spreaders and other snow removal equipment operate in some of the harshest conditions imaginable – extreme cold, corrosive salt, and abrasive slush. The light's IP67 rating ensures protection from salt, moisture, and de-icing chemicals, preventing ingress and corrosion. The 20G certification provides resilience against the constant impact and vibration from plowing and spreading. The powerful flood beam is crucial for illuminating roads, obstacles, and application areas, significantly improving operator safety and operational effectiveness during critical winter operations.
- General Work Vehicles and Off-Road Applications: From construction vehicles and utility trucks to emergency response apparatus and mining equipment, this flood light provides essential illumination. Its durable construction withstands the abuses of off-road trails, construction sites, and demanding work environments. The broad flood pattern ensures a well-lit work area, enhancing safety for operators and ground personnel alike, and facilitating tasks performed in low-light conditions. Its ability to perform in extreme operating temperatures further broadens its utility across diverse geographical and industrial contexts.
Commitment to Quality and Longevity
Buyers Products stands behind the superior engineering and manufacturing quality of this 5 Inch Square LED Clear Flood Light with a comprehensive 5-year warranty. This warranty period reflects a strong commitment to product reliability and customer satisfaction, providing peace of mind to purchasers that their investment is protected against defects in materials and workmanship. The extensive testing and robust material selection ensure that this light is not merely an accessory but a long-term, high-performance asset for any demanding application.
In summary, the 5 Inch Square LED Clear Flood Light integrates advanced LED optics, robust environmental protection, and thoughtful electrical and mechanical engineering into a compact, high-performance package. Its 1500-lumen output, 6000K clear light, IP67 and 20G certifications, wide voltage compatibility, and durable aluminum and polycarbonate construction make it an indispensable lighting solution for any application requiring unwavering illumination in the most challenging operational scenarios. This product represents a strategic investment in enhanced safety, efficiency, and longevity for commercial and heavy-duty vehicle fleets.
