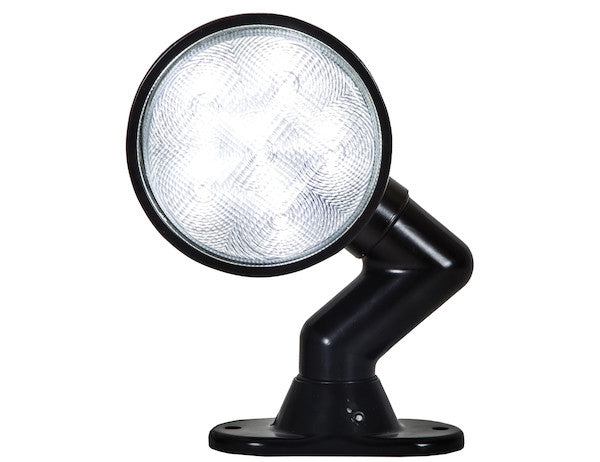

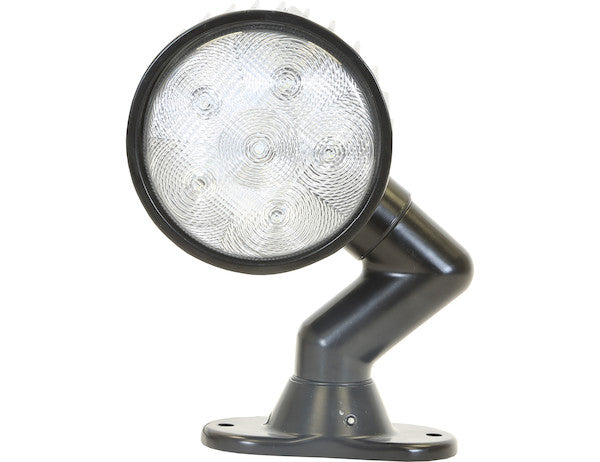

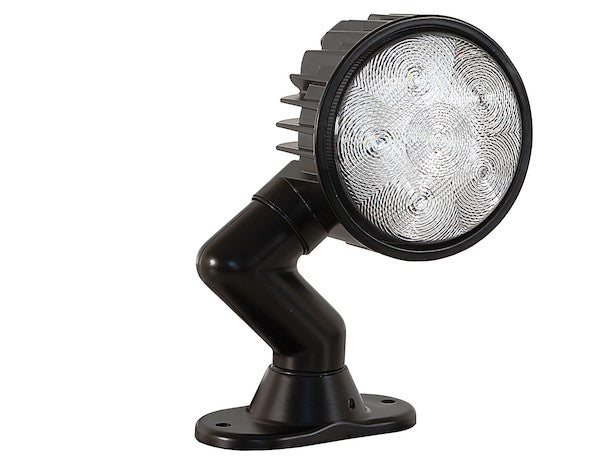

Buyers Products Articulating 5 Inch Round LED Flood Light provides 1350 lumens of light over a wide area. A pedestal mount and 36 in. blunt cut lead make mounting and installation simple. The swiveling feature allows the light to be separately rotated at the base and head, making it easy to position where you need it. The durable light is rated IP67 for water and dust resistance and features a built-in on/off switch. This design makes it perfect for both on-road and off-road applications. The light is backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.50 |
|---|---|
| Base / Mount Type | Surface |
| Beam Pattern | Flood |
| Bracket (y/n) | Yes |
| Built-In Switch | Yes |
| Certification | IP67 and 20G |
| Color | Clear |
| Color Temperature | 6000 |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |
| Height | 8.00 |
| Housing Material | Aluminum |
| Lead Length | 36 |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 1350 |
| Mount Type | Surface |
| Number of Wires | 2 |
| Operating Temperature | -40 to 122 |
| Overall Width | 6.50 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 18 |
Advanced Illumination and Engineering for Demanding Environments: The 5 Inch LED Clear Articulating Flood Light
The 5 Inch LED Clear Articulating Flood Light represents a pinnacle of contemporary illumination technology, meticulously engineered for performance, versatility, and enduring reliability across a broad spectrum of challenging operational contexts. This robust lighting solution is specifically designed to meet the rigorous demands of both on-road heavy-duty applications and diverse off-road scenarios, offering superior visibility and adaptable light positioning essential for safety and productivity. Drawing upon cutting-edge LED components and intelligent mechanical design, this flood light distinguishes itself through a fusion of high-output luminance, exceptional durability, and unparalleled user-controlled articulation.Optimized Luminous Output and Beam Characteristics

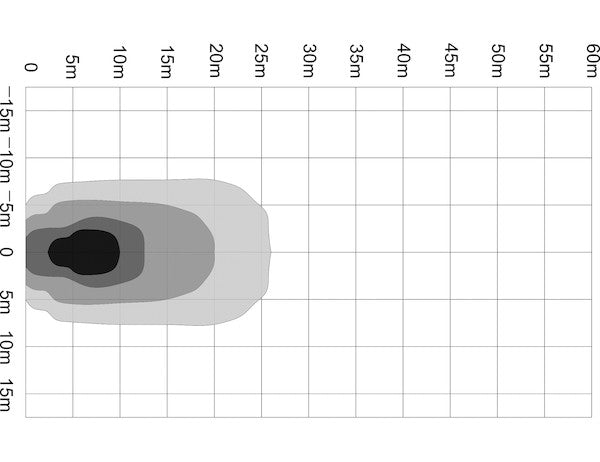

At the core of this sophisticated lighting unit is its ability to generate an impressive 1350 lumens of radiant flux. This substantial light output is meticulously directed through a precisely engineered flood beam pattern, specifically calibrated to disperse light over an expansive area rather than a concentrated spot. The inherent advantage of a flood beam is its capacity to illuminate wide work zones, expansive perimeters, or broad sections of terrain, effectively reducing shadowed areas and enhancing overall situational awareness. This characteristic is particularly beneficial in applications such as illuminating construction sites, agricultural fields during night operations, loading docks, utility vehicle workspaces, or expansive trails in off-road environments. The "Clear" color designation of the lens, coupled with a high color temperature of 6000 Kelvin, ensures that the emitted light closely mimics natural daylight. This spectral quality is critical for human visual acuity, providing superior color rendering and definition, which significantly aids in distinguishing details, identifying hazards, and minimizing eye strain during prolonged periods of operation. The cool white light enhances contrast, making objects appear sharper and more discernible in low-light or dark conditions, thereby contributing directly to operational safety and efficiency. The integration of advanced LED technology not only delivers this potent illumination but does so with remarkable energy efficiency, drawing merely 1.50 amps at 12 volts, resulting in an optimal power consumption of 18 watts. This low amperage draw is a crucial consideration for vehicle electrical systems, mitigating strain on alternators and batteries while still delivering high-performance lighting.Precision Articulation and Unrivaled Positional Versatility
A defining feature that sets this 5 Inch LED Flood Light apart is its sophisticated articulating mechanism. Unlike conventional fixed or single-axis swivel lights, this unit boasts a dual-axis swiveling capability, allowing for independent rotation at both the base and the head of the light fixture. This innovative design grants operators an extraordinary degree of control over light direction, enabling highly precise targeting of illumination exactly where it is needed, without necessitating repositioning of the entire mount. For example, the base can be rotated to establish a broad directional sweep, while the head can then be independently adjusted to fine-tune the beam's angle and focus on a specific task area or obstacle. This flexibility is indispensable in dynamic operational settings:- Construction and Utility Vehicles: Enabling precise illumination of digging, lifting, or repair areas from various mounting points on equipment.
- Agricultural Machinery: Allowing operators to focus light on specific implements or crop rows from elevated positions.
- Emergency Services: Providing tactical lighting for accident scenes, roadside assistance, or search and rescue operations, where precise illumination of specific points can be critical.
- Off-Road Exploration: Tailoring light coverage to navigate complex terrain, illuminate obstacles, or set up campsite lighting with maximum efficiency.
Engineered for Extreme Durability and Resilience
Recognizing the harsh conditions prevalent in heavy-duty and off-road applications, the 5 Inch LED Clear Articulating Flood Light is constructed with an unwavering commitment to durability and longevity.- IP67 Certification: This ingress protection rating is a testament to the light's formidable resistance against environmental elements. The '6' indicates complete protection against dust ingress, meaning no dust can penetrate the enclosure under any circumstances. The '7' signifies protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of sealing ensures reliable operation even in the face of heavy rain, snow, dust storms, mud splashes, or temporary submersion, making it ideal for marine, mining, and extreme off-road use.
- 20G Shock and Vibration Rating: Beyond static environmental protection, the light is certified to withstand significant mechanical stresses. A 20G rating denotes its ability to endure forces equivalent to 20 times the force of gravity without compromise to its structural or operational integrity. This critical specification highlights its suitability for installation on machinery and vehicles that experience constant vibration, sudden impacts, or rough terrain traversal, guaranteeing consistent performance where lesser lights would fail.

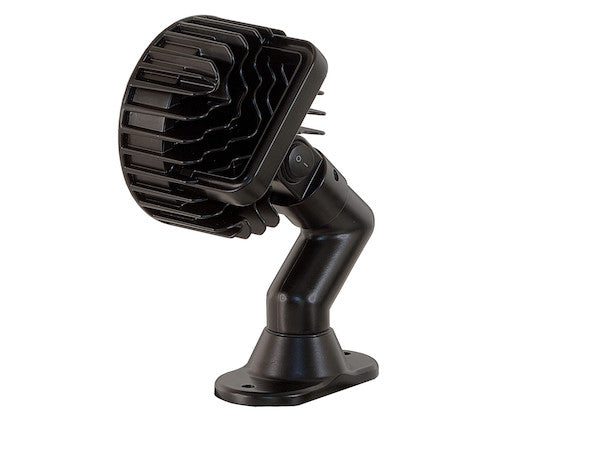

- Premium Material Selection: The housing is crafted from high-grade aluminum, a material renowned for its exceptional strength-to-weight ratio, corrosion resistance, and superior thermal conductivity. The aluminum housing efficiently dissipates heat generated by the LED array, preventing thermal degradation and extending the operational lifespan of the diodes. The lens material is robust polycarbonate, an advanced thermoplastic polymer known for its extraordinary impact resistance, optical clarity, and resistance to UV degradation. Unlike glass, polycarbonate is shatterproof, providing an additional layer of safety and durability against debris, branches, or accidental impacts.
- Expansive Operating Temperature Range: Engineered to perform reliably in extreme climates, the light has an impressive operating temperature range from -40°F (-40°C) to 122°F (50°C). This broad range ensures consistent illumination in freezing arctic conditions, sweltering desert heat, and everything in between, without dimming, flickering, or catastrophic failure due to temperature extremes.
Simplified Installation and Electrical Integration

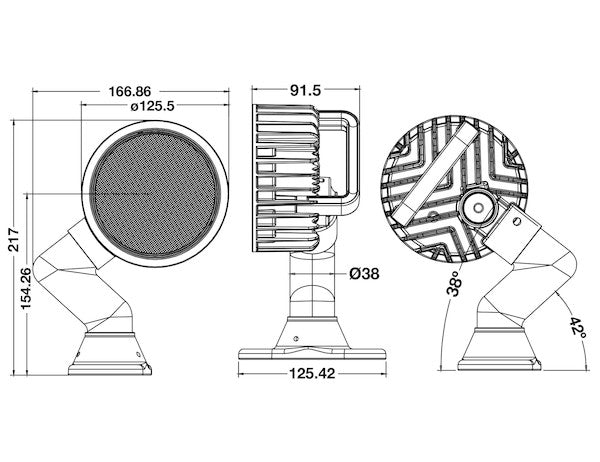

Ease of installation is a practical necessity for any commercial or professional-grade accessory. The 5 Inch LED Clear Articulating Flood Light is designed with this principle in mind:- Pedestal / Surface Mount Type: The included pedestal mount, which facilitates surface mounting, offers a stable and secure foundation for the light fixture. The "Bracket (y/n) Yes" ensures that all necessary hardware for initial mounting is provided, streamlining the installation process. Its compact overall dimensions (6.50 inches overall width, 8.00 inches height) allow for flexible mounting in various locations without significant spatial intrusion.
- Hard-Wired Blunt Cut Lead: The light features a 36-inch blunt cut lead (2 wires), designed for hard-wired connections directly into a vehicle's electrical system. This connector type, specified as "Blunt Cut," provides installers with the flexibility to customize wiring lengths and integrate the light seamlessly with existing power circuits, utilizing industry-standard connectors or direct splice techniques for a robust and watertight connection. The absence of a proprietary plug simplifies field repairs and modifications.
- Wide Voltage Compatibility: Operating efficiently across a voltage range of 12-24 volts, this flood light is universally compatible with the electrical systems of most commercial trucks, utility vehicles, agricultural equipment, marine vessels, and heavy machinery, eliminating the need for voltage converters and simplifying inventory management for fleets.
- Integrated On/Off Switch: A built-in on/off switch provides immediate and convenient control over the light's operation. This feature can be particularly useful for installations where a dedicated dashboard switch is not practical or desired, allowing for localized control directly at the fixture. This adds a layer of operational flexibility, enabling quick activation or deactivation as needed without interacting with the vehicle's primary control panel.
Long-Term Reliability and Assurance
The commitment to quality and longevity is further underscored by a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's confidence in the product's design, materials, and manufacturing excellence. It provides end-users with significant peace of mind, assuring them of sustained performance and protection against material defects or workmanship issues under normal operating conditions. This warranty positions the 5 Inch LED Clear Articulating Flood Light not just as a high-performance lighting tool, but as a reliable long-term investment in operational safety and efficiency.Comprehensive Application Versatility
The strategic design and robust specifications of this articulating LED flood light render it exceptionally versatile for a multitude of professional applications:- Heavy-Duty Trucking: Ideal for illuminating cargo areas, trailers, utility bodies, and roadside repair zones, enhancing visibility for loading, unloading, and maintenance tasks during nighttime hours or in adverse weather conditions. The articulating feature allows drivers or crew to precisely light specific areas around the truck.
- Construction and Mining: Essential for illuminating work areas around excavators, bulldozers, loaders, and other heavy equipment. The flood beam provides broad coverage for earth-moving operations, material handling, and general site safety, while the articulation ensures light can be directed exactly where machinery is operating. Its IP67 and 20G ratings are paramount in these demanding environments.
- Agricultural Equipment: Supports nighttime farming operations by providing critical illumination for combines, tractors, sprayers, and other implements. It allows for precise focusing on specific areas such as planters, headers, or PTO connections, ensuring accurate and safe work completion.
- Utility and Service Vehicles: Perfect for illuminating work zones for telecommunications, electrical, plumbing, and other field service personnel. The ability to direct light from various angles is invaluable for precise task execution in diverse environments.
- Off-Road Vehicles (ATVs, UTVs, Jeeps): Enhances visibility for recreational or professional off-road enthusiasts, illuminating trails, campsites, or recovery operations. The flood pattern helps reveal the contours of the terrain, while articulation aids in navigating complex obstacles or setting up temporary lighting.
- Marine Applications: Excellent for deck lighting, dock illumination, or work light on commercial and recreational boats. Its IP67 rating ensures it can withstand marine environments, including salt spray and direct exposure to water.
