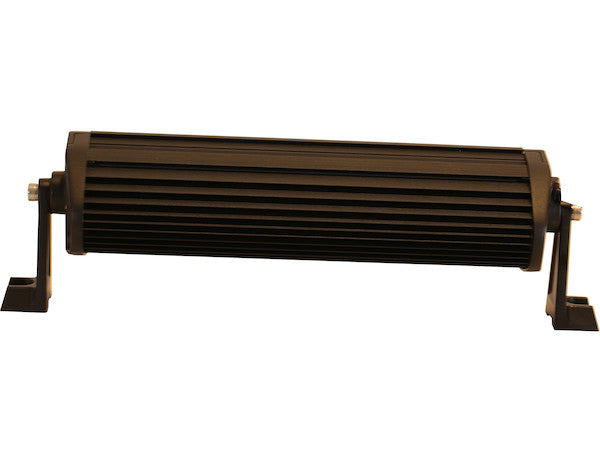

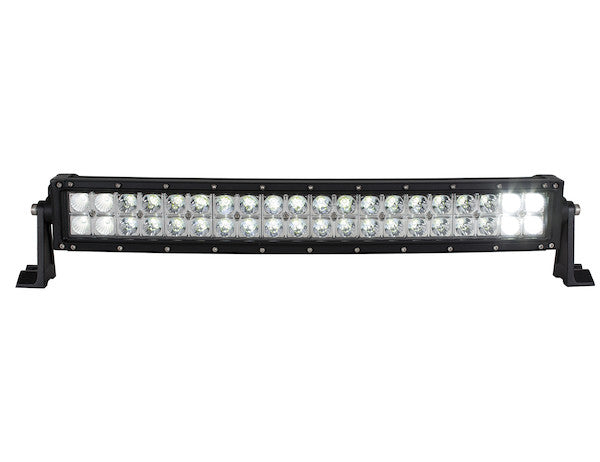

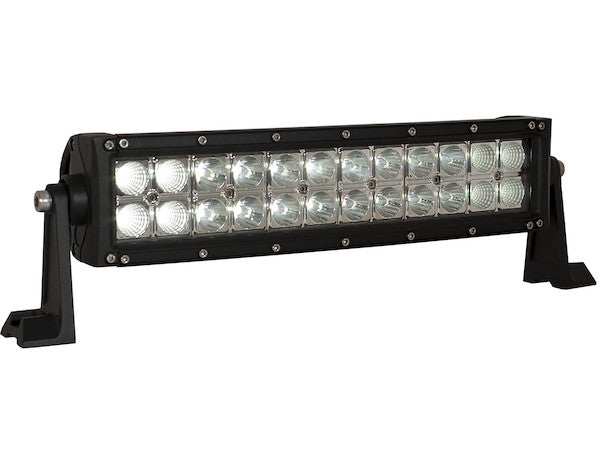

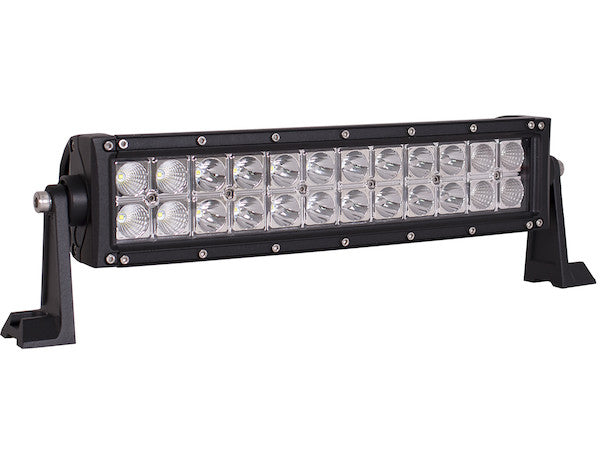

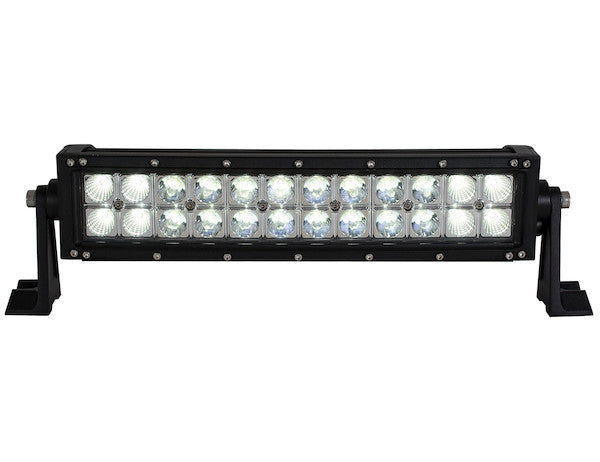

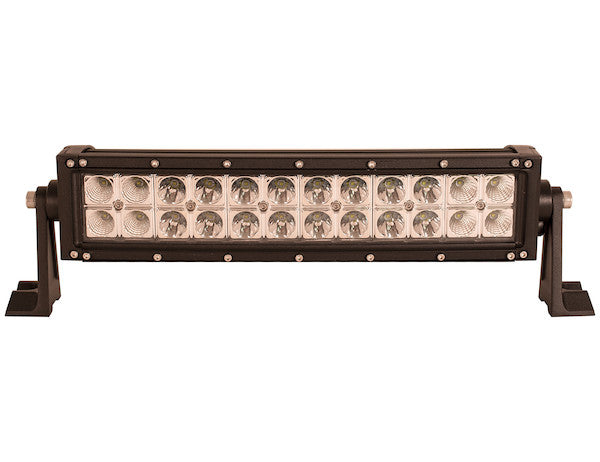

Buyers Products 14 Inch LED Combination Spot-Flood Light Bar has 24 bright LEDs for a combined spot-flood beam pattern. With its curved shape, this 4.2A light bar emits 6480 lumens. It attaches to your vehicle to illuminate your work site. The clear light bar has a sturdy aluminum base, blunt cut connection, and a 33.5 in. lead length. It's rated IP67 for water and dust resistance and is backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 4.20 |
|---|---|
| Base / Mount Type | Surface |
| Beam Pattern | Combo |
| Bracket (y/n) | Yes |
| Built-In Switch | No |
| Certification | IP67, CE, RoHS |
| Color | Clear |
| Color Temperature | 6000 |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |

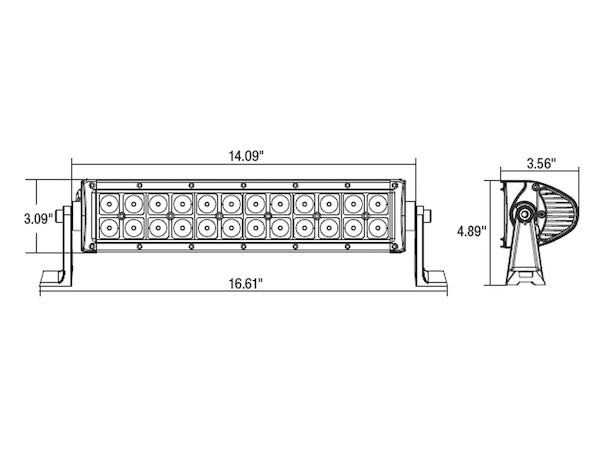

| Height | 4.89 |
| Housing Material | Aluminum |
| Lead Length | 33 |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 6480 |
| Mount Type | Surface |
| Number of Wires | 2 |
| Operating Temperature | -22 to 149 |
| Overall Width | 16.61 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 51 |
Advanced Illumination: The 14 Inch 6480 Lumen LED Clear Curved Combination Spot-Flood Light Bar
In demanding operational environments, optimal visibility is not merely a convenience but a critical factor for safety, efficiency, and productivity. The 14 Inch 6480 Lumen LED Clear Curved Combination Spot-Flood Light Bar represents a significant advancement in auxiliary lighting technology, engineered to deliver unparalleled illumination across a diverse range of applications. This meticulously designed LED light bar integrates cutting-edge optical and electrical components with robust construction, ensuring superior performance and reliability even under the most arduous conditions.
Precision-Engineered LED Optics and Beam Patterns

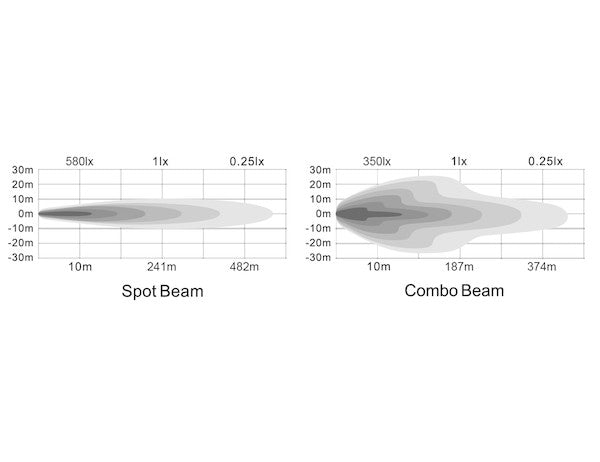

At the core of this high-performance lighting solution are 24 individually optimized, high-intensity LEDs. Each LED is strategically positioned and paired with a specialized reflector and lens system to achieve the product's signature "combination spot-flood" beam pattern. This dual-purpose optical design is instrumental in providing comprehensive lighting coverage, addressing both localized wide-area illumination and precise long-distance projection. The spot beam component, typically characterized by a narrower angle (e.g., 10-30 degrees), concentrates light into a powerful, penetrating beam, ideal for identifying distant objects, navigating unlit trails, or surveying expansive work sites. Conversely, the flood beam segment employs a wider angle (e.g., 45-60 degrees), scattering light over a broader immediate area, which is essential for close-range tasks, peripheral awareness, and general work-site illumination. The synergistic integration of these two beam patterns within a single unit eliminates the need for multiple, specialized lights, streamlining installation and enhancing operational versatility.

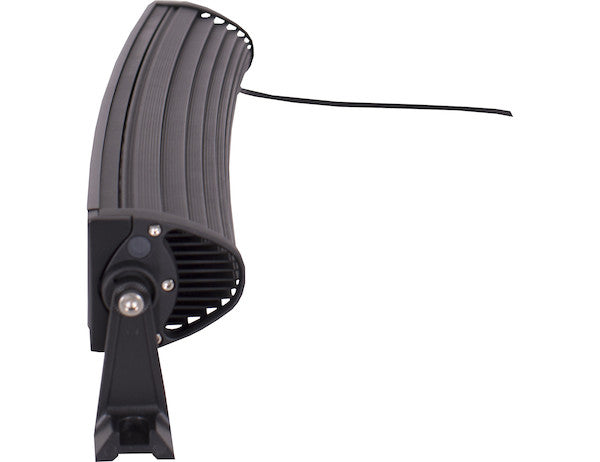

The innovative curved profile of the light bar further enhances its illumination capabilities. Unlike traditional straight light bars that cast a relatively linear light distribution, the curved design subtly broadens the floodlight aspect, expanding the lateral spread of light. This architectural advantage is particularly beneficial for off-road driving and wide-area work tasks, minimizing blind spots and significantly improving peripheral vision without requiring additional light sources angled outwards. The result is a more uniform and expansive field of view, crucial for detecting hazards, equipment, or personnel in dynamic work environments.
Delivering an impressive 6480 lumens, this light bar provides a formidable output, equivalent to several traditional halogen lamps while consuming a fraction of the power. This high lumen count translates directly into exceptional brightness and clarity, transforming dimly lit or completely dark surroundings into brightly illuminated operational zones. The color temperature of 6000K produces a crisp, clear white light, closely mimicking natural daylight. This specific color temperature is scientifically proven to enhance visual acuity, improve contrast perception, and reduce eye fatigue, which is vital during prolonged periods of night work or driving. The "clear" color designation refers to the pure white light emitted, free from any color filters, ensuring maximum light transmission and accurate color rendering of the illuminated scene.
Uncompromising Durability and Environmental Resilience
The operational longevity and reliability of auxiliary lighting depend heavily on its structural integrity and resistance to environmental stressors. This 14-inch LED light bar is constructed with an unwavering commitment to durability, featuring a robust aluminum housing. Aluminum, renowned for its excellent strength-to-weight ratio, plays a pivotal role in the product's thermal management. LEDs generate heat during operation, and efficient heat dissipation is critical to maintaining their performance and lifespan. The aluminum housing acts as a large heat sink, drawing heat away from the LED chips and radiating it into the surrounding air, thereby preventing thermal degradation and ensuring consistent light output over time. Furthermore, aluminum offers inherent corrosion resistance, crucial for applications in marine environments, road salt exposure, or regions with high humidity.
Complementing the sturdy housing is a high-grade polycarbonate lens. Polycarbonate is an advanced thermoplastic polymer celebrated for its exceptional impact resistance, making it virtually indestructible against flying debris, gravel, or accidental impacts commonly encountered in off-road or industrial settings. Beyond its mechanical toughness, polycarbonate also exhibits excellent optical clarity and UV stability. This ensures that the lens maintains its transparency and does not yellow or degrade over time due to prolonged exposure to sunlight, preserving the light bar's aesthetic appeal and optical performance throughout its operational life.
The product's IP67 rating is a testament to its superior ingress protection. The "IP" in IP67 stands for Ingress Protection, with the first digit (6) indicating complete protection against dust ingress, meaning no dust can penetrate the enclosure. The second digit (7) signifies protection against the effects of temporary immersion in water, specifically for 30 minutes at a depth of up to 1 meter. This stringent rating assures users that the light bar is fully sealed against fine dust, dirt, mud, and water, making it suitable for deployment in the most challenging and unpredictable outdoor conditions, including heavy rain, snow, submersion in shallow water, and dusty construction sites.
Designed for extreme operational flexibility, the light bar is rated for an expansive operating temperature range from -22°F to 149°F (-30°C to 65°C). This broad thermal tolerance ensures reliable performance in diverse climates, from frigid arctic conditions to scorching desert heat, without compromising light output or component integrity. This feature is particularly critical for commercial and industrial vehicles that operate year-round in varying geographical locations.
Optimized Electrical System and Seamless Integration
The electrical design of the light bar prioritizes compatibility and efficiency. With a wide voltage input range of 12-24 volts, it is universally adaptable to most vehicle electrical systems, from standard 12V automotive setups in passenger cars, SUVs, and light trucks, to 24V systems commonly found in heavy-duty commercial vehicles, construction equipment, agricultural machinery, and marine applications. This broad compatibility simplifies inventory management and provides greater flexibility for fleet operators and individual users alike.
Drawing only 4.20 Amperes at 12 Volts, corresponding to a total power consumption of 51 Watts, this LED light bar is remarkably power-efficient. Compared to traditional incandescent or HID lighting solutions of comparable output, the LED technology significantly reduces the load on the vehicle's electrical system, minimizing strain on the alternator and battery. This efficiency contributes to lower fuel consumption in engine-driven applications and extends battery life in electrically powered vehicles or when operating the lights with the engine off. The system employs a straightforward 2-wire blunt cut connection, offering a robust and adaptable interface for permanent hard-wired installations. The generous 33-inch (approximately 33.5 inches as per original description) lead length provides ample flexibility for routing wiring, allowing for clean and secure installations without the immediate need for extensions. While a built-in switch is not included, this design choice offers the installer the freedom to integrate the light bar with existing vehicle switch panels, custom auxiliary switches, or advanced control systems, ensuring tailored operation to specific user preferences and vehicle configurations.
Beyond its intrinsic design features, the light bar carries essential certifications, including CE and RoHS. CE marking indicates conformity with European Union health, safety, and environmental protection standards, signifying that the product meets stringent regulatory requirements for sale within the European Economic Area. RoHS (Restriction of Hazardous Substances) compliance confirms that the product is free from specific hazardous materials, such as lead, mercury, and cadmium, promoting environmental responsibility and safety throughout its lifecycle. These certifications underscore the product's adherence to international quality and safety benchmarks.
Versatile Applications and Enhanced Operational Safety
The strategic combination of high lumen output, a versatile spot-flood beam pattern, and robust construction makes this LED light bar an indispensable tool across a myriad of professional and recreational applications. For construction and utility vehicles, it provides critical illumination for night-time work, improving visibility for operators of excavators, loaders, and road-building equipment. In agricultural settings, it enhances safety and productivity during early morning or late-night harvesting and field operations. Emergency response vehicles, including tow trucks, ambulances, and fire apparatus, benefit from its broad, powerful light for scene illumination, aiding in hazard identification and safe operation.
Off-road enthusiasts, recreational vehicles, and overland expedition vehicles can leverage the combination beam for both long-range trail navigation and wide-area campsite illumination, increasing safety and enjoyment. The IP67 rating and extreme temperature tolerance also render it suitable for marine applications, providing essential lighting for docking, navigating in low light, or performing deck work. By providing superior visibility, the light bar directly contributes to a reduction in accidents, improved situational awareness, and ultimately, a safer working and operating environment for personnel and equipment.
Installation, Longevity, and Warranty Assurance
Installation of the 14 Inch LED Light Bar is facilitated by its surface mount design and included brackets. This configuration allows for flexible mounting options on various vehicle surfaces, such as bumpers, roof racks, headache racks, or grill guards, depending on the specific application and desired light trajectory. While professional installation is recommended for optimal integration and wiring, the blunt cut connector and 2-wire system simplify the process for experienced technicians. Users should ensure proper fusing and relay installation to protect the vehicle's electrical system and the light bar itself.
One of the paramount advantages of LED technology is its exceptional longevity. With an operational lifespan far exceeding traditional lighting technologies, this LED light bar dramatically reduces maintenance requirements and replacement costs over time. The solid-state nature of LEDs makes them inherently more resistant to shock and vibration, which are common stresses in heavy-duty and off-road applications, further contributing to their durability and low maintenance profile.
Further solidifying confidence in its engineering and manufacturing quality, the 14 Inch 6480 Lumen LED Clear Curved Combination Spot-Flood Light Bar is backed by a comprehensive 5-year warranty. This extensive warranty period serves as a powerful testament to the manufacturer's commitment to product excellence and customer satisfaction, providing peace of mind and safeguarding the investment against potential manufacturing defects or premature failure under normal operating conditions. This assurance underscores the product’s design for long-term, high-performance service.
Conclusion
The 14 Inch 6480 Lumen LED Clear Curved Combination Spot-Flood Light Bar is more than just an auxiliary lighting device; it is a meticulously engineered solution designed to meet the rigorous demands of professional and recreational users requiring superior illumination. From its advanced LED technology and innovative curved optics to its robust, environmentally sealed construction and efficient electrical design, every aspect of this light bar has been optimized for performance, durability, and versatility. By providing exceptional brightness, comprehensive beam coverage, and unwavering reliability in extreme conditions, it enhances safety, improves productivity, and delivers unparalleled value across a wide spectrum of critical applications. This lighting solution is an investment in enhanced operational capability and enduring quality.
