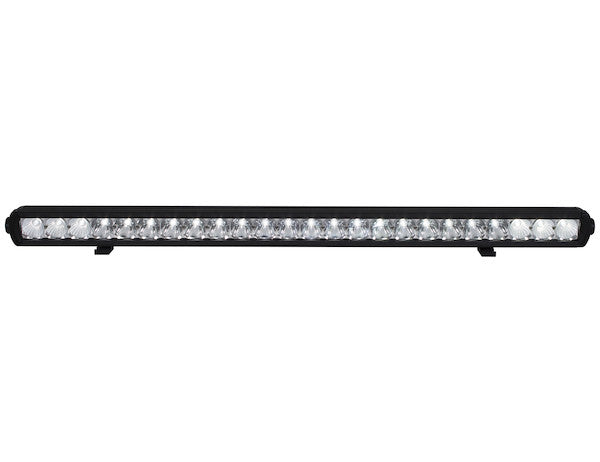

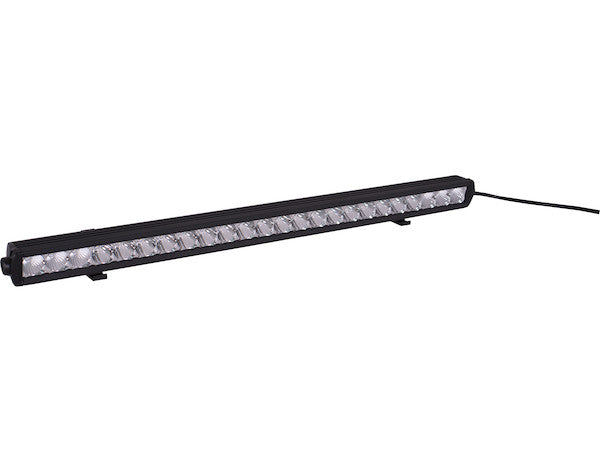

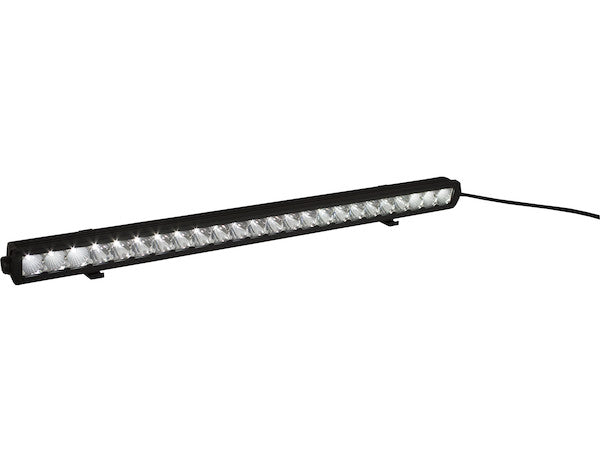

1492185 - 51 Inch 10530 Lumen LED Combination Spot-Flood Light Bar

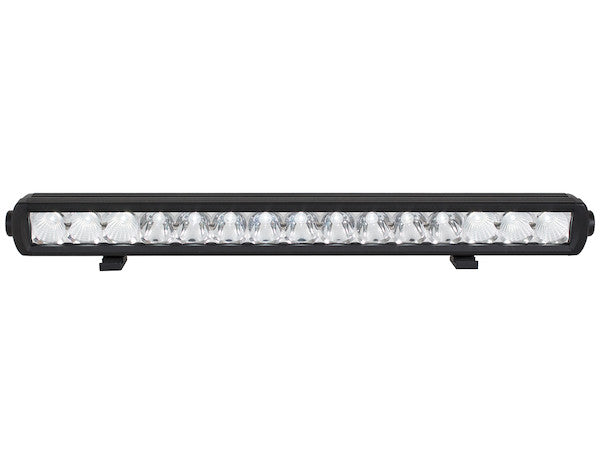

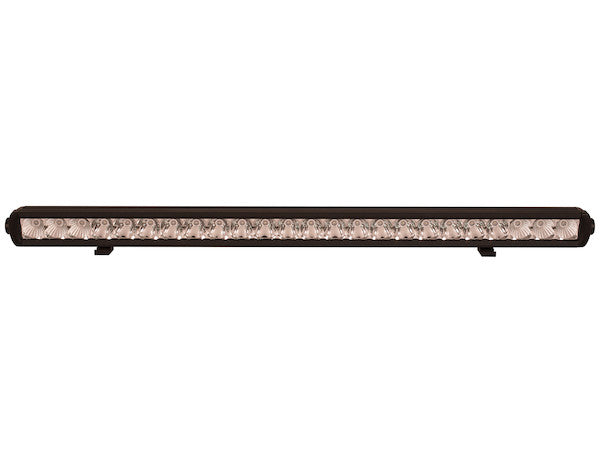

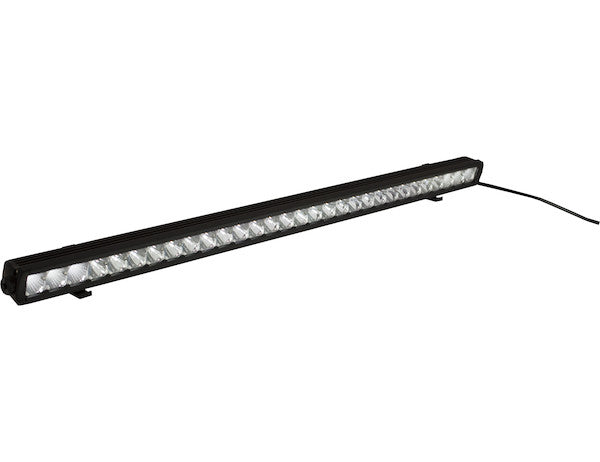

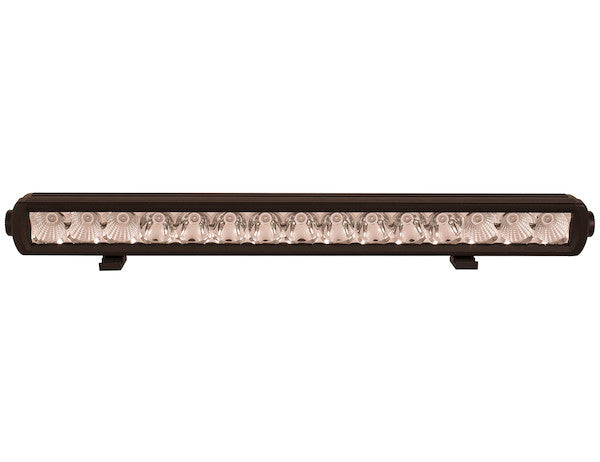

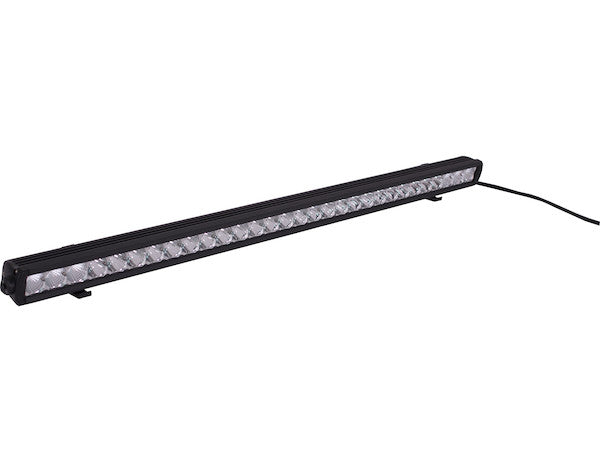

Buyers Products 51 Inch LED Combination Spot-Flood Light Bar has a single row of 39 bright LEDs for a combined spot-flood beam pattern. This 7.6A light bar emits 10,530 lumens. It attaches to your vehicle to illuminate your work site. The clear light bar has a sturdy aluminum base, blunt cut connection, and a 30.5 in. lead length. It's rated IP67 for water and dust resistance and is backed with a 5 year warranty.

Specifications

Advanced Illumination: The 51-Inch 10530 Lumen LED Combination Spot-Flood Light Bar

The 51-inch LED Combination Spot-Flood Light Bar represents a pinnacle in auxiliary vehicular illumination, engineered to provide unparalleled visibility and operational safety across a diverse range of demanding applications. This high-performance lighting solution is meticulously designed to project a formidable 10,530 lumens, leveraging a sophisticated arrangement of 39 high-intensity Light Emitting Diodes (LEDs) within a single-row configuration. Its innovative combination beam pattern strategically integrates both spot and flood optics, delivering a comprehensive lighting envelope that addresses both long-range target identification and expansive close-quarter area illumination.

Unrivaled Optical Performance and Energy Efficiency

At the core of this light bar's exceptional performance is its formidable lumen output. 10,530 lumens signifies a substantial quantity of visible light, ensuring that even the most challenging low-light conditions are effectively mitigated. Lumens quantify the total luminous flux, or the perceived power of light, emitted from a source. For reference, this output far surpasses that of typical automotive high-beam headlights, providing a distinct operational advantage for tasks requiring extensive light coverage.

The integration of 39 individual LEDs is critical to achieving this output. Modern LEDs are renowned for their superior luminous efficacy – the ratio of light output (lumens) to power consumption (watts). With a power draw of only 92 watts (and 7.60 Amps at 12 Volts), this light bar offers a highly efficient lighting solution, minimizing the strain on a vehicle's electrical system while maximizing illumination. This efficiency translates into lower fuel consumption for engine-driven vehicles and extended operational times for battery-powered applications, making it an economically prudent choice for professional use.

The specified 6000K color temperature is another key technical attribute. This kelvin rating corresponds to a crisp, cool white light that closely approximates natural daylight. Such a color temperature is scientifically proven to enhance visual acuity, improve contrast, and reduce eye fatigue, particularly during prolonged periods of nighttime operation. The absence of a yellow or blue tint ensures accurate color rendition of the illuminated environment, which is crucial for safety and task execution in diverse professional settings such as construction sites, agricultural fields, or industrial yards.

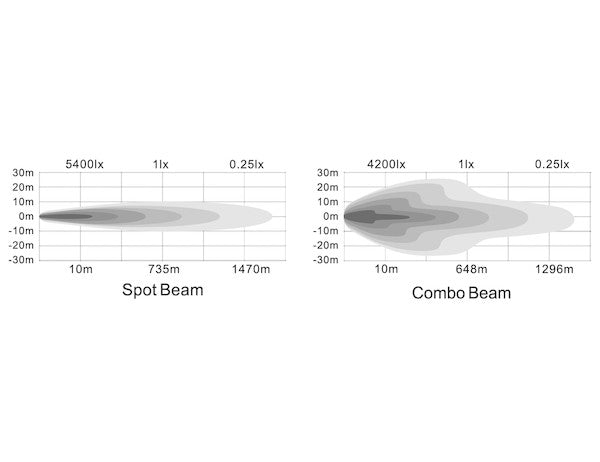

Intelligent Combination Beam Pattern

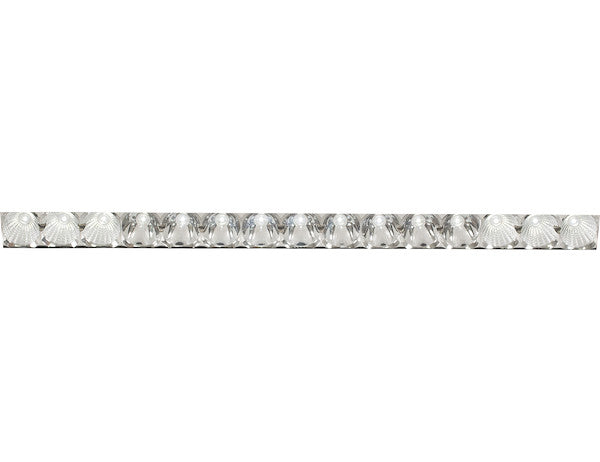

The hallmark of this light bar is its sophisticated combination beam pattern, which is achieved through a precise array of specialized optics:

• Spot Beam Components: Positioned centrally within the bar, these LEDs are coupled with focused reflectors or projector lenses designed to concentrate light into a narrow, high-intensity beam. This configuration enables exceptional throw distance, allowing operators to identify distant hazards, survey extended terrain, or pinpoint specific objects with precision. In applications like high-speed off-roading or long-haul trucking, the spot beam provides critical foresight.
• Flood Beam Components: Flanking the central spot elements, these LEDs utilize wider-angle reflectors or diffusers to spread light over a broad area. The flood beam is essential for illuminating immediate surroundings, enhancing peripheral visibility, and providing extensive workspace lighting. This is invaluable for tasks such as equipment setup, loading/unloading operations, or maneuvering in confined spaces where wide, even illumination is paramount.

The intelligent integration of these two patterns into a single unit ensures that operators have both the focused intensity for distance and the expansive coverage for close-up work, eliminating the need for multiple, specialized lighting fixtures. This hybrid approach significantly improves situational awareness and operational efficiency.

Engineered for Extreme Durability

The robust construction of the 51-inch LED light bar is designed to withstand the most punishing operational environments, ensuring consistent performance and longevity.

• High-Grade Aluminum Housing: The light bar features a sturdy aluminum base and housing. Aluminum, particularly die-cast aluminum alloys, is chosen for its exceptional strength-to-weight ratio, inherent corrosion resistance, and superior thermal dissipation properties. The robust aluminum casing protects the sensitive internal electronic components from physical impact, vibration, and abrasion. Furthermore, aluminum acts as an efficient heat sink, drawing heat away from the LED chips. Effective thermal management is paramount for preserving LED lifespan and maintaining lumen output over time, as excessive heat can lead to accelerated lumen degradation and premature failure.
• Impact-Resistant Polycarbonate Lens: The front optical element is constructed from high-quality polycarbonate. This material is widely recognized for its extraordinary impact resistance, far surpassing that of glass or acrylic. The round lens shape contributes to structural integrity and efficient light transmission. Polycarbonate is also inherently resistant to UV radiation, preventing yellowing and degradation over extended periods of sun exposure, which is critical for maintaining optical clarity and aesthetic appeal in outdoor applications.
• IP67 Ingress Protection Rating: The IP67 certification is a testament to the light bar's formidable resistance to environmental contaminants. The IP code, or Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion of solid objects (dust, fingers, tools) and water.
  • The '6' in IP67 denotes complete protection against dust ingress. This means the enclosure is dust-tight, preventing any dust particles from entering and interfering with the operation of the electrical components, which is vital in dusty construction, mining, or agricultural environments.
  • The '7' in IP67 signifies protection against the effects of temporary immersion in water, specifically for up to 1 meter (3.3 feet) for 30 minutes. This level of water resistance ensures reliable operation in heavy rain, snow, sleet, or even during vehicle washdowns, making it suitable for marine applications, off-road vehicles crossing shallow water, or equipment exposed to rigorous cleaning protocols.
• Wide Operating Temperature Range: Specified to operate reliably within a temperature range of -22°F to 149°F (-30°C to 65°C), this light bar is engineered for global deployment and extreme climatic variability. This broad thermal tolerance ensures consistent performance whether operating in sub-zero arctic conditions or under intense desert heat, without compromising light output or component integrity.

Seamless Electrical Integration and Installation

Designed for professional installation, this LED light bar offers versatile electrical compatibility and straightforward mounting solutions:

• Universal Voltage Compatibility (12-24V): The light bar is engineered to operate efficiently across a wide input voltage range of 12 to 24 volts DC. This inherent flexibility makes it universally compatible with a vast array of vehicles and power systems, including standard 12V automotive systems, heavy-duty 24V commercial truck electrical architectures, and various industrial equipment power supplies. This eliminates concerns regarding voltage fluctuations or system mismatches.
• Hard-Wired Blunt Cut Connection: The unit features a blunt cut connection with a 30.5-inch (approximately 77.5 cm) lead length. This hard-wired, two-wire (positive and negative) configuration is preferred for permanent, secure installations where reliability is paramount. The blunt cut design allows for custom wiring solutions, enabling installers to integrate the light bar seamlessly into existing vehicle electrical harnesses, often utilizing weather-sealed connectors, relays, and appropriately rated fuses for optimal protection and control. This method ensures a robust electrical connection, resistant to environmental factors and accidental disconnections common with plug-and-play alternatives.

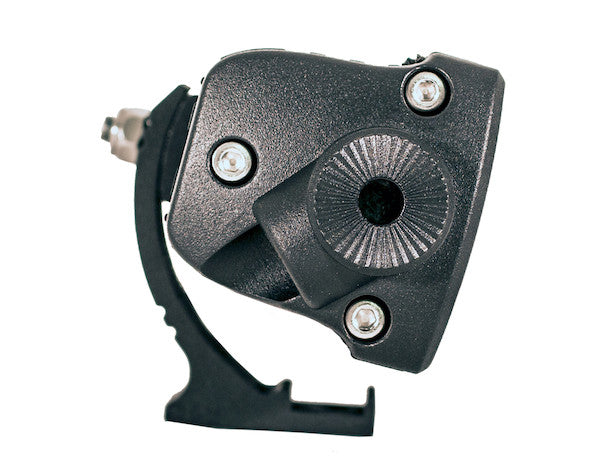

• Surface Mount with Included Brackets: The light bar is designed for surface mounting, offering flexibility in placement on various vehicle surfaces such as bumpers, roof racks, roll cages, or equipment frames. The inclusion of mounting brackets facilitates a secure and stable installation, absorbing vibrations and impacts encountered during vehicle operation. The precise overall width of 50.87 inches ensures a substantial presence and broad illumination field.

Versatile Applications

The combination of high lumen output, a versatile beam pattern, and extreme durability makes the 51-inch LED Combination Spot-Flood Light Bar an indispensable tool across numerous industries and applications:

• Commercial and Fleet Vehicles: Enhances safety and productivity for tow trucks, utility service vehicles, delivery trucks, and semi-trailers requiring additional lighting for roadside assistance, loading docks, or secure navigation in poorly lit areas.
• Construction and Heavy Equipment: Provides crucial illumination for excavators, bulldozers, graders, and other heavy machinery operating during night shifts or in dimly lit construction zones, improving visibility of the work area and surrounding personnel.
• Agriculture: Essential for tractors, combines, sprayers, and other farm machinery conducting early morning or late-night operations, illuminating fields, pathways, and implements for efficient and safe agricultural practices.
• Off-Road and Recreational Vehicles: A popular upgrade for ATVs, UTVs, Jeeps, and 4x4s, providing superior trail illumination for adventure enthusiasts navigating challenging terrains after dark.
• Marine Applications: Given its IP67 rating, it is suitable for workboats, fishing vessels, and larger recreational boats requiring powerful deck or navigation lighting in harsh saltwater or freshwater environments.
• Emergency Services: Can serve as auxiliary lighting for fire apparatus, rescue vehicles, or law enforcement, providing wide-area illumination during incident response and scene management.

Certifications and Assurance

This light bar is not only engineered for performance and durability but also adheres to stringent international standards, underscoring its quality and safety:

• CE Certification: Indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA). This signifies that the product has met the essential requirements of applicable European directives.
• RoHS Compliance: Stands for Restriction of Hazardous Substances. This certification ensures that the light bar is manufactured without specific hazardous materials, contributing to environmental protection and worker safety.

Further bolstering confidence in its long-term reliability, the product is backed by a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's unwavering commitment to quality and their confidence in the light bar's robust design and superior components, offering peace of mind and protection for your investment.

Conclusion

The 51-inch 10530 Lumen LED Combination Spot-Flood Light Bar represents a formidable investment in operational efficiency, safety, and reliability. By integrating cutting-edge LED technology, a versatile combination beam pattern, and an ultra-durable construction with an IP67 rating, it delivers exceptional illumination performance in the most demanding conditions. Its universal voltage compatibility, professional wiring interface, and adherence to international quality standards make it the preferred lighting solution for a broad spectrum of commercial, industrial, agricultural, and recreational applications. Choose this light bar for a powerful, dependable, and long-lasting enhancement to your vehicle's lighting capabilities.
