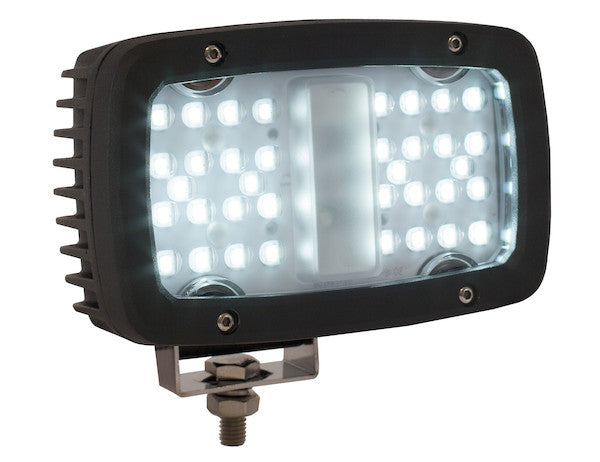

Buyers Products Ultra Bright 6.5 Inch Wide Rectangular LED Flood Light features new HLD (High Lumen Density) optics that blasts 7920 lumens of light across a wide area. The durable light features black powder-coated aluminum housing for optimal heat dissipation. It is rated IP68/IP69K for extreme dust and water resistance. This design makes the light perfect for both on-road and off-road applications. The light has a blunt cut 11 inch wire lead with a simple-to-install stud mount. It's backed with a 5 year warranty.
Specifications
| Base / Mount Type | Surface |
|---|---|
| Beam Pattern | Flood |
| Color | Clear |
| Depth | 6.3 |
| Hard Wired or Plug | Hard Wired |
| Height | 5 |
| Housing Material | Aluminum |
| Lead Length | 11 |
| Lens Shape | Rectangular |
| Lumens | 7920 |
| Overall Width | 6.300 |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Unveiling the 6.5 Inch Ultra Bright Rectangular 36 LED Floodlight: A Technical Deep Dive into Advanced Illumination
The 6.5 Inch Ultra Bright Rectangular 36 LED Floodlight represents a pinnacle in auxiliary lighting technology, engineered for environments demanding superior illumination, robust durability, and unwavering reliability. This meticulously designed floodlight integrates cutting-edge optical and material science to deliver an exceptional performance profile, making it an indispensable asset across a diverse array of professional and industrial applications. With its commanding output of 7920 lumens, generated by 36 high-efficiency LEDs and optimized by innovative High Lumen Density (HLD) optics, this fixture redefines expectations for wide-area lighting.
Advanced Optical Engineering: High Lumen Density (HLD) Technology

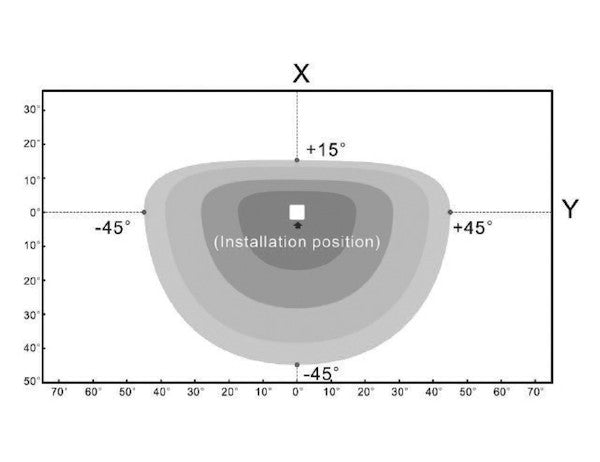

At the core of this floodlight's extraordinary performance lies its revolutionary High Lumen Density (HLD) optical system. Unlike conventional LED floodlights that often rely on a smaller number of large LED emitters or rudimentary reflector designs, HLD technology employs a greater concentration of smaller, highly efficient LED chips. These 36 individual LEDs are precisely arranged within a compact array, and their emitted light is meticulously managed by micro-optics. This sophisticated integration allows for the efficient collection and precise direction of luminous flux, channeling it into an expansive, uniformly distributed flood beam pattern. The HLD design minimizes optical losses and maximizes the utilization of emitted light, translating directly into the impressive 7920-lumen output. This optimized light distribution eradicates the common issues of "hot spots" or uneven illumination prevalent in lesser designs, providing a consistently bright and homogeneous field of view. The benefits extend beyond mere brightness; the uniform illumination enhances depth perception, reduces glare, and significantly minimizes eye strain during prolonged periods of operation. For critical tasks requiring broad, shadow-free lighting, such as operating heavy machinery in low visibility or illuminating large work areas, the HLD optics ensure that every lumen is strategically deployed to improve operational safety and efficiency.
Robust Construction and Advanced Thermal Management
The longevity and consistent performance of high-output LED systems are intrinsically linked to effective thermal management. This 6.5-inch floodlight features a robust housing constructed from high-grade aluminum, renowned for its excellent thermal conductivity and mechanical strength. The housing is further treated with a black powder-coating, which not only provides superior resistance against corrosion, abrasion, and UV degradation but also contributes to enhanced passive heat dissipation due to its emissivity. The die-cast aluminum construction acts as a highly efficient heatsink, drawing heat away from the sensitive LED junctions and dissipating it into the ambient environment. This critical thermal pathway maintains optimal operating temperatures for the 36 LEDs, preventing thermal runaway and degradation of photometric performance. Sustained junction temperatures within specified limits are paramount for achieving the advertised lumen output and extending the operational lifespan of the LEDs significantly beyond typical expectations. Without such robust thermal management, the intensity and color consistency of LED luminaires would rapidly diminish. The chosen materials and manufacturing processes ensure that the floodlight maintains its structural integrity and optical clarity even under continuous operation in demanding conditions, offering a level of durability that sets it apart from standard lighting solutions.
Unparalleled Environmental Resilience: IP68 and IP69K Ratings
Environmental resistance is a critical consideration for any lighting solution intended for heavy-duty or outdoor use. This floodlight boasts dual ingress protection ratings: IP68 and IP69K, signifying its exceptional resilience against the harshest elements. The IP68 rating confirms that the fixture is entirely dust-tight, preventing the ingress of fine particulate matter that could compromise internal components or optical surfaces. Furthermore, it is certified for continuous immersion in water up to specified depths beyond 1 meter. This level of protection ensures reliability in applications prone to heavy rain, standing water, or even submersion, such as marine environments, off-road expeditions through mud and puddles, or construction sites exposed to inclement weather. The additional IP69K rating is a testament to the floodlight's capability to withstand high-pressure, high-temperature water jet cleaning. This is particularly vital for equipment used in industries like agriculture, mining, food processing, or waste management, where machinery frequently undergoes rigorous wash-downs to remove accumulated dirt, grime, and contaminants. The IP69K standard ensures that seals remain intact and internal components are protected even when subjected to powerful water sprays at close range and elevated temperatures, preventing water ingress and maintaining operational integrity. These combined ratings underscore the floodlight's design for uncompromising performance in environments where exposure to dust, water, and extreme cleaning protocols are commonplace, providing unmatched reliability and reducing maintenance requirements.
Versatile Application Spectrum
The engineering versatility of the 6.5 Inch Ultra Bright Rectangular 36 LED Floodlight positions it as an ideal illumination solution across an extensive range of applications, both on-road and off-road. For on-road applications, the floodlight significantly enhances safety and operational efficiency for commercial vehicles, utility trucks, and emergency response fleets. Its expansive flood beam is perfect for illuminating large areas around a parked vehicle during roadside repairs, loading/unloading operations, or accident scene management. It provides critical light for trailer backing, side-mounted work lights for utility crews, or supplemental lighting for municipal services. The robust construction and environmental ratings ensure reliable performance through all weather conditions and rigorous daily use. In off-road environments, its capabilities truly shine. Heavy construction equipment such as excavators, bulldozers, and loaders benefit immensely from the broad, intense light, improving visibility of the immediate work zone, obstacles, and personnel. Agricultural machinery, including tractors and harvesters, can operate more safely and efficiently during pre-dawn or post-dusk hours, illuminating fields and implements. For marine vessels, it serves as an excellent deck light, mast spreader light, or docking light, resisting saltwater corrosion and intense spray. Recreational off-roaders with ATVs, UTVs, and 4x4s will find it indispensable for navigating challenging terrains in low light, providing a wide field of view to spot trails, obstacles, and game. Even in demanding sectors like mining, where extreme dust, vibration, and water are constant threats, the floodlight's durability and powerful output ensure uninterrupted visibility and enhanced worker safety. The strategic choice of a flood beam pattern ensures that a large, contiguous area is illuminated, crucial for situational awareness and operational precision in dynamic and often hazardous work zones.
Electrical Design and Seamless Integration
Designed for broad electrical compatibility and straightforward integration, this LED floodlight operates within a versatile 12-24V DC range. This dual-voltage capability makes it suitable for virtually any vehicle or heavy equipment platform, from standard 12V automotive systems to 24V industrial machinery, eliminating the need for voltage converters and simplifying inventory management. The hard-wired design, featuring an 11-inch blunt cut wire lead, provides significant advantages for secure and custom installations. A blunt cut lead allows installers to terminate the wiring with appropriate connectors, ensuring a waterproof and vibration-resistant connection tailored to the specific application's harness or power source. This method promotes a more robust and permanent electrical connection compared to pre-attached plugs, which may not always be compatible or offer the same level of environmental sealing. The ample lead length offers flexibility in routing the wiring, facilitating a clean and professional installation while accommodating various mounting locations. Furthermore, the LED technology inherently offers high energy efficiency, drawing significantly less current than traditional halogen or incandescent lighting sources while delivering substantially greater light output, thereby reducing strain on vehicle electrical systems and contributing to fuel economy.
Effortless Installation and Secure Mounting

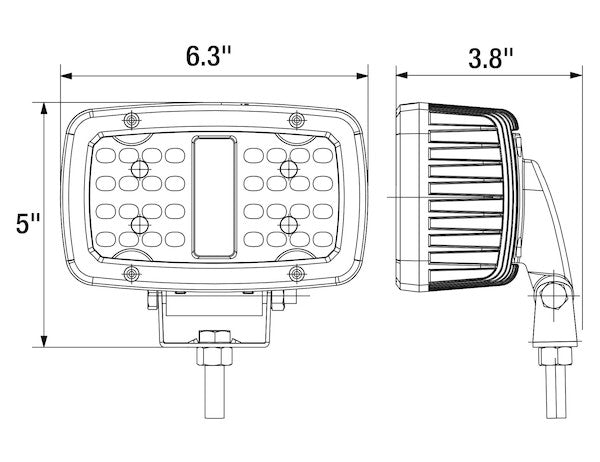

The pragmatic design extends to its installation, featuring a simple-to-install stud mount system for surface mounting. This common and highly effective mounting solution ensures secure attachment to various flat surfaces on vehicles or equipment. The stud mount typically involves a single bolt passing through a pre-drilled hole, secured with a nut, providing a stable anchor point. This method allows for a low-profile installation while providing robust resistance against vibrations and shocks commonly encountered in mobile applications. The rectangular form factor, combined with its compact dimensions (6.3" width, 5" height, 6.3" depth), allows for versatile placement in areas where space is at a premium, without compromising on light coverage. Whether mounted on bumpers, roof racks, roll cages, utility beds, or machinery frames, the stud mount facilitates easy alignment and directional adjustment (where applicable based on specific bracket design, though a floodlight often benefits from fixed, wide-angle positioning). The simplicity of the mounting mechanism reduces installation time and complexity, making it a favored choice for fleet managers, technicians, and individual users alike who require a reliable, high-performance lighting upgrade without extensive modifications.
Design Aesthetics and Ergonomics
Beyond its technical prowess, the floodlight's rectangular lens shape and overall design embody a blend of functional efficiency and contemporary aesthetics. The clear lens ensures maximum light transmission, allowing the full 7920 lumens to project unimpeded, while its robust material (typically polycarbonate or tempered glass, designed for impact resistance) protects the delicate LED array. The precise dimensions (6.300 inches overall width, 5 inches height, 6.3 inches depth) contribute to a relatively compact footprint for such a powerful light, enabling seamless integration with the existing contours of diverse vehicles and machinery. The black powder-coated aluminum housing not only serves a critical thermal and protective function but also offers a sleek, professional appearance that complements the rugged aesthetic of heavy-duty equipment. This deliberate design consideration ensures that the floodlight is not merely an auxiliary light source but an integrated component that enhances both the utility and visual appeal of the host vehicle, reflecting a commitment to engineering excellence where form meets function.
Unwavering Reliability and Comprehensive Warranty
The manufacturer’s confidence in the enduring quality and performance of this 6.5 Inch Ultra Bright Rectangular 36 LED Floodlight is unequivocally demonstrated by its comprehensive 5-year warranty. This extensive warranty period signifies a commitment to superior product engineering, quality control, and the utilization of premium-grade components. It provides end-users with peace of mind, assuring them of a long-term investment protected against manufacturing defects and premature failure. LED technology itself inherently offers a substantially longer operational lifespan compared to traditional incandescent or HID lighting, often exceeding 50,000 hours of continuous use. When coupled with the robust thermal management and ingress protection, this floodlight is designed to deliver consistent, maintenance-free performance for years, even in the most challenging operational environments. The warranty underscores the product's reliability, minimizing potential downtime and maximizing the return on investment for commercial operators and industrial users who depend on critical lighting for safety and productivity.
Conclusion
In summary, the 6.5 Inch Ultra Bright Rectangular 36 LED Floodlight is not merely an auxiliary lighting device; it is a meticulously engineered illumination system designed to excel in the most demanding conditions. Its combination of revolutionary High Lumen Density (HLD) optics delivering 7920 lumens, a highly durable black powder-coated aluminum housing with advanced thermal management, and industry-leading IP68/IP69K environmental protection ratings sets a new benchmark for performance and reliability. Coupled with broad 12-24V compatibility, versatile stud mounting, and a robust 5-year warranty, this floodlight offers an unparalleled blend of power, resilience, and value. For professionals seeking a high-performance, long-lasting, and exceptionally durable lighting solution that enhances safety and productivity across on-road, off-road, and industrial applications, this 36 LED floodlight stands as the definitive choice.
