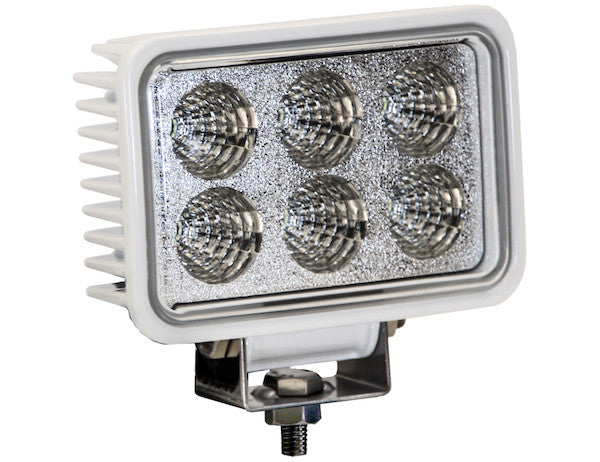

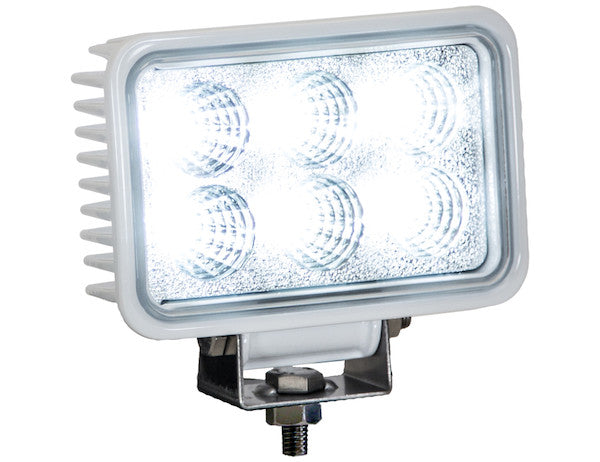

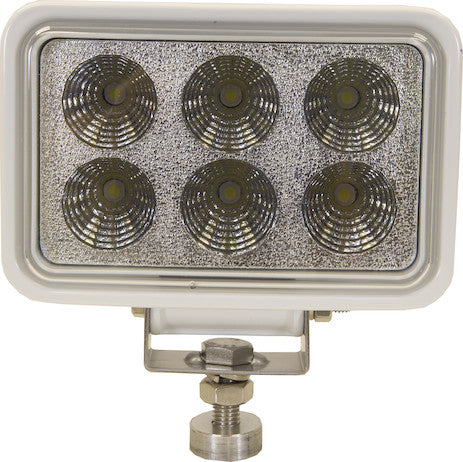

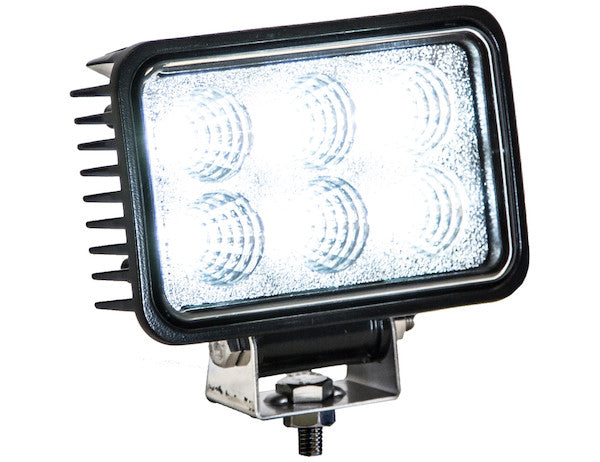

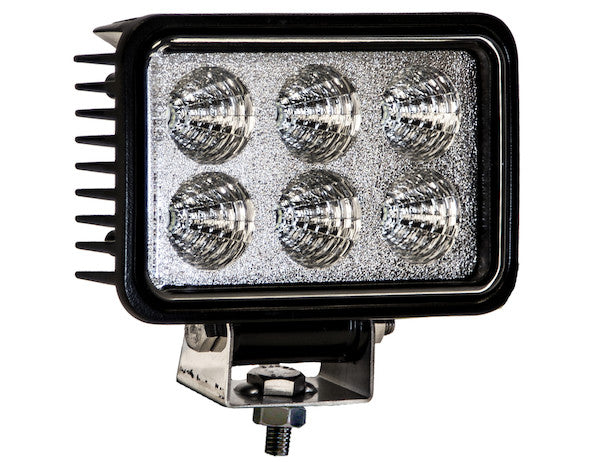

Buyers Products 6 Inch Wide Rectangular LED Spot Light Series provides 1350 lumens of light in a focused beam. It is available in your choice of white or black aluminum housing. The light features a 36 in. blunt cut lead and a stainless steel base. It is rated IP67 for water and dust resistance. It's backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.50 |
|---|---|
| Base / Mount Type | Surface |
| Beam Pattern | Spot |
| Bracket (y/n) | Yes |
| Built-In Switch | No |
| Certification | IP67, IP69K, CE, RoHS |
| Color | Clear |
| Color Temperature | 6000 |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |
| Height | 4.90 |
| Housing Material | Aluminum |
| Lead Length | 36 |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 1350 |
| Mount Type | Surface |
| Number of Wires | 2 |
| Operating Temperature | -4 to 122 |
| Overall Width | 6.00 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 18 |
Precision Illumination for Demanding Environments: The 4x6 Inch Rectangular LED Spot Light
The Buyers Products 4 Inch by 6 Inch Rectangular LED Clear Spot Light with White Housing represents a pinnacle of advanced lighting engineering, meticulously designed for applications demanding superior, focused illumination and uncompromised durability. This lighting solution is specifically engineered to provide exceptional visibility in the most challenging operational scenarios, from heavy-duty construction and agricultural equipment to utility vehicles and marine applications. Combining high-output LED technology with robust environmental protection and a precision optical system, this spot light delivers reliability and performance that sets a new industry benchmark.

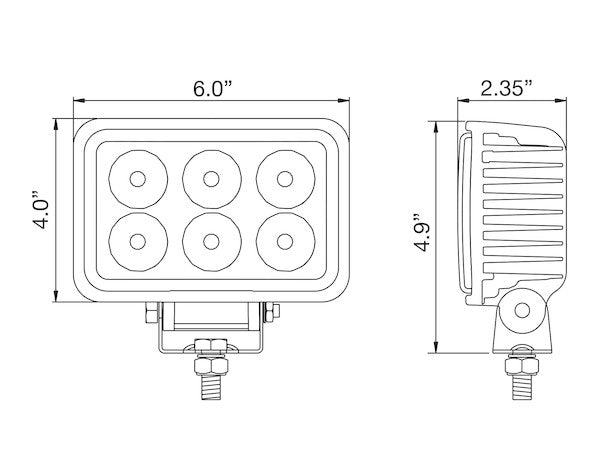

At its core, this fixture is an LED (Light Emitting Diode) powered spot light, a deliberate choice reflecting modern demands for energy efficiency, extended operational lifespan, and resistance to vibration and shock far beyond that offered by traditional incandescent or halogen light sources. The designation "4 Inch by 6 Inch Rectangular" refers to the nominal form factor, providing a substantial yet streamlined profile suitable for various mounting positions. Its physical dimensions are precisely 6.00 inches in overall width and 4.90 inches in height, offering a compact footprint for integration into diverse vehicle and equipment designs. The elegant white aluminum housing of this particular model provides both aesthetic appeal and enhanced corrosion resistance, crucial for longevity in harsh outdoor and industrial settings.
Unrivaled Optical Performance and Photometric Precision

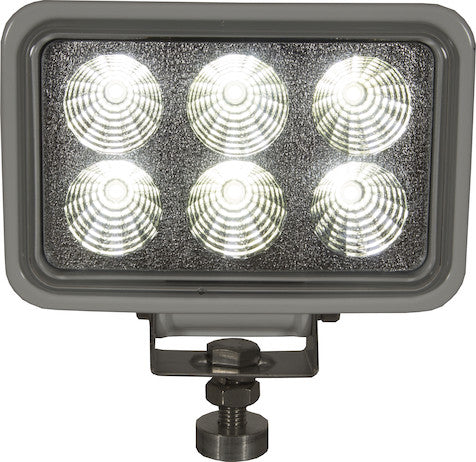

The primary function of any spot light is to deliver a concentrated beam of illumination, and this unit excels with an impressive 1350 lumens of clear, intense light. The "Spot" beam pattern is engineered to project light over extended distances, creating a highly focused field of view that is invaluable for identifying distant objects, illuminating specific work zones, or navigating in low-light conditions. Unlike flood beams which disperse light broadly, the spot pattern minimizes light scatter, ensuring maximum light intensity is directed precisely where it is needed most. This focused output translates directly into enhanced safety and operational efficiency for tasks requiring precision visibility.
A critical aspect of its photometric performance is the color temperature, rated at 6000 Kelvin (K). This produces a crisp, clear "cool white" light that closely approximates natural daylight. This specific color temperature offers several significant advantages: it enhances visual acuity, improves contrast between objects and their surroundings, and reduces eye fatigue during prolonged use, thereby contributing to operator comfort and alertness. The clear lens ensures unobstructed light transmission, maximizing the effective lumen output and maintaining the purity of the 6000K light.

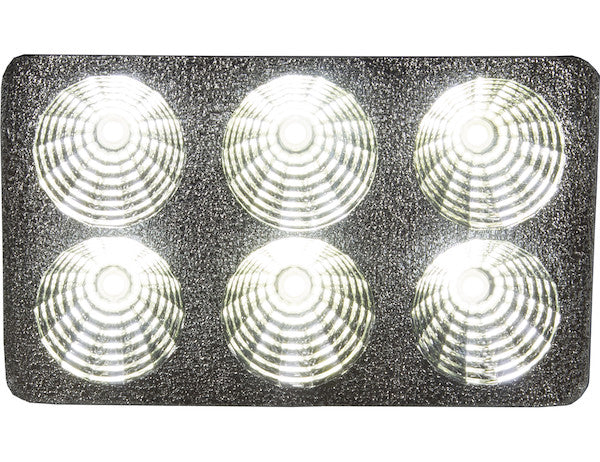

The optical system features a round lens, ingeniously integrated within the rectangular housing. This design choice is often driven by engineering considerations to optimize the refractive and reflective properties required for a truly focused spot beam. While the external housing is rectangular for ease of mounting and aesthetic integration, the internal round lens geometry is often preferred for superior light collimation, directing the emitted light with minimal divergence. The lens itself is crafted from high-grade polycarbonate, a material renowned for its exceptional impact resistance, thermal stability, and clarity. Polycarbonate is inherently more robust than glass, capable of withstanding severe impacts from debris, stones, or branches commonly encountered in off-road, construction, or agricultural environments. Furthermore, its inherent UV resistance ensures that the lens will not yellow or degrade over time, maintaining optimal light output and clarity throughout the product’s lifespan.
Advanced LED Technology and Robust Electrical Design
Powering this sophisticated optical system is cutting-edge LED technology, offering a paradigm shift from conventional lighting. The luminaire operates at a nominal wattage of 18 Watts, drawing a mere 1.50 Amperes at 12 Volts. This low power consumption is a testament to the high efficacy of the LEDs, converting electrical energy into light with remarkable efficiency. For operators, this translates into reduced strain on the vehicle's electrical system, lower fuel consumption, and the ability to run multiple lights without significant impact on battery life or alternator load. The wide voltage input range of 12-24 Volts further underscores its versatility, making it compatible with a broad spectrum of vehicles and equipment, regardless of their specific electrical architecture. This multi-voltage capability eliminates the need for voltage converters, simplifying installation and reducing potential points of failure.
The electrical connection is designed for maximum reliability and simplicity: a 36-inch blunt cut lead with two wires. This hard-wired configuration ensures a secure, permanent connection, highly resistant to environmental ingress and accidental disconnection, which is critical in dynamic and harsh operating conditions. The generous lead length provides flexibility for routing wiring to power sources, simplifying the installation process. The absence of a built-in switch or plug allows for seamless integration with existing vehicle control systems, providing customizability in activation methods, whether through dashboard switches, relays, or vehicle-specific wiring harnesses.

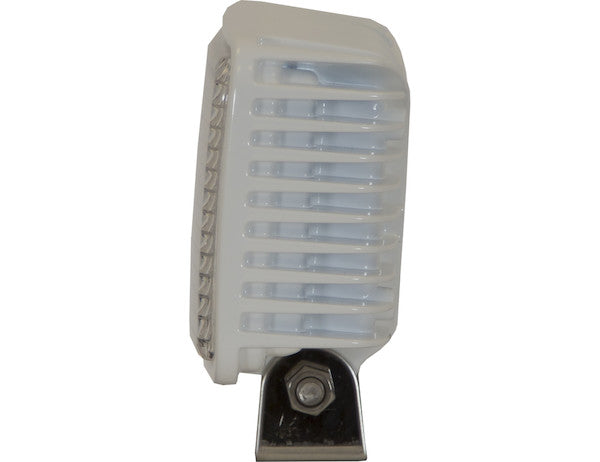

Effective thermal management is paramount for the longevity and consistent performance of LED lights. While LEDs are highly efficient, they do generate some heat, which must be dissipated to prevent lumen depreciation or premature failure. The aluminum housing plays a crucial role here, acting as a highly efficient heat sink. Aluminum's excellent thermal conductivity rapidly draws heat away from the LED chips, transferring it to the surrounding air. This active thermal management system ensures the LEDs operate within their optimal temperature range, maximizing their lifespan and maintaining consistent light output over years of service.
Exceptional Mechanical Durability and Environmental Protection
The mechanical design of this LED spot light is engineered for extreme durability. The housing is constructed from high-quality aluminum, a material chosen for its optimal balance of strength, lightweight properties, and superior corrosion resistance. The white finish is not merely aesthetic; it provides an additional layer of protection against environmental elements, resisting chipping, fading, and oxidation. The surface mount design, coupled with a robust stainless steel base and bracket, ensures a secure and vibration-resistant installation. Stainless steel is intrinsically resistant to rust and corrosion, providing a reliable mounting foundation even when exposed to road salts, chemicals, and constant moisture, common factors in industrial and marine applications. The inclusion of a bracket ensures straightforward and flexible mounting options, allowing precise aiming of the light beam.
Where this product truly distinguishes itself is in its unparalleled environmental resilience, certified with both IP67 and the more rigorous IP69K ingress protection ratings. The IP67 rating signifies complete protection against dust ingress and the effects of temporary immersion in water up to 1 meter for 30 minutes. This level of protection ensures the internal electronics and optics remain dry and functional even during heavy rain, splashing, or temporary submersion. However, the additional IP69K certification elevates its durability to an entirely different level. IP69K indicates protection against close-range high-pressure, high-temperature spray downs. This is vital for applications in industries such such as agriculture, mining, food processing, and heavy construction, where equipment must endure frequent and aggressive cleaning regimens, often involving steam and powerful jets of water. This dual certification guarantees that the light will continue to perform flawlessly even after being subjected to the harshest washdowns and the most abrasive environmental conditions, preserving its photometric integrity and electrical reliability.
Further augmenting its reliability and global applicability are its CE and RoHS certifications. CE marking indicates compliance with European Union safety, health, and environmental protection directives, ensuring the product meets stringent performance and safety standards for the European market. RoHS (Restriction of Hazardous Substances) compliance certifies that the product is manufactured without the use of specific hazardous materials, underscoring a commitment to environmental responsibility and user safety. The operational temperature range of -4°F to 122°F (-20°C to 50°C) highlights its capability to function reliably across a vast spectrum of climatic conditions, from freezing winters to scorching summers, without degradation in performance.
Versatile Applications and Long-Term Value
The combination of powerful spot illumination, robust construction, and extreme environmental protection makes this 4x6 inch rectangular LED light an ideal solution for a multitude of demanding applications. In the construction industry, it can serve as a primary work light for excavators, dozers, and cranes, illuminating precise digging areas or hoisting operations at night. For agricultural machinery like tractors and harvesters, it provides critical visibility for fieldwork during early mornings or late evenings, enhancing safety and productivity. Utility vehicles, including service trucks and snowplows, benefit from its focused beam for roadside repairs or clearing operations. Its IP69K rating makes it particularly well-suited for applications where hygiene and cleanliness are paramount, such as in food processing plants, or where equipment is routinely subjected to high-pressure cleaning. Off-road enthusiasts and emergency service vehicles will also find its reliable, powerful spot beam indispensable for navigating rugged terrains or responding to incidents in challenging conditions.
The simple surface mount installation, combined with the blunt cut lead for direct hardwiring, ensures that this light can be integrated quickly and efficiently into new or existing electrical systems. Its maintenance-free LED design eliminates the need for frequent bulb replacements, significantly reducing operational downtime and associated labor costs. This low cost of ownership, coupled with the exceptional durability, contributes to a superior return on investment over the product's extended lifespan. Furthermore, the product is backed by a comprehensive 5-year warranty, a strong testament to Buyers Products' confidence in its engineering excellence, material quality, and manufacturing standards. This warranty provides purchasers with peace of mind, assuring them of a reliable and long-lasting lighting solution.
In conclusion, the 4 Inch by 6 Inch Rectangular LED Clear Spot Light with White Housing is a technically sophisticated and exceptionally durable lighting solution designed to meet the rigorous demands of professional and industrial applications. Its high-output 1350 lumen spot beam, precise 6000K color temperature, and resilient polycarbonate lens provide unparalleled optical performance. The robust white aluminum housing, coupled with IP67 and IP69K ingress protection, ensures steadfast reliability against dust, water, and aggressive cleaning procedures. With its energy-efficient 12-24V LED system, wide operating temperature range, and a substantial 5-year warranty, this spot light delivers a superior combination of visibility, safety, and long-term operational value, making it an indispensable tool for any environment where reliability and performance cannot be compromised.
