Deep Dive: The 15 ft. Dual Switch Power Cord for 8891060 Series Light Bars
When it comes to vehicle lighting, the difference between a "working setup" and a "professional setup" often comes down to the wiring. The 15 ft. Dual Switch Power Cord for 8891060 Series Light Bars is a specialized piece of hardware designed to bridge that gap. It isn't just a length of copper; it is the central nervous system for your vehicle’s secondary lighting array.
Whether you are equipping a first-responder vehicle, a construction truck, or an off-road beast, understanding the nuances of this specific power cord is essential for safety, functionality, and longevity. This guide provides a comprehensive technical breakdown of why this component is the industry standard for the 8891060 series.
1. Anatomy of the Dual Switch System
The primary feature of this cord is the Dual Switch interface. Most standard light bars come with a simple on/off toggle. However, the 8891060 series is known for its multi-functionality, often featuring both steady-burn modes and various strobe patterns.
- Switch A (Power): This is your primary gatekeeper. It handles the main current flow to the LEDs. It features a heavy-duty internal contact point to prevent arcing.
- Switch B (Pattern Selection): This momentary switch allows the user to cycle through the internal flash patterns of the light bar without needing to exit the vehicle or rewire the unit.
Having these controls integrated into a single, ergonomic housing at the end of a 15-foot cable ensures that the operator has total control from the driver’s seat, allowing for rapid response in emergency situations.
2. The Significance of the 15-Foot Length
In the world of automotive electrical work, 15 feet is considered the "Goldilocks" length. Here’s why this specific measurement matters for your installation:
- Routing Flexibility: A 15-foot cord allows you to run the wire from the roof or grill, through the firewall, under the floor mats or trim, and up into the center console with enough slack to avoid tension.
- Voltage Drop Mitigation: Electrical resistance increases with length. By using high-quality gauge wire at a fixed 15-foot length, the manufacturers ensure that the 8891060 series receives a consistent voltage, preventing the flickering often seen with DIY extensions.
- Universal Fit: This length is sufficient for almost all standard SUVs, pickup trucks, and even many extended-cab work vans.
3. Compatibility: Why the 8891060 Series?
This power cord is specifically pinned and gauged for the 8891060 Series Light Bars. Using a generic cord can lead to several critical issues:
- Pin Misalignment: The 8891060 series utilizes a specific multi-pin connector that carries both the heavy-load power and the low-current pattern signal.
- Current Rating: These light bars pull a specific amperage. This cord is built with a copper core thick enough to handle the peak draw of the high-intensity LEDs without overheating.
- Weatherproofing: The connection points are typically fitted with weather-resistant gaskets that match the 8891060’s input port, ensuring the connection doesn't corrode when exposed to rain or salt.
4. Technical Specifications and Build Quality
To truly appreciate this component, we must look at the "under the hood" specs that define its durability.
The Internal Wiring
The cord utilizes Oxygen-Free Copper (OFC). Unlike Copper-Clad Aluminum (CCA), OFC provides superior conductivity and is much more resistant to the vibrations inherent in vehicle use. The wiring is typically protected by a heavy-duty PVC jacket that is rated for high-temperature environments—essential when routing wires near an engine block.
The Plug and Fuse
Most versions of this cord come equipped with a heavy-duty cigarette lighter adapter or a direct-wire kit. If it includes the adapter, it will feature an internal 10A or 15A glass fuse. This acts as a fail-safe; if the light bar shorts out, the fuse blows, protecting your vehicle’s expensive electrical system.
5. The Physics of Power: Understanding Voltage Drop
When dealing with a 15-foot run of cable in a 12V DC system, we have to respect the laws of physics. Specifically, we must look at Ohm’s Law ($V = I \times R$) and how it dictates the performance of your light bar.
Because the 15 ft. Dual Switch Power Cord uses high-strand count copper, the resistance is kept to a minimum. If you were to use a thinner, 22-gauge wire over 15 feet, you might see a drop of nearly 1 full volt by the time the power reaches the LEDs. This results in "flicker" or a shift in color temperature. By using the heavy-gauge wire found in this specific cord, the voltage drop is negligible, ensuring the 8891060 series operates at peak luminosity.

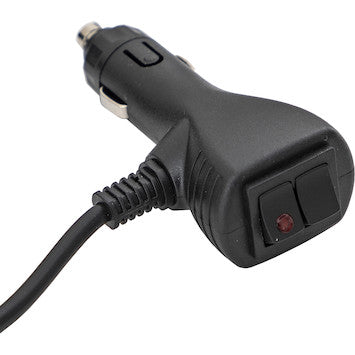

6. Advanced Component Analysis: The Switch Housing
The "Dual Switch" isn't just two plastic toggles. The housing is engineered for ergonomics and tactile feedback.
- Internal LED Indicators: Most versions of this cord feature a small red or green LED inside the main power switch. This serves as a "pilot light," letting the operator know the system is live.
- Momentary Action: The pattern selector is a "momentary" switch. It sends a quick pulse to the light bar’s internal memory chip, telling it to advance to the next flash pattern.
- Housing Material: The casing is made from high-impact ABS plastic. This is crucial because, in a work truck, this switch box will likely be dropped or shoved into a cramped center console.
7. Installation Masterclass: Step-by-Step
Installing a 15-foot cord might seem straightforward, but a professional install requires attention to detail to ensure longevity.
- Bench Testing: Before routing the wire through your vehicle’s trim, connect the light bar to the cord and plug it into a power source. Test both switches. It is much easier to replace a defective cord before it is tucked under the carpet.
- Planning the Route: The most common route is from the roof-mounted light bar, down the "A-pillar" (the frame on the side of the windshield), and through the firewall. Use zip ties every 12 inches to ensure the wire doesn't dangle.
- The A-Pillar Transition: Remove the plastic A-pillar trim and run the wire behind it. Avoid the door jam, as the weather stripping will eventually crush and short the wire.
- Managing the Slack: If you find that 15 feet is too long, do not coil the excess wire tightly. Instead, "S-wrap" the excess and secure it under the dashboard to prevent heat buildup.
8. Environmental Resistance: IP Ratings and UV Protection
Since a portion of this 15-foot cord will inevitably be exposed to the elements, the chemical composition of the jacket is vital.
UV Stabilization: Cheap PVC jackets will turn brittle and crack after six months of sun exposure. This cord uses UV-stabilized polymers that remain flexible even after years of sitting on a roof in the desert. Additionally, the insulation is rated to resist petroleum-based products like oil or windshield washer fluid, preventing the jacket from "melting" or becoming gummy.
9. The Engineering Behind the Signal Wire
The 8891060 series uses a low-voltage logic signal for pattern switching. When you depress the momentary switch on your 15-foot cord, you are completing a circuit that tells the light bar’s internal microcontroller to advance. Because this is a logic signal, the 15-foot cord is designed with internal twisted-pair geometry to prevent Electromagnetic Interference (EMI). This prevents your vehicle’s alternator or a nearby CB radio from accidentally changing your light patterns.
10. Troubleshooting and Maintenance Encyclopedia
If your 8891060 light bar isn't responding correctly, use this diagnostic table:
| Symptom | Likely Cause | Recommended Fix |
|---|---|---|
| No power at all | Blown fuse in the plug | Replace internal 10A/15A fuse |
| Light turns on, won't change pattern | Faulty momentary switch | Check pin seating in the connector |
| Lights flicker when driving | Loose ground or poor fit | Tighten socket or hard-wire the cord |
| Switch feels "mushy" | Internal spring failure | Replace switch housing unit |
11. Seasonal Considerations: Extreme Weather Performance
In extreme cold, standard plastic wires become as brittle as glass. The 15 ft. Dual Switch Power Cord is typically rated for temperatures as low as -40°C. This ensures that even in a blizzard, you can manipulate the switches without the insulation snapping.
Conversely, in high-heat environments, the cord is rated to withstand 105°C (221°F). This is particularly important for sections of the cord that run near the roof of the vehicle, which can reach staggering temperatures in direct sunlight.
12. Common Mistakes to Avoid
- The "Engine Wrap": Never zip-tie the cord to fuel lines or high-heat coolant hoses. The heat soak will eventually melt the PVC jacket.
- The Drip Loop: When routing the wire into the cab, create a "Drip Loop"—a small U-shaped dip in the wire. This ensures that rainwater drips off the wire rather than following it into your dashboard.
- Radio Interference: Avoid running the 15-foot cord parallel to your antenna cable for long distances to prevent static bleed.
13. Fleet Management and Standardization
For fleet managers, this cord represents a standardized solution. If every truck in a fleet uses a different wiring setup, repairs become impossible. By standardizing on the 8891060 series and this specific 15-foot cord, a fleet mechanic can swap out a damaged switch box in minutes without tracing custom wiring, reducing vehicle downtime and saving revenue.
14. Frequently Asked Questions
Q: Can I cut the cigarette plug off and hard-wire it?
A: Yes. Many users choose to cut the plug for a permanent installation. Ensure you connect the Red wire to a fused 12V+ source and the Black wire to a clean chassis ground.
Q: Is the switch box waterproof?
A: It is water-resistant, but designed for in-cab use. If mounting on an ATV or boat, keep the switch box in a weather-proof enclosure.
Q: Will this work with other brands of light bars?
A: It is specifically designed for the 8891060 series. While it may fit some clones, the pin configuration must be verified to avoid damaging the light bar's internal controller.
15. Summary of Value
The 15 ft. Dual Switch Power Cord for 8891060 Series Light Bars is more than just an accessory; it’s a critical component for anyone serious about their vehicle's auxiliary lighting. It offers the length needed for a clean installation, the durability required for rugged environments, and the specific control interface needed to unlock the full potential of your lighting system.
Final Technical Checklist:
• Verified 15-foot length for full-size vehicle routing.
• Integrated dual-switch control for Power and Pattern selection.
• Oxygen-Free Copper core for maximum conductivity.
• High-impact ABS housing for professional durability.
