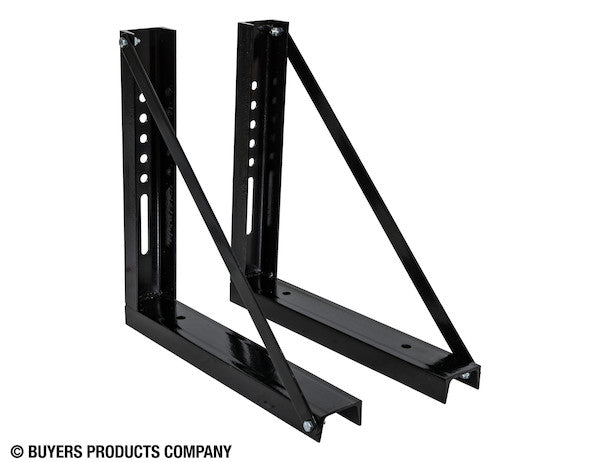

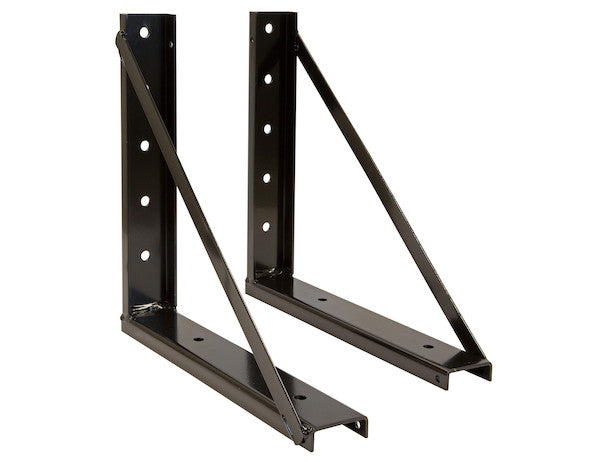

1701005B - 18x18 Inch Bolted Black Structural Steel Mounting Brackets

Buyers Products Steel Truck Tool Box Mounting Brackets are designed for use with Buyers Products steel and stainless steel underbody truck tool boxes. The steel brackets are built for long wear with a corrosion-resistant black powder-coated finish in your choice of formed C-channel or heavy duty structural steel. Choose welded or bolt-on braces. Mounting is also made easy with a universal hole pattern design and brackets that are sold in boxed pairs for immediate use.

Specifications

In the demanding realm of commercial vehicle operations, the reliability and security of auxiliary equipment are paramount. The 18x18 Inch Bolted Black Structural Steel Mounting Brackets represent a meticulously engineered solution designed to provide unparalleled support for underbody truck tool boxes. This product is not merely an accessory; it is a foundational component that ensures the integrity of your storage system, protects valuable tools and equipment, and ultimately contributes to the operational efficiency and safety of your fleet.

Engineering Excellence: The Foundation of Structural Steel

At the core of these mounting brackets lies the deliberate choice of heavy-duty structural steel, a material renowned for its superior mechanical properties. Unlike formed C-channel brackets or lighter gauge alternatives, structural steel sections are designed to withstand significant static and dynamic loads without yielding or deforming. This inherent strength is crucial for applications subjected to the rigorous conditions of commercial trucking, including constant vibration, road impacts, and the inertial forces generated during acceleration and braking.

The material specified is Carbon Steel, a ferrous alloy primarily composed of iron and carbon, with specific ranges for other elements like manganese, silicon, sulfur, and phosphorus. The precise composition of the carbon steel used for these brackets is optimized to achieve an advantageous balance of several critical mechanical properties:

• Yield Strength: This is the maximum stress a material can withstand before permanent deformation occurs. High yield strength ensures that the brackets maintain their original shape and structural integrity even under heavy loads, preventing sag or distortion that could compromise the tool box or its contents.
• Tensile Strength: Representing the maximum stress a material can endure before fracturing, tensile strength is vital for resisting pulling forces that might attempt to separate the tool box from the vehicle chassis, especially during abrupt movements or impacts.
• Hardness: The resistance of the material to localized plastic deformation, such as indentation or scratching. High hardness contributes to the brackets' ability to resist wear and tear from environmental factors and potential contact with road debris.
• Ductility: The ability of a material to deform plastically without fracturing. While structural steel is designed for rigidity, a degree of ductility allows it to absorb energy from sudden impacts without catastrophic failure, providing a safety margin.
• Toughness: The material's ability to absorb energy and plastically deform before fracturing. This property is especially important in dynamic environments where shock loads are common, ensuring the brackets can absorb impact energy without brittle failure.

The structural design, coupled with these superior material properties, ensures that the 18x18 inch brackets offer a robust, long-wearing support system. They are engineered to sustain the considerable weight of a fully loaded underbody tool box, while simultaneously resisting the complex stresses induced by vehicle motion, ensuring steadfast performance throughout their operational lifespan.

Precision Dimensions and Universal Compatibility

The stated dimensions of "Box Depth: 18" and "Box Height: 18" are not arbitrary; they reflect a strategic design choice to accommodate a significant range of standard underbody truck tool boxes. These 18x18 inch dimensions define the critical contact and support areas, ensuring that the brackets provide full, stable backing for the tool box, distributing weight efficiently and minimizing stress concentrations. This precise sizing helps prevent common issues such as sagging, uneven load distribution, or premature wear on the tool box itself.

A key feature enhancing the versatility and user-friendliness of these brackets is the "universal hole pattern design." This engineering approach involves pre-drilling a pattern of mounting holes that are compatible with a broad spectrum of tool box models from Buyers Products and other manufacturers. This eliminates the need for custom fabrication or drilling during installation, significantly reducing installation time and complexity. For fleet managers and commercial operators, this translates into streamlined procurement, reduced labor costs, and enhanced interoperability across diverse vehicle models and tool box specifications. The universal pattern ensures that, regardless of minor variations in tool box mounting points, a secure and robust attachment can be achieved.

It is important to note the specific exclusion: "Works With All Underbody Truck Boxes (Except Poly)." This distinction is based on the inherent material differences and mounting requirements of polypropylene (poly) tool boxes. Polyethylene and similar polymer materials possess distinct thermal expansion coefficients, flexibility characteristics, and structural properties compared to steel or stainless steel. Poly tool boxes often feature integrated mounting points designed for direct attachment to the vehicle frame or specialized plastic-compatible mounting hardware. Attempting to use these structural steel brackets, which are optimized for rigid metallic enclosures, with poly boxes could lead to several issues:

• Material Incompatibility: The rigidity and concentrated load points of steel brackets may induce stress fractures or deformation in the more flexible poly material over time.
• Thermal Expansion: Significant temperature fluctuations can cause poly material to expand and contract at a different rate than steel, potentially leading to loosening of fasteners, cracking, or damage to the tool box.
• Fastener Interaction: The secure bolt-together methodology of these brackets is designed for high-strength metal-to-metal connections. Direct application to poly material might compromise fastener integrity or cause localized stress points.

Therefore, this exclusion is a testament to the product's specialized design, ensuring optimal performance and longevity only with compatible steel and stainless steel underbody tool boxes.

The Bolted Connection System: Robustness Meets Flexibility

The specification "Welded or Bolt Together: Bolt Together" highlights a deliberate engineering choice with significant implications for installation, maintenance, and overall system longevity. While welding offers a permanent, monolithic connection, a high-quality bolted connection system provides a distinct set of advantages in the context of commercial vehicle accessories.

Advantages of a Bolted System:

• Ease of Installation and Adjustability: Bolted connections do not require specialized welding equipment, certified welders, or extensive post-weld inspection. This facilitates quicker, simpler installation in various field conditions. Furthermore, bolted joints allow for minor adjustments during initial mounting to achieve perfect alignment, a flexibility not afforded by permanent welded connections.
• Field Serviceability and Repair: In the event of damage to a bracket or a need to remove the tool box for vehicle maintenance, bolted connections can be disassembled and reassembled with standard tools. This modularity reduces downtime and repair costs compared to cutting and re-welding components.
• Resistance to Vibration (When Properly Designed): Contrary to common misconceptions, a properly engineered and torqued bolted joint can exhibit excellent resistance to vibratory loosening. This is achieved by generating a high preload (tensile force) in the bolt during tightening, which creates a friction grip between the clamped parts. This friction prevents relative movement and subsequent loosening.
• Elimination of Heat-Affected Zones (HAZ): Welding introduces significant heat into the material, creating a Heat-Affected Zone where the steel's microstructure and mechanical properties can be altered, sometimes negatively impacting strength or corrosion resistance. Bolted connections bypass this issue entirely, preserving the original properties of the structural steel.
• Material Preservation: The powder-coat finish, a critical aspect of corrosion protection, can be damaged by welding heat. Bolted connections allow the protective coating to remain intact, extending the service life of the components.

Technical Considerations for Bolted Joints:

To ensure the robustness and reliability of the "bolt together" system, several engineering principles are rigorously applied:

• Fastener Selection: It is crucial to use high-grade fasteners (e.g., Grade 8 or equivalent) that possess high tensile and shear strength, appropriate for heavy-duty structural applications. The diameter and length of the bolts must be carefully chosen to match the thickness of the bracket material and the tool box mounting points.
• Thread Engagement: Sufficient thread engagement between the bolt and nut is necessary to develop the full strength of the fastener.
• Preload and Torque: The most critical factor in a high-strength bolted joint is achieving the correct preload. When a bolt is tightened to a specified torque, it stretches, creating a clamping force that holds the joined components together. This preload prevents relative movement between the parts, which is the primary cause of loosening under dynamic loads. Proper torque specifications, often achieved with torque wrenches, are essential to ensure the joint performs as designed, providing a secure, vibration-resistant connection.
• Washers and Locking Mechanisms: Hardened washers are typically used under the bolt head and nut to distribute the clamping force over a wider area, preventing galling or embedment into the material, especially important for coated surfaces. For applications with extreme vibration, locking mechanisms such as lock washers (e.g., split lock, external tooth), nyloc nuts, or chemical thread-lockers may be employed to further secure the fasteners against loosening.
• Shear and Tension Resistance: Bolted joints are designed to resist both shear forces (forces parallel to the bolt's cross-section) and tension forces (forces pulling along the bolt's axis). The structural steel brackets, combined with high-strength fasteners, are engineered to effectively distribute and withstand these complex forces, ensuring the tool box remains securely mounted under all operational conditions.

The thoughtful application of these principles ensures that the bolted connection system of these 18x18 inch structural steel brackets offers a secure, durable, and highly serviceable mounting solution, meeting the rigorous demands of professional use.

Advanced Surface Protection: The Black Powder-Coat Finish

The stated "Finish: Powder-Coat" and "Color: Black" are not merely aesthetic choices; they represent a sophisticated corrosion protection system vital for the longevity and performance of these structural steel brackets in harsh operating environments. The underlying material, carbon steel, is susceptible to corrosion, particularly rust, when exposed to moisture, road salts, chemicals, and other environmental aggressors common on commercial vehicles.

The Powder Coating Process:

Powder coating is an advanced dry finishing process that involves several critical steps:

1. Pre-treatment: Before coating, the steel brackets undergo a thorough multi-stage cleaning and pre-treatment process. This typically includes degreasing, rinsing, and often a phosphate or zirconium conversion coating. This step is crucial as it prepares the metal surface, creating a pristine profile that enhances adhesion and provides an initial layer of corrosion resistance, serving as a foundation for the powder coat.
2. Electrostatic Application: Fine particles of dry powder paint, consisting of resin, pigments, curing agents, and additives, are electrostatically charged. The pre-treated steel brackets are then grounded. When the charged powder is sprayed onto the grounded brackets, it adheres to the surface via electrostatic attraction, ensuring a uniform and comprehensive coating, even in complex geometries.
3. Curing: The coated brackets are then transferred to a curing oven where they are subjected to elevated temperatures, typically between 350°F and 400°F (175°C and 200°C). During this stage, the powder melts, flows out, and chemically cross-links (polymerizes) to form a continuous, durable, and hard finish that is molecularly bonded to the steel substrate.

Superiority of Powder Coating:

This process yields a finish that offers several significant advantages over traditional liquid paints:

• Enhanced Corrosion Resistance: The cured powder coat forms a thick, dense, and impermeable barrier that effectively seals the carbon steel from moisture, oxygen, road salt, de-icing chemicals, and other corrosive agents. The pre-treatment combined with the robust coating provides a multi-layered defense against rust and galvanic corrosion.
• Exceptional Durability: Powder coatings are significantly more resistant to chipping, scratching, abrasion, and general wear and tear than liquid paints. This is critical for underbody components that are constantly exposed to flying road debris, gravel, and rough handling.
• UV Stability: The specific formulation of the powder used for these brackets includes UV inhibitors, ensuring excellent resistance to ultraviolet radiation. This prevents fading, chalking, and degradation of the finish over time, maintaining the aesthetic and protective qualities.
• Chemical Resistance: The cross-linked polymer structure provides superior resistance to various chemicals, including fuels, oils, greases, and cleaning agents commonly encountered in commercial vehicle operations.
• Environmental Benefits: Powder coating is an environmentally friendly process. It contains no Volatile Organic Compounds (VOCs) or Hazardous Air Pollutants (HAPs), making it a more sustainable finishing solution.

The Functional and Aesthetic Value of the Black Finish:

The choice of a "Black" color for the powder-coat finish is both practical and aesthetic. Functionally, black pigments often provide superior UV resistance and contribute to the overall durability of the coating. Aesthetically, the black finish offers a professional and understated appearance that integrates seamlessly with the undercarriage of most commercial vehicles. It also effectively masks common road grime and dirt, helping to maintain a clean visual profile for the vehicle.

In summation, the black powder-coated finish applied to these carbon steel structural mounting brackets is a critical engineering specification. It is a testament to the commitment to providing a product that not only offers exceptional structural support but also maintains its integrity and appearance for an extended service life in the most challenging operational environments.

Installation, Operational Longevity, and Economic Impact

The design philosophy of the 18x18 Inch Bolted Black Structural Steel Mounting Brackets extends beyond mere material selection and finishing; it incorporates practical considerations for ease of installation, long-term operational integrity, and overall economic value for the end-user. The synergy between the universal hole pattern and the bolt-together style culminates in a product that is both robust and remarkably user-friendly.

Streamlined Installation Process:

The universal hole pattern is a significant advantage, eliminating the need for complex measurements, drilling, or custom fabrication on-site. Installers can quickly align the brackets with the pre-existing mounting points on various underbody tool boxes and vehicle chassis components. This plug-and-play compatibility drastically reduces labor time and the potential for installation errors, translating directly into cost savings and increased productivity for fleet maintenance teams or independent contractors. The "bolt together" design further simplifies installation, requiring only common hand tools (wrenches, torque wrench) and obviating the need for specialized welding equipment, consumables, or safety certifications.

Considerations for Optimal Installation:

While designed for ease, optimal installation still requires attention to detail:

• Precise Alignment: Ensuring proper alignment of the brackets with the tool box and vehicle frame is critical for even weight distribution and to prevent unnecessary stress on fasteners or the tool box itself.
• Correct Fastener Torque: As previously detailed, proper torqueing of all bolts is paramount. Over-tightening can strip threads or deform components; under-tightening can lead to loosening under vibration. Adhering to manufacturer-recommended torque specifications ensures the integrity of the bolted joints.
• Clearance and Obstructions: Verifying sufficient clearance around the mounted tool box and brackets is necessary to avoid interference with other vehicle components (e.g., exhaust, suspension, fuel lines) during vehicle operation, especially over uneven terrain.

Contribution to Vehicle Safety and Operational Reliability:

Securely mounted tool boxes are essential for vehicle safety. Unsecured or poorly mounted equipment can become a dangerous projectile in the event of sudden stops, collisions, or even aggressive maneuvers. These structural steel brackets ensure that the tool box remains firmly attached to the vehicle, safeguarding its contents and preventing potential road hazards. This reliability enhances the professional image of the vehicle operator and minimizes liability risks.

Efficiency in Procurement: "Sold in Boxed Pairs":

The practical decision to sell these brackets "in boxed pairs for immediate use" offers immediate advantages in procurement and inventory management. This ensures that a complete set of brackets is always available for a single tool box installation, eliminating the need to order individual components separately, reducing the risk of missing parts, and simplifying the ordering process. For fleet operations, this standardized packaging contributes to efficient stocking and deployment.

Long-Term Return on Investment (ROI):

Investing in these high-quality structural steel mounting brackets yields a substantial return on investment through:

• Reduced Maintenance and Repair Costs: The inherent durability of structural carbon steel, combined with the corrosion-resistant powder coat and robust bolted connections, minimizes the need for premature replacement or repair. This reduces labor expenses and parts costs over the vehicle's lifespan.
• Extended Product Life: Both the mounting brackets and the tool box they support benefit from a longer service life, deferring replacement costs.
• Protection of Valuable Assets: Secure mounting protects the expensive tools and equipment stored within the underbody box from theft, damage due to shifting, and environmental exposure.
• Improved Operational Efficiency: Reliable equipment mounting means fewer roadside issues, less downtime for repairs, and consistent access to tools, directly contributing to uninterrupted workflow and productivity.
• Adherence to Industry Best Practices: Utilizing professional-grade, engineered mounting solutions aligns with best practices for commercial vehicle outfitting, enhancing overall fleet safety and compliance.

By meticulously addressing aspects from material science to field-level installation logistics, these 18x18 inch bolted black structural steel mounting brackets stand as a testament to thoughtful engineering, designed for maximum operational longevity and superior economic performance in demanding commercial applications.

Conclusion: A Commitment to Performance and Durability

The 18x18 Inch Bolted Black Structural Steel Mounting Brackets are a critical investment for any commercial operation requiring secure, durable underbody tool box storage. They encapsulate a blend of advanced material science, precision engineering, and practical design. The reliance on heavy-duty structural carbon steel ensures an unparalleled load-bearing capacity and resilience against the most challenging operational stresses. This foundational strength is meticulously protected by a premium black powder-coat finish, providing a robust barrier against corrosion, abrasion, and environmental degradation, thereby guaranteeing extended service life and sustained aesthetic appeal.

The deliberate choice of a bolt-together connection system, coupled with a universal hole pattern, underscores a commitment to flexibility, ease of installation, and field serviceability, minimizing downtime and optimizing labor resources. This modular approach, while providing exceptional structural integrity when properly torqued, offers significant advantages over permanent welded alternatives in terms of adaptability and repairability. Engineered to seamlessly integrate with a wide array of steel and stainless steel underbody tool boxes, these brackets are a definitive solution for professionals who demand unwavering reliability and security for their essential equipment.

In summary, these mounting brackets are more than just support components; they are engineered systems designed to uphold the highest standards of safety, durability, and operational efficiency for your commercial vehicle fleet. They represent a strategic investment in the longevity of your equipment and the uninterrupted productivity of your operations, affirming a steadfast commitment to professional-grade performance in every detail.
