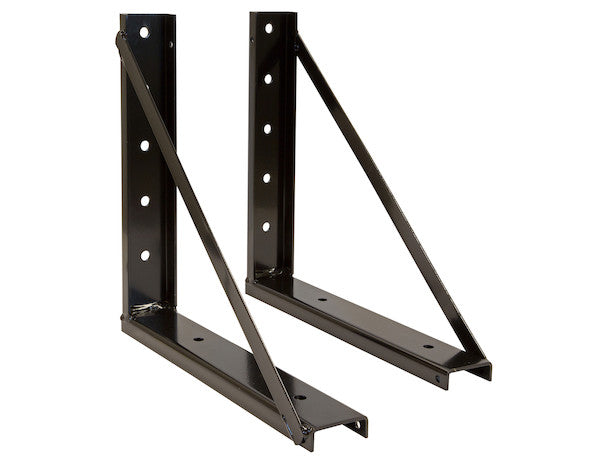

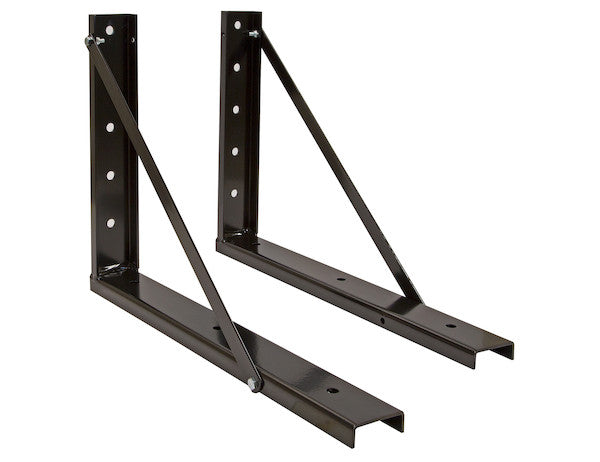

Buyers Products Steel Truck Tool Box Mounting Brackets are designed for use with Buyers Products steel and stainless steel underbody truck tool boxes. The steel brackets are built for long wear with a corrosion-resistant black powder-coated finish in your choice of formed C-channel or heavy duty structural steel. Choose welded or bolt-on braces. Mounting is also made easy with a universal hole pattern design and brackets that are sold in boxed pairs for immediate use.
Specifications
| Box Depth | 24 |
|---|---|
| Box Height | 18 |
| Color | Black |
| Finish | Powder-Coat |
| Material | Carbon Steel |
| Style | Formed |
| Welded or Bolt Together | Bolt Together |
| Works With | All Underbody Truck Boxes (Except Poly) |
The 18x24 Inch Bolted Black Formed Steel Mounting Brackets represent a pinnacle of engineering and practical design for commercial and industrial vehicle outfitting. Specifically engineered by Buyers Products, these mounting brackets are tailored to provide robust, secure, and durable support for underbody truck tool boxes, particularly those with 18-inch heights and 24-inch depths. This precision in sizing ensures optimal fitment, preventing unnecessary stress on the tool box or the vehicle frame, and maximizing the efficacy of your underbody storage solution. Constructed from high-grade carbon steel and finished with a resilient black powder coating, these brackets are not merely accessories but critical structural components designed for demanding operational environments.
Advanced Material Science: Carbon Steel and Formed Construction
The selection of carbon steel as the primary material for these 18x24 inch mounting brackets is a deliberate choice rooted in engineering principles prioritizing strength, durability, and cost-effectiveness. Carbon steel, known for its exceptional tensile strength and yield strength, offers superior load-bearing capabilities essential for supporting heavy tool boxes filled with equipment. Unlike lighter materials such as aluminum, carbon steel provides a higher modulus of elasticity, resulting in less deflection under significant static and dynamic loads. This inherent rigidity is paramount for maintaining the structural integrity of the mounted tool box, especially when subjected to the constant vibrations and impacts characteristic of commercial vehicle operation.
Furthermore, the material properties of carbon steel confer excellent fatigue resistance, a critical factor for components exposed to repetitive stress cycles over extended periods. This resistance ensures a longer service life, reducing the frequency of replacements and associated downtime. The carbon steel employed in these brackets is meticulously specified to meet industrial standards for structural applications, guaranteeing consistent performance and reliability. Its robust nature also makes it highly resistant to abrasive wear, which is a common concern for underbody components exposed to road debris, gravel, and other environmental hazards.
The "formed" style of these brackets signifies a manufacturing process that utilizes cold-forming techniques to shape the steel into its specified C-channel profile. This method involves bending and pressing flat sheets of carbon steel without applying heat above recrystallization temperatures, preserving the material's inherent strength and toughness. Formed steel offers several advantages over other manufacturing techniques for this application. It allows for precise control over the geometric tolerances, ensuring that each bracket conforms exactly to the 18x24 inch dimensions required for seamless integration with compatible tool boxes. This precision is vital for creating a uniform load distribution across the bracket and tool box interface, mitigating stress concentrations that could lead to material fatigue or failure.
The C-channel profile itself is an optimized structural design. Its open, channel-shaped cross-section provides superior strength-to-weight ratio compared to flat bar or solid rectangular sections, particularly in resisting bending and torsional forces. The flanges of the C-channel act to distribute stress effectively, increasing the overall stiffness and load capacity of the bracket. This formed construction minimizes material usage while maximizing structural performance, making these 18x24 inch brackets both economically viable and exceptionally robust. The absence of welding in the primary forming process for the C-channel (though bolt-on braces are part of the assembly method) also helps in maintaining uniform material properties throughout the main body of the bracket, avoiding potential heat-affected zones that could alter strength or introduce residual stresses.
Advanced Corrosion Protection: The Black Powder-Coat Finish
The harsh conditions beneath a commercial vehicle necessitate an uncompromising approach to corrosion protection. The 18x24 Inch Bolted Black Formed Steel Mounting Brackets feature a premium black powder-coated finish, a sophisticated coating technology that far surpasses traditional liquid paints in terms of durability and environmental performance. Powder coating involves the electrostatic application of dry powder particles onto the prepared steel surface. These charged particles adhere to the grounded metal, forming a uniform layer. The brackets are then conveyed into a curing oven, where the powder melts and flows to create a smooth, continuous, and highly adherent protective film.
The benefits of this advanced finishing process are manifold. Firstly, the powder coating forms a significantly thicker and more uniform layer than liquid paint, providing exceptional chip, scratch, and abrasion resistance. This robust barrier is crucial for underbody components constantly bombarded by road debris, stones, and other abrasive materials that can compromise lesser finishes. Should a chip occur, the localized nature of the damage often prevents undercutting or widespread peeling, common failures in conventional paint systems.
Secondly, the powder coat offers superior resistance to environmental degradation. It creates an impermeable barrier against moisture, road salts, chemicals, and industrial effluents—all prevalent corrosive agents in automotive underbody environments. Exposure to de-icing salts, particularly in colder climates, is a primary driver of corrosion, and the integrity of the powder coat is specifically engineered to withstand such aggressive chemical attacks. The black color of the finish is not merely aesthetic; it provides excellent UV stability, preventing fading or degradation due to prolonged sun exposure, even though underbody components are less directly exposed. Aesthetically, the black finish integrates seamlessly with the undercarriage of most commercial vehicles, contributing to a professional and consistent appearance.
Environmentally, powder coating is a more sustainable choice compared to liquid painting. It contains no volatile organic compounds (VOCs), which are harmful air pollutants. The overspray during application can be reclaimed and reused, leading to minimal waste generation. This commitment to both high performance and environmental responsibility underscores the comprehensive design philosophy behind these Buyers Products mounting brackets, ensuring longevity and compliance with modern manufacturing standards.
Precision Engineering: 18x24 Inch Dimensions and Bolted Assembly
The precise dimensions of 18 inches in height and 24 inches in depth are not arbitrary, but rather a critical specification ensuring direct compatibility and optimal load distribution for a wide range of underbody truck tool boxes. These 18x24 Inch Bolted Black Formed Steel Mounting Brackets are meticulously designed to cradle and support tool boxes of these specific dimensions, providing a snug and secure fit that prevents movement, rattling, and potential structural fatigue over time. The accurate sizing eliminates the need for field modifications, simplifying installation and guaranteeing that the designed load capacity is effectively utilized. Any discrepancy in bracket sizing could lead to uneven stress points, premature wear on the tool box or bracket, and compromised safety.
A cornerstone of these mounting brackets is their "bolt together" assembly method, a deliberate design choice that offers significant advantages over welded alternatives, particularly from the perspective of the end-user and installation flexibility. Bolted connections allow for straightforward installation without the need for specialized welding equipment, certified welders, or extensive post-weld inspection. This facilitates quick and efficient mounting directly on site, reducing labor costs and vehicle downtime. The universal hole pattern design further enhances this ease of installation, offering multiple attachment points to accommodate varying vehicle frame configurations. This adaptability ensures that the brackets can be securely fastened to a diverse array of truck and trailer chassis, minimizing the need for custom fabrication or drilling into the vehicle frame, which can compromise structural integrity and void warranties.
The bolted design also provides adjustability. While designed for specific 18x24 dimensions, minor positional adjustments can be made during installation to achieve perfect alignment, which is often difficult with permanent welded connections. Moreover, in the unlikely event of damage to a bracket, a bolted component can be individually replaced, a far simpler and more cost-effective solution than repairing or replacing a welded structure. The integrity of the bolted connection relies on high-strength fasteners (e.g., Grade 8 bolts, lock nuts, and hardened washers), which are specified to resist loosening from vibration and dynamic loads. Proper torqueing of these fasteners during installation is paramount to achieve the intended clamping force and ensure the long-term security and load-bearing capacity of the assembly. The fact that these brackets are sold in boxed pairs further simplifies the installation process, providing all necessary components for a symmetrical and balanced mounting solution right out of the box.
Structural Integrity and Dynamic Load Bearing
The structural integrity of the 18x24 Inch Bolted Black Formed Steel Mounting Brackets is a testament to sound mechanical engineering principles. The C-channel profile, as previously discussed, is inherently robust against bending moments and torsional stresses. When mounted, these brackets form a cantilevered support system for the underbody tool box. The distributed weight of the tool box and its contents is transferred through the base of the tool box to the horizontal flanges of the brackets, and then through the vertical web of the C-channel to the vehicle frame attachment points.
Under static conditions, the brackets are designed to support the maximum rated load of a fully stocked tool box without permanent deformation. However, commercial vehicle applications rarely present purely static loads. Dynamic forces, induced by vehicle acceleration, deceleration, cornering, and impacts from road irregularities (potholes, bumps), introduce significant additional stresses. The robust carbon steel construction and the optimized C-channel geometry are engineered to absorb and dissipate these dynamic loads effectively. The bolted connections, when properly torqued, create a friction-grip joint that resists shear forces and prevents relative movement between the bracket and the vehicle frame, thereby maintaining the stability of the mounted tool box even under severe road conditions.
The design accounts for forces in multiple axes: vertical shear from gravity and dynamic bounce, horizontal forces from acceleration/braking, and lateral forces from cornering. The multiple attachment points provided by the universal hole pattern are crucial for distributing these forces over a larger area of the vehicle frame, minimizing stress concentrations at any single point. This prevents localized fatigue in both the brackets and the vehicle chassis. Furthermore, the material's inherent damping properties, combined with the secure bolted interface, help to reduce resonance and vibration transmission, contributing to the longevity of both the tool box and its contents.
Installation Best Practices and Application Versatility
While the 18x24 Inch Bolted Black Formed Steel Mounting Brackets are designed for ease of installation, adhering to best practices ensures optimal performance and safety. Prior to installation, it is crucial to verify compatibility with the specific underbody truck tool box (ensuring it fits the 18x24 dimensions) and to assess the available mounting area on the vehicle frame. The universal hole pattern facilitates alignment, but pre-drilling holes into the vehicle frame may be necessary in some instances. If drilling is required, strict adherence to manufacturer guidelines for hole sizing and placement is essential to avoid compromising the structural integrity of the vehicle frame.
During the mounting process, it is recommended to support the tool box securely before fastening the brackets. The brackets should be positioned to evenly distribute the load, and all fasteners should be installed finger-tight initially. A final tightening sequence, typically from the inside out, should be performed using a torque wrench to achieve the manufacturer's specified torque values. This ensures that the clamping force is adequate to prevent loosening under vibration and to properly engage the friction-grip characteristics of the bolted joint. Periodic inspection of the fasteners for tightness and the brackets for any signs of wear or corrosion is advised as part of routine vehicle maintenance.

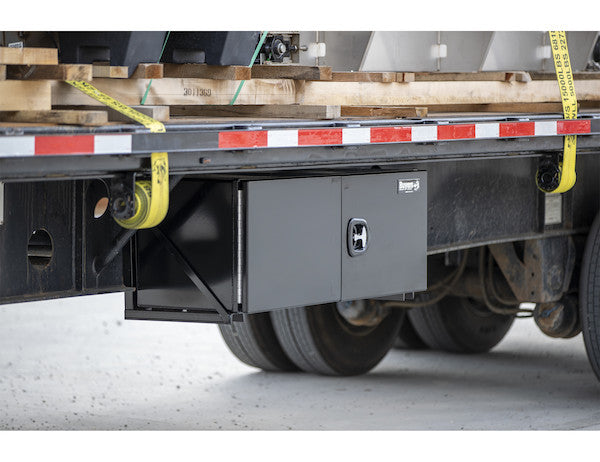

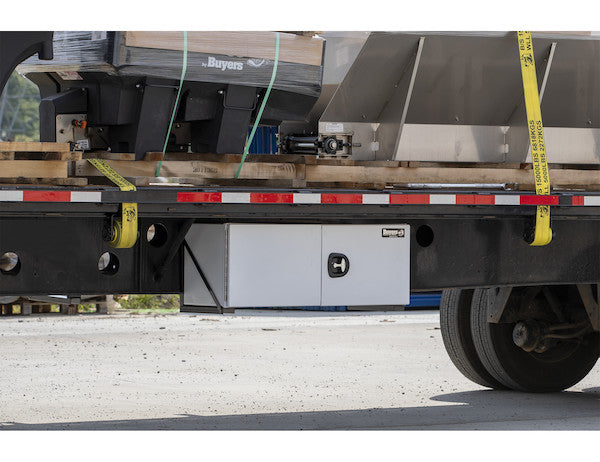

These mounting brackets are highly versatile, intended to support "All Underbody Truck Boxes (Except Poly)" within their specified 18x24 inch dimensions. This broad compatibility makes them suitable for a wide array of commercial vehicles, including heavy-duty pickup trucks, utility trucks, service body trucks, flatbeds, and various types of trailers. The primary benefit of underbody storage is the optimization of cargo space within the vehicle bed, allowing for more efficient organization of tools and equipment while freeing up valuable payload area. Underbody tool boxes also contribute to a lower center of gravity for the vehicle, potentially enhancing stability. Their concealed location offers an added layer of security, keeping valuable contents out of sight and protected from the elements, complementing the corrosion-resistant nature of the brackets themselves.
Quality Assurance and Manufacturing Excellence
Buyers Products maintains a stringent quality assurance protocol for all its components, including these 18x24 Inch Bolted Black Formed Steel Mounting Brackets. From material sourcing to the final powder coating application, each stage of manufacturing is subject to rigorous inspection and testing. The carbon steel material is procured from certified suppliers and verified against metallurgical specifications to ensure consistent mechanical properties. The forming process is monitored for dimensional accuracy and consistency, ensuring that each bracket meets the precise 18x24 inch specifications and exhibits the intended C-channel profile.
The powder coating process is carefully controlled, including surface preparation (cleaning, phosphating), electrostatic application parameters, and curing oven temperatures and dwell times. This meticulous attention to detail ensures optimal coating adhesion, thickness, and uniform coverage, providing the maximum level of corrosion protection. Samples of the finished brackets are subjected to performance testing, including salt spray tests (e.g., ASTM B117 standards) to evaluate corrosion resistance and cross-hatch adhesion tests to assess coating durability. Load testing protocols are employed to verify the structural integrity and load-bearing capacity of the bracket designs under simulated operating conditions, confirming their ability to withstand the demanding forces encountered in vehicle underbody applications.
The commitment to quality extends to the packaging, with brackets sold in robust boxed pairs, protecting them during transit and ensuring all components arrive ready for immediate installation. This comprehensive approach to design, manufacturing, and quality control ensures that these mounting brackets not only meet but often exceed industry expectations for performance, durability, and reliability in the most challenging operational environments.
Conclusion
In summary, the 18x24 Inch Bolted Black Formed Steel Mounting Brackets from Buyers Products are meticulously engineered components designed to deliver unparalleled support and longevity for underbody truck tool boxes. Their construction from high-grade carbon steel, precisely formed into a robust C-channel profile, provides exceptional strength and resistance to dynamic loads and fatigue. The resilient black powder-coated finish offers a superior barrier against corrosion, abrasion, and environmental degradation, extending the service life of both the brackets and the mounted tool box. The "bolt together" design, complemented by a universal hole pattern and supplied in convenient boxed pairs, simplifies installation, enhances adjustability, and ensures a secure, dependable fit for tool boxes measuring 18 inches in height and 24 inches in depth. These brackets represent a critical investment in the functionality, security, and durability of your commercial vehicle’s storage infrastructure, reflecting a commitment to quality and operational excellence.
