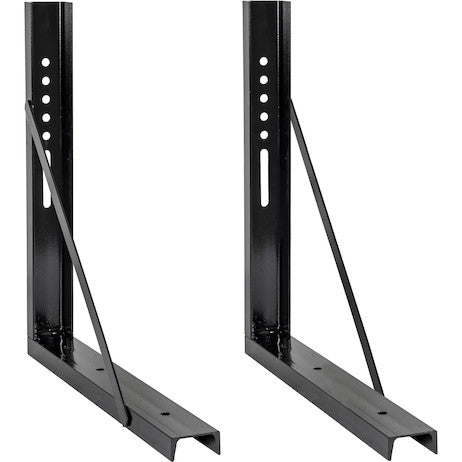

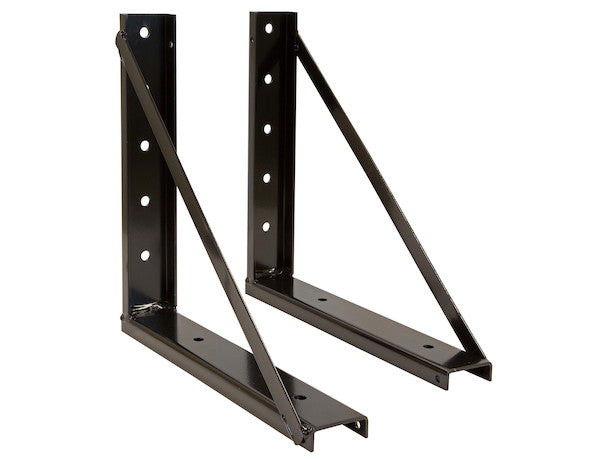

1701015 - 24x24 Inch Welded Black Structural Steel Mounting Brackets

Buyers Products Steel Truck Tool Box Mounting Brackets are designed for use with Buyers Products steel and stainless steel underbody truck tool boxes. The steel brackets are built for long wear with a corrosion-resistant black powder-coated finish in your choice of formed C-channel or heavy duty structural steel. Choose welded or bolt-on braces. Mounting is also made easy with a universal hole pattern design and brackets that are sold in boxed pairs for immediate use.

Specifications

The 24x24 Inch Welded Black Structural Steel Mounting Brackets represent a pinnacle of engineering and manufacturing excellence, meticulously designed to provide unparalleled support and longevity for underbody truck tool boxes. These brackets are not merely accessories; they are critical structural components, engineered to withstand the most demanding operational environments encountered by commercial and utility vehicles. Leveraging the inherent strength of structural carbon steel, combined with advanced welding techniques and a durable powder-coated finish, these mounting brackets ensure a secure, long-lasting installation for vital equipment storage.

Precision Engineering and Material Selection: Carbon Steel Foundation

The foundation of these robust mounting brackets lies in their material composition: high-grade carbon steel. Carbon steel is a ferrous alloy primarily composed of iron and carbon, with carbon content typically ranging from 0.05% to 2.1% by weight. For structural applications such as these mounting brackets, specific grades of carbon steel, often conforming to ASTM standards like A36, are selected for their exceptional balance of strength, ductility, and weldability. The material's inherent properties are paramount to its suitability for heavy-duty support structures.

• Tensile Strength: Carbon steel exhibits high tensile strength, which is the maximum stress it can withstand while being stretched or pulled before breaking. This property is crucial for supporting the substantial static and dynamic loads exerted by a fully loaded toolbox, especially during vehicle acceleration, braking, and traversing uneven terrain.
• Yield Strength: Equally important is the yield strength, which defines the stress level at which the material begins to deform plastically and permanently. For structural components, it is imperative that the brackets operate well within their elastic limit to prevent permanent deformation, ensuring the toolbox remains securely positioned without sagging or shifting over time.
• Hardness and Wear Resistance: The carbon content contributes to the steel's hardness, enhancing its resistance to abrasion and wear. This is particularly beneficial in an underbody application where the brackets may be exposed to road debris, gravel, and other abrasive elements.
• Fatigue Resistance: Vehicles are subject to constant vibrations and cyclic loading. Carbon steel's inherent fatigue resistance ensures that the brackets can endure repeated stress cycles without developing cracks or structural failures, guaranteeing long-term reliability in dynamic environments.
• Weldability: The specific carbon steel grade selected is optimized for excellent weldability, a critical factor given the welded construction of these brackets. This ensures that the weld seams achieve full penetration and strength, becoming an integral part of the structural unit rather than a weak point.

The specified 24x24 inch dimensions are not arbitrary but are precisely calibrated to accommodate a wide range of underbody truck tool boxes, particularly those designed with similar depth and height profiles. This exact sizing ensures optimal weight distribution across the mounting points, minimizing stress concentrations and maximizing the structural integrity of the entire assembly. Manufacturing to such precise dimensions requires advanced fabrication techniques, including laser cutting and CNC forming, to maintain tight tolerances and ensure a perfect fit with the intended toolboxes.

Advanced Welded Construction: Uncompromising Strength and Rigidity

A defining characteristic of these mounting brackets is their welded construction, explicitly chosen over bolt-together alternatives for superior performance in demanding applications. Welding creates a monolithic structure where individual components are fused together at a molecular level, forming a joint that is often stronger than the parent material itself. For structural steel components in high-stress environments, welding offers distinct advantages:

• Enhanced Structural Integrity: Welded joints provide continuous load paths, distributing stress more uniformly across the structure. This eliminates potential weak points associated with bolted connections, such as shear stress on bolts or localized yielding around bolt holes. The result is a bracket system with exceptional rigidity and resistance to torsion and bending forces.
• Superior Durability and Vibration Resistance: Underbody applications expose components to constant road vibrations, impacts, and dynamic forces. Welded structures inherently resist loosening, rattling, or fatigue cracking that can plague bolted assemblies over time. This translates into unparalleled long-term durability and reliability, reducing maintenance requirements and enhancing operational safety.
• Reduced Points of Failure: By eliminating multiple bolts, nuts, and washers, welded construction significantly reduces the number of potential failure points in the mounting system. This simplification contributes to a more robust and dependable design, particularly critical for securing valuable equipment.
• Corrosion Resistance at Joints: Welded joints, when properly executed, offer continuous surface integrity, reducing crevices and gaps where moisture and corrosive agents can accumulate. This complements the external powder coating by minimizing internal corrosion risks at the connection points.

The welding process itself involves significant technical expertise and quality control. Typically, for structural steel of this nature, processes like Gas Metal Arc Welding (GMAW, commonly known as MIG welding) or Shielded Metal Arc Welding (SMAW, or stick welding) would be employed. These processes ensure deep penetration and strong fusion, producing consistent, high-quality welds. Each weld seam is meticulously inspected to meet stringent quality standards, ensuring there are no defects such that could compromise the bracket's load-bearing capacity or fatigue life. The "Welded" designation explicitly signifies an unwavering commitment to maximum strength and an uncompromising structural bond.

Advanced Surface Protection: The Black Powder-Coat Finish

Beyond their structural integrity, these mounting brackets are engineered for exceptional environmental resistance through a premium black powder-coat finish. This finishing process offers significantly superior protection compared to conventional liquid paint applications, especially for components exposed to harsh exterior conditions:

1. Surface Preparation: The process begins with meticulous surface preparation of the carbon steel. This typically involves a multi-stage cleaning and pretreatment regimen, including degreasing, rinsing, and often a phosphate conversion coating. This critical step ensures the removal of all contaminants and creates an ideal surface profile for optimal adhesion of the powder coating.
2. Electrostatic Application: Finely ground particles of pigment and resin are electrostatically charged and sprayed onto the grounded steel brackets. The electrostatic charge ensures that the powder adheres uniformly to all surfaces, including complex geometries, providing comprehensive coverage.
3. Curing Process: The coated brackets are then transferred to a curing oven where they are subjected to elevated temperatures (typically between 350°F and 400°F, or 175°C and 205°C). During curing, the powder particles melt and flow together to form a continuous, durable film. This thermosetting polymer then cross-links, creating a highly resilient and impact-resistant finish.

The benefits of this black powder-coat finish are multifaceted:

• Superior Corrosion Resistance: The thick, continuous, and non-porous nature of powder coating creates an exceptional barrier against moisture, road salts, chemicals, and other corrosive agents prevalent in vehicle underbody environments. This significantly extends the service life of the steel components by preventing rust and oxidation.
• Enhanced Durability and Impact Resistance: Powder coating is renowned for its outstanding resistance to chipping, scratching, abrasion, and fading. Unlike liquid paints that can easily chip on impact, the flexible yet tough nature of cured powder coating allows it to absorb impacts without catastrophic failure, maintaining its protective integrity even under physical stress.
• UV Stability: Although primarily an underbody component, the black powder coat provides excellent UV stability, preventing degradation and color fading from incidental sunlight exposure, ensuring the aesthetic remains professional throughout its operational life.
• Environmental Advantages: Powder coating is an environmentally friendly process, as it contains no volatile organic compounds (VOCs) and produces minimal hazardous waste, aligning with modern sustainability practices.
• Professional Aesthetic: The deep, uniform black finish provides a professional, discreet appearance that seamlessly integrates with the vehicle's undercarriage, while also offering practical benefits such as minimizing the visibility of accumulated road grime.

Optimized Application and Universal Compatibility

These 24x24 inch structural steel mounting brackets are specifically engineered for use with Buyers Products steel and stainless steel underbody truck tool boxes. This specialization ensures perfect compatibility and maximizes the intended functionality. Underbody toolboxes are exposed to a unique set of challenges – high levels of road spray, debris, vibrations, and the need for secure, tamper-resistant mounting. These brackets are designed to address these challenges head-on.

The "universal hole pattern design" is a testament to thoughtful engineering, providing significant advantages during installation. This pattern allows for flexible positioning and alignment, accommodating slight variations in toolbox designs or vehicle frame configurations, thereby simplifying the mounting process and reducing installation time. While custom drilling might be required in some highly specialized scenarios, the universal pattern significantly expands the plug-and-play capability for a broad range of standard applications. The fact that they are "sold in boxed pairs for immediate use" further streamlines the procurement and installation workflow, ensuring that users have all necessary primary components readily available.

It is important to note the specific exclusion of "Poly" (polyethylene or other plastic) underbody truck boxes from the recommended compatibility. This distinction is crucial and based on fundamental material science and structural mechanics. Plastic toolboxes typically have different mounting requirements, often relying on lighter-duty hardware or integrated mounting points designed for the lower weight and different structural properties of polymer materials. Using heavy-duty structural steel brackets, while seemingly over-engineered, could potentially over-stress or damage the attachment points of a plastic box due to mismatched load distribution characteristics and rigidity. These brackets are optimized for the robust attachment requirements of metallic toolboxes, where their immense strength can be fully utilized without compromising the integrity of the attached unit.

Engineered for Extreme Environments and Long-Term Reliability

The design and material selection for these 24x24 inch welded black structural steel mounting brackets are predicated on enduring extreme operational environments. Vehicles, especially commercial trucks, operate in conditions that subject components to a relentless barrage of stressors: dynamic forces from acceleration and braking, torsional stresses from uneven terrain, continuous high-frequency vibrations, temperature extremes from arctic cold to desert heat, and corrosive agents ranging from road salt and chemicals to industrial pollutants. The combination of carbon steel's intrinsic mechanical properties, the strength of welded construction, and the protective efficacy of powder coating results in a system engineered for exceptional longevity and unwavering performance under these conditions.

The "long wear" attribute is a direct consequence of this integrated design philosophy. It signifies an investment in a component that minimizes the total cost of ownership by reducing the need for frequent replacements or repairs. This reliability is not just a matter of convenience; it is a critical safety factor. A secure toolbox prevents unsecured cargo from becoming a road hazard and protects valuable tools and equipment from theft or damage. The structural integrity provided by these brackets ensures that the toolbox remains firmly attached to the vehicle frame, irrespective of the forces it encounters.

Installation Considerations and Professional Application

While the universal hole pattern simplifies installation, proper mounting of these structural brackets is crucial for realizing their full performance potential. It is recommended that installation be performed by individuals with appropriate mechanical knowledge and tools. Key considerations include:

• Secure Fastening: While the brackets themselves are welded, they require secure fastening to the vehicle’s frame and the toolbox. High-grade, corrosion-resistant hardware (not included) such as grade 8 bolts, lock washers, and nuts should be used to ensure a durable connection that resists vibration loosening.
• Load Distribution: The 24x24 inch design facilitates optimal load distribution. Installers should ensure that the toolbox is positioned correctly on the brackets to evenly distribute its weight and contents, preventing localized stress points.
• Frame Compatibility: Ensure that the vehicle's frame provides suitable attachment points capable of handling the anticipated loads. Reinforcement may be necessary in certain custom applications.
• Clearance: Adequate clearance must be maintained around the toolbox and brackets to prevent interference with moving vehicle components or ground contact during suspension travel.

These brackets are an ideal choice for fleet managers, truck outfitters, and professional tradespeople who demand industrial-grade solutions for their vehicles. Their design minimizes potential points of failure, ensures long-term asset protection, and contributes to the overall safety and operational efficiency of commercial vehicles.

Conclusion: An Investment in Durability and Reliability

In conclusion, the 24x24 Inch Welded Black Structural Steel Mounting Brackets are a meticulously engineered solution for securely affixing underbody truck tool boxes. They exemplify a harmonious integration of advanced material science, precision manufacturing, and robust protective finishes. From the selection of high-strength carbon steel, optimized for tensile and yield capabilities, to the uncompromising integrity of welded construction, every aspect of these brackets is designed for maximum durability and resistance to the harsh realities of commercial vehicle operation. The superior black powder-coat finish provides an advanced shield against corrosion and abrasion, extending aesthetic and functional life. Compatible with Buyer Products' metallic underbody toolboxes and featuring a universal hole pattern for streamlined installation, these brackets represent a strategic investment in the longevity, security, and operational efficiency of your mobile equipment storage. They stand as a testament to industrial quality, delivering peace of mind through unwavering reliability in the most challenging conditions.
