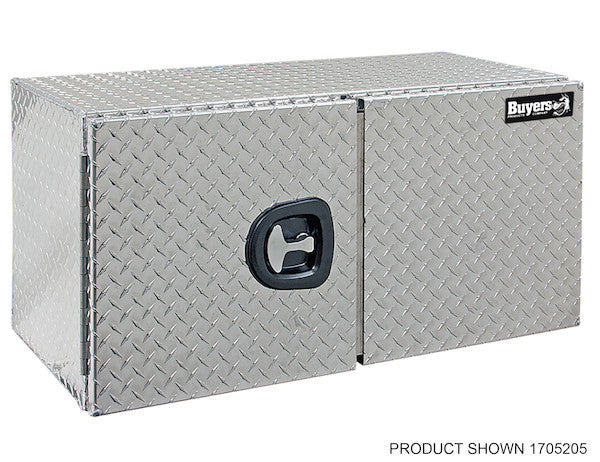

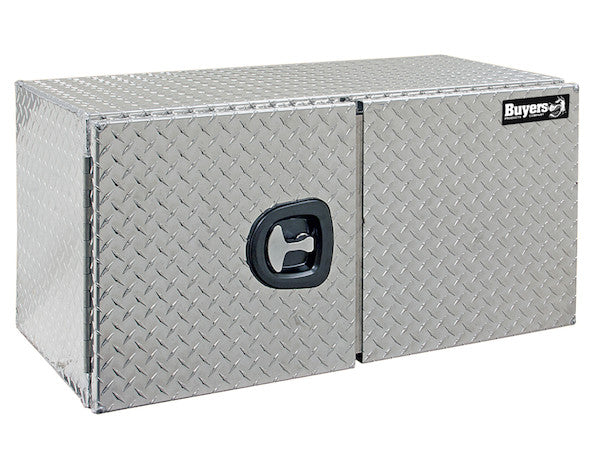

Protect and secure your equipment for the long haul with an underbed truck box that offers convenient, easy access on the job site. Buyers Products Diamond Tread Aluminum Underbody Truck Box with Barn Door is crafted with thick diamond tread aluminum and reinforced side-hinged swinging doors that can be mounted to lock on either the right or left side. The "barn door" style allows you to get closer to the contents of the box, so back strain is reduced while you take advantage of the unobstructed space inside with no center post. A 3-point locking, die cast, compression latch system helps keep your tools safe from weather and theft. The truck box is built to perform for long life with an aluminum continuous hinge and a watertight D-bulb door seal. Available in a wide range of sizes to suit your needs.
Specifications
| Box Finish | Diamond Tread |
|---|---|
| Box Gauge | 0.100" |
| Box Material | Aluminum |
| Box Thickness | Aluminum - 0.100" |
| Depth | 24.0 |
| Door Finish | Diamond Tread |
| Door Gauge | .100 |
| Door Material | Aluminum |
| Door Opening Height | 21.30 |
| Door Opening Width | 44.75 |
| Door Style | Barn Door |
| Gasket Type | D-Bulb Seal |
| Height | 24.0 |
| Hinge Style | Aluminum Continuous Hinge |
| Latch Style | 3 Point Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 2 |
| Number of Latches | 1 |
| Pro Series | False |
| Rain Gutter | True |
| Shelf | False |
| Width | 48.0 |
Technical Overview: 24x24x48 Inch Diamond Tread Aluminum Underbody Truck Box - Double Barn Door, 3-Point Compression Latch
The 24x24x48 inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of mobile equipment storage solutions, engineered for demanding professional applications. This unit is meticulously designed to offer unparalleled security, durability, and accessibility, making it an indispensable asset for a diverse range of industries including construction, utility services, landscaping, municipal operations, and field maintenance. Its strategic underbody mounting frees up valuable truck bed space, optimizing vehicle utility while maintaining a lower center of gravity for improved vehicle stability.
Advanced Material Science: Diamond Tread Aluminum Construction
At the core of this truck box's robust design is its construction from high-grade 0.100-inch thick diamond tread aluminum. Aluminum, as a material, offers a compelling combination of properties ideally suited for exterior vehicle applications. Its exceptional strength-to-weight ratio ensures the box is substantial enough to withstand rigorous daily use and protect heavy equipment, yet light enough to minimize impact on vehicle payload capacity and fuel efficiency. This balance is critical for optimizing operational costs and vehicle performance.
The inherent corrosion resistance of aluminum is a paramount feature, particularly for an underbody installation where exposure to road salt, moisture, grime, and various environmental contaminants is constant. Unlike steel, aluminum forms a passive oxide layer upon exposure to air, providing a natural barrier against rust and further corrosion without requiring additional coatings or treatments that could chip or wear over time. This intrinsic characteristic ensures the box retains its structural integrity and aesthetic appeal over an extended service life, even in the harshest climates.
The diamond tread pattern, also known as checker plate, is not merely an aesthetic choice; it serves several functional purposes. Firstly, it significantly enhances the material's surface rigidity, contributing to the overall structural strength of the box and its doors, making them more resistant to dents, scratches, and impact damage. Secondly, the raised pattern provides increased friction, which can be beneficial during handling or if the box surface is inadvertently used as a step. Finally, the textured finish effectively masks minor abrasions and dirt, helping to maintain a professional appearance even after prolonged heavy use.
The specified gauge of 0.100 inches (approximately 2.54 mm) is a crucial indicator of the box's quality and durability. This thickness provides a substantial barrier against physical intrusion and environmental stressors, far exceeding the resilience of thinner gauge alternatives. It ensures the box maintains its form under significant external pressure and offers robust protection for its contents, reducing the risk of deformation from impacts or heavy loads. The fabrication processes involved in working with this gauge of aluminum typically include precision cutting, forming, and welding, resulting in a seamlessly integrated and highly durable enclosure.
Optimized Dimensions and Ergonomics: 24x24x48 Inches with Double Barn Doors
The dimensions of 24 inches in depth, 24 inches in height, and 48 inches in width (60.96 cm x 60.96 cm x 121.92 cm) define a capacious internal volume, approximately 13,824 cubic inches or 8 cubic feet. This generous capacity is engineered to accommodate a wide array of tools, power equipment, recovery gear, and specialized instruments commonly utilized in mobile service operations. The absence of an internal shelf, as indicated in the specifications, maximizes this cubic space, allowing for the storage of larger, irregularly shaped items without obstruction. This design philosophy emphasizes utilitarian flexibility, catering to users who require unrestricted internal dimensions for diverse cargo.

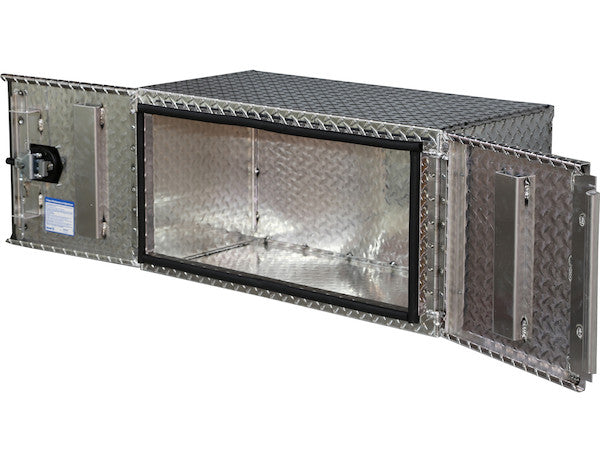

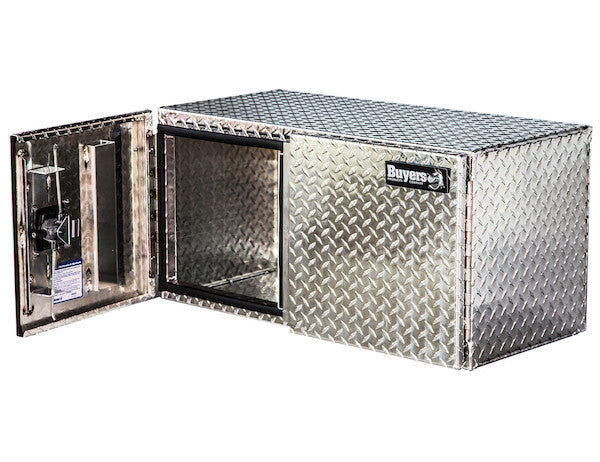

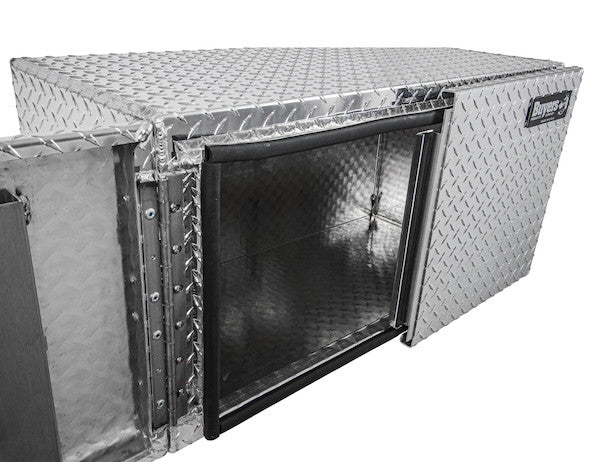

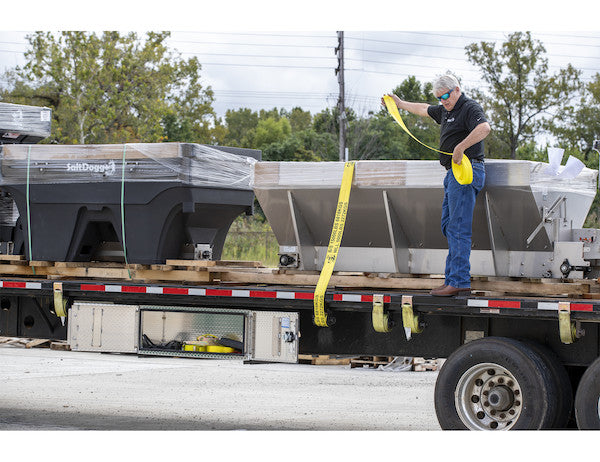

A defining feature of this underbody truck box is its double barn door configuration. This design deviates from traditional single-door or drop-down styles by offering two outwardly swinging doors that provide a full, unobstructed access aperture. With a door opening width of 44.75 inches and a height of 21.30 inches, users benefit from nearly complete exposure to the box's interior. This expansive access is instrumental in facilitating quick and easy retrieval or stowage of equipment, significantly reducing the time spent searching for items and improving workflow efficiency on the job site.

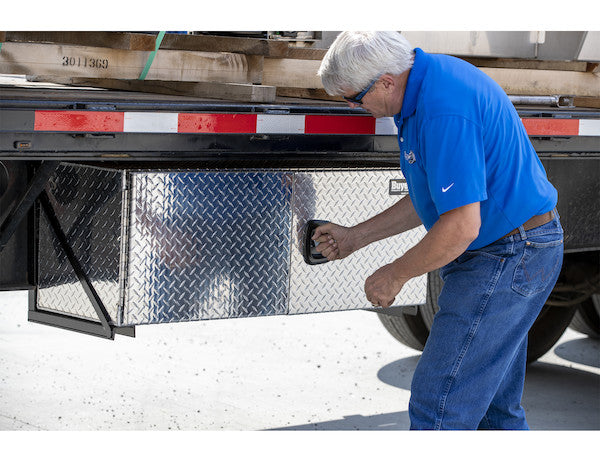

The ergonomic advantages of the barn door style are substantial. By allowing users to approach the contents of the box more directly and from a closer proximity, the design inherently minimizes the need for excessive bending, reaching, or awkward body positions. This direct access mitigates back strain and reduces the physical exertion associated with frequently accessing heavy tools or equipment, thereby enhancing operator safety and comfort, especially during prolonged work shifts. Furthermore, the ability to mount the side-hinged swinging doors to lock on either the right or left side offers critical installation flexibility, allowing users to customize the opening direction based on vehicle configuration, existing equipment, and specific operational requirements.
Advanced Security and Latching Mechanism: The 3-Point Compression Latch System

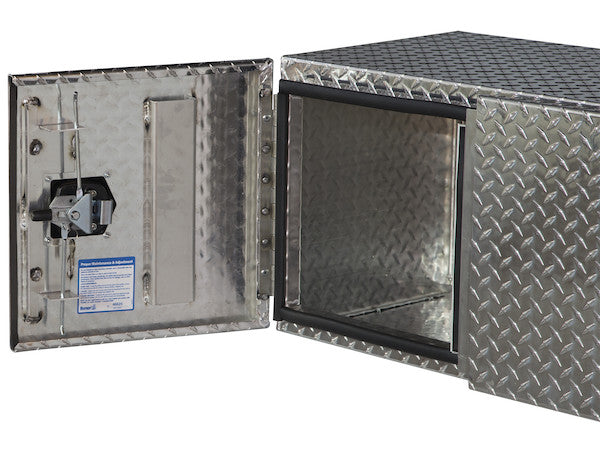

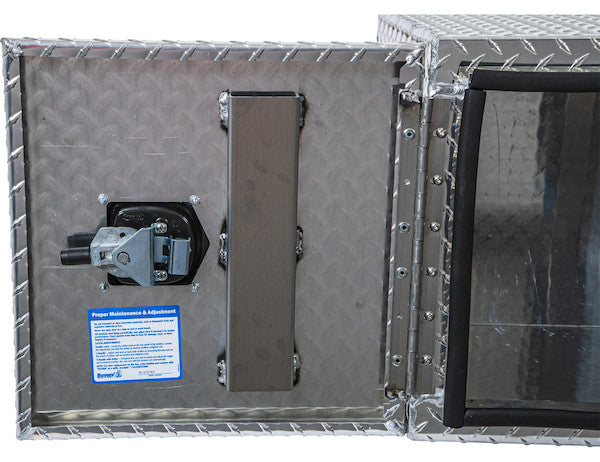

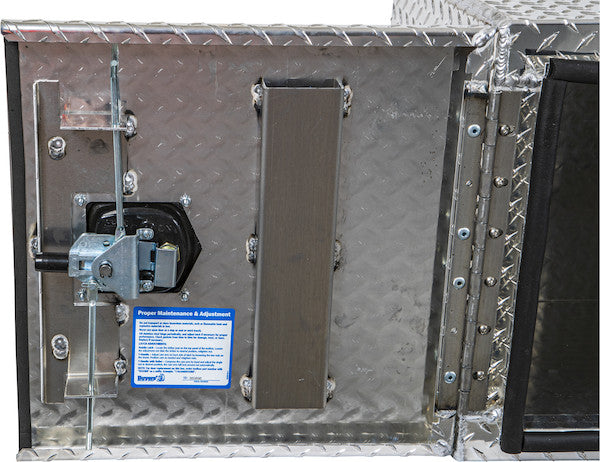

Security is paramount for valuable tools and equipment, and this truck box addresses this need with an advanced 3-point locking, die-cast, compression latch system. This robust latching mechanism offers significantly enhanced security compared to standard single-point latches. The "3-point" designation signifies that the central locking handle activates internal rods that engage locking points at three distinct locations along the door frame—typically the top, bottom, and center. This multi-point engagement creates a formidable barrier against forced entry, distributing resistance across the entire door perimeter and making it exceptionally difficult to pry open.
The "compression" aspect of the latch system is equally critical for both security and environmental protection. As the latch is engaged, it pulls the door firmly against the box frame, compressing the door seal. This tight, compressive force not only eliminates door rattling during vehicle movement—a common annoyance and potential source of wear in lesser designs—but also creates a superior seal against the ingress of moisture, dust, and other contaminants. The constant pressure exerted by the compression latch ensures the integrity of the weather seal, safeguarding the internal contents from the elements.
The use of die-cast construction for the latch component itself is indicative of its high quality and durability. Die casting is a manufacturing process that produces precisely formed metal parts with excellent surface finish and dimensional accuracy. Die-cast latches are renowned for their strength, rigidity, and resistance to wear and corrosion, ensuring reliable operation even after countless cycles of use in challenging environments. The inclusion of a lock (indicated as "Yes" in specifications) within this 3-point compression latch system provides robust key-based security, deterring theft and unauthorized access to valuable cargo.
Comprehensive Weatherproofing and Durability Features
Beyond the intrinsic corrosion resistance of aluminum and the sealing capabilities of the compression latch, this truck box incorporates several design elements specifically focused on long-term durability and protection against environmental factors.
Watertight D-Bulb Door Seal
The watertight D-bulb door seal is a critical component in maintaining the integrity of the box's interior environment. Constructed from high-quality EPDM (ethylene propylene diene monomer) rubber or a similar resilient polymer, the D-bulb seal features a distinct "D" cross-sectional profile. This shape allows it to compress effectively against the door frame when the doors are closed and latched, creating a continuous, impenetrable barrier. EPDM rubber is chosen for its excellent resistance to ozone, UV radiation, extreme temperatures, and various chemicals, ensuring the seal remains pliable and effective over many years without cracking or degradation. This seal acts as the primary defense against rain, snow, road spray, dust, and fine particulate matter, preserving the condition and functionality of stored tools and equipment.
Aluminum Continuous Hinge
The choice of an aluminum continuous hinge, also known as a piano hinge, is a testament to the box's engineering for longevity and robust operation. Unlike discrete butt hinges, a continuous hinge runs the entire length of the door, distributing the load and stresses evenly across the full hinge line. This design significantly enhances the strength and rigidity of the door attachment, minimizing the potential for sagging, warping, or hinge failure over time, especially with heavy loads or frequent opening and closing. The aluminum construction of the hinge itself ensures it shares the same corrosion-resistant properties as the rest of the box, preventing rust and maintaining smooth, consistent door operation without binding or seizing.
Integrated Rain Gutter System
A thoughtful and highly effective feature for underbody applications is the integrated rain gutter. Positioned around the perimeter of the door opening, this subtle channel is designed to divert water away from the interior when the doors are opened, particularly during inclement weather or after driving through wet conditions. As water runs down the side of the truck box, the rain gutter captures it and channels it around the door opening, preventing it from dripping directly onto the contents. This proactive water management system provides an additional layer of protection, ensuring that even in adverse conditions, the contents remain dry and accessible.
Installation and Operational Considerations

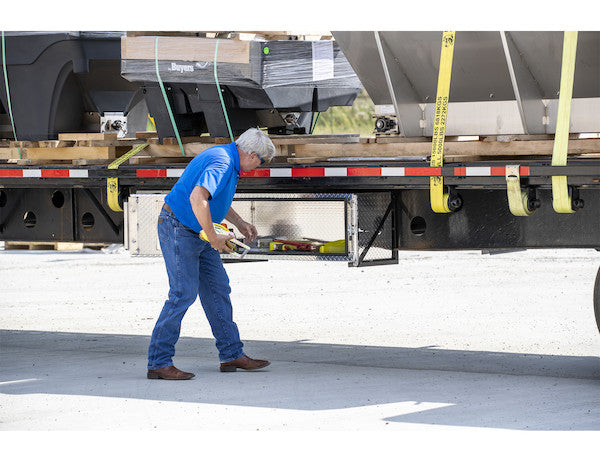

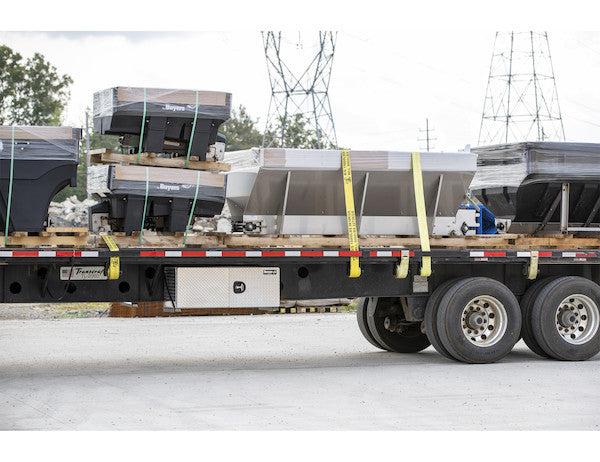

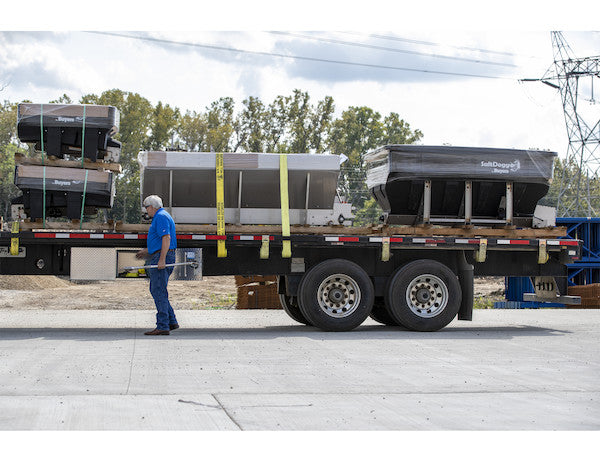

While designed for underbody mounting, professional installation is recommended to ensure optimal performance, security, and compliance with vehicle manufacturer specifications. Proper installation involves secure attachment to the truck frame, ensuring adequate ground clearance, and verifying that the box does not interfere with suspension components, exhaust systems, or other vital vehicle systems. The universal nature of its design makes it suitable for integration with a wide array of commercial trucks, utility vehicles, and fleet assets.
The large, unobstructed interior space (with no internal shelf) allows users to configure the storage area according to their specific needs. While shelving is not included, the robust construction provides an excellent foundation for custom internal organizers, tool caddies, or specialized foam inserts to further protect and compartmentalize tools. This adaptability underscores its utility across diverse professional trades where bespoke storage solutions are often required.
Conclusion
The 24x24x48 inch Diamond Tread Aluminum Underbody Truck Box with Double Barn Doors and a 3-Point Compression Latch is more than just a storage container; it is a meticulously engineered, professional-grade equipment management system. Its foundation in 0.100-inch thick diamond tread aluminum provides an optimal blend of strength, lightweight properties, and superior corrosion resistance. The double barn door design offers unparalleled access and ergonomic benefits, while the sophisticated 3-point compression latch system ensures top-tier security and a consistent, weatherproof seal.
Combined with a robust aluminum continuous hinge, a highly effective D-bulb door seal, and an integrated rain gutter, this underbody truck box delivers exceptional durability and protection against the harshest working conditions and environmental elements. For professionals who demand the utmost in reliability, security, and convenient access for their valuable tools and equipment, this unit stands as an exemplary solution, promising long-term performance and an outstanding return on investment in the challenging mobile work environment.
