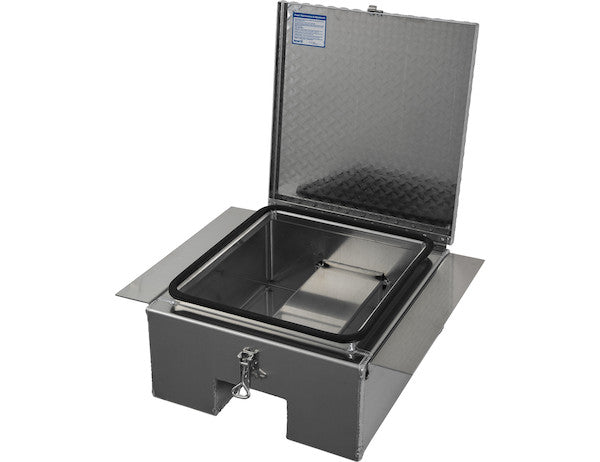

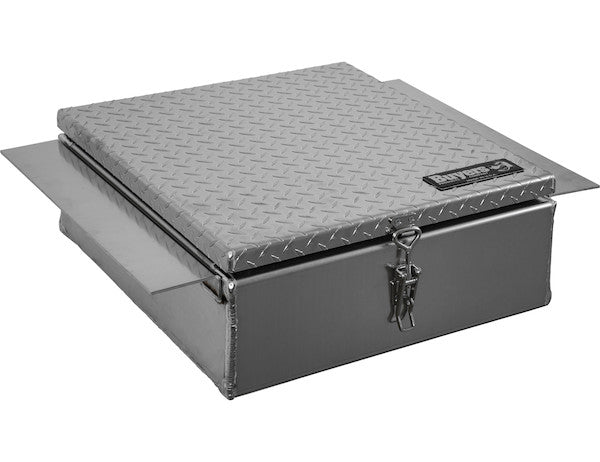

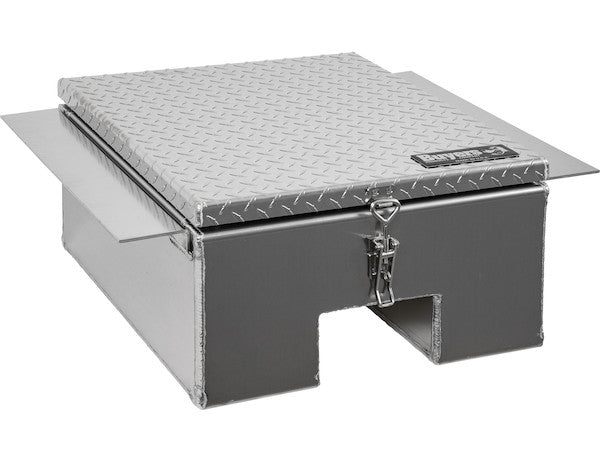

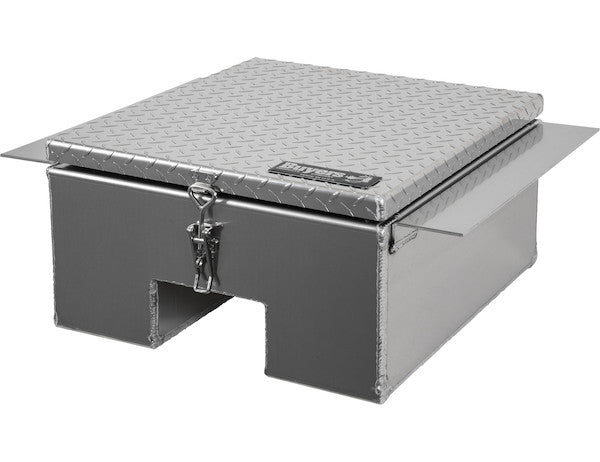

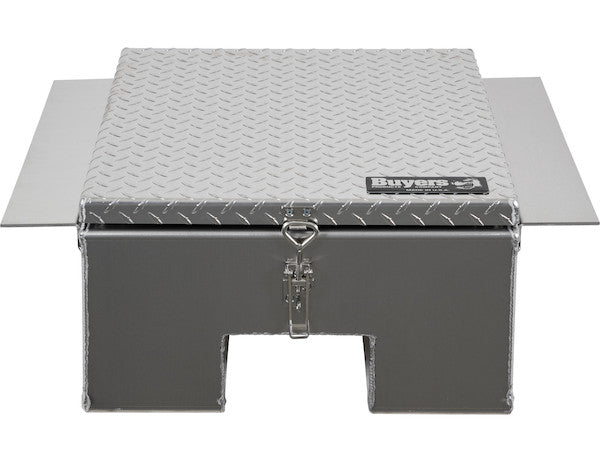

1705381 - 12x24x22 Inch Diamond Tread Aluminum In-Frame Truck Tool Box with Notched Bottom

Buyers Products Diamond Tread Aluminum In-Frame Truck Tool Boxes mount between the frame and truck rails to provide low-profile access to tools and equipment. The boxes are perfect for Class 8 trucks in need of additional storage and work with all major semi truck brands including Peterbilt??, Kenworth??, International??, Freightliner??, Western-Star??, Volvo??, and Mack??. The truck tool boxes features sturdy .100 in. thick aluminum construction with .125 in. thick diamond tread lids. The boxes are TIG-welded for strength and offer a full-width stainless steel hinge with solid 1/4 in. pin. The lids features a full-perimeter gutter and automotive bulb seal that are great for keeping out the elements. An adjustable, stainless steel draw latch works with a combination or padlock (sold separately) to help keep your equipment secure. Mounting hardware is included.

Specifications

Advanced Engineering and Durability: The 12x24x22 Inch Diamond Tread Aluminum In-Frame Truck Tool Box

This comprehensive description delves into the superior design, robust construction, and functional advantages of the 12x24x22 inch Diamond Tread Aluminum In-Frame Truck Tool Box with Notched Bottom. Engineered for the most demanding professional environments, this tool box represents a pinnacle of mobile storage solutions for heavy-duty commercial vehicles. Its integration within the truck's frame not only optimizes space utilization but also enhances vehicle dynamics and operational efficiency for Class 8 truck operators across various industries.

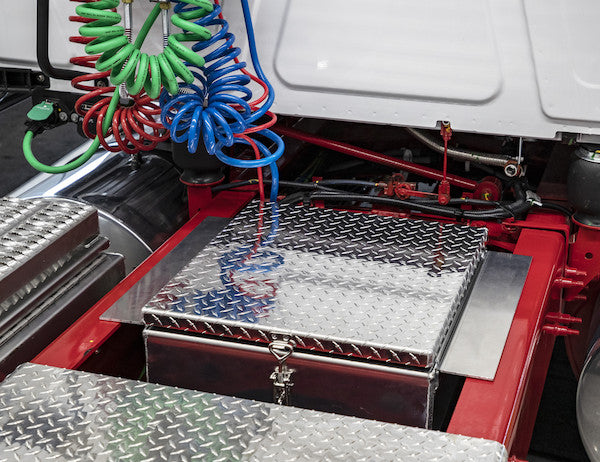

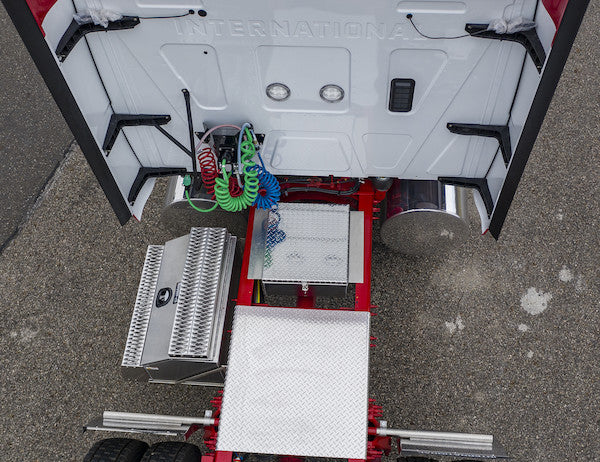

Precision Sizing and Strategic Placement

Measuring 12 inches in height, 24 inches in depth, and 22 inches in width, this tool box is meticulously dimensioned to fit within the often-underutilized space between the truck's frame rails and truck bed, or under the chassis. This strategic "in-frame" mounting offers several critical benefits. Firstly, it maintains a low-profile aesthetic, preserving the clean lines of the truck and reducing drag compared to externally mounted boxes. Secondly, it optimizes weight distribution by keeping heavy tools and equipment closer to the vehicle's center of gravity, which can positively impact handling, stability, and tire wear, particularly in demanding long-haul or vocational applications. Thirdly, by positioning the storage container beneath the main deck, it frees up valuable space on the truck bed or behind the cab, allowing for increased cargo capacity or the installation of other essential equipment. The precise dimensions ensure a snug fit, minimizing vibration and movement of the box itself during transit, thereby protecting both the contents and the structural integrity of the mounting points.

Advanced Aluminum Construction: Strength, Durability, and Weight Efficiency

The foundation of this tool box's exceptional performance lies in its material composition and construction methodology. Fabricated from high-grade aluminum, the box body features a sturdy .100 inch (approximately 2.54 mm) thickness, while the lid is constructed from even thicker .125 inch (approximately 3.175 mm) diamond tread aluminum. This strategic use of different gauges ensures optimal structural rigidity where it's most needed, particularly for the lid which endures frequent opening, closing, and potential external impacts.

Aluminum is a material of choice for professional-grade truck accessories due to its unparalleled combination of properties:

• Corrosion Resistance: Unlike steel, aluminum inherently forms a protective oxide layer when exposed to air, providing exceptional resistance to rust and corrosion. This is crucial for truck components constantly exposed to harsh weather, road salt, chemicals, and varying environmental conditions, ensuring a significantly longer service life and maintaining aesthetic appeal without the need for extensive painting or protective coatings.
• High Strength-to-Weight Ratio: Despite its robustness, aluminum is significantly lighter than steel. This weight saving translates directly into operational advantages for commercial vehicles. Reduced tare weight means increased payload capacity, allowing drivers to transport more cargo or equipment while adhering to gross vehicle weight rating (GVWR) limits. Furthermore, lighter overall vehicle weight can contribute to improved fuel efficiency, a critical factor for fleet operating costs.
• Durability and Impact Resistance: The specified thickness, particularly the .125 inch lid, provides substantial resistance to dents, dings, and deformation from typical operational stresses, including incidental impacts from tools or cargo. The diamond tread pattern further enhances surface hardness and scratch resistance, helping to camouflage minor abrasions and maintain a professional appearance over time.

Masterful Fabrication: The TIG Welding Advantage

The structural integrity of this tool box is further enhanced by its construction utilizing Tungsten Inert Gas (TIG) welding. TIG welding is a highly precise arc welding process known for producing superior quality welds, particularly on aluminum. Key advantages of TIG welding for this application include:

• Exceptional Weld Strength: TIG welds are renowned for their strength and ductility, creating joints that are often stronger than the parent material. This ensures that the tool box can withstand the constant vibration, dynamic loads, and stresses inherent in heavy-duty truck operations without weld failure.
• Clean and Aesthetically Pleasing Finish: TIG welding produces very clean welds with minimal spatter and excellent bead control. This results in a visually appealing finish that complements the diamond tread aesthetic, reflecting the professional quality of the product.
• Minimized Distortion: The controlled heat input of TIG welding significantly reduces material distortion, which is particularly important for maintaining the precise dimensions and alignment of a watertight enclosure. This precision ensures that lids fit squarely and seals function optimally.
• Superior Contamination Control: The inert gas shield (typically argon) used in TIG welding protects the molten weld pool and electrode from atmospheric contamination, preventing porosity and inclusions that can weaken welds. This results in incredibly sound and reliable joints that contribute to the overall durability and longevity of the tool box.

Uncompromising Environmental Protection: Sealing Against the Elements

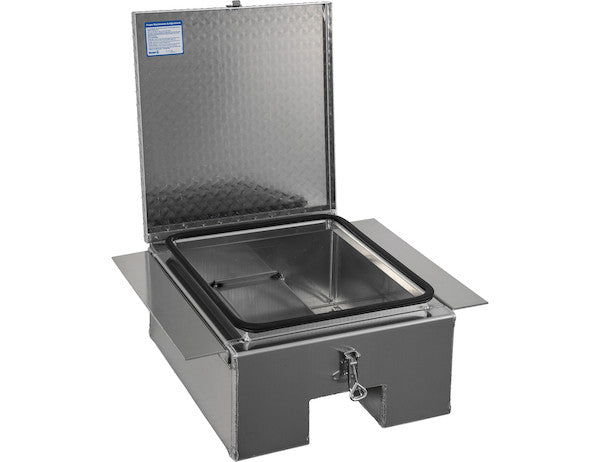

For tools and equipment to remain functional and protected, the storage solution must offer robust defense against moisture, dust, and debris. This tool box excels in environmental sealing through two critical design elements: a full-perimeter gutter and an automotive bulb seal.

The full-perimeter gutter system is integrated into the lid's design. When the lid is closed, this gutter directs any water, such as rain or wash-down runoff, away from the box opening and contents. Even when the lid is opened, the gutter prevents accumulated water from dripping into the interior, ensuring that the contents remain dry and clean, even in adverse weather conditions or during routine vehicle maintenance.

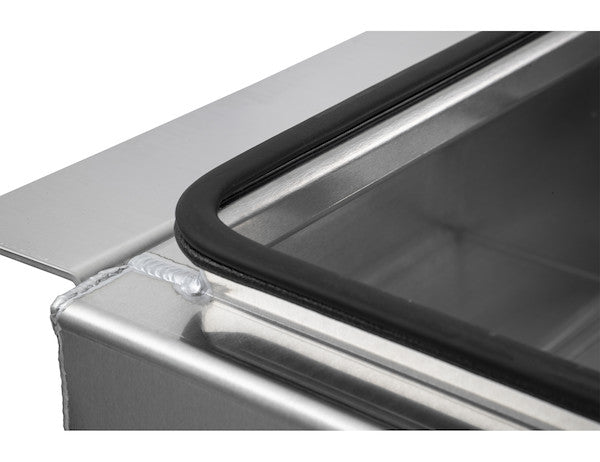

Complementing the gutter is an advanced automotive bulb seal. This high-grade seal, typically made from EPDM (ethylene propylene diene monomer) rubber, is engineered for superior sealing performance. It creates a complete, continuous barrier around the entire perimeter of the lid opening. When the lid is latched, the seal compresses, effectively preventing the ingress of water, dust, dirt, and even fine particulates. The "automotive" designation signifies that this seal meets stringent standards for durability, resistance to temperature extremes, UV degradation, and chemical exposure, comparable to seals found in modern vehicle doors and trunks. This ensures that the box provides a consistently dry and protected environment for sensitive tools, electronics, and documentation, extending their lifespan and maintaining their functionality.

Enhanced Security: Protecting Your Valuable Assets

The security of stored equipment is paramount for any professional operator. This tool box incorporates a robust and user-friendly security mechanism designed for reliability:

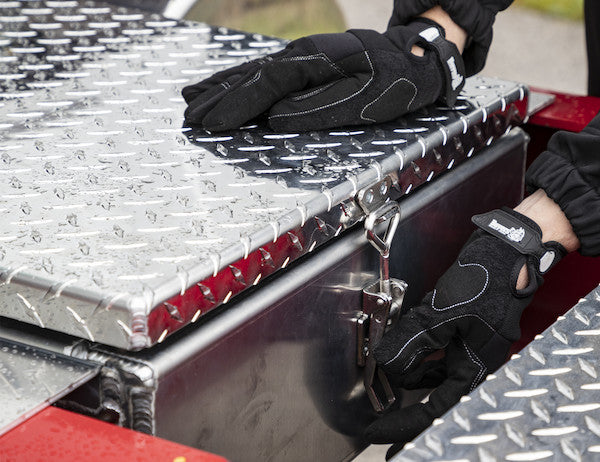

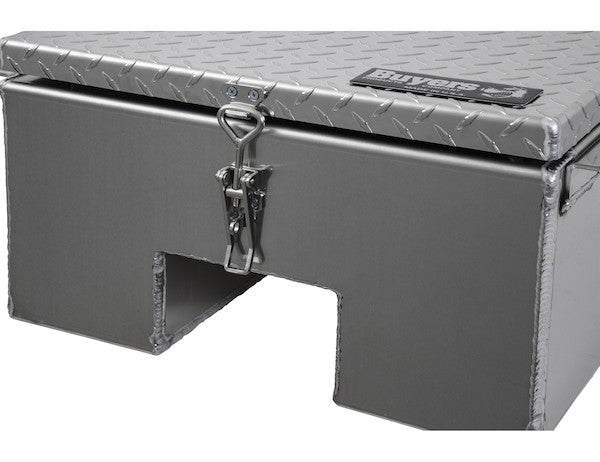

An adjustable, stainless steel draw latch provides secure closure. Stainless steel is chosen for its inherent strength and exceptional resistance to corrosion, ensuring that the latch mechanism remains functional and reliable even after years of exposure to the elements. The "adjustable" feature allows operators to fine-tune the latch tension, ensuring a tight and consistent seal with the automotive bulb gasket, thereby optimizing both security and weather protection. The draw latch mechanism pulls the lid down firmly against the seal, creating a positive lock.

For personalized security, the latch is designed to work seamlessly with a user-supplied combination or padlock (sold separately). This flexibility allows operators to integrate the tool box into their existing security protocols, whether they prefer key-based security, combination locks for ease of access without keys, or even smart lock solutions. The compatibility with external locking mechanisms provides a customizable and robust deterrent against theft and unauthorized access.

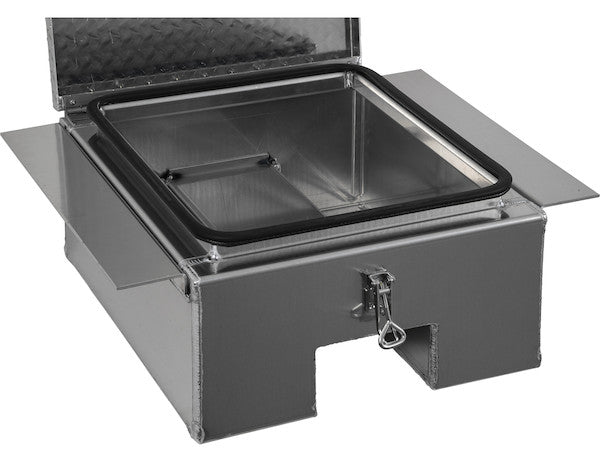

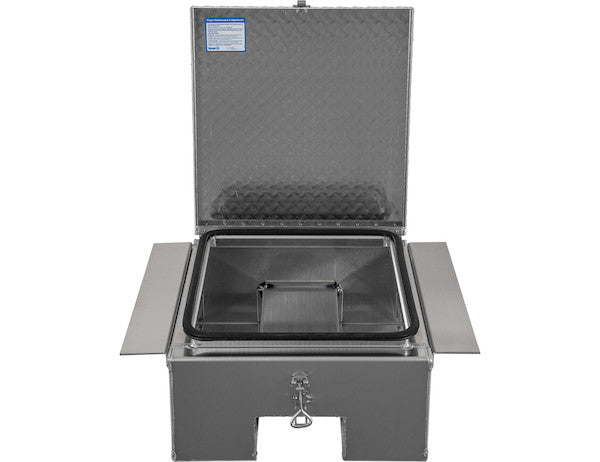

The Notched Bottom: A Feature of Intelligent Integration

A distinctive and highly functional aspect of this particular tool box is its notched bottom. This design element is a testament to the thoughtful engineering applied to in-frame storage solutions for heavy-duty trucks. The notch is specifically designed to provide clearance for various frame components, crossmembers, air tanks, exhaust systems, wiring harnesses, or other obstacles commonly found within the crowded chassis of a Class 8 truck. This allows the tool box to sit lower and more flush within the frame rails, maximizing usable interior volume while ensuring compatibility with the truck's existing infrastructure. The notched design simplifies installation, eliminates the need for complex modifications to the truck, and ensures a stable, secure fit that is less prone to interference or structural strain during vehicle operation.

Universal Compatibility for Class 8 Fleets

Designed with broad applicability in mind, this in-frame tool box is an ideal storage solution for Class 8 trucks. Class 8 vehicles encompass the heaviest-duty commercial trucks, including tractor-trailers, dump trucks, concrete mixers, and specialized vocational vehicles. These trucks operate in demanding conditions, often requiring a diverse array of tools and equipment for routine maintenance, emergency repairs, or specialized job functions. The tool box's universal compatibility extends to all major semi-truck brands, a crucial factor for fleet managers seeking standardized, reliable equipment across diverse vehicle manufacturers. This includes prominent names such as Peterbilt™, Kenworth™, International™, Freightliner™, Western-Star™, Volvo™, and Mack™. This broad compatibility minimizes procurement complexities and ensures that the investment in these tool boxes is scalable and adaptable to evolving fleet compositions.

Operational Benefits and Value Proposition

The integration of this 12x24x22 inch Diamond Tread Aluminum In-Frame Truck Tool Box offers significant operational benefits for individual truck owners and large-scale fleet operations:

• Enhanced Organization: Provides dedicated, secure storage for essential tools, spare parts, and safety equipment, reducing clutter in the cab or on the truck bed. This leads to quicker access to needed items and improved overall efficiency.
• Tool Protection and Longevity: The secure, weather-sealed environment protects valuable tools from theft, weather damage, rust, and road debris, significantly extending their service life and reducing replacement costs.
• Improved Vehicle Aesthetics and Aerodynamics: The in-frame, low-profile design maintains the truck's professional appearance and can contribute to marginal improvements in aerodynamics compared to bulky, externally mounted alternatives.
• Compliance and Safety: By providing a secure location for safety equipment (e.g., chains, binders, reflective triangles), the tool box supports compliance with various transportation regulations and enhances overall road safety by ensuring critical items are always on hand.
• Long-Term Reliability and Low Maintenance: The robust aluminum construction, TIG-welded seams, stainless steel hardware, and high-grade seals translate into a product with exceptional longevity and minimal maintenance requirements, representing a sound long-term investment.
• Ease of Installation: The inclusion of mounting hardware and the intelligent notched bottom design simplify the installation process, reducing downtime and labor costs.

Conclusion

The 12x24x22 Inch Diamond Tread Aluminum In-Frame Truck Tool Box with Notched Bottom is more than just a storage container; it is a meticulously engineered component designed to meet the rigorous demands of the heavy-duty trucking industry. From its lightweight yet durable diamond tread aluminum construction and precision TIG welds to its advanced weather sealing and secure latching mechanism, every feature is optimized for performance, longevity, and operator convenience. Its strategic in-frame placement, universal Class 8 compatibility, and thoughtful notched design underscore its superior utility as a foundational element for organized, secure, and efficient commercial vehicle operations. This tool box stands as a testament to intelligent design, providing an indispensable asset for any professional truck driver or fleet manager seeking to enhance productivity and protect valuable assets on the road.
