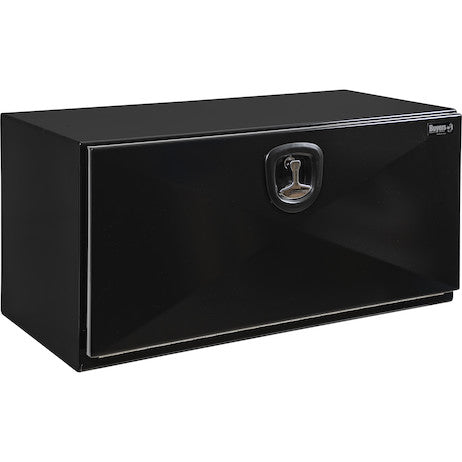

The Buyers Products Pro Series Black Steel Underbody Truck Tool Box gives Contractors, Trades, and Trailer Operators durable, secure, and weatherproof organization for their truck or trailer. These truck tool boxes are ideal for use on flatbed trucks, stake bodies, dump bodies, utility bodies, and flatbed trailers. The extra-thick 12 ga Powder-Coated Steel provides maximum durability. The external rain gutter with an automotive bulb seal will protect tools and equipment from moisture and grime. The locking, die-cast compression latch will provide maximum security no matter how rough the road gets. Corrosion-resistant, and built to last, the stainless steel bolt-on hinge with a 1/4" pin ensures long-lasting use and durability.
Specifications
| Box Color | Black |
|---|---|
| Box Finish | Powder-Coat |
| Box Material | Carbon Steel |
| Box Thickness | Steel - 12 ga |
| Depth | 24.0 |
| Door Color | Black |
| Door Finish | Powder-Coat |
| Door Gauge | 12ga |
| Door Material | Carbon Steel |
| Door Opening Height | 20.50 |
| Door Opening Width | 32.50 |
| Door Style | Drop Door |
| Gasket Type | Automotive Bulb Seal |
| Height | 24.0 |
| Hinge Style | Stainless Steel HD Continuous Hinge |
| Latch Style | Die Cast Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 1 |
| Pro Series | True |
| Rain Gutter | False |
| Shelf | False |
| Width | 36.0 |
The 24x24x36 Inch Pro Series Black Steel Underbody Truck Box represents a pinnacle of engineering and functional design for professional-grade mobile storage solutions. Specifically conceived to address the rigorous demands of contractors, tradespeople, and commercial fleet operators, this underbody tool box integrates superior material science, advanced manufacturing processes, and ergonomic considerations into a robust and reliable unit. Its designation as "Pro Series" is not merely a label, but a testament to its construction with commercial-duty applications as the primary focus, ensuring longevity and performance under the most challenging operational conditions.
Advanced Material Selection and Structural Integrity
At the core of this truck box's exceptional durability is its construction from 12-gauge carbon steel, utilized for both the main box body and the door. The term "12-gauge" indicates a substantial material thickness, specifically 0.1046 inches or approximately 2.65 mm. This gauge is significantly thicker than standard sheet metal used in many consumer-grade storage solutions, providing superior resistance to impact, denting, and deformation. The high tensile strength of carbon steel, when combined with this generous thickness, results in a structural integrity capable of withstanding the dynamic stresses and potential impacts inherent in commercial truck operations, whether from road debris, accidental contact, or the weight of stored equipment. The inherent rigidity of 12-gauge steel also contributes to the box maintaining its precise dimensions and sealing capabilities over time, crucial for effective weatherproofing and security. The robust nature of the carbon steel prevents panel flexing, which could otherwise compromise the integrity of the sealing gasket and the locking mechanism.
Superior Corrosion Protection: Powder Coating Technology
To enhance the inherent strength of carbon steel, the entire box, including the door, undergoes a meticulously applied powder-coating process, resulting in a sleek black finish. This advanced coating technology offers significantly superior protection compared to traditional liquid paints. Powder coating involves electrostatically applying a dry powder—typically a blend of polymer resins, pigments, curing agents, and additives—to the steel surface. The coated parts are then cured under heat, causing the powder to melt, flow, and chemically cross-link into a continuous, uniform, and extremely durable layer. This process creates a finish that is exceptionally resistant to chipping, scratching, fading, and, most critically, corrosion. In environments where the truck box is exposed to road salts, chemicals, moisture, and abrasive elements, this powder coat acts as an impermeable barrier, preserving the underlying steel from oxidation and degradation. The black finish is not only aesthetically professional but also offers excellent UV resistance, preventing premature fading and maintaining its visual appeal throughout its service life. The uniform thickness and robust adhesion of the powder coat ensure long-term protection, minimizing maintenance requirements and extending the functional lifespan of the unit.
Engineered Weatherproofing System
Protecting valuable tools and equipment from environmental ingress is paramount for a professional-grade underbody box. The 24x24x36 Inch Pro Series box incorporates a sophisticated two-tier weatherproofing system: an external rain gutter and an automotive bulb seal. The external rain gutter is a precisely formed channel integrated into the box frame above the door opening. Its primary function is to actively divert water, snowmelt, and other liquids away from the door seam, preventing them from accumulating or directly impinging on the primary seal. This design mitigates hydrostatic pressure against the seal, significantly reducing the potential for water ingress. Complementing the rain gutter is an automotive-grade bulb seal. This seal, typically manufactured from durable elastomers like EPDM (ethylene propylene diene monomer) rubber, is engineered to provide a tight, compressive seal around the entire perimeter of the door opening when the door is closed and latched. EPDM is renowned for its excellent resistance to weathering, ozone, UV radiation, and a wide range of temperatures, ensuring the seal remains flexible and effective in diverse climates. When the die-cast compression latch engages, it compresses the bulb seal, creating a positive, continuous barrier that effectively seals out moisture, dust, and road grime. This synergistic design guarantees that the contents of the box remain dry, clean, and operational, regardless of external weather conditions or road spray.
Advanced Security and Robust Latching Mechanism

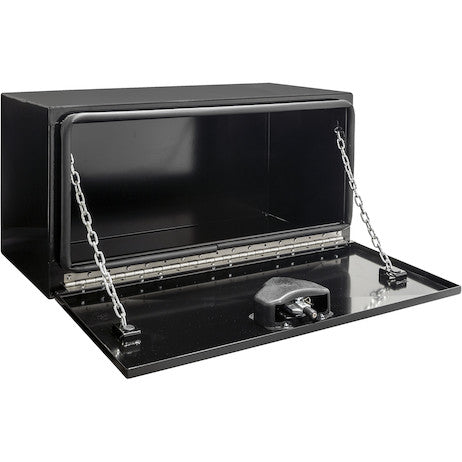

Security is a non-negotiable feature for any professional tool storage solution. The Pro Series box addresses this with a high-integrity locking, die-cast compression latch. The "die-cast" designation indicates that the latch body is formed by injecting molten metal (often a zinc or aluminum alloy) into a mold under high pressure. This manufacturing process produces components with exceptional strength, dimensional accuracy, and a smooth surface finish, crucial for precise operation and resistance to forced entry. The "compression" aspect of the latch is critical: as the handle is operated, the latch mechanism not only secures the door but actively pulls and compresses it against the bulb seal. This action ensures a watertight and dust-tight seal, while also eliminating door rattle and vibration during transit, protecting both the box and its contents from wear and potential damage. The integral locking mechanism provides an additional layer of security, safeguarding valuable tools and equipment from theft. The robust construction and positive engagement of this latch system are engineered to withstand the continuous vibration, shock, and dynamic forces encountered on commercial vehicles, ensuring reliable security on any terrain.
Uncompromising Durability in Hinge Design
The operational longevity of a truck box is often dictated by the durability of its moving components, particularly the hinges. The 24x24x36 Inch Pro Series Black Steel Underbody Truck Box features a stainless steel heavy-duty (HD) continuous hinge with a substantial 1/4" pin. Stainless steel is chosen for its superior corrosion resistance, especially in applications exposed to the elements, preventing rust and ensuring smooth operation for decades. Unlike traditional butt hinges, a continuous hinge (also known as a piano hinge) distributes the load evenly across the entire length of the door. This design significantly reduces stress concentrations, minimizing the risk of hinge failure, warping, or sag over time, even with a heavy door or frequent use. The "HD" designation underscores its enhanced load-bearing capacity and robust construction. The 1/4" diameter pin is substantially thicker than those found in standard hinges, providing exceptional shear strength and resistance to bending, crucial for supporting the weight of the 12-gauge carbon steel door and resisting prying attempts. The bolt-on nature of the hinge attachment further enhances its security and facilitates potential replacement, although its heavy-duty design makes such an eventuality highly unlikely under normal operating conditions. This hinge system is engineered to perform reliably throughout the box's lifespan, contributing significantly to its overall durability and security profile.
Optimized for Underbody Integration and Application Versatility

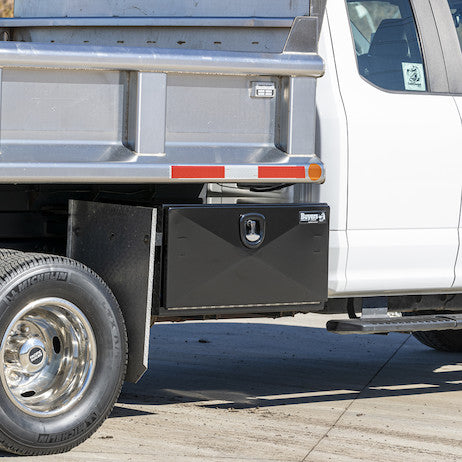

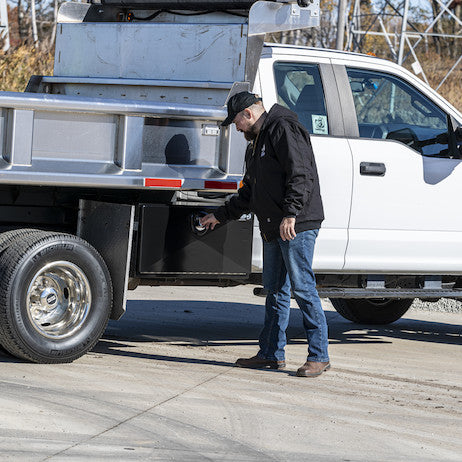

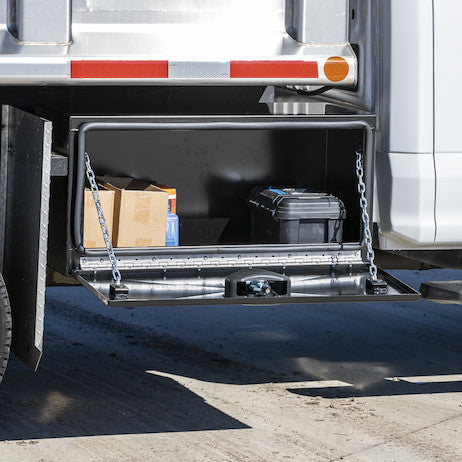

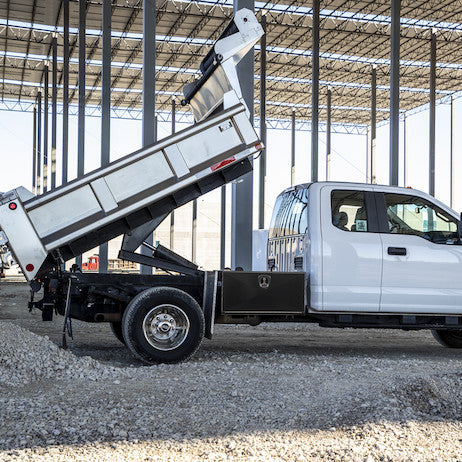

The design and dimensions (24" depth, 24" height, 36" width) of this Pro Series underbody truck box are meticulously optimized for strategic mounting beneath the chassis or frame of various commercial vehicles. This underbody placement offers several significant advantages. Firstly, it efficiently utilizes otherwise wasted space, freeing up valuable bed space on flatbed trucks, stake bodies, and dump bodies for primary cargo. Secondly, by positioning weight lower on the vehicle, it contributes to a lower center of gravity, which can enhance vehicle stability and handling, particularly important for loaded trucks and trailers. Thirdly, underbody mounting can improve vehicle aerodynamics by reducing drag compared to top-mounted boxes. The "drop door" style is particularly beneficial for underbody applications, allowing for unhindered access to the box's contents from the side of the vehicle without requiring excessive reaching or interference with other vehicle components. This design is ideal for flatbed trucks, stake bodies, dump bodies, utility bodies, and flatbed trailers, providing dedicated, secure, and easily accessible storage for tools, chains, tie-downs, and other essential equipment that tradespeople rely upon daily. The generous door opening dimensions of 20.50 inches in height and 32.50 inches in width ensure that even bulkier tools and equipment can be loaded and retrieved with ease, maximizing functional utility.
Pro Series Distinction: Engineered for Professional Demands
The "Pro Series" designation is not merely a marketing term; it signifies a commitment to engineering excellence and a rigorous adherence to quality standards demanded by professional users. This series is developed for environments where equipment reliability directly impacts operational efficiency and profitability. Every component, from the base 12-gauge steel to the precision-machined latch and continuous hinge, is selected and integrated to provide maximum durability, security, and weather resistance. This means the box is not just built to store tools, but to endure the relentless cycles of daily commercial use—harsh weather exposure, constant vibration, frequent opening and closing, and potential impacts. The absence of a shelf within the box interior offers maximum flexibility for operators to customize the internal space with their own dividers, bins, or specialized mounts, adapting it perfectly to their specific tool and equipment organization needs. The single-door configuration simplifies the design, enhancing structural integrity and focusing all protection efforts on one robust point of entry.
Dimensions, Capacity, and Practicality

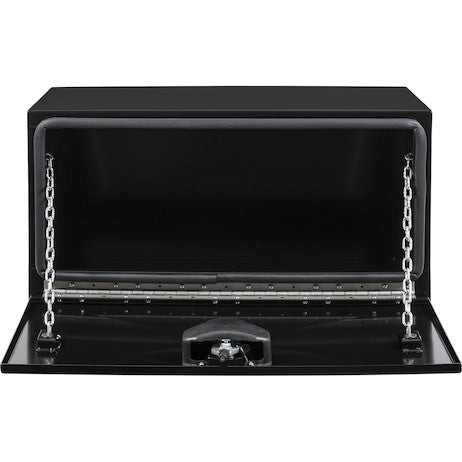

With external dimensions of 24 inches in height, 24 inches in depth, and 36 inches in width, this underbody box offers a substantial storage volume while maintaining a manageable footprint for under-chassis mounting. The internal cubic capacity, approximately 13,824 cubic inches or roughly 8 cubic feet, provides ample space for a wide array of hand tools, power tools, safety equipment, and ancillary items required on job sites. The depth of 24 inches is particularly advantageous, allowing for the storage of longer items and offering significant internal volume without protruding excessively from the vehicle's side. The precise engineering of the door opening, with a height of 20.50 inches and a width of 32.50 inches, ensures that the vast majority of commonly used professional tools, even those with awkward shapes or sizes, can be easily loaded and unloaded. This balance of internal capacity, external dimensions, and access practicality underscores the thoughtful design that went into meeting the functional requirements of commercial applications.
Conclusion
The 24x24x36 Inch Pro Series Black Steel Underbody Truck Box stands as a testament to industrial-grade storage solutions. Its foundation of heavy-duty 12-gauge carbon steel, fortified by an advanced powder-coat finish, establishes a formidable barrier against both physical damage and environmental degradation. The meticulously engineered weatherproofing system, comprising an external rain gutter and an automotive bulb seal, guarantees that sensitive tools remain pristine and operational. Security is assured through a robust, locking, die-cast compression latch, meticulously designed to maintain integrity under vibration and resist unauthorized access. Longevity and effortless operation are further secured by a stainless steel, heavy-duty continuous hinge with a substantial 1/4" pin. Designed for seamless integration into diverse commercial vehicle platforms, this underbody box exemplifies the optimal blend of strength, security, weather protection, and practical utility. For professionals who demand unwavering reliability and superior protection for their equipment in the demanding environments of the field, the Buyers Products Pro Series Black Steel Underbody Truck Box represents a sound and strategic investment.
