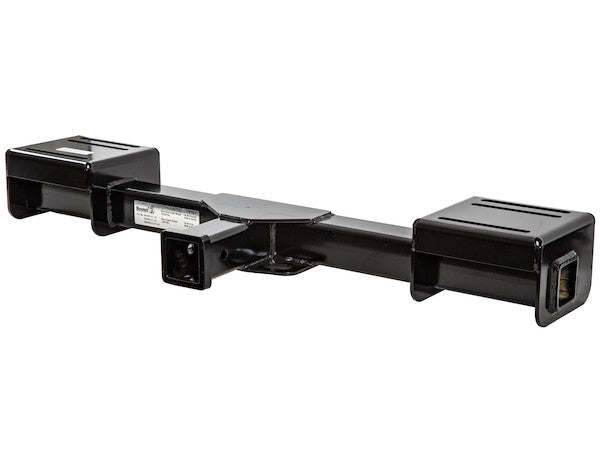

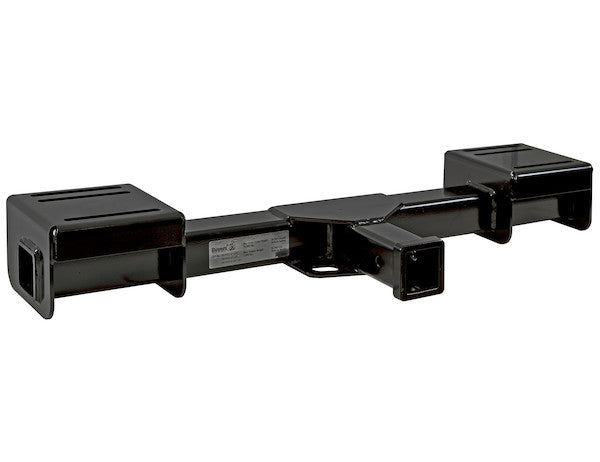

The Class 4 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 10,000 lb. It accepts 2-1/2 in. hitches and accessories and features a long receiver tube to accommodate thicker bumpers. The hitch receiver is 44 in. long and has a black powder-coated finish for superior durability and corrosion resistance.
Specifications
| Application Summary | Service Body |
|---|---|
| Class | Class IV |
| Color | Black |
| Depth (in.) | 14.22 |
| Finish | Powder-Coat |
| Height (in.) | 5.75 |
| M.G.T.W. (lbs.) | 10,000 |
| M.V.L. (lbs.) | 1,000 |
| Material | Carbon Steel |
| Mount Type | Weld-On |
| Receiver Tube Length (in.) | 8.0 |
| Receiver Tube Size (in.) | 2.5 |
| Style | Service Body |
| Width (in.) | 44.59 |
The 44 Inch Service Body Hitch Receiver with Long 2-1/2 Inch Receiver Tube from Buyers Products represents a robust and indispensable component for a wide array of commercial and heavy-duty towing applications. Engineered for the rigorous demands of service body vehicles, this Class 4 hitch receiver is designed to provide unparalleled strength, reliability, and operational flexibility. Its technical specifications and construction materials underscore a commitment to performance and longevity in challenging work environments.
At the core of its capability, this hitch receiver is rated as Class IV, signifying its suitability for substantial towing tasks. According to industry standards such as SAE J684, a Class IV hitch is typically rated for a Maximum Gross Trailer Weight (M.G.T.W.) of 10,000 to 14,000 pounds and a Maximum Vertical Load (M.V.L.), also known as tongue weight, of 1,000 to 1,400 pounds. This specific model is rated for an M.G.T.W. of 10,000 pounds and an M.V.L. of 1,000 pounds, firmly establishing it as a heavy-duty solution. This rating is critical for fleet managers and professional operators who regularly tow large utility trailers, equipment trailers, construction machinery, or specialized service equipment. The adherence to these capacity standards ensures not only the structural integrity of the hitch itself but also promotes safe towing practices when paired with a properly rated tow vehicle and trailer. Understanding the M.G.T.W. and M.V.L. is paramount; the gross trailer weight represents the total weight of the trailer plus its cargo, while the vertical load is the downward force exerted by the trailer tongue onto the hitch receiver. Exceeding either of these ratings can compromise vehicle handling, braking performance, and lead to catastrophic equipment failure, making the robust Class IV rating a fundamental safety and operational feature.
A distinctive feature of this hitch receiver is its 2-1/2 inch receiver tube size. While 2-inch receivers are common for light to medium-duty applications, the 2-1/2 inch dimension caters specifically to heavier loads and provides enhanced stability and strength. This larger opening accommodates heavy-duty 2-1/2 inch ball mounts, pintle hooks, and other specialized towing accessories designed for higher capacities. The larger cross-section of the receiver tube itself contributes to superior torsional rigidity and resistance to bending forces under extreme loads, a critical advantage when towing near the upper limits of the Class IV rating. Furthermore, the selection of a 2-1/2 inch receiver tube is a forward-thinking design choice, aligning with the growing trend for increased towing capacities in the medium-duty truck segment, particularly for vehicles equipped with service bodies.
The "long receiver tube" feature, specified at 8.0 inches in length, addresses a common challenge encountered with service body configurations. Service bodies often feature thicker rear bumpers or intricate utility compartments that can extend further rearward than standard truck beds, creating a greater distance between the vehicle's frame and the bumper's exterior. A standard-length receiver tube might not extend sufficiently to allow proper engagement of a hitch accessory or could result in the accessory interfering with the bumper structure. The extended 8.0-inch receiver tube ensures ample clearance, providing sufficient protrusion beyond even deeply recessed or thick bumpers for secure attachment of hitches and accessories. This design consideration simplifies installation and maximizes compatibility with a broader range of service body designs without requiring additional extensions or modifications, thereby maintaining optimal load distribution and reducing potential points of failure.

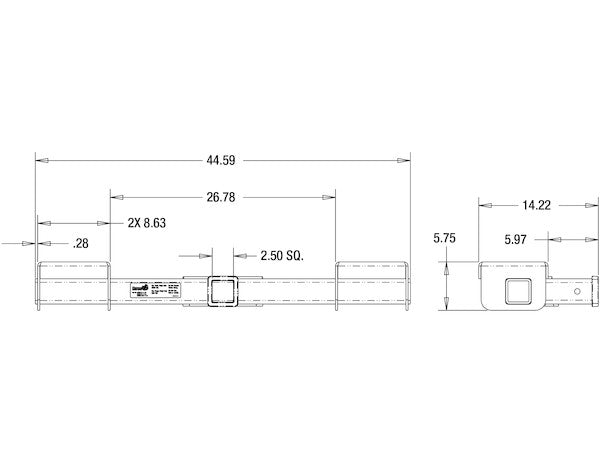

Dimensionally, the hitch receiver boasts an overall width of 44.59 inches, a depth of 14.22 inches, and a height of 5.75 inches. The 44-inch length (as indicated in the product title, rounded from the width spec) is optimized for integration with the frame rails of various service body chassis, providing a broad and stable mounting platform. The specific width allows for effective distribution of towing forces across the vehicle's frame, reducing localized stress concentrations. The overall depth and height are engineered to ensure clearance with undercarriage components while maintaining a low-profile installation that does not compromise ground clearance excessively, a crucial factor for vehicles operating off-road or in varied terrains. These dimensions, combined with the weld-on mount type, allow for a semi-permanent, highly secure attachment that becomes an integral part of the vehicle's chassis structure, ensuring maximum safety and load transfer efficiency.
Construction material is a cornerstone of this product's durability. Fabricated from robust carbon steel, this hitch receiver exhibits excellent mechanical properties essential for heavy-duty towing applications. Carbon steel is renowned for its high tensile strength, yield strength, and resistance to fatigue, making it an ideal choice for components subjected to dynamic and cyclical loading conditions inherent in towing. The inherent weldability of carbon steel also facilitates the weld-on installation process, allowing for strong, permanent connections to the vehicle frame by certified welding professionals. The selection of carbon steel over lighter alloys, while impacting weight, prioritizes ultimate strength and resilience against the severe stresses of commercial towing operations, guaranteeing a long service life even under peak performance requirements.
To combat the detrimental effects of environmental exposure, the hitch receiver is finished with a durable black powder coating. Powder coating is a superior finishing process compared to traditional liquid painting, offering significantly enhanced resistance to corrosion, abrasion, chipping, and UV degradation. The electrostatic application and subsequent curing process create a tough, uniform layer that acts as an impermeable barrier against moisture, road salts, chemicals, and other corrosive agents frequently encountered by commercial vehicles. This protective finish not only maintains the aesthetic integrity of the hitch over time but, more importantly, prevents rust and material degradation that could compromise the structural integrity of the steel components. The black color also provides a professional and understated appearance, blending seamlessly with most vehicle exteriors.
The application summary explicitly states "Service Body," underscoring the specialized design and engineering for this vehicle type. Service bodies, often found on utility trucks, municipal vehicles, construction trucks, and mobile maintenance units, are distinguished by their integrated compartments for tools, equipment, and parts. These vehicles frequently operate in demanding conditions, requiring towing solutions that can withstand heavy use and provide reliable performance for transporting ancillary equipment such as air compressors, generators, trenchers, or material handling trailers. This hitch receiver is purpose-built to integrate structurally and functionally with the unique chassis and rear-end configurations of service bodies, offering a tailor-made solution that general-purpose hitches cannot match. The weld-on mount type further reinforces this application specificity, enabling a custom and permanent fit that capitalizes on the robust nature of service truck frames.
The engineering principles behind the design focus on optimizing stress distribution and maximizing load-bearing capacity. Finite Element Analysis (FEA) and other computational modeling techniques are typically employed during the design phase to simulate various loading scenarios, ensuring that critical stress points are managed effectively and that the material thickness and geometry are optimized for strength without unnecessary weight. Attention is paid to the receiver tube's reinforcement, the welding points, and the overall structural frame of the hitch to prevent deformation or failure under dynamic forces such as braking, acceleration, and cornering with a heavy trailer. The design prioritizes direct load transfer paths to the vehicle's primary structural members, ensuring that towing forces are absorbed and distributed efficiently across the chassis, thereby protecting both the hitch and the tow vehicle from undue strain.
Installation of this weld-on hitch receiver requires professional expertise. Unlike bolt-on hitches that allow for relatively straightforward attachment, a weld-on receiver demands precise alignment, appropriate welding techniques, and careful consideration of the vehicle's frame structure. Professional welding ensures a permanent, high-strength bond that integrates the hitch receiver seamlessly with the vehicle's chassis. This method eliminates potential loosening of fasteners over time, a common issue with bolt-on alternatives under severe vibration or repetitive stress, thereby enhancing long-term reliability and safety. Proper installation also involves ensuring adequate ground clearance, proper pinhole alignment, and compliance with all applicable local and national welding standards and safety regulations. While requiring specialized labor, the weld-on installation delivers an unparalleled level of structural integrity and peace of mind for operators engaged in critical towing operations.
In summary, the 44 Inch Service Body Hitch Receiver with Long 2-1/2 Inch Receiver Tube from Buyers Products is a sophisticated and robust towing accessory designed for the most demanding commercial applications. Its Class IV rating, heavy-duty 2-1/2 inch long receiver tube, high-strength carbon steel construction, and resilient black powder-coated finish converge to deliver a product of exceptional durability and performance. Optimized for service body vehicles, it addresses specific operational challenges with features like the extended receiver tube for thicker bumpers and a weld-on mount for maximum structural integration. This product provides fleet managers and professional operators with a reliable, high-capacity solution for safely and efficiently towing a wide range of heavy equipment, ultimately enhancing the utility and productivity of their commercial vehicle fleet. Investing in this technically superior hitch receiver ensures not only compliance with stringent towing requirements but also a long-term, dependable asset for critical professional tasks.
