The Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 20,000 lb. It has a black powder-coated finish for corrosion resistance. The receiver is available in 44 in. or 62 in. lengths. The 44 in. model is sold with or without mounting plates, and is black powder coated or available unpainted. The ones sold without mounting plates have no rating listed because the installer needs to fabricate their own mounting brackets. The 62 in. model is sold with standard or tall mounting plates to suit different bumper styles. Plates ship unwelded so you can position them to fit your specific application. All models accept 2-1/2 in. hitches and accessories. Those that come with mounting plates also include a 5/8 in. hitch pin with cotter.

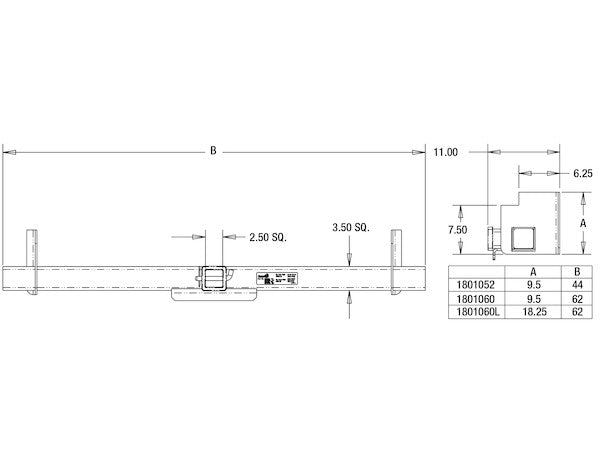

Specifications
| Application Summary | Service Body |
|---|---|
| Class | Class V |
| Color | Black |
| Finish | Powder-Coat |
| M.G.T.W. (lbs.) | 20,000 |
| M.V.L. (lbs.) | 2,000 |
| Material | Carbon Steel |
| Mount Type | Weld-on |
| Mounting Plate Height (in.) | 9.50 |
| Receiver Tube Size (in.) | 2.5 |
| Width (in.) | 62.00 |
Advanced Engineering for Heavy-Duty Towing: The Class 5, 62-Inch Service Body Hitch Receiver
The Class 5, 62-Inch Service Body Hitch Receiver with a 2-1/2 Inch Receiver Tube and 9-Inch Mounting Plates from Buyers Products represents a pinnacle in heavy-duty towing solutions, meticulously engineered for the rigorous demands of professional service body applications. This component is not merely an accessory but a critical structural element designed to integrate seamlessly with the robust frameworks of work trucks, delivering unparalleled performance, durability, and safety for the most challenging towing operations. Its robust construction, high-capacity rating, and adaptable design make it an indispensable asset for industries requiring reliable and powerful towing capabilities, such as construction, utilities, landscaping, and municipal services.
Understanding Class V Towing Capability: Performance Under Load
Central to the functionality and value of this hitch receiver is its designation as a Class V towing product. This classification is the highest available for conventional receiver hitches, signifying an exceptional capacity for managing substantial trailer weights and vertical loads. Specifically, this Class V receiver boasts a Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 pounds and a Maximum Vertical Load (M.V.L.), or tongue weight, of 2,000 pounds. These figures are not arbitrary; they are the result of stringent engineering design, material selection, and rigorous testing protocols that ensure the hitch can safely accommodate the stresses associated with towing heavy equipment, large utility trailers, or specialized apparatus commonly used with service bodies.
The implications of a Class V rating are profound. It means operators can confidently tow tandem-axle utility trailers, mini excavators, skid steers, large dump trailers, and other heavy vocational equipment without compromising the structural integrity of the towing system. The generous M.V.L. of 2,000 pounds is particularly critical, as it dictates the maximum downward force the trailer's coupler can exert on the hitch. Exceeding this limit can lead to instability, premature wear, and potential failure of the hitch or tow vehicle's suspension. The precise engineering of this receiver ensures optimal weight distribution across the towing system when properly loaded, contributing to enhanced stability and control during transit.
The Advantage of a 2-1/2 Inch Receiver Tube

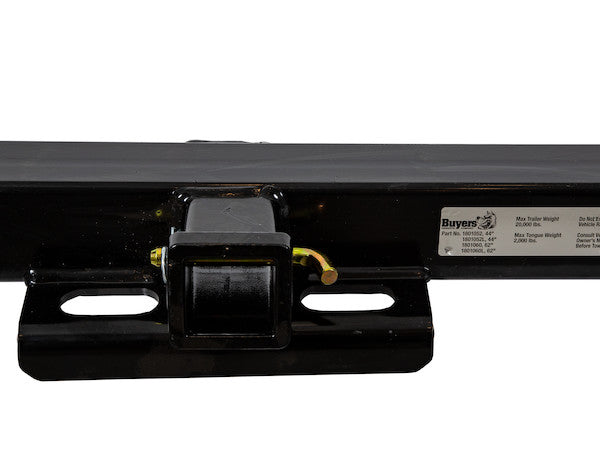

A defining feature of this heavy-duty hitch receiver is its 2-1/2 inch receiver tube. While 2-inch receiver tubes are standard for many consumer and lighter commercial applications, the 2-1/2 inch dimension signifies a significant upgrade in strength, rigidity, and compatibility with heavy-duty towing accessories. This larger cross-section provides increased material thickness and structural integrity, crucial for dissipating the immense forces generated during high-capacity towing. The larger bore accommodates drawbars, ball mounts, and other hitch accessories specifically designed for severe-duty applications, which themselves are engineered with thicker shanks and stronger materials to match the Class V towing demands.
The 2-1/2 inch receiver tube minimizes play between the hitch and the inserted accessory, reducing wear, rattling, and providing a more solid connection. This contributes to a smoother towing experience and prolongs the lifespan of both the hitch receiver and the attached accessories. The inclusion of a 5/8 inch hitch pin with cotter, provided with models featuring mounting plates, ensures a secure attachment for compatible components, preventing accidental disconnection and enhancing overall towing safety.
Material Science and Protective Coatings: Durability in Extreme Environments
Crafted from high-grade carbon steel, this Class 5 hitch receiver is built to endure. Carbon steel is selected for its superior tensile strength, yield strength, and fatigue resistance, properties essential for components subjected to constant dynamic loads, vibrations, and environmental stressors inherent in towing applications. The metallurgical composition ensures that the hitch maintains its structural integrity even under repeated heavy use and over extended operational lifespans.
Further enhancing its durability is the black powder-coated finish. This advanced coating technique involves applying a dry powder that is then cured under heat to create a hard, protective layer. Unlike traditional wet paints, powder coating offers exceptional resistance to abrasion, chipping, scratching, and, critically, corrosion. Service bodies and their components are frequently exposed to harsh weather conditions, road salts, chemicals, and debris, all of which can accelerate material degradation. The powder-coat finish acts as a formidable barrier, safeguarding the underlying carbon steel from rust and oxidation, thereby preserving the aesthetic appeal and, more importantly, the structural integrity and operational reliability of the hitch over many years of service. This commitment to robust materials and protective finishes underscores the product's design philosophy: maximum longevity and minimal maintenance requirements in demanding vocational settings.
Designed for Service Body Integration: The 62-Inch Width and Mounting Plates
The 62-inch width of this hitch receiver is a deliberate design choice, specifically tailored for the wider chassis and unique rear configurations of modern service bodies. Unlike standard pickup trucks, service bodies often feature specialized compartments, tool storage, and utility installations that necessitate a broader mounting platform for the hitch. The 62-inch dimension ensures proper fitment and structural alignment with the vehicle's frame, providing a stable and secure foundation for towing heavy loads. This width also ensures that the receiver tube is centrally positioned relative to the vehicle's rear, optimizing towing geometry and trailer tracking.

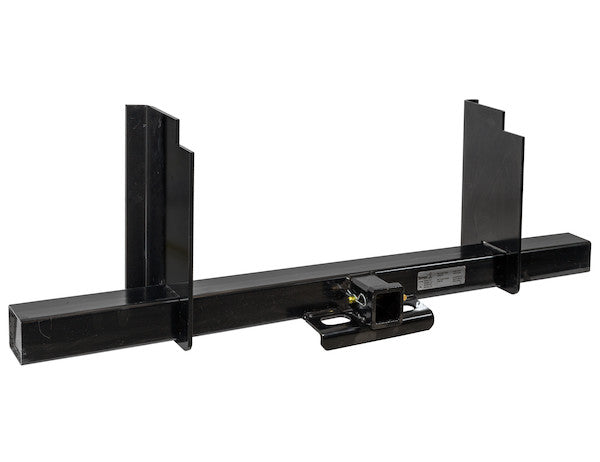

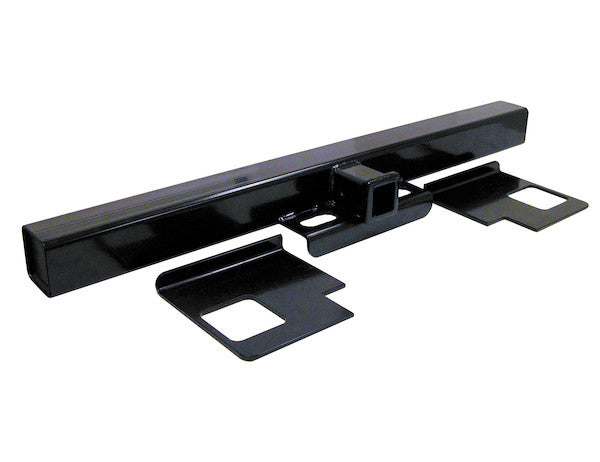

The inclusion of 9.50-inch tall mounting plates is another critical aspect of its design for service bodies. These plates, supplied unwelded, offer unparalleled customization and flexibility during installation. Service bodies exhibit significant variations in frame height, bumper styles, and auxiliary equipment placement. By providing unwelded plates, installers can precisely position and align the hitch receiver to the specific vehicle's frame, ensuring optimal ground clearance, proper bumper clearance, and robust attachment points. This "weld-on" mount type is preferred for heavy-duty applications because it creates a permanent, monolithic connection between the hitch and the vehicle's structural frame, distributing load forces more effectively than bolt-on solutions. The ability to customize the mounting plate position allows for adaptation to different bumper heights, including standard and "tall" bumper configurations, as noted in the product description.
Precision Installation: The Weld-On Advantage and Customization
The weld-on mount type is fundamental to the strength and adaptability of this service body hitch receiver. This installation method, while requiring professional welding expertise, offers distinct advantages for heavy-duty applications. Unlike bolt-on hitches that rely on fasteners and pre-drilled holes, a weld-on hitch becomes an integral part of the vehicle's frame. This creates a superior connection that can withstand higher dynamic loads, torsional stresses, and shear forces without the risk of bolt fatigue or loosening over time. The unwelded mounting plates allow skilled fabricators to:
- **Optimize Vertical Positioning:** Align the receiver tube precisely to achieve the desired hitch height for level trailer towing, compensating for vehicle suspension variations or specific trailer requirements.
- **Ensure Lateral Alignment:** Position the receiver perfectly centered with the vehicle's centerline for balanced load distribution and straight-line tracking.
- **Maximize Frame Engagement:** Weld the plates to the strongest sections of the service body frame, reinforcing the entire rear structure and maximizing the transfer of towing forces.
- **Accommodate Obstructions:** Navigate around existing vehicle components, fuel tanks, exhaust systems, or other chassis elements that might interfere with a fixed mounting design.
Comprehensive Applications and Operational Versatility
The Class 5, 62-inch Service Body Hitch Receiver is engineered for a diverse range of demanding applications where service bodies are the workhorse of the fleet. Its robust design and high capacity make it ideal for:
- **Construction Industry:** Towing mini excavators, skid steers, concrete mixers, portable generators, and material trailers to job sites.
- **Utility Services:** Transporting aerial lifts, trenchers, cable pullers, and specialized equipment for electrical, telecommunications, and gas line maintenance.
- **Landscaping and Arboriculture:** Hauling wood chippers, stump grinders, large dump trailers for debris removal, and heavy-duty equipment for site preparation.
- **Municipal and Government Fleets:** Supporting public works departments for road maintenance, park services, and emergency response, towing everything from arrow boards to portable command centers.
- **Heavy Haul and Expedited Freight:** Used on larger service trucks for transporting critical components or specialized machinery that requires significant towing power.
Safety, Compliance, and Longevity Considerations
Operating a Class V towing system demands adherence to stringent safety protocols. The Class 5, 62-Inch Service Body Hitch Receiver is designed to meet or exceed industry standards for strength and performance. However, ultimate towing safety depends on a holistic approach that includes:
- **Matching Components:** Ensuring that the trailer's Gross Vehicle Weight Rating (GVWR) and tongue weight are within the hitch's rated capacities, and that the tow vehicle's towing capacity and Gross Combined Weight Rating (GCWR) are not exceeded.
- **Proper Loading:** Correctly distributing the load on the trailer to achieve the recommended tongue weight (typically 10-15% of the GTW for conventional towing) for optimal stability.
- **Professional Installation:** As a weld-on component, proper installation by a qualified welding professional is paramount to guarantee the structural integrity of the mounting points and the safety of the entire towing system.
- **Regular Inspection:** Periodically checking the hitch receiver, mounting welds, hitch pin, and all towing accessories for signs of wear, damage, or corrosion. The powder-coat finish, while highly durable, should be maintained, and any chips or deep scratches should be addressed to prevent localized corrosion.
Detailed Specification Breakdown and Technical Significance
Each technical specification for this hitch receiver contributes to its overall performance and suitability for severe-duty applications:
- **Application Summary: Service Body:** This highlights the product's specialized design for the unique structural and functional requirements of service body trucks, which often feature reinforced frames and specialized rear compartments.
- **Class: Class V:** As detailed, this denotes the highest conventional towing capacity, affirming its capability to handle trailers up to 20,000 lbs. M.G.T.W. and 2,000 lbs. M.V.L.
- **Color: Black, Finish: Powder-Coat:** The aesthetic black finish is a result of the powder-coating process, which provides superior protection against environmental factors, abrasion, and chemicals, ensuring long-term durability and appearance.
- **M.G.T.W. (lbs.): 20,000:** Maximum Gross Trailer Weight specifies the total weight of the loaded trailer that the hitch is rated to safely tow. This substantial capacity is critical for vocational applications.
- **M.V.L. (lbs.): 2,000:** Maximum Vertical Load, or tongue weight, refers to the maximum downward force exerted by the trailer coupler on the hitch ball. This rating is crucial for maintaining vehicle stability and preventing undue stress on the rear axle.
- **Material: Carbon Steel:** The use of carbon steel ensures the necessary strength, rigidity, and fatigue resistance for heavy-duty towing, forming the foundation of its robust construction.
- **Mount Type: Weld-on:** This signifies a permanent, high-strength attachment method, allowing for superior load transfer and customization during installation, as opposed to bolt-on alternatives.
- **Mounting Plate Height (in.): 9.50:** These precisely engineered plates provide a substantial surface area for welding, contributing to the overall structural integrity and allowing for custom positioning to accommodate various frame configurations and bumper styles on service bodies.
- **Receiver Tube Size (in.): 2.5:** This larger receiver tube size is designed for heavy-duty applications, accommodating stronger drawbars and accessories, and providing increased material strength over smaller receiver sizes.
- **Width (in.): 62.00:** The generous width ensures optimal fitment and structural integration with the wider frames characteristic of service body trucks, allowing for proper load distribution and aesthetics.
Conclusion: A Strategic Investment for Vocational Excellence
The Class 5, 62-Inch Service Body Hitch Receiver from Buyers Products represents a strategic investment for any organization operating heavy-duty service vehicles. Its advanced engineering, high-capacity Class V rating, robust carbon steel construction with corrosion-resistant powder coating, and adaptable weld-on mounting system combine to deliver a towing solution that stands apart. Designed specifically for the demanding environment of service body applications, it provides the necessary strength, reliability, and customizability to safely and efficiently tow the heaviest loads encountered in construction, utility, landscaping, and municipal operations. By choosing this meticulously engineered hitch receiver, operators are not just acquiring a towing component; they are investing in enhanced operational capability, uncompromising safety, and long-term durability, ensuring that their service vehicles remain at the forefront of productivity and performance.
