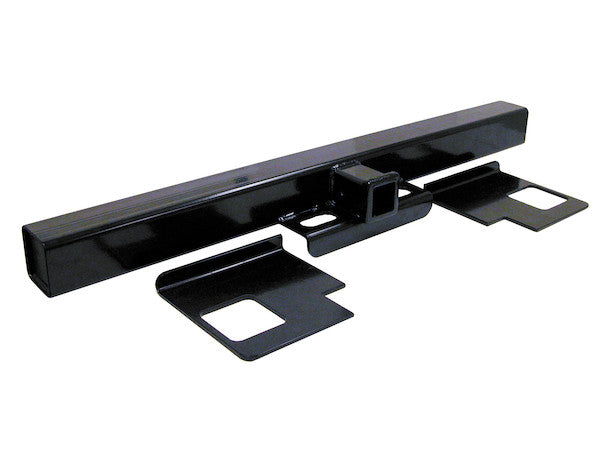

The Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 20,000 lb. It has a black powder-coated finish for corrosion resistance. The receiver is available in 44 in. or 62 in. lengths. The 44 in. model is sold with or without mounting plates, and is black powder coated or available unpainted. The ones sold without mounting plates have no rating listed because the installer needs to fabricate their own mounting brackets. The 62 in. model is sold with standard or tall mounting plates to suit different bumper styles. Plates ship unwelded so you can position them to fit your specific application. All models accept 2-1/2 in. hitches and accessories. Those that come with mounting plates also include a 5/8 in. hitch pin with cotter.
Specifications
| Application Summary | Service Body |
|---|---|
| Class | Class V |
| Color | Black |
| Finish | Powder-Coat |
| M.G.T.W. (lbs.) | 20,000 |
| M.V.L. (lbs.) | 2,000 |
| Material | Carbon Steel |
| Mount Type | Weld-On |
| Mounting Plate Height (in.) | 18.29 |
| Receiver Tube Size (in.) | 2.5 |
| Width (in.) | 62.00 |

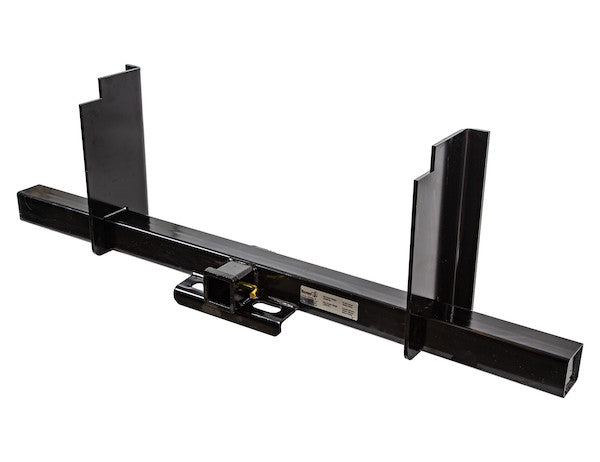

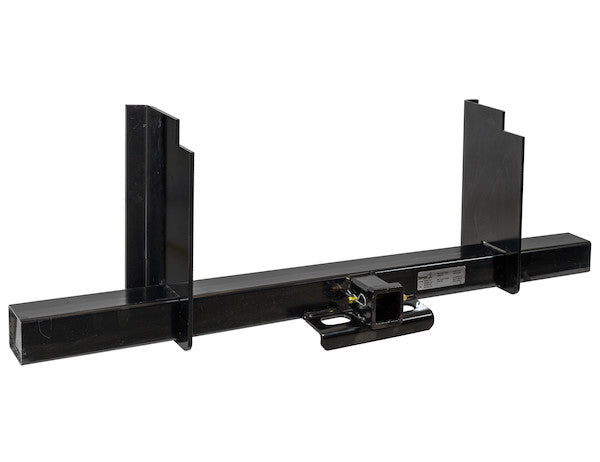

The Class 5 62 Inch Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube and 18 Inch Mounting Plates from Buyers Products represents the pinnacle of heavy-duty towing solutions designed specifically for demanding commercial and industrial applications. Engineered for robust performance and unparalleled versatility, this hitch receiver is an essential component for service body vehicles requiring exceptional towing capacity and structural integrity. This comprehensive description delves into the technical specifications, design advantages, operational benefits, and installation considerations that distinguish this product as a leading choice in its category.
At the core of this hitch receiver's capability is its Class 5 rating, signifying its readiness for the most arduous towing tasks. According to the Society of Automotive Engineers (SAE) J684 standard, Class 5 hitches are designed for Gross Trailer Weights (GTW) exceeding 10,000 pounds, often extending up to 20,000 pounds or more, and a Maximum Vertical Load (MVL), commonly known as tongue weight, up to 2,000 pounds or higher. This specific model boasts an impressive Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs. and a Maximum Vertical Load (M.V.L.) of 2,000 lbs., firmly placing it in the super-heavy-duty category. This capacity ensures that the receiver can safely accommodate large commercial trailers, heavy construction equipment, multi-axle utility trailers, or substantial material transport systems without compromising structural integrity or operational safety. The meticulous engineering behind these ratings ensures a significant safety margin when operated within the specified limits, though it is always critical to ensure the towing vehicle's actual towing capacity meets or exceeds these requirements for a balanced and safe towing setup. Exceeding these specified weight limits can lead to catastrophic structural failure, rendering the vehicle and towed apparatus unsafe for operation and potentially violating regulatory standards.

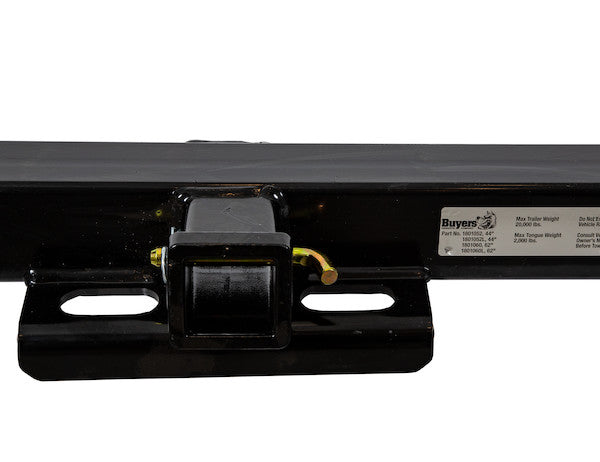

The integral 2-1/2 inch receiver tube is a critical design feature distinguishing this unit from standard light-duty or medium-duty hitches. While 2-inch receiver tubes are common, the 2-1/2 inch dimension offers a significant advantage in terms of load bearing, torsional rigidity, and overall strength, particularly for Class 5 applications. This larger cross-section distributes stress over a greater surface area, minimizing material fatigue and enhancing the coupling's resistance to bending and twisting forces under dynamic towing conditions. It is engineered to accept standard 2-1/2 inch hitch shanks, typically utilized with heavy-duty ball mounts, pintle hooks, weight distribution systems, or specialized towing accessories designed for substantial loads. The precise manufacturing tolerances of the receiver tube ensure a snug fit with compatible accessories, reducing play and mitigating wear, which contributes to a more stable and controlled towing experience. For applications requiring compatibility with 2-inch accessories, a robust reducer sleeve is often available, allowing for versatility while maintaining the structural benefits of the larger receiver tube.

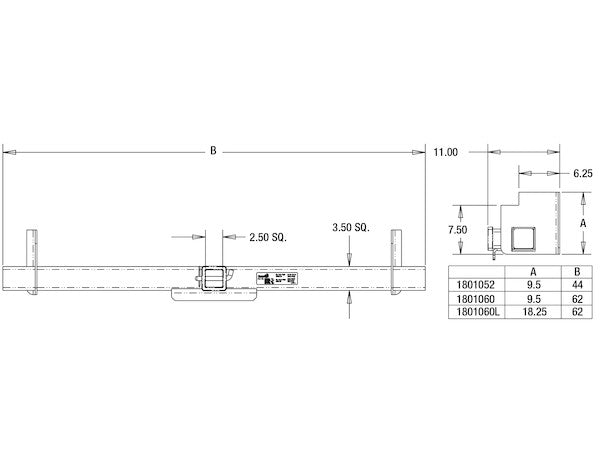

Measuring an expansive 62 inches in width, this hitch receiver is specifically dimensioned for service body vehicles, which often feature wider frames or integrated utility components that necessitate a broader mounting platform. The generous width allows for optimal integration into the vehicle's chassis, ensuring that towing forces are distributed effectively across the frame rails. This is particularly crucial for service bodies, where the rear of the vehicle may be subject to significant structural modifications to accommodate tool compartments, cranes, or other specialized equipment. The 62-inch length provides ample span to locate strong, reinforced points on the vehicle's frame for secure welding, which is paramount for the integrity of a Class 5 towing system. Compared to shorter receivers, the extended length facilitates greater adaptability in custom installations, ensuring compatibility with a diverse array of service body designs and bumper configurations.

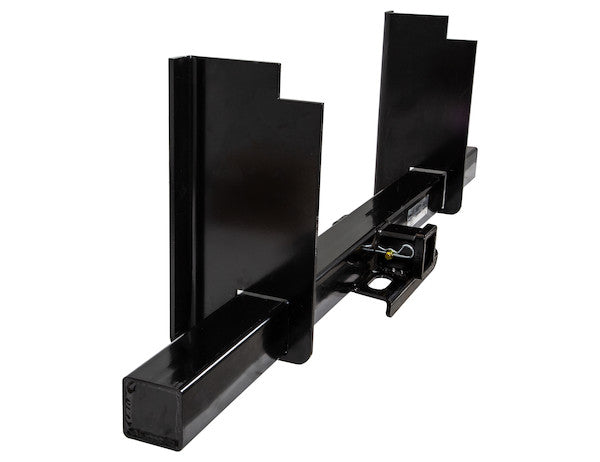

A distinctive and highly advantageous aspect of this specific model is the inclusion of 18-inch mounting plates, provided unwelded. The 18.29-inch height of these plates is engineered to offer substantial vertical reach, accommodating varying frame depths and bumper styles prevalent on commercial service bodies. This flexibility ensures that the receiver can be optimally positioned beneath the vehicle, clearing any obstructions and aligning precisely with the vehicle's structural frame. The strategic decision to ship these mounting plates unwelded is a testament to the product's emphasis on customizability and precision installation. Unlike pre-welded units that offer limited adjustability, the unwelded plates empower professional installers to precisely position the receiver relative to the vehicle's specific frame rails, cross members, and bumper geometry. This bespoke approach allows for exact alignment, maximizing the strength and load-distributing capabilities of the hitch receiver assembly and preventing any undue stress concentrations. Professional welding is required for installation, ensuring a permanent and structurally sound connection that integrates the receiver seamlessly into the vehicle's chassis, providing superior strength and rigidity compared to bolt-on solutions, especially under the extreme loads characteristic of Class 5 applications. The carbon steel material used for both the receiver and the mounting plates offers an optimal balance of high tensile strength, yield strength, and excellent weldability, which is essential for forming robust, enduring connections.
The robust construction is further enhanced by a black powder-coated finish, which serves both aesthetic and functional purposes. Powder coating is a highly durable and environmentally friendly finishing process that electrostatically applies a dry powder, typically polyester or epoxy, to the carbon steel substrate. This coating is then cured under heat, creating a hard, resilient layer that is significantly more resistant to corrosion, chipping, scratching, and fading than traditional liquid paints. For a Class 5 hitch receiver operating in demanding commercial environments, exposure to road salts, moisture, gravel, industrial chemicals, and various weather conditions is inevitable. The powder coat acts as a formidable barrier, protecting the underlying carbon steel from rust and degradation, thereby extending the service life of the product and maintaining its structural integrity over years of rigorous use. Furthermore, the sleek black finish provides a professional appearance, complementing the utilitarian design of service vehicles.
The choice of carbon steel as the primary material for this hitch receiver is a deliberate engineering decision based on its mechanical properties. Carbon steel offers an excellent strength-to-weight ratio, high ductility, and superior fatigue resistance, which are critical for components subjected to repetitive dynamic loads during towing operations. Its inherent toughness allows it to absorb and distribute significant stresses without brittle fracture. For weld-on applications, the specific grade of carbon steel chosen ensures optimal weld penetration and strong fusion, resulting in a monolithic structure once installed correctly. This material consistency guarantees that the receiver will perform reliably under its rated capacity, providing long-term dependability for commercial fleets and operators.
Installation of this Class 5 hitch receiver requires professional expertise, particularly due to its weld-on mounting type and the need for precise positioning of the unwelded plates. A qualified welder experienced in heavy truck or trailer fabrication is essential. The process typically involves preparing the vehicle's frame, precisely mocking up the receiver and mounting plates to ensure optimal alignment with the vehicle's chassis and any existing bumper structures, and then executing high-quality, full-penetration welds. Proper welding techniques, including appropriate heat input and filler material, are paramount to achieving the rated strength and preventing stress risers. Furthermore, consideration must be given to any potential interference with fuel tanks, exhaust systems, wiring, or other vehicle components. The customized weld-on approach ensures that the receiver becomes an integral, load-bearing part of the vehicle's frame, providing a level of security and strength often unattainable with bolt-on systems, which can be prone to loosening or localized stress under extreme conditions.
The included 5/8 inch hitch pin with cotter is a thoughtful addition for models equipped with mounting plates, ensuring that users have the necessary hardware for immediate use. This pin size is standard for 2-1/2 inch receiver applications, designed to securely fasten the hitch shank within the receiver tube. Manufactured from hardened steel, it provides the requisite shear strength to handle the lateral and longitudinal forces exerted by heavy trailers. The cotter pin mechanism ensures that the main hitch pin remains firmly in place during travel, preventing accidental disengagement and maintaining the integrity of the trailer connection.
Beyond its robust construction and high capacity, this hitch receiver offers significant operational advantages for service body vehicles. It transforms a utilitarian vehicle into a versatile towing platform, allowing businesses to transport diverse equipment, from generators and air compressors to trailers laden with tools, materials, or even other vehicles. This versatility eliminates the need for dedicated towing vehicles in many scenarios, optimizing fleet efficiency and reducing operational costs. For industries such as construction, landscaping, municipal services, utility maintenance, and heavy equipment transport, the ability to reliably tow substantial loads directly from a service body is invaluable. The durable powder-coated finish and heavy-duty carbon steel construction also contribute to a lower total cost of ownership, as the product is designed for longevity and minimal maintenance, even in harsh working environments.
Safety is paramount in any towing operation, and the design of this Class 5 receiver inherently supports best practices. Its high rating provides confidence when towing within limits, and the secure weld-on installation minimizes points of failure. Users are reminded to always adhere to all applicable state and federal towing regulations, conduct pre-trip inspections of all towing components, ensure proper trailer braking systems are in place and operational (especially for heavy loads), and distribute trailer loads correctly to maintain appropriate tongue weight. While the receiver itself is rated for substantial loads, the overall towing capacity is always limited by the lowest-rated component in the system, which includes the vehicle's chassis, tires, axles, and suspension system.
In conclusion, the Class 5 62 Inch Service Body Hitch Receiver from Buyers Products represents an expertly engineered and meticulously manufactured solution for the most demanding commercial towing requirements. Its formidable 20,000 lb. M.G.T.W. and 2,000 lb. M.V.L., coupled with a 2-1/2 inch receiver tube, are specifically tailored for heavy-duty applications. The 62-inch width and customizable 18-inch unwelded mounting plates provide unmatched flexibility for integration with diverse service body designs. Constructed from high-strength carbon steel and protected by a durable black powder-coat finish, this receiver is built for longevity and unwavering performance in the harshest environments. For businesses and professionals who depend on their service vehicles for both utility and heavy towing, this hitch receiver offers an optimal blend of strength, adaptability, and long-term reliability, making it an indispensable asset for enhancing operational capabilities.
