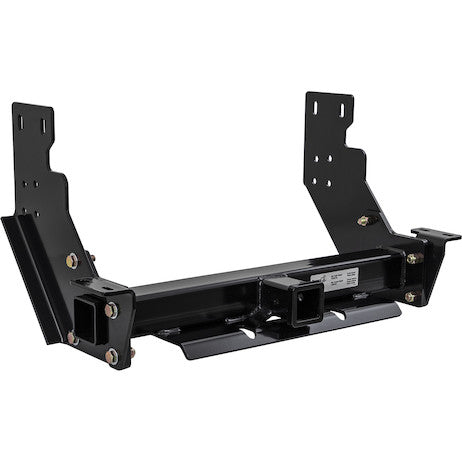

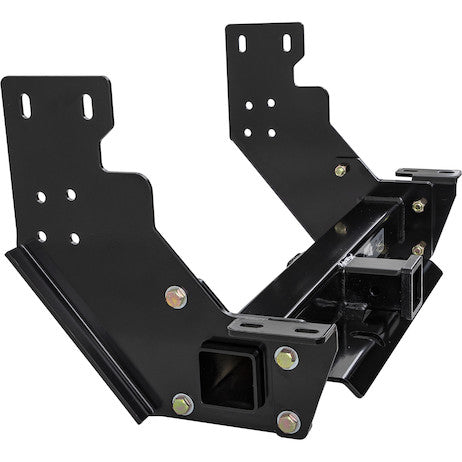

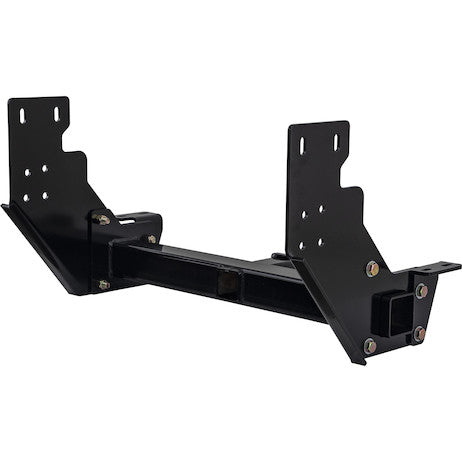

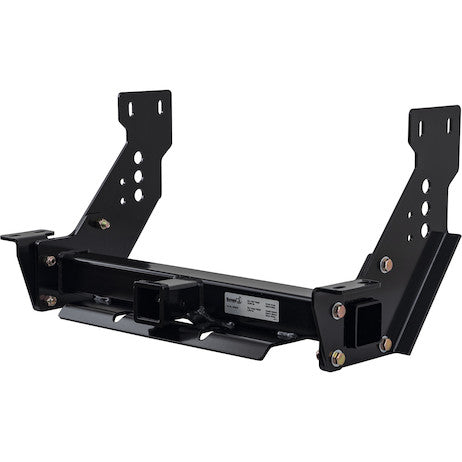

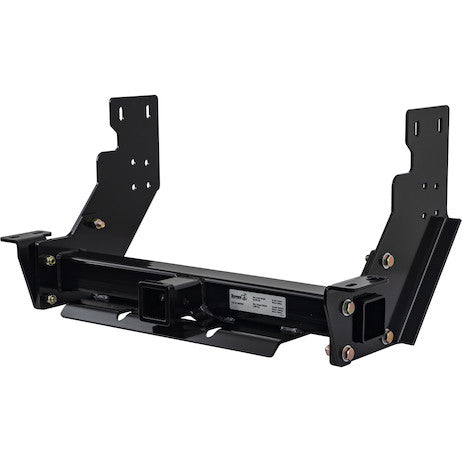

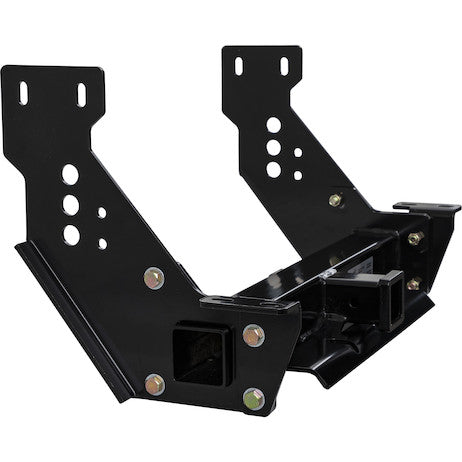

The Buyers Products Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube is rated up to 20,000 lb. Fits cab & chassis with 60in. or 84in. CA (Cab-to-Axle dimensions). It has a black powder-coated finish for corrosion resistance.
Specifications
| Application Summary | Ford?? F350, F450, F550 Service Body |
|---|---|
| Class | Class V |
| Color | Black |
| Depth (in.) | 20 |
| Finish | Powder-Coat |
| Height (in.) | 20.16 |
| M.G.T.W. (lbs.) | 20,000 |
| M.V.L. (lbs.) | 2,000 |
| Make | Ford?? |
| Material | Carbon Steel |
| Model | F-350 - F-550 |
| Mount Type | Bolt-on |
| Receiver Tube Size (in.) | 2.5 |
| Style | Cab & Chassis Service Body |
| Width (in.) | 40.28 |
Advanced Engineering for Heavy-Duty Towing: The Class 5 Service Body Hitch Receiver for Ford F-Series Cab & Chassis
The Buyers Products Class 5 Service Body Hitch Receiver represents a pinnacle of towing utility and robust engineering, meticulously designed for the demanding requirements of commercial and vocational applications. This highly specialized hitch receiver is engineered to integrate seamlessly with Ford F-350, F-450, and F-550 Cab & Chassis platforms, particularly those equipped with service bodies. With an impressive Maximum Gross Trailer Weight (M.G.T.W.) rating of 20,000 lbs. and a Maximum Vertical Load (M.V.L.), or tongue weight, of 2,000 lbs., this unit is built to facilitate the heaviest towing tasks encountered in professional environments, from construction sites to municipal operations and utility services.
Understanding Class 5 Towing Capabilities
The designation of "Class 5" is not merely a label but an adherence to stringent industry standards, primarily defined by the Society of Automotive Engineers (SAE) J684 standard for trailer hitches. Class 5 hitches are engineered for the most extreme towing demands, exceeding the capacities of Class 1, 2, 3, and 4 systems. A 20,000 lb. M.G.T.W. rating signifies the maximum combined weight of the trailer and its cargo that the hitch can safely pull. Simultaneously, the 2,000 lb. M.V.L. rating indicates the maximum downward force that can be exerted on the hitch ball by the trailer’s tongue. This dual rating is critical for ensuring both the structural integrity of the hitch under pulling forces and its ability to manage vertical stability without compromising the tow vehicle’s chassis or suspension geometry. For commercial operators, understanding and adhering to these specifications is paramount for legal compliance, operational safety, and preventing premature wear on both the vehicle and the hitch system. This Class 5 receiver is designed with a substantial safety factor, ensuring reliable performance even under continuous heavy use, making it an indispensable asset for fleets where uptime and performance are critical.
The Significance of the 2-1/2 Inch Receiver Tube
A defining feature of this Class 5 hitch receiver is its 2-1/2 inch by 2-1/2 inch receiver tube opening. While 2-inch receivers are common for light to medium-duty towing, the larger 2-1/2 inch dimension is a hallmark of heavy-duty and super-duty applications. This increased cross-sectional area provides several critical advantages. Firstly, it allows for the use of thicker-walled receiver tube material, significantly enhancing its resistance to bending, torsion, and shear forces generated by substantial trailer loads. This translates to reduced flex and improved stability during acceleration, braking, and cornering, which are amplified with heavier trailers. Secondly, the 2-1/2 inch standard accommodates a specialized range of heavy-duty towing accessories, including robust ball mounts, pintle hook combinations, and advanced weight distribution systems that are specifically designed to handle the greater loads associated with Class 5 towing. These accessories are often constructed with larger shanks and more robust materials, providing a more secure and stable connection to the trailer. The larger receiver also inherently minimizes play between the hitch accessory and the receiver tube, contributing to a more controlled and safer towing experience by reducing shock loads and undesirable trailer movement.
Precision Engineering for Ford F-Series Cab & Chassis
This hitch receiver is meticulously engineered for specific integration with Ford F-350, F-450, and F-550 Cab & Chassis configurations. Unlike conventional pickup trucks, Cab & Chassis models are factory-designed with an open frame behind the cab, intended to accommodate a wide array of vocational bodies such as service bodies, flatbeds, dump bodies, and utility configurations. This specific design necessitates a hitch solution that accounts for the unique frame architecture and the potential interferences from the custom bodywork. The product is precisely tailored to fit vehicles with either 60-inch or 84-inch Cab-to-Axle (CA) dimensions. The CA measurement is a critical parameter, defining the distance from the rear of the truck cab to the centerline of the rear axle. This precise fitment ensures optimal positioning of the hitch receiver, allowing for proper ground clearance, departure angle, and compatibility with the service body's rear structure and bumper systems. The bolt-on mounting mechanism is designed to align with existing frame rail attachment points where possible, or to require minimal, precise drilling, ensuring a structurally sound connection that maintains the integrity of the vehicle's frame. This bespoke fitment mitigates installation complexities often associated with aftermarket modifications and guarantees that the hitch functions as an integral, reinforced component of the vehicle's chassis, rather than a mere add-on.
Robust Carbon Steel Construction for Extreme Durability
The selection of carbon steel as the primary construction material for this Class 5 hitch receiver is a deliberate choice driven by the need for exceptional strength and durability in heavy-duty applications. Carbon steel, known for its high tensile strength and yield strength, is ideally suited to withstand the immense static and dynamic forces inherent in towing 20,000 lbs. The precise grade of carbon steel utilized is optimized for structural rigidity, ensuring that the hitch can endure constant vibrations, sudden impacts, and prolonged stress cycles without deformation or fatigue failure. Advanced manufacturing processes, including precision laser cutting, forming, and robotic welding, are employed to create a unit with superior structural integrity and dimensional accuracy. These fabrication techniques ensure that all load-bearing components are uniformly strong and that critical attachment points are perfectly aligned. The inherent properties of carbon steel, coupled with stringent quality control during manufacturing, contribute to a component that offers unparalleled longevity and reliability, even when subjected to the harshest environmental and operational conditions typical of commercial vehicles. This material choice underscores the commitment to providing a product that not only meets but exceeds the performance expectations for severe-duty towing.
Advanced Corrosion Protection: Black Powder-Coated Finish
Recognizing that heavy-duty commercial vehicles frequently operate in challenging environments exposed to moisture, road salts, chemicals, and abrasive debris, this hitch receiver is protected with a premium black powder-coated finish. Powder coating is a highly advanced finishing process that offers substantially superior protection compared to conventional liquid paint. The process involves electrostatically applying a dry powder (a mixture of finely ground particles of pigment and resin) to the pre-treated metal surface. The components undergo rigorous surface preparation, including cleaning and phosphating, to ensure optimal adhesion. Once applied, the parts are then cured in a high-temperature oven, where the powder melts and flows into a uniform, durable, and aesthetically pleasing coating. This thermoset polymer layer provides exceptional resistance to corrosion, chipping, scratching, and fading from UV exposure. The robust nature of the powder coat ensures that the hitch receiver maintains its structural integrity and appearance over many years of service, even when subjected to harsh weather conditions and constant abuse. This durable finish not only extends the product's operational lifespan but also minimizes maintenance requirements, offering a significant advantage in terms of total cost of ownership for commercial fleets.
Strategic Applications and Industry Versatility
The Class 5 Service Body Hitch Receiver is an indispensable tool across a broad spectrum of industries that rely on heavy-duty Ford F-Series Cab & Chassis vehicles. Its robust design and formidable towing capacity make it ideal for:
- Construction & Excavation: Facilitating the transportation of heavy equipment such as mini excavators, skid steers, compact track loaders, and large material trailers to and from job sites. The ability to tow substantial weights ensures that vital machinery and materials can be moved efficiently, reducing logistical bottlenecks.
- Utility Services: Essential for electrical, telecommunications, gas, water, and public works departments. It enables the towing of specialized equipment trailers carrying generators, aerial lift equipment, trenchers, cable pullers, and mobile workshops. The reliability of the hitch is critical for maintaining infrastructure and responding to emergencies.
- Landscaping & Tree Services: Capable of handling large chippers, stump grinders, heavy-duty dump trailers filled with debris, and equipment for irrigation and ground maintenance. This enhances productivity and allows for the efficient management of extensive landscaping projects.
- Municipal & Government Fleets: Employed by various municipal departments for road maintenance, park services, waste management, and emergency response. It supports towing specialized trailers for traffic control, street sweeping, snow removal attachments, and mobile command units.
- Commercial Transport & Logistics: For businesses that frequently move heavy goods, specialized cargo, or industrial components. The secure and high-capacity connection ensures that valuable loads are transported safely and efficiently.
Integrated Design and Performance Optimization
The design philosophy behind this Class 5 hitch receiver extends beyond mere strength; it encompasses a holistic approach to vehicle integration and performance optimization. The precise dimensions (Depth: 20 in., Height: 20.16 in., Width: 40.28 in.) are not arbitrary but are carefully calculated to ensure optimal fitment within the confines of various service body designs, minimizing interference with existing vehicle components like exhaust systems, fuel tanks, and spare tire carriers (where applicable for the service body). The bolt-on mount type offers significant advantages. It provides a secure, direct connection to the vehicle’s robust frame rails, distributing towing forces efficiently across the chassis. This method also allows for relatively straightforward installation by qualified technicians, and potential future removal or maintenance without requiring complex fabrication. Furthermore, the design considers the dynamic aspects of towing, aiming to reduce stress concentrations and vibration transmission to the vehicle chassis. By effectively distributing the load, the hitch contributes to overall vehicle stability and handling characteristics, even when operating at its maximum towing capacity. This integrated design approach ensures that the hitch receiver not only performs its primary function flawlessly but also enhances the overall operational safety and longevity of the entire tow vehicle system.
Installation Best Practices and Maintenance Guidelines
Given the critical role and high load capacities of a Class 5 hitch receiver, professional installation is strongly recommended to ensure optimal performance and safety. Installation involves precise alignment with the vehicle's frame, proper torqueing of high-strength fasteners to manufacturer specifications, and often requires specialized tools and expertise. While the bolt-on design simplifies the process compared to welding, adherence to the supplied instructions and, if necessary, professional assistance from a certified upfitter or mechanic, is paramount. Incorrect installation can compromise the structural integrity of both the hitch and the vehicle’s chassis, potentially leading to catastrophic failure under load. For ongoing maintenance, a routine inspection regimen is advisable. This includes visually checking the hitch receiver for any signs of physical damage, cracks, or excessive wear, particularly around welded joints and mounting points. The powder-coated finish should be inspected for deep scratches or chips that could expose the underlying steel to corrosion. Crucially, all mounting bolts should be periodically checked for correct torque specifications, as vibrations and heavy use can sometimes lead to loosening over time. Keeping the receiver tube clean and free of rust or debris ensures smooth insertion of hitch accessories and helps prevent seizing. Adhering to these simple maintenance guidelines will significantly extend the service life of the hitch receiver and ensure its continued safe and reliable operation.
Commitment to Quality and Performance
The Buyers Products Class 5 Service Body Hitch Receiver embodies a commitment to uncompromising quality, superior engineering, and robust performance for the most demanding towing applications. Every aspect, from material selection to manufacturing processes and protective finishes, is optimized to deliver a product that exceeds industry expectations for durability, reliability, and safety. By providing a specifically designed, high-capacity towing solution for Ford F-350, F-450, and F-550 Cab & Chassis vehicles equipped with service bodies, Buyers Products empowers commercial operators to tackle their heaviest tasks with confidence. This hitch receiver is not merely an accessory; it is a fundamental component designed to integrate seamlessly into the workflow of commercial fleets, enhancing their operational capabilities and contributing significantly to productivity and efficiency. Investing in this Class 5 hitch receiver means investing in a foundation of strength and dependability for years of rigorous commercial service, ensuring that your valuable equipment and materials are transported securely and efficiently, regardless of the challenges encountered on the job. This product stands as a testament to advanced engineering dedicated to supporting the backbone of industrial and vocational operations.
