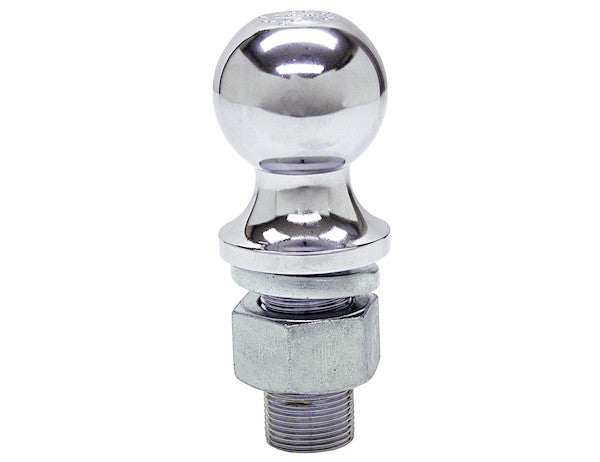

Chrome Hitch Balls from Buyers Products are available in all standard sizes to handle virtually any towing application. All hitch balls feature wear-resistant chrome plating for durability and style. They are packaged individually.
Specifications
| Ball Diameter (in.) | 2-5/16 |
|---|---|
| Ball Finish | Chrome |
| M.G.T.W. (lbs) | 10,000 |
| Material | Carbon Steel |
| Shank Diameter (in.) | 1.25 |
| Shank Length (in.) | 2.75 |
In the demanding world of trailer towing, the hitch ball serves as the linchpin of the entire system, a critical component whose integrity directly dictates the safety and efficiency of transportation. The Buyers Products 2-5/16 Inch Chrome Hitch Ball with a 1-1/4 Inch Shank Diameter and 2-3/4 Inch Length is engineered to meet and exceed the rigorous performance standards required for medium to heavy-duty towing applications. This technically sophisticated component is not merely an accessory but a precision-engineered device designed for robust performance, exceptional durability, and steadfast reliability under varied operational conditions. Its meticulous construction, from material selection to surface finish, reflects a profound understanding of the dynamic forces and environmental challenges inherent in towing.
The Foundational Role of the Hitch Ball in Towing Dynamics
The hitch ball is the pivotal interface between the tow vehicle's hitch receiver and the trailer's coupler, facilitating the transfer of both longitudinal tractive forces and vertical tongue weight. Given its singular point of connection, the design and material integrity of the hitch ball are paramount. The Buyers Products 2-5/16 Inch Chrome Hitch Ball is specifically designed to handle a Maximum Gross Trailer Weight (M.G.T.W.) of 10,000 pounds, making it an indispensable component for a wide array of towing tasks, including but not limited to utility trailers, boat trailers, construction equipment, and larger recreational vehicles. Its design incorporates specific dimensional characteristics that adhere to industry standards, ensuring broad compatibility and secure engagement with appropriately matched trailer couplers.
Detailed Engineering Specifications and Their Significance
Ball Diameter: 2-5/16 Inches – Precision for Optimal Engagement
The 2-5/16 inch ball diameter is a standard specification for many medium to heavy-duty towing setups, meticulously engineered to mate precisely with trailer couplers of the same internal dimension. This precise dimensional matching is crucial for minimizing play between the ball and coupler, which if excessive, can lead to accelerated wear, increased impact loads, and potentially hazardous disengagement. Industry standards, such as SAE J684, dictate the dimensional tolerances for hitch balls and couplers to ensure a secure and reliable connection. The spherical geometry of the ball is critical for allowing articulation during turns, preventing binding, and distributing loads evenly across the contact surfaces. The selection of the 2-5/16 inch diameter is indicative of the ball's intended application within a specific range of towing capacities, directly influencing the contact area available to bear the vertical tongue weight and withstand the shear forces generated during acceleration, braking, and cornering. Any deviation from this precise diameter in either the ball or the coupler can compromise the integrity of the connection, leading to premature wear on both components and significantly increasing the risk of mechanical failure. Buyers Products ensures that this critical dimension is held to tight manufacturing tolerances, guaranteeing a consistently secure and predictable coupling.
Shank Diameter: 1-1/4 Inches – The Column of Strength
The shank is the threaded cylindrical component that extends below the ball, designed to pass through the mounting hole of the ball mount and be secured with a nut. A shank diameter of 1-1/4 inches (1.25 inches) is indicative of a robust design, typically corresponding to higher M.G.T.W. ratings. The diameter of the shank is directly related to its ability to resist shear forces, bending moments, and tensile stresses induced by the trailer's weight and dynamic movements. A larger shank diameter provides a greater cross-sectional area, enhancing its inherent strength and reducing stress concentration. This particular shank diameter is commonly specified for ball mounts designed for higher capacity towing, ensuring that the entire towing system maintains a consistent strength profile. The material properties of the carbon steel used for the shank, combined with its substantial diameter, are critical in preventing deformation, fatigue, and catastrophic failure under maximum rated loads. The threading on the shank is precisely cut to ensure full engagement with the securing nut, providing a reliable and robust mechanical lock. The choice of a 1-1/4 inch shank is a deliberate engineering decision to provide a substantial foundation for the 10,000 lb M.G.T.W. rating, contributing significantly to the overall structural integrity of the hitch assembly.
Shank Length: 2-3/4 Inches – Optimal Thread Engagement and Clearance
The shank length of 2-3/4 inches (2.75 inches) is a crucial specification often overlooked, yet vital for proper installation and safety. This length ensures sufficient thread engagement with the securing nut, particularly when used with thicker ball mounts. Adequate thread engagement is paramount for distributing the clamping force effectively and preventing thread stripping under dynamic loads. Insufficient shank length might prevent the nut from fully engaging all available threads, or worse, from being adequately tightened, leading to a loose connection. Conversely, an excessively long shank might protrude too far, potentially interfering with other components or reducing ground clearance in some applications. The 2-3/4 inch length is optimized to accommodate a wide range of ball mount thicknesses, ensuring that after the ball is properly seated and the lock washer is in place, there is ample thread available for the nut to be torqued to its specified value. This precise length facilitates full compression of the lock washer and ensures that the nut's locking features are fully engaged, thereby preventing loosening due to vibration and road shock. This thoughtful dimensioning underscores the product's commitment to secure and enduring performance.
Material Science: Carbon Steel – The Core of Unyielding Strength
The selection of carbon steel as the base material for this hitch ball is fundamental to its high performance and durability. Carbon steel is a highly versatile and widely utilized engineering material known for its excellent balance of strength, hardness, and ductility. Specifically, the grade of carbon steel chosen for hitch balls is typically a medium-carbon or alloy steel, which, through appropriate heat treatment processes such as forging and tempering, can achieve exceptional mechanical properties. Forging, a manufacturing process involving the shaping of metal through localized compressive forces, is often employed for hitch balls. This process refines the grain structure of the steel, eliminating internal voids and creating a directional grain flow that aligns with the contours of the ball, significantly enhancing its tensile strength, yield strength, and fatigue resistance. These properties are critical for a component that will experience repetitive static and dynamic loads, including vertical tongue weight, longitudinal tractive forces, and lateral forces during turns. The high tensile strength ensures the ball can withstand the maximum rated pulling forces without material failure, while adequate yield strength prevents permanent deformation under stress. The inherent toughness of carbon steel also allows it to absorb impact energy without brittle fracture, a crucial characteristic for safety in unpredictable towing environments. The robust nature of carbon steel provides the foundational strength necessary for a 10,000 lb M.G.T.W. rating, ensuring that the hitch ball remains a reliable link in the towing chain for countless miles.
Surface Treatment: Chrome Plating – Aesthetics Meets Endurance and Corrosion Resistance
The wear-resistant chrome plating applied to the Buyers Products hitch ball serves a dual purpose: enhancing aesthetic appeal and, more critically, providing superior protection against environmental degradation. Chrome plating is a sophisticated electroplating process, typically involving multiple layers, where a nickel layer is first applied to the carbon steel substrate, followed by a thin, hard layer of chromium. The underlying nickel layer provides significant corrosion resistance and contributes to the overall brightness and luster of the finish. The outer chromium layer is exceptionally hard, offering excellent resistance to abrasion, wear, and scratching, which is vital for a component subject to constant friction and mechanical contact with the trailer coupler. Beyond its aesthetic qualities, the chrome finish significantly retards the processes of oxidation and corrosion, protecting the carbon steel from rust caused by exposure to moisture, road salts, chemicals, and other harsh environmental elements encountered during towing. This enhanced corrosion resistance ensures the structural integrity of the hitch ball is preserved over time, maintaining its precise dimensions and smooth surface, which is essential for consistent coupling and uncoupling. Furthermore, the low coefficient of friction of chrome can slightly aid in the coupling process and reduce wear on both the hitch ball and the interior of the trailer coupler. This durable finish not only maintains the product's appearance but also contributes directly to its long-term functional reliability and safety, underscoring Buyers Products' commitment to engineering components that perform robustly under challenging conditions.
Load Rating: M.G.T.W. 10,000 lbs – The Benchmark of Capacity and Safety
The Maximum Gross Trailer Weight (M.G.T.W.) rating of 10,000 pounds is the most critical specification for any hitch ball, representing the absolute maximum weight of the fully loaded trailer that the hitch ball is engineered to safely tow. This rating is not an arbitrary figure but the result of extensive engineering calculations, material testing, and adherence to industry safety factors. The M.G.T.W. is a conservative rating, meaning the actual breaking strength of the component is significantly higher than its rated capacity, incorporating substantial safety margins to account for dynamic loads, unforeseen stresses, and variations in operating conditions. It is imperative that the M.G.T.W. of the hitch ball is never exceeded, as doing so can lead to material fatigue, deformation, or catastrophic failure, posing severe safety risks. Furthermore, the M.G.T.W. of the hitch ball must always be considered in conjunction with the ratings of all other components in the towing system: the vehicle's towing capacity, the hitch receiver's rating, the ball mount's rating, and the trailer's Gross Vehicle Weight Rating (GVWR). The weakest link in this chain dictates the overall maximum towing capacity of the entire setup. The 10,000 lb M.G.T.W. rating positions this hitch ball firmly in the heavy-duty category, suitable for a wide range of demanding towing operations where reliability and robust load-bearing capacity are non-negotiable. This rating also implicitly considers the Vertical Tongue Weight (V.T.W.), which typically ranges from 10% to 15% of the M.G.T.W., ensuring the ball can adequately support the downward force exerted by the trailer on the coupling point.
Installation, Maintenance, and Safety Protocols
Proper installation and diligent maintenance are as critical to safe towing as the quality of the hitch ball itself. When installing the Buyers Products 2-5/16 Inch Chrome Hitch Ball, it is essential to follow specific procedures to ensure maximum security and performance. The ball's shank must be inserted through the appropriately sized hole in the ball mount, typically 1-1/4 inches. A lock washer (or Belleville washer) and securing nut must then be placed onto the threaded shank. The nut must be torqued to the manufacturer's specified value, which for a 1-1/4 inch shank is typically very high (often exceeding 400 ft-lbs), to achieve the necessary clamping force. Using a calibrated torque wrench is indispensable for this step, as under-tightening can lead to loosening and wear, while over-tightening can damage threads or deform the ball mount. Regular inspection of the hitch ball is vital. Before each towing trip, inspect the ball for any signs of wear, pitting, cracks, or corrosion, particularly around the spherical surface and the shank-to-ball junction. Any significant wear or damage warrants immediate replacement. The chrome plating should also be checked for flaking or damage that could expose the underlying carbon steel to corrosion. After towing, a quick cleaning to remove road grime, salt, and debris will help preserve the chrome finish and prevent premature wear. Lubrication of the ball with a high-quality, water-resistant grease can reduce friction with the coupler, minimize wear, and prevent squeaking. Always ensure the coupler is properly latched and secured to the hitch ball before commencing travel. Adhering to these installation and maintenance guidelines ensures the Buyers Products hitch ball provides years of safe, reliable, and high-performance towing, safeguarding both your cargo and other road users.
Conclusion: A Commitment to Uncompromised Towing Performance
The Buyers Products 2-5/16 Inch Chrome Hitch Ball with a 1-1/4 Inch Shank Diameter and 2-3/4 Inch Length represents an exceptional blend of sophisticated engineering, robust material science, and meticulous manufacturing. Designed for demanding applications, its high M.G.T.W. of 10,000 lbs, coupled with its durable carbon steel construction and protective chrome plating, ensures unparalleled reliability and longevity. Every dimension and material choice has been carefully considered to provide a secure and efficient connection between your tow vehicle and trailer. By investing in this precision-engineered hitch ball, you are selecting a component that embodies safety, durability, and superior performance, affirming Buyers Products' unwavering commitment to delivering premium towing solutions for professionals and enthusiasts alike. This product is not just a part; it is a critical investment in the integrity and safety of your towing operations.
