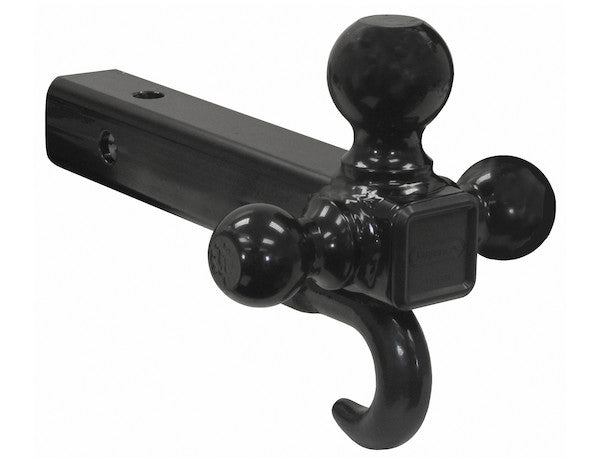

1802208 - Tri-Ball Hitch Tubular Shank With Black Balls And Recovery Hook

The Tri-Ball Hitch with Recovery Hook from Buyers Products is a patented solution to handling different ball sizes, weight requirements, and recovery applications. It features a 2 in. tubular shank. Tow up to 6,000 lb with the 1-7/8 in. ball; 7,500 lb with the 2 in. ball; and 10,000 lb with the 2-5/16 in. ball. The hook can be used with chains or straps to recover objects but is not for towing use. The hitch is black powder-coated for corrosion resistance.

Specifications

The Tri-Ball Hitch with Recovery Hook: An Advanced Solution for Dynamic Towing and Recovery Demands

In the demanding world of professional towing, utility operations, and serious recreational pursuits, efficiency, versatility, and uncompromised safety are paramount. The Tri-Ball Hitch with Recovery Hook, featuring a robust tubular shank and finished with a durable black powder-coat, represents a culmination of innovative engineering and practical functionality designed to meet these rigorous requirements. This patented system from Buyers Products is not merely a hitch; it is a multi-functional towing and recovery apparatus meticulously crafted from high-grade carbon steel to provide exceptional performance across a diverse range of applications. Its design, integrating three distinct ball sizes and a dedicated recovery hook, positions it as an indispensable tool for operators seeking a streamlined, reliable, and space-saving solution.

Unparalleled Versatility: The Tri-Ball System Explained

The cornerstone of this product's utility lies in its unique tri-ball configuration. Modern towing scenarios frequently involve diverse trailer types, each necessitating a specific coupler size to ensure a secure and compliant connection. Traditionally, this would mandate carrying multiple separate hitch balls or even entirely different hitch mounts, leading to increased equipment clutter, potential for misplacement, and time inefficiencies during changeovers. The Tri-Ball Hitch ingeniously resolves this challenge by integrating three of the most commonly used hitch ball diameters directly onto a single, robust platform: 1-7/8 inches, 2 inches, and 2-5/16 inches.

• 1-7/8-inch Ball (6,000 lb M.G.T.W.): This smaller diameter ball is ideal for lighter-duty trailers commonly found in residential and light commercial applications. Examples include small utility trailers, boat trailers, jet ski trailers, or compact cargo trailers. Despite its smaller size, it boasts a substantial Maximum Gross Trailer Weight (M.G.T.W.) of 6,000 pounds, ensuring ample capacity for a significant portion of light to medium-duty towing tasks. The corresponding maximum tongue weight (T.W.), typically 10-15% of the M.G.T.W., would be approximately 600-900 pounds for this configuration.
• 2-inch Ball (7,500 lb M.G.T.W.): The 2-inch hitch ball is arguably the most prevalent size in the market, making it the standard for a vast array of trailers. This includes medium-sized utility trailers, single-axle car haulers, campers, and many construction equipment trailers. With an impressive M.G.T.W. of 7,500 pounds, this ball size provides a significant upgrade in capacity, accommodating heavier loads and larger recreational vehicles. The associated T.W. for this configuration would range from approximately 750-1,125 pounds, depending on trailer balance and load distribution.
• 2-5/16-inch Ball (10,000 lb M.G.T.W.): For the most demanding towing applications handled by a receiver hitch, the 2-5/16-inch ball offers superior strength and capacity. This ball is typically employed for heavier-duty utility trailers, larger enclosed cargo trailers, substantial construction equipment trailers, and certain fifth-wheel or gooseneck conversions requiring a receiver-mounted ball. With a formidable M.G.T.W. of 10,000 pounds, this configuration ensures that even heavy loads can be transported securely and confidently. The proportional T.W. for this capacity would be in the range of 1,000-1,500 pounds.

The ingenious design allows for rapid rotation of the hitch head to select the appropriate ball for the task at hand, eliminating the need for complex tool-based changes or the handling of greasy, cumbersome individual balls. This streamlined operation translates directly into increased productivity and reduced downtime, a critical advantage for commercial operators and anyone valuing efficiency.

Structural Integrity: The 2-inch Tubular Shank

The foundation of the Tri-Ball Hitch's strength and stability is its meticulously engineered 2-inch tubular shank. This component is designed for seamless integration with standard 2-inch receiver tubes, a ubiquitous fitting on most light trucks, SUVs, and commercial vehicles. The selection of a tubular shank, as opposed to a solid shank, offers several engineering advantages. While both offer robust performance, a tubular design, when correctly specified and manufactured, provides an excellent strength-to-weight ratio. This minimizes the overall weight of the hitch without compromising its load-bearing capabilities, which can be a consideration for vehicle payload and fuel efficiency.

Constructed from high-quality carbon steel, the shank undergoes precise manufacturing processes to ensure dimensional accuracy and structural integrity. The specified pin hole size of .656 inches ensures compatibility with industry-standard hitch pins and locks, providing a secure attachment point to the vehicle's receiver. The complete absence of maximum drop or lift (0.0 inches) indicates a straight shank design, which is optimal for applications where the trailer's coupler height aligns closely with the vehicle's receiver height, ensuring level towing and proper weight distribution. This direct connection minimizes leverage points that could otherwise induce unnecessary stress on the hitch and receiver system.

Enhanced Functionality: The Integrated Recovery Hook

Beyond its primary towing capabilities, the Tri-Ball Hitch incorporates a critical safety and utility feature: a robust recovery hook. This element significantly expands the versatility of the product, transforming it into an indispensable tool for a variety of challenging situations. It is imperative to underscore the distinct function of this hook: it is explicitly designed for recovery applications, such as vehicle extrication, winching, or securing objects, and is NOT intended or rated for direct towing. This distinction is crucial for maintaining safety and preventing misuse that could lead to equipment failure or injury.

The recovery hook provides a secure anchor point for attachment with tow straps, snatch straps, or recovery chains. In scenarios where a vehicle might become stuck in mud, snow, or sand, or when light objects need to be pulled or positioned, this hook offers a convenient and strong attachment point. Its strategic placement on the hitch ensures it is readily accessible when needed, avoiding the complexities of finding alternative, potentially less secure, recovery points on a vehicle. The integration of this feature eliminates the need for a separate recovery shackle or hitch-mounted hook, consolidating essential tools into one compact and efficient unit. Like the rest of the hitch, the recovery hook is constructed from durable carbon steel, engineered to withstand the considerable forces associated with recovery operations, thereby providing a reliable point of attachment under stress.

Advanced Material Science and Protective Finishes

The selection of materials and the application of protective finishes are critical determinants of a hitch's longevity, performance, and resistance to environmental degradation. The Tri-Ball Hitch is manufactured from high-grade carbon steel, a material renowned for its excellent strength, ductility, and weldability. Carbon steel provides the necessary structural rigidity to handle significant towing and recovery loads, while its inherent toughness allows it to absorb impact and stress without catastrophic failure under normal operating conditions.

To safeguard this robust material against the corrosive elements encountered during typical usage—such as moisture, road salt, gravel, and chemicals—the entire hitch, including the balls and the mount, receives a durable black powder-coat finish. Powder coating is a highly advanced finishing process that involves electrostatically applying a dry powder (a blend of polymer resins, curatives, leveling agents, pigments, and other additives) to the metal surface. The item is then cured under heat, causing the powder to melt and flow into a uniform, hard, and extremely resilient skin. The benefits of this finish are manifold:

• Superior Corrosion Resistance: The thick, continuous layer of powder coat creates an impermeable barrier against moisture and corrosive agents, significantly extending the lifespan of the hitch, particularly in harsh environments.
• Enhanced Abrasion and Impact Resistance: Unlike conventional liquid paints, powder coatings are significantly more resistant to chipping, scratching, and general wear and tear, maintaining the aesthetic and protective qualities of the hitch even with heavy use.
• UV Stability: The black powder-coat is formulated to resist fading and degradation from prolonged exposure to ultraviolet (UV) radiation, ensuring the hitch retains its appearance and protective capabilities over time.
• Environmental Friendliness: The powder coating process is more environmentally sound than liquid painting, as it emits zero or near-zero volatile organic compounds (VOCs).
• Professional Aesthetic: The uniform, high-quality black finish not only provides protection but also lends a professional and integrated look to the hitch, complementing the vehicle's appearance.

Engineered for Performance and Safety Compliance

The design and construction of the Tri-Ball Hitch adhere to stringent engineering principles to ensure maximum performance and user safety. Each of the three hitch balls is rated with a specific Maximum Gross Trailer Weight (M.G.T.W.) that has been meticulously tested and verified. These ratings (6,000 lb, 7,500 lb, and 10,000 lb) are not arbitrary figures but reflect the maximum permissible weight of a fully loaded trailer that can be safely towed by that specific ball, provided the towing vehicle's capacity and other components (receiver, frame, tires, etc.) are also adequately rated.

Critical to safe towing is also the management of Tongue Weight (T.W.). While not explicitly listed as a specification for the hitch itself, the T.W. is the downward force exerted by the trailer's coupler onto the hitch ball. For conventional trailers, the T.W. should ideally be between 10% and 15% of the M.G.T.W. Exceeding or falling below this range can lead to unstable towing, known as "sway," which can be extremely dangerous. The robust construction and material choice of the Tri-Ball Hitch are designed to safely accommodate the corresponding tongue weights for each of its M.G.T.W. ratings, assuming proper trailer loading and vehicle capacity.

The product's "patented solution" status underscores its innovative design, distinguishing it from conventional hitch systems. This patent often signifies a unique mechanical advantage, a novel combination of features, or an improved method of achieving functionality, all contributing to a superior user experience and enhanced operational efficiency. While specific industry standards like SAE J684 for trailer hitches are complex and multi-faceted, the design principles of the Tri-Ball Hitch align with the foundational requirements for robust, safe, and reliable towing equipment.

Applications Across Industries and Lifestyles

The inherent versatility and rugged construction of the Tri-Ball Hitch with Recovery Hook make it an ideal choice for a broad spectrum of users and applications:

• Commercial Fleets: Businesses operating diverse fleets of vehicles and trailers, such as landscaping companies, construction contractors, utility services, and delivery companies, can significantly benefit from the quick-change functionality, minimizing downtime and simplifying equipment management.
• Agricultural Operations: Farmers and agricultural workers often need to move various trailers, from small utility carts to heavier equipment trailers. This hitch provides the flexibility to handle different implements without requiring multiple setups.
• Recreational Enthusiasts: For individuals who tow multiple types of recreational vehicles—be it a small boat, a utility trailer for ATVs, or a camper—this hitch offers unparalleled convenience, allowing them to switch trailers effortlessly.
• Emergency and Recovery Services: While the hook is not for towing, its dedicated recovery function is invaluable for support vehicles in roadside assistance, off-road recovery, or incident management scenarios.

Longevity and Maintenance

Designed for durability, the Tri-Ball Hitch requires minimal maintenance. Regular inspection for any signs of wear, damage, or corrosion is recommended, particularly after heavy use or exposure to harsh environmental conditions. The powder-coat finish significantly reduces the need for frequent cleaning and re-painting. A simple wash with soap and water to remove accumulated dirt and road grime, followed by a thorough drying, will help maintain the integrity of the finish and extend the product's aesthetic appeal and functional life. Ensuring the hitch pin and receiver are kept clean and free of debris will also contribute to a long service life and reliable performance.

Conclusion

The Tri-Ball Hitch Tubular Shank With Black Balls And Recovery Hook from Buyers Products stands as a testament to intelligent engineering, addressing the multifaceted demands of modern towing and recovery. Its patented design, combining three essential hitch ball sizes with an integrated recovery hook, all underpinned by a robust carbon steel tubular shank and a protective black powder-coat finish, offers an unmatched blend of versatility, strength, and durability. For professionals and serious enthusiasts alike, this hitch is an investment in efficiency, safety, and operational readiness, ensuring that diverse towing and recovery tasks can be accomplished with confidence and precision, making it an indispensable asset for any vehicle equipped with a 2-inch receiver.
