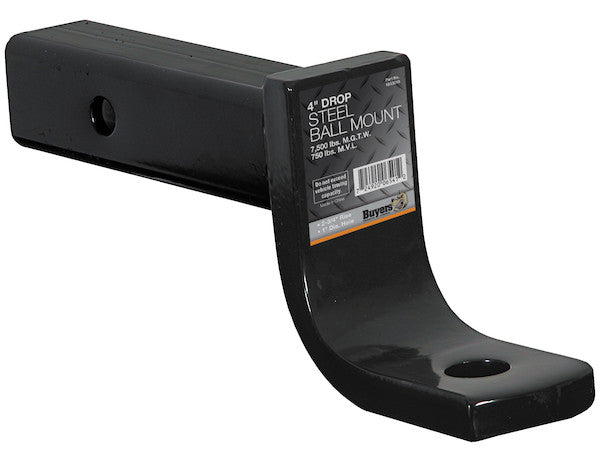

The 2 Inch Ball Mount from Buyers Products is rated to 7,500 lb and works well with utility and landscape trailers. Choose the rise and drop size to fit your trailer height. The solid steel, black powder-coated mount is durable and corrosion-resistant for years of use. Fits 2 in. receiver tubes and accepts 1 in. shank diameter towing balls.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.00 |
| Length (in.) | 8.00 |
| M.G.T.W. (lbs) | 7,500 |
| M.V.L. (lbs) | 750 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 4.00 |
| Maximum Rise (in.) | 2.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 2.00 |
| Shank Type | Tubular |
Comprehensive Technical Overview: 2 Inch Ball Mount with 4 Inch Drop x 8 Inch Long Tube
The 2 Inch Ball Mount from Buyers Products, identified by its 4-inch drop and 8-inch long tubular shank, represents a robust and precisely engineered component for light to medium-duty towing applications. Designed for optimal performance with 2-inch receiver hitches, this black powder-coated carbon steel ball mount offers exceptional durability and a substantial towing capacity of 7,500 lbs M.G.T.W. (Maximum Gross Trailer Weight), complemented by a 750 lbs M.V.L. (Maximum Vertical Load).
Precision Engineering and Compatibility
The foundation of this ball mount's utility lies in its adherence to standard hitch receiver specifications. The 2-inch receiver tube compatibility is a critical dimension, placing this product firmly within the Class III towing category. Class III hitches are ubiquitous among light trucks, SUVs, and some full-size sedans, making this ball mount an exceptionally versatile accessory for a broad spectrum of towing vehicles. The precise dimensional tolerances of the 2-inch shank ensure a snug fit within the receiver, minimizing slack and vibrational stresses during transit. This precise fit is paramount for maintaining directional stability and mitigating wear on both the ball mount and the receiver hitch, thereby extending the service life of the entire towing system.
The tubular shank design, contrasting with solid shanks, offers a strategic balance of strength and weight. While solid shanks can provide marginal gains in ultimate strength for extreme applications, the tubular design utilized here is optimized for the specified 7,500 lbs GTW, delivering ample structural integrity while potentially reducing unsprung weight. The 8-inch length of the tube further contributes to its functional design. This specific length is engineered to provide sufficient clearance between the vehicle's bumper and the trailer tongue, particularly advantageous during sharp turns or when navigating uneven terrain. Adequate clearance helps prevent potential contact and damage to the vehicle''s rear fascia or the trailer's front structure, enhancing maneuverability and overall towing safety.
Load Capacity and Safety Parameters
A primary attribute of any towing component is its rated load capacity, and this 2-inch ball mount excels with a formidable M.G.T.W. of 7,500 lbs. This rating signifies the maximum combined weight of the trailer and its cargo that the ball mount is engineered to safely handle. Such a capacity is more than sufficient for a wide range of utility, landscape, and recreational trailers, including large single-axle units, many tandem-axle utility trailers, small travel trailers, and enclosed cargo trailers. It underscores the product's suitability for demanding tasks, from transporting construction materials and landscaping equipment to hauling recreational vehicles.
Equally important is the M.V.L. of 750 lbs, which represents the maximum permissible downward force exerted by the trailer's tongue onto the hitch ball. This tongue weight is a critical factor in safe towing dynamics, typically recommended to be between 10% and 15% of the M.G.T.W. For a 7,500 lbs trailer, the ideal tongue weight range would be 750 lbs to 1,125 lbs. The specified 750 lbs M.V.L. indicates that this ball mount is designed to safely accommodate a tongue weight at the lower end of this optimal range for maximum loads, which is crucial for preventing trailer sway and ensuring vehicle control. Exceeding the M.V.L. can lead to excessive rear-end sag in the tow vehicle, reduced steering control, and potentially catastrophic failure of towing components. Therefore, adherence to both M.G.T.W. and M.V.L. is not merely a recommendation but a fundamental safety imperative.
Optimal Trailer Leveling: Drop and Rise Configuration
The ability to adjust for variations in vehicle and trailer height is a cornerstone of effective towing. This ball mount features a maximum 4.00-inch drop and a maximum 2.75-inch rise. The inclusion of both drop and rise capabilities highlights its adaptability, allowing users to achieve a level towing configuration, which is critical for several reasons. When a trailer is towed with an unlevel attitude—either nose-high or nose-low—it can adversely affect weight distribution, braking performance, tire wear on both the tow vehicle and trailer, and overall stability. A nose-high trailer may reduce tongue weight, increasing sway potential, while a nose-low configuration can excessively increase tongue weight, potentially overloading the rear suspension of the tow vehicle and compromising steering and braking.
To determine the appropriate drop or rise, a precise measurement procedure is required. This involves measuring the height from the ground to the top of the inside of the receiver tube on the tow vehicle and comparing it to the height from the ground to the bottom of the trailer coupler when the trailer is level. The 4-inch drop is particularly useful for trucks or SUVs with elevated suspensions, ensuring that smaller utility or landscape trailers can be towed level. Conversely, the 2.75-inch rise caters to scenarios where the trailer's coupler sits higher than the vehicle's receiver, common with certain agricultural equipment or trailers designed for vehicles with lower ride heights. This versatility in drop and rise dimensions empowers users to optimize their towing setup for safety and efficiency across diverse vehicle and trailer combinations.
Material Science and Surface Treatment for Longevity
The structural integrity of this ball mount is rooted in its solid carbon steel construction. Carbon steel, renowned for its high tensile strength and ductility, is an ideal material for components subjected to significant dynamic and static loads, as is the case in towing applications. The specific grade of carbon steel chosen for such a product is typically engineered to withstand the complex stresses of towing, including shear, tensile, and compressive forces, without deformation or brittle fracture. Its inherent toughness provides resistance to impact and fatigue, which are common occurrences over years of regular use and exposure to varying road conditions.
Complementing the robust material selection is the black powder-coat finish. Powder coating is an advanced dry finishing process that applies a protective and decorative layer to metal surfaces, far surpassing the performance of conventional liquid paints. The process involves electrostatically charging finely ground particles of pigment and resin, which are then sprayed onto the electrically grounded component. The charged powder particles adhere to the surface until they are melted and fused into a smooth, even coating in a curing oven. This creates a highly durable, scratch-resistant, and corrosion-resistant finish that is significantly thicker and more resilient than liquid paint.
The black powder coat on this ball mount serves multiple critical functions. Firstly, it provides superior protection against environmental degradation, including rust and corrosion, which are significant concerns for towing equipment constantly exposed to moisture, road salts, chemicals, and abrasive debris. Secondly, it offers excellent resistance to chipping and abrasion, maintaining the aesthetic integrity of the product even under harsh operating conditions. Thirdly, the powder coat offers enhanced UV resistance, preventing fading and degradation when exposed to sunlight, thereby ensuring the ball mount retains its professional appearance and protective qualities over an extended lifespan. This meticulous surface treatment not only enhances the product's longevity but also reduces the need for frequent maintenance, offering significant long-term value to the user.
Hitch Ball Integration and Secure Connection
The ball mount is designed to accept towing balls with a 1-inch shank diameter. This specification is crucial for selecting the correct hitch ball to complete the towing system. While the specific ball diameter is not provided for this product, a 1-inch shank is commonly found on hitch balls with diameters ranging from 1-7/8 inches to 2-5/16 inches, covering a broad spectrum of trailer coupler sizes. It is imperative that the chosen hitch ball has a shank that matches the ball mount's hole diameter and that its weight rating meets or exceeds the M.G.T.W. of the ball mount and the trailer being towed.
Proper installation of the hitch ball involves inserting its shank through the designated hole on the ball mount and securing it with a lock washer and nut, torqued to the manufacturer's specified value. Correct torque application is non-negotiable, as it prevents the ball from loosening under dynamic towing forces, which could lead to detachment of the trailer. The integrity of this connection point is paramount for safe towing, ensuring that the substantial forces exerted by the trailer are reliably transmitted to the tow vehicle.
Applications and Versatility in Professional and Recreational Use
The robust specifications of this 2-inch ball mount make it an ideal choice for a diverse array of applications, particularly excelling with utility and landscape trailers. For landscaping professionals, it reliably tows trailers laden with mowers, trimmers, mulchers, and bags of soil or gravel. Its 7,500 lb capacity comfortably handles most commercial-grade open and enclosed landscape trailers. Similarly, for utility purposes, it supports the transport of ATVs, motorcycles, building materials, tools, and general cargo in single or tandem-axle utility trailers. Beyond professional applications, this ball mount is also highly suitable for recreational users towing boat trailers, car haulers for smaller vehicles, or medium-sized travel trailers.
Its versatility extends to compatibility with a wide range of tow vehicles equipped with a 2-inch receiver, from half-ton pickup trucks to larger SUVs and vans. The ability to select the appropriate rise or drop ensures that the ball mount can be optimally configured for varying vehicle ride heights and trailer coupler heights, providing a level towing setup across diverse combinations. This adaptability underscores its value as a multi-purpose towing solution for both professional tradespeople and conscientious private users.
Installation, Maintenance, and Safety Considerations
Installation of the 2-inch ball mount into a standard 2-inch receiver tube is a straightforward process. The shank slides into the receiver until the hitch pin holes align. A robust hitch pin and clip (typically sold separately) are then inserted to secure the ball mount to the vehicle. It is crucial to use a high-quality hitch pin appropriate for the receiver's class and securely fasten the retaining clip to prevent accidental disengagement.
Maintaining the ball mount's performance and longevity primarily involves periodic inspection. Users should regularly examine the ball mount for any signs of wear, deformation, cracks, or damage to the powder-coat finish. Any significant damage to the structural components or compromise of the protective coating should prompt replacement to ensure safety. While the powder-coat finish is highly durable, minor scuffs or chips can be touched up with appropriate rust-inhibiting paint to prevent localized corrosion, although comprehensive re-coating is rarely necessary under normal conditions. Additionally, ensuring the hitch ball is properly torqued before each towing operation is a critical safety check.
Adherence to the maximum gross trailer weight (M.G.T.W.) and maximum vertical load (M.V.L.) is paramount. Never exceed these ratings, as doing so places undue stress on the ball mount, receiver, and tow vehicle, significantly increasing the risk of mechanical failure and accidents. Always consult the tow vehicle's owner's manual for its specific towing capacities, which may be lower than the ball mount's rating, and use the lower of the two ratings as the absolute maximum. Proper weight distribution on the trailer, ensuring correct tongue weight within the 10-15% M.G.T.W. range, is also vital for stable and safe towing. This ball mount is a testament to reliable engineering, but its safe operation ultimately depends on diligent user practices and adherence to established towing guidelines.
Conclusion
The 2 Inch Ball Mount with 4 Inch Drop x 8 Inch Long Tube from Buyers Products is a meticulously engineered towing accessory designed for discerning users who prioritize safety, durability, and performance. Its robust carbon steel construction, advanced black powder-coat finish, and precise dimensions ensure a dependable connection between tow vehicle and trailer. With a substantial 7,500 lb M.G.T.W. and 750 lb M.V.L., coupled with versatile drop and rise options, it is perfectly suited for a wide array of utility, landscape, and recreational towing requirements. This product embodies a commitment to quality and serves as an indispensable component in a safe and efficient towing system, providing years of reliable service in challenging environments.
