High-Low Shank Ball Mounts from Buyers Products provide reliable performance for many towing jobs up to 7,500 lb, from car trailers to utility trailers. Choose from different lengths for greater or lesser distance between your vehicle and the trailer, as well as the rise and drop size to fit your trailer height. The mounts features two-piece welded steel construction and a corrosion-resistant black powder-coated finish. They fit 2 in. receiver tubes and accept 1 in. shank diameter towing balls. A solid shank version is also available, rated at 6,000 lb.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.00 |
| Length (in.) | 10.00 |
| M.G.T.W. (lbs) | 7,500 |
| M.V.L. (lbs) | 750 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 4.00 |
| Maximum Rise (in.) | 2.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 2.00 |
| Shank Type | Tubular |

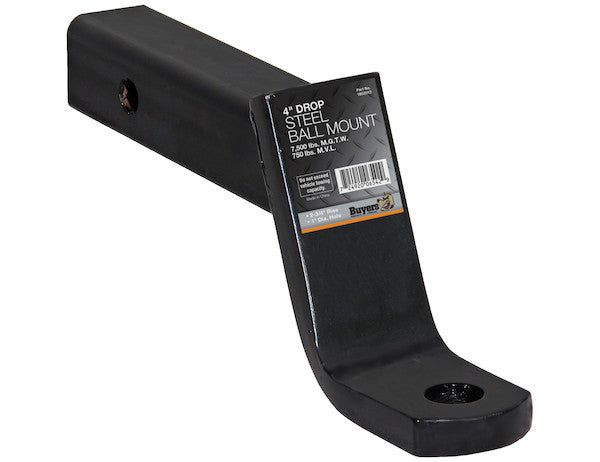

Precision Engineering and Robust Performance: The Buyers Products 2-Inch Ball Mount with 4-Inch Drop and 10-Inch Long Tubular Shank
The Buyers Products 2-Inch Ball Mount, featuring a 4-inch drop and a 10-inch long tubular shank, represents a pinnacle of towing accessory engineering, designed to deliver exceptional reliability and performance across a diverse range of towing applications. This high-low shank ball mount is meticulously crafted to integrate seamlessly with vehicles equipped with a 2-inch receiver tube, providing a robust connection point for trailers ranging from compact utility units to substantial car haulers. With a formidable Maximum Gross Trailer Weight (M.G.T.W.) rating of 7,500 pounds and a Maximum Vertical Load (M.V.L.) capacity of 750 pounds, this component is engineered to meet the rigorous demands of professional and recreational towing scenarios, ensuring secure and stable transport of valuable cargo.
Advanced Material Science and Manufacturing Excellence
At the core of this ball mount's superior strength and durability lies its material composition and manufacturing methodology. Constructed from high-grade carbon steel, a material renowned for its exceptional tensile strength, yield strength, and ductility, the ball mount is inherently capable of withstanding the immense static and dynamic forces associated with heavy-duty towing. Carbon steel’s inherent metallurgical properties provide a resilient structure that resists deformation under significant load, crucial for maintaining structural integrity and operational safety during acceleration, braking, and cornering.
The fabrication process employs a sophisticated two-piece welded steel construction technique. This method involves precision cutting and forming of carbon steel components, followed by expert welding to create a monolithic, integrated structure. The advantages of this approach are manifold: it allows for optimized material distribution, strategically reinforcing stress points while potentially reducing overall weight compared to an equivalently strong solid billet design. Furthermore, modern welding techniques, often incorporating inert gas shielding (e.g., MIG/GMAW or TIG/GTAW), ensure high-penetration, defect-free welds that are stronger than the base material itself, eliminating potential failure points and contributing significantly to the ball mount’s impressive load-bearing capabilities. This meticulous construction guarantees dimensional accuracy, critical for a precise fit within the vehicle's receiver and for maintaining proper towing geometry.
Corrosion Resistance and Aesthetic Longevity: The Powder-Coated Finish
To ensure prolonged operational life and maintain aesthetic appeal in challenging environmental conditions, the Buyers Products ball mount is finished with a durable black powder coating. This advanced finishing process provides a superior protective layer compared to traditional liquid paints. Powder coating involves electrostatically applying a dry powder, typically a blend of polymer resins, curing agents, and pigments, to the metal surface. The charged powder particles adhere to the grounded metal, and the assembly is then heated in a curing oven, causing the powder to melt, flow, and chemically crosslink into a continuous, uniform film.
The resulting black powder-coated finish offers exceptional resistance to a wide array of corrosive agents, including moisture, road salts, UV radiation, and abrasive impacts from road debris. This robust barrier prevents the onset of rust and oxidation, which can compromise the structural integrity of the steel over time, particularly in demanding towing environments where exposure to varying weather conditions is common. Beyond its functional benefits, the sleek black finish provides a professional, understated appearance that complements any tow vehicle, ensuring that the ball mount retains its visual integrity throughout its service life.
Optimized Towing Geometry: Drop, Rise, and Length Considerations
The specific dimensions of this ball mount – a 4-inch drop, a 2.75-inch maximum rise, and a 10-inch overall length – are critical parameters that dictate towing efficacy and safety. The primary function of a high-low ball mount is to create a level towing setup, which is paramount for stable and safe trailer operation. A level trailer distributes weight evenly across its axles, reduces sway, optimizes tire wear, and ensures proper braking performance.
- 4-Inch Drop: The 4-inch drop dimension is designed to compensate for height disparities between the tow vehicle's receiver tube and the trailer's coupler. Many modern trucks and SUVs have higher suspension systems, necessitating a drop ball mount to bring the hitch ball down to the correct height for a typical trailer. Achieving a level stance prevents undue stress on either the tow vehicle or the trailer, enhancing control and reducing the risk of accidents.
- 2.75-Inch Maximum Rise: Conversely, the ball mount also offers a maximum rise of 2.75 inches. This versatility is crucial for scenarios where the trailer's coupler is positioned higher than the tow vehicle's receiver. The ability to invert the ball mount to achieve a rise provides flexibility for different trailer types and ensures optimal towing geometry across various vehicle-trailer combinations.
- 10-Inch Long Tube: The 10-inch overall length of the shank plays a vital role in providing adequate clearance between the tow vehicle and the trailer. This extended length helps prevent the trailer's front structure, such as the tongue jack or spare tire, from contacting the vehicle's bumper or tailgate during tight turns or when backing up. This extended clearance is particularly beneficial for trailers with longer tongues or those hitched to vehicles with limited rear overhang. Additionally, the length can influence the leverage applied to the receiver and the overall turning radius, impacting maneuverability.
Load Capacity and Safety Standards
The stated M.G.T.W. of 7,500 lbs and M.V.L. of 750 lbs are critical performance indicators. M.G.T.W. refers to the maximum weight of the fully loaded trailer that the ball mount is designed to safely handle. M.V.L., often referred to as tongue weight, is the downward force exerted by the trailer's coupler onto the hitch ball. Maintaining proper tongue weight (typically 10-15% of the GTW for conventional trailers) is essential for stable towing. A tongue weight that is too low can lead to trailer sway, while one that is too high can overload the tow vehicle’s rear suspension and compromise steering. This ball mount's ratings confirm its suitability for Class III and Class IV towing applications, signifying its robust capacity for a wide range of medium to heavy-duty trailers.
Receiver Tube and Hitch Ball Compatibility
Designed for universal compatibility within its class, this ball mount is engineered to fit standard 2-inch by 2-inch receiver tubes. This receiver size is prevalent on a vast majority of light trucks, SUVs, and vans, making the ball mount a highly versatile accessory. The shank of the ball mount is designed to accept hitch balls with a 1-inch shank diameter. This standardized dimension ensures a secure and proper fit for most commonly used hitch balls, facilitating easy interchangeability and ensuring the integrity of the critical connection point between the ball mount and the hitch ball.
The Advantages of a Tubular Shank Design
This particular ball mount features a tubular shank, a design choice that offers several distinct advantages over traditional solid shanks. While a solid shank provides unyielding strength, a tubular design, when engineered correctly, can achieve comparable structural rigidity and load-bearing capacity with a significantly reduced material volume. This results in a lighter overall component, which translates to easier handling during installation and removal, and a minor reduction in the overall unsprung weight of the towing assembly. The strategic use of carbon steel in a tubular cross-section allows for optimized stress distribution around the perimeter, providing excellent resistance to bending and torsional forces commonly experienced during towing. The current description notes that a solid shank version is available with a 6,000 lb rating, which further highlights the engineering achievement of this tubular design being rated at a higher 7,500 lb M.G.T.W., likely due to optimized material grade, wall thickness, and precise welding techniques employed in its construction.
Versatile Applications Across Industries
The robust design and high load capacity of this ball mount render it ideal for an extensive array of applications. From everyday utility tasks to specialized commercial operations, its reliability is unwavering:
- Utility Trailers: Perfect for hauling landscaping equipment, construction materials, or general household goods on utility trailers.
- Car Trailers and Car Haulers: Its 7,500 lb M.G.T.W. makes it suitable for transporting vehicles, whether for recreational purposes or professional automotive transport.
- Boat Trailers: Provides a secure connection for various boat sizes, ensuring safe transport to and from marine environments.
- Recreational Vehicle (RV) and Camper Trailers: Capable of handling smaller to medium-sized campers and travel trailers, facilitating family adventures.
- Equipment Trailers: Suited for towing compact construction equipment, ATV trailers, or other specialized machinery.
The availability of different lengths, rise, and drop sizes within the Buyers Products line allows users to precisely match the ball mount to their specific vehicle-trailer combination, achieving optimal towing dynamics regardless of the application.
Installation, Maintenance, and Regulatory Adherence
Installation of the Buyers Products 2-Inch Ball Mount is straightforward, involving insertion into the vehicle's 2-inch receiver tube and securing it with a standard hitch pin and clip (sold separately). The chosen hitch ball, with its 1-inch shank, is then securely fastened to the ball mount using a torque wrench to ensure proper tightness according to the ball manufacturer's specifications. Regular maintenance involves inspecting the ball mount and hitch ball for any signs of wear, corrosion, or damage, particularly before and after heavy towing operations. The powder-coated finish requires minimal care, typically a simple wash to remove accumulated dirt and road grime, helping to preserve its protective qualities.
All Buyers Products towing components are engineered with a strong emphasis on safety and compliance with relevant industry standards. While specific certifications like SAE J684 for trailer hitches are not explicitly stated for this particular component, the design and performance ratings align with the stringent requirements for conventional trailer hitch systems. Users are always advised to ensure that the combined weight of their trailer and its cargo does not exceed the lowest-rated component in their towing system (vehicle towing capacity, hitch receiver rating, hitch ball rating, or the ball mount rating), thereby maximizing safety and preventing potential failures.
Conclusion: A Benchmark in Towing Solutions
The Buyers Products 2-Inch Ball Mount with a 4-Inch Drop and 10-Inch Long Tubular Shank stands as a testament to advanced engineering, robust construction, and a commitment to towing safety and efficiency. Its carbon steel composition, two-piece welded integrity, and resilient black powder-coated finish ensure long-term durability and resistance to the harshest operating conditions. With its precision-engineered drop, rise, and length, combined with a high M.G.T.W. and M.V.L., this ball mount offers optimal towing geometry and reliable performance for a vast spectrum of towing requirements. Choosing this Buyers Products ball mount signifies an investment in a component that delivers not only superior functionality but also peace of mind, making it an indispensable asset for anyone engaged in serious towing operations.
