High-Low Shank Ball Mounts from Buyers Products provide reliable performance for many towing jobs up to 7,500 lb, from car trailers to utility trailers. Choose from different lengths for greater or lesser distance between your vehicle and the trailer, as well as the rise and drop size to fit your trailer height. The mounts features two-piece welded steel construction and a corrosion-resistant black powder-coated finish. They fit 2 in. receiver tubes and accept 1 in. shank diameter towing balls. A solid shank version is also available, rated at 6,000 lb.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.00 |
| Length (in.) | 10.00 |
| M.G.T.W. (lbs) | 7,500 |
| M.V.L. (lbs) | 750 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 6.00 |
| Maximum Rise (in.) | 4.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 2.00 |
| Shank Type | Tubular |

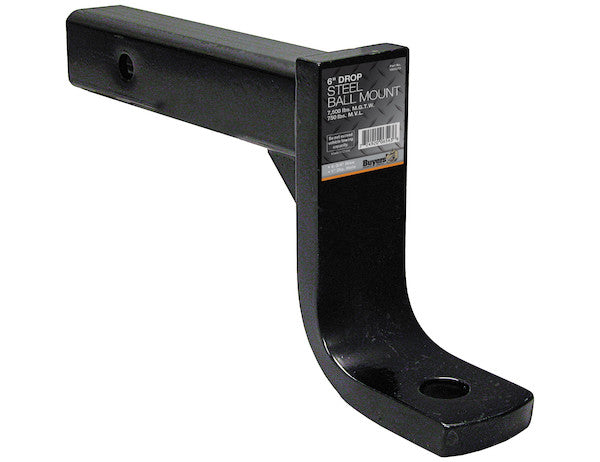

Engineered Excellence: The 2 Inch Ball Mount with 6 Inch Drop x 10 Inch Long Tube Black
The Buyers Products 2 Inch Ball Mount, featuring a robust 6-inch drop and a 10-inch long tube, represents a pinnacle of towing accessory engineering, meticulously designed to facilitate secure and efficient trailer connections across a wide spectrum of applications. Crafted with precision and adhering to stringent quality controls, this high-low shank ball mount is an indispensable component for any towing setup requiring adaptability and unyielding strength. It is tailored for vehicles equipped with a 2-inch receiver tube, accommodating a diverse range of trailers up to a Maximum Gross Trailer Weight (MGTW) of 7,500 lbs and a Maximum Vertical Load (MVL) of 750 lbs. The strategic integration of a 6-inch drop and a corresponding 4.75-inch rise capability ensures optimal trailer leveling, a critical factor for towing safety and performance, while its 10-inch overall length provides essential clearance and stability.
Structural Integrity and Material Science: The Foundation of Reliability
At the core of this ball mount’s exceptional performance lies its material composition and manufacturing methodology. Constructed from high-grade carbon steel, a material renowned for its superior tensile strength, yield strength, and inherent ductility, the mount is engineered to withstand the rigorous and dynamic loads inherent in towing operations. Carbon steel’s robust mechanical properties ensure resilience against bending moments, torsional forces, and repetitive stress cycles, which are commonplace during acceleration, braking, and maneuvering of a towed load. The selection of carbon steel specifically targets applications demanding a high strength-to-weight ratio combined with cost-effectiveness and excellent weldability.
The manufacturing process employs a two-piece welded steel construction. This method, executed with precision welding techniques, ensures structural homogeneity and prevents localized stress concentrations. Each weld joint is engineered to meet or exceed the strength of the base material, undergoing rigorous quality assurance to confirm integrity and absence of defects. Unlike some single-piece castings, the welded design allows for optimized material distribution, placing strength exactly where it is most needed, thereby contributing to both the mount’s impressive load capacity and its durability over time.
The shank type of this ball mount is tubular, a design choice with significant engineering advantages. Tubular shanks offer a superior strength-to-weight ratio compared to solid shanks for a given external dimension, primarily due to their optimized moment of inertia. This means that while being lighter, they can effectively resist bending and torsional forces, making them an efficient choice for many towing applications. The hollow interior reduces overall mass without compromising critical load-bearing capabilities, providing robust performance while potentially reducing the unsprung weight of the towing system, which can have subtle benefits on vehicle dynamics. While a solid shank version is available for specific needs, the tubular design for this 7,500 lb capacity mount represents an advanced material and structural optimization.
Hitch System Compatibility: Ensuring Universal Integration
This 2-inch ball mount is specifically designed for seamless integration with Class III and Class IV hitch receivers, which are ubiquitous on a wide array of vehicles, including sport utility vehicles (SUVs), light-duty and half-ton pickup trucks, and some larger passenger vehicles. The 2-inch standard receiver tube size is governed by SAE J684 standards, ensuring a consistent and secure fit. The precision-engineered shank slides smoothly into the receiver, secured by a standard hitch pin and clip (sold separately), preventing any rotational or translational play that could compromise stability or induce wear.
Furthermore, the ball mount is designed to accept towing balls with a 1-inch shank diameter. This specification is critical for proper compatibility and safety, as it ensures the towing ball is adequately seated and secured, preventing shear forces from dislodging or damaging the ball during towing. A 1-inch diameter ball shank is commonly found on towing balls with various ball diameters, such as 2 inches and 2-5/16 inches, which are frequently used for trailers within the 7,500 lb MGTW range. It is imperative for the operator to select a towing ball whose diameter precisely matches the trailer’s coupler size and whose shank diameter and length are compatible with this ball mount and its overall capacity. Proper torquing of the towing ball onto the ball mount is essential, following the ball manufacturer's specifications, to prevent loosening and ensure a secure connection.
Geometric Configuration and Towing Dynamics: The Art of Leveling
The defining characteristic of this ball mount is its geometric flexibility, featuring a substantial 6-inch maximum drop and a notable 4.75-inch maximum rise. This adjustability is paramount for achieving optimal trailer leveling, which is arguably the most critical factor for safe and efficient towing. An unlevel trailer can lead to a cascade of adverse effects: uneven tire wear, compromised braking efficiency, increased propensity for trailer sway, and improper weight distribution across the trailer's axles and the tow vehicle’s chassis. When a trailer is level, the load is evenly distributed across its axles, its tires make optimal contact with the road, and the trailer's aerodynamic profile is maintained, all contributing to superior handling and reduced stress on both the tow vehicle and the trailer components.
To determine the precise drop or rise required, operators must measure the height from the ground to the top of the vehicle's receiver tube opening and compare it to the height from the ground to the top of the trailer's coupler when the trailer is level. The difference dictates the necessary drop or rise. The 6-inch drop capability of this ball mount is particularly beneficial for tow vehicles with higher suspension systems, such as lifted trucks or heavy-duty SUVs, allowing them to effectively level a standard or even lower-sitting trailer. Conversely, the 4.75-inch rise function provides versatility for towing trailers with higher couplers using vehicles with standard or lower hitch heights. This dual capability ensures that regardless of the specific vehicle-trailer combination, an optimal, level towing attitude can be achieved, promoting stability, safety, and operational efficiency.
The 10-inch long tube dimension refers to the shank length, measured from the center of the hitch pinhole to the center of the ball hole. This length provides crucial clearance between the tow vehicle's bumper, tailgate, or other rear-mounted accessories and the trailer's A-frame or coupler, especially during tight turns or when backing up. Adequate shank length prevents potential contact and damage, enhancing maneuverability and reducing the risk of costly repairs. While a longer shank provides more clearance, it also creates a longer lever arm, which can exert increased leverage on the hitch receiver and the vehicle’s chassis. The 10-inch length is an optimized balance, offering sufficient clearance for most applications without introducing excessive leverage, ensuring the structural integrity of the entire towing system remains uncompromised under its rated load conditions.
Load Capacity and Safety Standards: Engineering for Performance and Security
The Buyers Products 2 Inch Ball Mount is rated for a Maximum Gross Trailer Weight (MGTW) of 7,500 lbs. This rating signifies the maximum total weight of the trailer, including all its cargo, that the ball mount is safely engineered to handle. This capacity makes it suitable for a broad spectrum of towing tasks, encompassing medium-duty utility trailers, single-axle car haulers, smaller boat trailers, landscape trailers, and various recreational vehicles such as pop-up campers or ATV trailers. Adhering to this MGTW rating is not merely a recommendation; it is a critical safety imperative. Exceeding the rated MGTW can lead to catastrophic structural failure of the ball mount, hitch, or even the vehicle's frame, resulting in a loss of control, accidents, and severe injury or property damage. Operators must always verify the weight of their loaded trailer and ensure it falls within the safe operating limits of all components in their towing system, including the tow vehicle, hitch, and ball mount.
Equally vital is the Maximum Vertical Load (MVL), commonly known as tongue weight, rated at 750 lbs for this ball mount. Tongue weight represents the downward force exerted by the trailer's coupler onto the ball mount. For optimal towing stability and control, the tongue weight should typically fall within 10% to 15% of the MGTW. For this 7,500 lb MGTW mount, the 750 lb MVL rating perfectly aligns with this recommended range (750 lbs is exactly 10% of 7,500 lbs). Insufficient tongue weight, below the 10% threshold, can lead to dangerous trailer sway, making the trailer difficult to control and increasing the risk of jackknifing. Conversely, excessive tongue weight, above the 15% threshold, can overload the tow vehicle's rear axle, compromise steering and braking capabilities, and place undue stress on the hitch and vehicle frame components. Understanding, measuring, and adjusting tongue weight, often through careful load distribution within the trailer, is an advanced but essential aspect of safe towing. Using a tongue weight scale is highly recommended for precision.
Advanced Protection: The Black Powder-Coated Finish
Beyond its robust structural and mechanical attributes, this ball mount features a durable black powder-coated finish. This advanced coating technology provides superior protection against the harsh environmental conditions encountered during towing. Powder coating involves electrostatically applying a dry powder to the metal surface, which is then cured under heat to form a hard, protective layer. This process creates a finish that is significantly more resistant to corrosion, chipping, abrasion, and fading compared to traditional liquid paints.
For a component like a ball mount, constantly exposed to road grime, moisture, road salt, UV radiation, and various chemicals, this corrosion resistance is paramount. It prevents the formation of rust and the subsequent degradation of the underlying carbon steel, thereby extending the operational lifespan of the product and maintaining its structural integrity over years of service. The sleek black aesthetic also contributes to a professional and integrated appearance with most vehicle and hitch systems, resisting the wear and tear that can quickly mar lesser finishes. This protective layer ensures that the ball mount not only performs reliably but also retains its visual appeal even after prolonged exposure to demanding outdoor elements.
Operational Considerations and Diverse Applications
The Buyers Products 2 Inch Ball Mount with its 6-inch drop and 10-inch length is a versatile tool suitable for a vast array of towing applications, catering to both recreational enthusiasts and professional operators. Its robust capacity and adjustable geometry make it ideal for:
- Recreational Towing: Transporting small to medium-sized boat trailers, pop-up campers, utility trailers for ATVs, motorcycles, or gardening equipment.
- Commercial and Professional Use: Hauling landscape trailers, construction equipment trailers, car dollies, or flatbed utility trailers for various business needs.
- Specific Vehicle Setups: Particularly useful for lifted trucks or SUVs that require a significant drop to level standard height trailers, or for vehicles with factory-installed hitches that sit higher off the ground.
Conclusion: A Commitment to Performance and Safety
In summary, the Buyers Products 2 Inch Ball Mount with 6 Inch Drop x 10 Inch Long Tube in Black stands as an exemplary product in the towing accessory market. Its meticulous engineering, leveraging high-strength carbon steel and robust welded construction, ensures unparalleled durability and a generous 7,500 lb MGTW and 750 lb MVL capacity. The tubular shank design optimizes strength while minimizing weight, and the exceptional 6-inch drop and 4.75-inch rise capabilities provide critical adjustability for achieving a perfectly level and safe towing posture. Coupled with a resilient black powder-coated finish that offers superior corrosion and abrasion resistance, this ball mount delivers consistent, reliable performance in the most demanding environments. It embodies Buyers Products' unwavering commitment to delivering high-quality, technically advanced solutions that prioritize safety, efficiency, and longevity for all your towing requirements.
