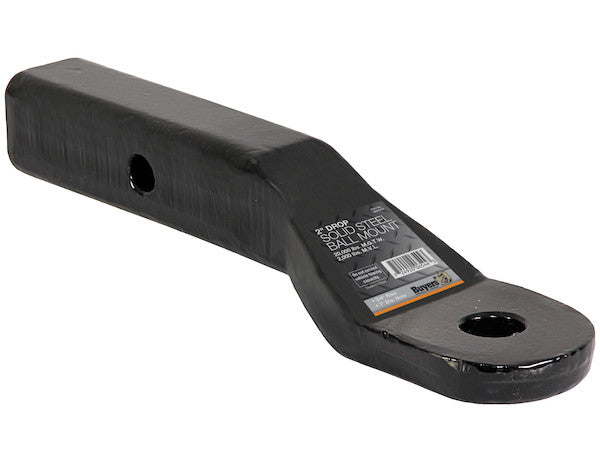

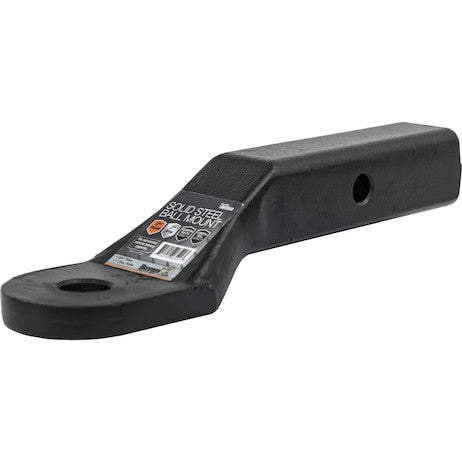

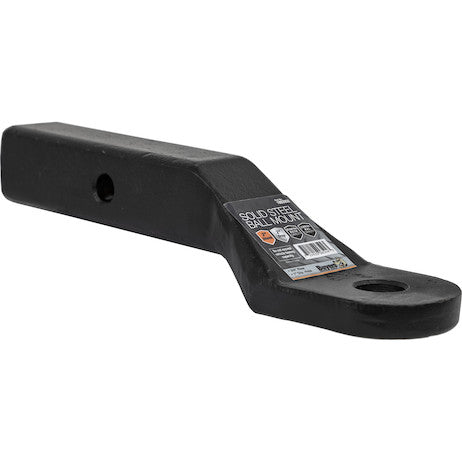

The Heavy Duty 2 Inch Forged Ball Mount from Buyers Products provides a heavy duty ball mount that accepts 1 or 1-1/4 in. shank diameter towing balls. It is rated to 17,000 or 20,000 lb depending on the model you choose. Each ball mount is black powder-coated for corrosion resistance and features single-piece, solid forged steel construction.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.00 |
| Length (in.) | 7.63 |
| M.G.T.W. (lbs) | 20,000 |
| M.V.L. (lbs) | 2,000 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 2.00 |
| Maximum Rise (in.) | 0.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 2.00 |
| Shank Type | Solid |
The 2 Inch Heavy-Duty Ball Mount, featuring a 2-inch drop and a 7-5/8 inch long tube, is meticulously engineered to provide unparalleled strength, reliability, and safety for demanding towing applications. Designed to integrate seamlessly with standard 2-inch receiver hitches, this robust component is an indispensable asset for professionals and enthusiasts who require maximum performance and durability from their towing equipment. Its black powder-coated finish and solid forged carbon steel construction underscore a commitment to both aesthetic longevity and structural integrity.
Engineering and Construction Excellence: The Forged Advantage
At the core of this heavy-duty ball mount's superior performance is its single-piece, solid forged steel construction. Forging is a manufacturing process that involves shaping metal through localized compressive forces using hammers or dies. Unlike casting or welding, forging refines the metal's grain structure, aligning it to the shape of the part, which results in significantly enhanced strength, ductility, and resistance to fatigue. This process eliminates internal voids, porosity, and inclusions that can be present in cast components, thereby mitigating potential points of failure under extreme stress. The precise control over the material's internal grain flow through forging ensures a homogenous microstructure, maximizing the inherent mechanical properties of the carbon steel.
The choice of high-quality carbon steel as the base material is critical. Carbon steel, known for its exceptional tensile strength and toughness, is ideally suited for applications that endure substantial dynamic and static loads, as commonly encountered in heavy-duty towing. Its ability to absorb and distribute stress effectively, without compromising its structural integrity, is paramount for ensuring safe and reliable operation over an extended service life. The solid shank type further reinforces this commitment to durability, offering a robust connection point that minimizes deflection and maximizes load transfer efficiency.
Furthermore, the single-piece design of this ball mount eliminates the inherent weaknesses associated with welded assemblies. Welds, while structurally sound when executed flawlessly, can introduce heat-affected zones (HAZs) that may alter the material's properties, potentially leading to reduced strength or increased susceptibility to cracking under cyclical loading. By opting for a monolithic forged construction, the ball mount achieves a uniform strength profile across its entire structure, ensuring consistent performance and significantly reducing the risk of premature failure. This engineering philosophy translates directly into enhanced safety and peace of mind for the operator, knowing that their towing setup is built upon a foundation of uncompromising strength.
Superior Performance Specifications for Demanding Loads
This ball mount is rated with an impressive Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs and a Maximum Vertical Load (M.V.L.) of 2,000 lbs. These specifications are not merely numbers; they represent the rigorous testing and robust design inherent in the product. The 20,000 lb M.G.T.W. rating signifies its capability to handle a broad spectrum of heavy trailers, ranging from large commercial utility trailers and multi-axle equipment haulers to substantial recreational vehicles such as fifth-wheel trailers, large boat trailers, and heavy toy haulers. This high capacity positions the ball mount as a preferred choice for professional landscapers, construction crews, agricultural operations, and serious recreational towers who cannot compromise on load-bearing capability.
The M.V.L. of 2,000 lbs, commonly referred to as tongue weight, is equally critical. Tongue weight is the downward force exerted by the trailer coupler onto the hitch ball. Maintaining an optimal tongue weight (typically 10-15% of the M.G.T.W.) is fundamental for stable and safe towing. An inadequate tongue weight can lead to trailer sway, reduced steering control, and increased braking distances, while excessive tongue weight can overload the tow vehicle's rear axle and suspension components. The 2,000 lb M.V.L. rating ensures that even with heavily loaded trailers, the ball mount can safely accommodate the required vertical load, thereby preserving the tow vehicle's handling characteristics and contributing significantly to overall towing safety and stability. The combination of these high ratings underscores the product's suitability for heavy-duty applications, setting it apart from standard or light-duty ball mounts.
Precision Dimensions and Universal Compatibility
The design of this ball mount is characterized by precise dimensions that optimize functionality and compatibility. Its 2.00-inch receiver tube size is the industry standard for many medium to heavy-duty towing applications. This ensures broad compatibility with a vast array of tow vehicles equipped with a 2-inch receiver hitch, simplifying the selection process and allowing for straightforward integration into existing towing setups. The secure fit within the receiver minimizes play and movement, contributing to a more stable and controlled towing experience.
The specified 2.00-inch maximum drop is a crucial feature for achieving proper trailer leveling. Trailer leveling is paramount for safe and efficient towing, as it ensures even weight distribution across the trailer's axles, preventing excessive tire wear on one set of tires, reducing undue stress on the trailer frame, and maintaining optimal aerodynamics. A 2-inch drop is frequently required when the tow vehicle's hitch receiver is positioned higher than the trailer's coupler, a common scenario with lifted trucks, SUVs, or vehicles with taller suspensions. By effectively lowering the hitch ball, this ball mount helps to achieve a level towing platform, which is critical for maintaining stability, especially at highway speeds and during maneuvers.
Conversely, the ball mount also offers a 0.75-inch maximum rise. While primarily designed for drop applications, the ability to flip the mount for a slight rise offers additional versatility. This feature can be beneficial in less common situations where the trailer's coupler is positioned higher than the tow vehicle's receiver, allowing for minor adjustments to achieve a level towing height. This adaptability enhances the utility of the ball mount across a wider range of tow vehicle and trailer combinations.
With a length of 7.63 inches (approximately 7-5/8 inches), the ball mount provides an optimal extension from the receiver hitch. This specific length is engineered to offer adequate clearance between the trailer and the tow vehicle, facilitating tighter turns and preventing interference during maneuvering, especially with trailers featuring longer tongues or complex coupling mechanisms. At the same time, it avoids excessive extension, which could introduce additional leverage and stress on the hitch system, thereby maintaining optimal handling dynamics.
Compatibility with towing balls featuring a 1.00-inch shank diameter is a key specification for this particular model. This precise hole diameter ensures a snug and secure fit for the selected hitch ball, preventing any unwanted movement or vibration that could compromise the integrity of the connection. Proper mating between the ball mount and the hitch ball shank is essential for distributing the vertical and horizontal loads effectively and safely. Users are advised to select a hitch ball with the appropriate shank diameter and a corresponding weight rating that meets or exceeds the ball mount's capacity, ensuring a fully compliant and robust towing system.
Advanced Corrosion Protection: The Powder-Coat Advantage
The application of a black powder-coat finish is not merely for aesthetics; it is a vital protective measure that significantly enhances the longevity and durability of the ball mount. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded ball mount. The charged powder particles adhere to the surface, and the entire assembly is then cured under heat. During the curing process, the powder melts and flows to form a smooth, uniform, and extremely durable "skin" over the metal surface.
Compared to traditional liquid paints, powder coatings offer superior protection against a multitude of environmental stressors. They exhibit exceptional resistance to chipping, scratching, abrasion, and fading, which are common issues in towing applications due to exposure to road debris, gravel, and harsh weather conditions. More importantly, the powder coat creates an impermeable barrier that effectively shields the carbon steel from corrosive elements such such as moisture, road salt, chemicals, and ultraviolet (UV) radiation. This robust corrosion resistance is critical for equipment constantly exposed to the elements, preventing rust and degradation that could compromise the structural integrity of the ball mount over time. The deep black finish also provides a professional and sleek appearance that complements most tow vehicles and trailers, maintaining its aesthetic appeal even after years of strenuous use.
Versatile Applications and Uncompromising Reliability
The inherent strength, precise engineering, and protective finish of this heavy-duty ball mount make it suitable for a diverse range of applications across various industries and personal uses. Its 20,000 lb M.G.T.W. rating positions it as an ideal component for:
- Commercial Fleets: For businesses that regularly transport heavy equipment, construction materials, or large cargo, this ball mount provides the necessary backbone for reliable and compliant towing operations.
- Agricultural Sector: Farmers and agricultural workers can depend on this mount for hauling trailers laden with feed, machinery, livestock, or harvested crops over varied terrain.
- Industrial Operations: In settings requiring the movement of heavy machinery, generators, or specialized industrial equipment, the ball mount offers a robust connection point.
- Recreational Towing: For enthusiasts with substantial recreational vehicles such as large travel trailers, multi-axle boat trailers, or toy haulers carrying ATVs and motorcycles, this ball mount ensures safe and stable transport to their destinations.
- Utility and Landscaping Professionals: Companies in these sectors often tow chippers, stump grinders, large dump trailers, and other heavy equipment, for which this ball mount provides essential support.
Regardless of the application, the reliability of this ball mount translates into reduced downtime, enhanced operational efficiency, and, most importantly, improved safety for both the operator and other road users. Its robust design minimizes the risk of component failure, thereby protecting valuable cargo and ensuring that towing operations proceed without incident.
Installation, Maintenance, and Safety Considerations
Proper installation and routine maintenance are crucial for maximizing the performance and lifespan of any towing component. When installing the 2 Inch Heavy-Duty Ball Mount, it is essential to:
- Ensure Proper Fit: Slide the ball mount fully into the receiver tube until the hitch pin holes align perfectly.
- Secure with a High-Quality Pin and Clip: Use a hitch pin and clip (or a locking hitch pin) that is rated for the towing capacity of the system and securely locks the ball mount in place.
- Install the Towing Ball Correctly: Mount a towing ball with a 1.00-inch shank diameter that matches or exceeds the M.G.T.W. of the ball mount. Ensure the ball is tightened to the manufacturer's specified torque using appropriate tools.
- Verify Weight Ratings: Always ensure that the Gross Trailer Weight (GTW) and Tongue Weight (TW) of the trailer do not exceed the lowest-rated component in the entire towing system, which includes the tow vehicle's hitch receiver, the ball mount, the hitch ball, and the tow vehicle itself.
Regular maintenance checks should include inspecting the ball mount for any signs of wear, deformation, rust, or damage, especially after heavy use or exposure to harsh conditions. The powder coat finish should also be periodically checked for integrity; any chips or deep scratches should be promptly addressed to prevent the onset of corrosion. Keeping the receiver tube and ball mount clean and free of debris will also help maintain proper fit and function.
Adherence to these guidelines, combined with a comprehensive understanding of towing dynamics and safety regulations, will ensure that the 2 Inch Heavy-Duty Ball Mount delivers its maximum potential in terms of strength, stability, and service life.
Conclusion: The Unrivaled Choice for Heavy-Duty Towing
The 2 Inch Heavy-Duty Ball Mount with a 2-inch drop and 7-5/8 inch long tube, designed for a 1-inch ball shank hole, represents the pinnacle of towing equipment engineering. Its solid forged carbon steel construction, meticulously crafted into a single-piece unit, offers unparalleled structural integrity and resistance to the stresses of heavy hauling. The robust black powder-coat finish provides a superior defense against corrosion and abrasion, ensuring long-term durability and maintaining its operational effectiveness in the harshest environments.
With an impressive M.G.T.W. of 20,000 lbs and an M.V.L. of 2,000 lbs, this ball mount is specifically designed to meet and exceed the demands of professional and serious recreational towing applications. Its precise dimensions, including the standard 2.00-inch receiver tube size, optimized 2.00-inch drop, and versatile 0.75-inch rise capability, facilitate perfect trailer leveling and safe maneuverability across a wide array of tow vehicle and trailer combinations. The dedicated 1.00-inch hole for the ball shank ensures a secure and robust connection, critical for load transfer and towing stability.
Choosing this heavy-duty ball mount is an investment in safety, reliability, and performance. It eliminates common weak points found in lesser-quality alternatives, providing operators with the confidence and peace of mind necessary to tackle any towing challenge. For those who demand the utmost in strength and longevity from their towing apparatus, this 2 Inch Heavy-Duty Ball Mount stands as the definitive solution, embodying advanced engineering, premium materials, and a commitment to uncompromising quality.
