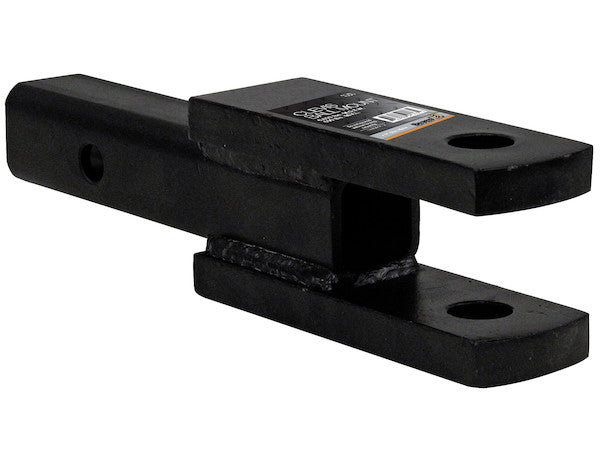

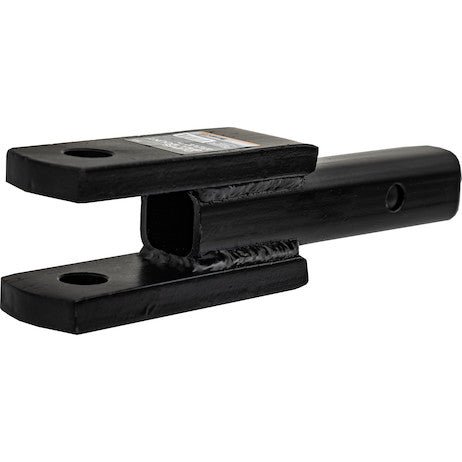

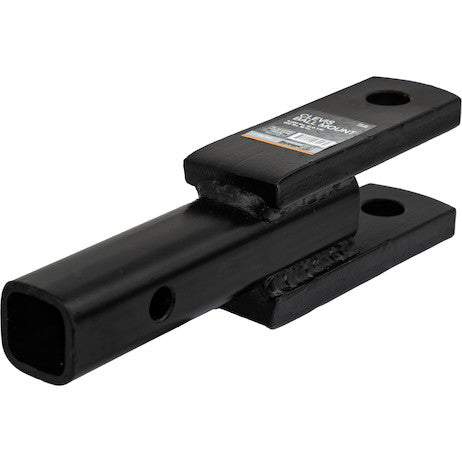

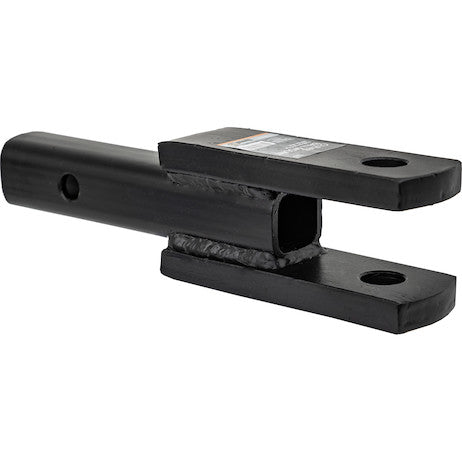

1803060 - 2 Inch Square Tubular Shank Clevis Ball Mount Black 9-1/4 Inch Long

The Clevis Ball Mount from Buyers Products can accept either a 1 in. diameter tow ball or a clevis pin for towing flexibility. Choose the mount with either a tubular shank (maximum towing weight rating of 6,000 lb) or the solid shank (maximum towing weight rating of 8,000 lb). It is designed to fit a standard 2 in. receiver tube. The mount features a corrosion-resistant black powder-coated finish.

Specifications

Advanced Engineering: The 2-Inch Square Tubular Shank Clevis Ball Mount for Versatile Towing

The 2 Inch Square Tubular Shank Clevis Ball Mount, presented in a resilient black finish and engineered to a precise 9-1/4 inch length, represents a pinnacle of towing versatility and robust design. This product is not merely an accessory but a critical interface component, meticulously crafted to facilitate a wide array of towing applications, from recreational hauling to demanding commercial and agricultural tasks. Its dual functionality, supporting both a standard tow ball and a clevis pin, underscores a commitment to adaptability and user-centric design, making it an indispensable tool for operators requiring diverse towing solutions.

Unparalleled Dual-Functionality: The Clevis and Ball Mount Advantage

The inherent strength of this clevis ball mount lies in its exceptional dual-purpose design. Unlike conventional hitch mounts that are limited to either ball-type couplers or clevis connections, this unit seamlessly integrates both functionalities. This design choice is a direct response to the multifaceted needs of modern towing scenarios, where operators frequently switch between different types of trailers and towed equipment without the inconvenience of multiple, specialized mounts. The ability to transition effortlessly between these two primary coupling methods significantly enhances operational efficiency and reduces equipment overhead.

The Integrated Tow Ball Configuration

The mount features a precisely bored receptacle designed to accommodate a 1-inch diameter tow ball. This dimension is a common industry standard, ensuring compatibility with a vast majority of conventional trailer couplers used for recreational vehicles, utility trailers, boat trailers, and light commercial cargo trailers. The secure mounting of a tow ball within this socket provides a robust, articulating connection point. The design considers the dynamic forces experienced during towing, ensuring that the tow ball remains firmly anchored, thereby preventing rotational movement or disengagement even under significant tensile and torsional stresses. This configuration is ideal for highway travel, offering stable and predictable handling characteristics for standard trailers equipped with ball couplers.

The Robust Clevis Pin Connection

Complementing its ball mount capability, the integrated clevis pin feature expands the mount's utility to an entirely different spectrum of applications. A clevis connection, characterized by its U-shaped bracket and a secured pin, is historically renowned for its simplicity, strength, and remarkable tolerance for misalignment. This makes it particularly suited for agricultural implements such as cultivators, plows, spreaders, and wagons, as well as construction equipment, specialized recovery operations, or older trailers that utilize a drawbar or pintle-style coupling system. The clevis pin method provides a direct, non-articulating connection that is highly resistant to impact and sheer forces, making it an excellent choice for off-road or uneven terrain towing where stability requirements differ from highway conditions. The flexibility afforded by this dual system allows users to tackle diverse tasks without the need to swap out entire hitch assemblies, translating into significant time and effort savings.

Precision Engineering and Robust Material Selection

The structural integrity and long-term reliability of any towing component are fundamentally rooted in its material composition and manufacturing precision. This 2-inch square tubular shank clevis ball mount exemplifies these principles through its deliberate material selection and design execution.

Material Composition: High-Grade Carbon Steel

The core material for this clevis ball mount is high-grade carbon steel. Carbon steel is selected for its superior mechanical properties, which are critical for applications subjected to significant dynamic loads and environmental stressors. Key properties include:

• High Tensile Strength: This refers to the maximum stress the material can withstand before fracturing when stretched. For a towing component, high tensile strength is paramount to resist the immense pulling forces exerted by a trailer, preventing elongation or catastrophic failure.
• Excellent Yield Strength: This is the point at which the material begins to deform permanently. A high yield strength ensures that the mount will return to its original shape after experiencing normal operational stresses, avoiding permanent bending or distortion that could compromise its integrity or towing dynamics.
• Fatigue Resistance: Towing applications involve repeated cycles of loading and unloading, which can lead to material fatigue over time. The carbon steel employed is engineered to exhibit strong fatigue resistance, ensuring the mount maintains its structural integrity through thousands of towing miles and countless coupling cycles.
• Impact Toughness: Carbon steel offers good resistance to sudden impacts, protecting the mount from damage due to road debris, coupling shocks, or accidental contact.

The utilization of carbon steel, often a grade similar to ASTM A36 or higher, ensures a product that is not only robust but also capable of delivering consistent performance across a wide range of operational temperatures and environmental conditions.

The Tubular Shank Design

This particular model features a tubular shank, a design choice made with specific performance characteristics in mind. While solid shanks offer ultimate density and sheer mass, tubular shanks provide an optimized strength-to-weight ratio. This means the mount achieves high levels of structural rigidity and load-bearing capacity while minimizing its own contribution to the vehicle's unladen weight. The hollow cross-section, when engineered correctly, allows for efficient distribution of stress throughout the material, often providing superior torsional resistance compared to an equivalent weight solid bar. The 2-inch square profile of the shank is a critical dimensional specification, ensuring universal compatibility with standard 2-inch receiver hitches found on a vast majority of trucks, SUVs, and commercial vehicles. The precision of this dimension is vital to minimize undesirable play or "slop" within the receiver tube, which can otherwise contribute to rattling, increased wear on the hitch components, and reduced towing stability.

Optimized Length: 9-1/4 Inches (9.25 in.)

The specified length of 9-1/4 inches is not an arbitrary dimension but a carefully calculated parameter designed to balance reach and leverage. This extension provides adequate clearance between the trailer and the tow vehicle's bumper, tailgate, or spare tire, preventing contact during sharp turns, maneuvering in tight spaces, or when the tailgate is lowered. Simultaneously, this length is optimized to minimize the additional leverage exerted on the receiver hitch system. Excessive extension can magnify forces on the hitch receiver, reducing its effective capacity and increasing the risk of structural fatigue. The 9-1/4 inch length strikes an ideal balance, offering necessary clearance without compromising the overall towing system's stability or load-bearing integrity.

Advanced Corrosion Protection: The Black Powder-Coat Finish

For any component exposed to the rigors of outdoor use and varying environmental conditions, effective corrosion protection is paramount to ensure longevity and maintain aesthetic appeal. The black powder-coat finish applied to this clevis ball mount represents a significant advancement over traditional liquid paint systems, offering superior durability and protective qualities.

The Science of Powder Coating

The powder coating process is a sophisticated application method that begins with the electrostatic application of a finely ground, dry pigment and resin mixture onto the meticulously cleaned and pre-treated metal surface. During this stage, the electrically charged powder particles are attracted to the grounded metallic mount, ensuring an even and comprehensive coating, even in complex geometries. The coated component is then transferred to a curing oven where it is subjected to elevated temperatures. This heat causes the powder particles to melt, flow out, and chemically cross-link, forming a continuous, uniform, and exceptionally hard protective layer. This thermosetting process results in a finish that is intrinsically more durable and adherent than solvent-based liquid paints.

Superior Protective Qualities

• Exceptional Corrosion Resistance: The cured powder coat forms an impermeable barrier that effectively seals the underlying carbon steel from moisture, oxygen, road salts, de-icing chemicals, and other corrosive agents. This significantly extends the product's lifespan by preventing rust and oxidative degradation, even in harsh winter conditions or coastal environments.
• High Abrasion and Impact Resistance: Unlike traditional paints that can chip or scratch easily, powder coating exhibits superior resistance to physical wear, impacts from road debris, and abrasive elements. This robust outer layer ensures the mount retains its protective qualities and visual integrity through years of heavy use.
• UV Stability: The black powder coat is formulated to be highly resistant to ultraviolet radiation from sunlight. This prevents fading, chalking, and degradation of the finish over time, ensuring the mount maintains its deep black color and protective properties even with prolonged outdoor exposure.
• Chemical Resistance: The polymer matrix of the powder coat provides excellent resistance to various automotive fluids, oils, greases, and common cleaning agents, further enhancing its durability in operational environments.
• Environmental Benefits: Powder coating is an environmentally responsible choice, as it is a solvent-free process, meaning it releases no volatile organic compounds (VOCs) into the atmosphere, aligning with modern ecological standards.

The sleek black finish is not only functional but also aesthetically pleasing, offering a professional appearance that complements a wide range of vehicles and trailers.

Performance Specifications and Critical Safety Protocols

Understanding and adhering to the specified performance ratings of any towing equipment is paramount for ensuring safety, preventing equipment damage, and complying with legal requirements. This clevis ball mount is precisely rated to provide clear operational guidelines.

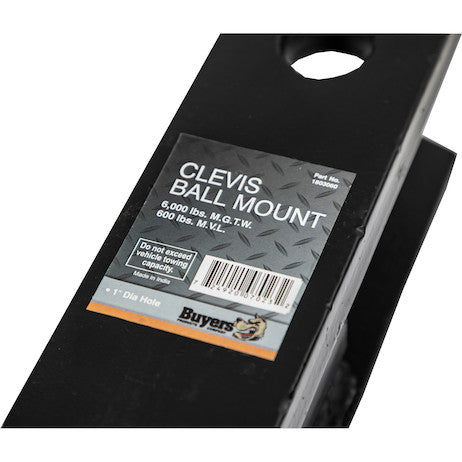

Maximum Gross Trailer Weight (M.G.T.W.): 6,000 lbs (2,721 kg)

The M.G.T.W. rating of 6,000 lbs refers to the absolute maximum total weight of the fully loaded trailer, including its chassis, cargo, and any fluids. This rating is a crucial safety parameter, meticulously determined through rigorous engineering analysis and testing of the mount's structural components, material integrity, and welding quality. Exceeding this rating can lead to catastrophic failure of the hitch component, loss of trailer control, severe accidents, and significant legal liabilities. Operators must always ensure that the actual gross weight of their towed trailer never surpasses this specified limit. Furthermore, the M.G.T.W. of the hitch mount must always be considered in conjunction with the tow vehicle's maximum towing capacity and the trailer's Gross Vehicle Weight Rating (GVWR) to identify the lowest common denominator, which dictates the safe towing limit for the entire system.

Maximum Vertical Load (M.V.L.): 600 lbs (272 kg)

The M.V.L., often referred to as tongue weight, is the downward force exerted by the trailer's coupler onto the hitch ball or clevis pin. For this specific tubular shank clevis ball mount, the M.V.L. is rated at 600 lbs. Proper tongue weight is critically important for stable and safe towing dynamics. For conventional trailers, the optimal tongue weight typically falls within a range of 10% to 15% of the M.G.T.W. of the trailer.

• Insufficient Tongue Weight (below 10%): A tongue weight that is too low can lead to dangerous trailer sway, making the trailer unstable and extremely difficult to control, particularly at higher speeds or in windy conditions. This can result in a loss of vehicle control and severe accidents.
• Excessive Tongue Weight (above 15%): Conversely, a tongue weight that is too high places excessive downward pressure on the tow vehicle's rear suspension, potentially overloading the rear axle and tires. This can lift the front wheels of the tow vehicle, reducing steering control, diminishing braking effectiveness, and potentially causing structural damage to the vehicle's frame or hitch receiver.

Operators are advised to accurately measure their trailer's tongue weight using a specialized scale and adjust the trailer's cargo distribution to achieve a tongue weight within the recommended 10-15% range relative to the trailer's actual loaded weight, while ensuring it does not exceed the hitch mount's 600 lb M.V.L. rating.

Adherence to Industry Standards and Quality Assurance

While specific industry standard certifications (e.g., SAE J684) are not explicitly listed for every component, the design and manufacturing of this clevis ball mount implicitly adhere to robust engineering principles and quality control practices common in the towing equipment industry. This includes stringent material selection, precise machining, professional welding, and comprehensive testing to ensure that the product meets or exceeds its advertised performance specifications under realistic operating conditions. These rigorous processes ensure the mount's safety and reliability, providing operators with confidence in its capability to perform reliably within its rated capacities.

Seamless Integration and Universal Compatibility

The design of this clevis ball mount emphasizes ease of integration and broad compatibility, making it a highly practical solution for a diverse user base.

The Standard 2-Inch Receiver Interface

The 2-inch square shank is engineered to fit seamlessly into any standard 2-inch receiver hitch. This is the most common receiver size for light-duty trucks, mid-size and full-size SUVs, and many commercial utility vehicles in North America. The precise dimensional tolerances of the shank ensure a snug fit, minimizing rotational and lateral movement within the receiver tube. This tight fit is critical for reducing wear on both the hitch pin and the receiver, as well as enhancing overall towing stability by reducing any play that could translate into trailer sway or jerking motions during acceleration and braking. The mount is secured in the receiver using a standard hitch pin and clip (typically sold separately), which is a universally recognized and reliable fastening method.

Versatility in Coupler Interfaces

The dual functionality of this mount means it is compatible with two fundamental types of trailer coupling systems. For ball-type couplers, it accepts a standard 1-inch diameter shank tow ball, which can be easily installed and secured. For clevis-type connections, the robust hole is sized to accommodate commonly available clevis pins, providing a simple yet incredibly strong link to agricultural implements, pintle hitches, or specialized drawbars. This broad compatibility ensures that whether an operator is towing a modern boat trailer or an antique farm wagon, this single hitch mount provides the necessary connection capability.

Operational Versatility: Real-World Applications

The inherent versatility of the 2-inch Square Tubular Shank Clevis Ball Mount makes it suitable for a vast array of towing applications across various sectors:

• Recreational Towing: Ideal for towing small to medium-sized boat trailers, personal watercraft trailers, utility campers, pop-up campers, and car haulers within its 6,000 lb M.G.T.W. rating. The ball mount function is primarily utilized here.
• Agricultural Operations: The clevis pin functionality makes this mount invaluable for connecting to a wide range of farm implements such as small cultivators, fertilizer spreaders, livestock trailers, utility wagons, and other towed equipment commonly found on farms or ranches.
• Commercial and Utility Services: Landscaping businesses can use it for brush chippers or utility trailers. Construction crews might find it useful for towing small generators, portable welders, air compressors, or material handling trailers around job sites. Its adaptability is beneficial for companies that operate a varied fleet of towed equipment.
• General Utility: For homeowners or small businesses requiring a flexible solution for moving general cargo, debris, or equipment with different trailer types, this mount serves as an all-in-one solution, negating the need for multiple specialized hitch inserts.

Durability, Longevity, and Maintenance Protocol

Designed and manufactured for enduring performance, this clevis ball mount is built to provide years of reliable service. However, like all mechanical components subjected to stress and environmental exposure, proper maintenance is key to maximizing its lifespan and ensuring continued safe operation.

• Regular Inspection: Prior to each towing operation, and periodically during extended trips, visually inspect the clevis ball mount for any signs of wear, fatigue, cracks, bending, or deformation. Pay close attention to welded joints, the shank, and the ball/clevis pin holes. Inspect the powder coat finish for any significant chips or areas where the base metal may be exposed, which could be potential sites for corrosion initiation.
• Cleaning: After use, especially in corrosive environments (e.g., salty roads, muddy fields), clean the mount thoroughly to remove accumulated dirt, road grime, salt, and debris. A simple wash with soap and water followed by drying is usually sufficient.
• Lubrication: While the mount itself doesn't require extensive lubrication, ensuring the hitch pin and any moving parts of the trailer coupler are properly greased will prevent seizing and reduce wear, contributing to overall system longevity.
• Proper Storage: When not in use, storing the clevis ball mount in a clean, dry environment will protect it from unnecessary exposure to elements that accelerate corrosion.
• Timely Replacement: Any component exhibiting signs of damage, excessive wear, or deformation must be immediately removed from service and replaced. Attempting to repair a compromised towing component can lead to catastrophic failure.

Adhering to these simple maintenance practices will significantly contribute to the product's durability and ensure its safe and effective operation throughout its service life.

Conclusion: The Definitive Choice for Flexible and Reliable Towing

In summary, the 2 Inch Square Tubular Shank Clevis Ball Mount with its 9-1/4 inch length and black powder-coated finish stands as an exemplary product in the towing equipment market. Its core value proposition is defined by its outstanding versatility, robust construction from high-grade carbon steel, and superior corrosion protection. The meticulously engineered dual functionality, accommodating both a 1-inch diameter tow ball and a clevis pin, provides unparalleled adaptability for a wide spectrum of towing tasks. With a formidable M.G.T.W. of 6,000 lbs and an M.V.L. of 600 lbs, this mount is designed to handle demanding loads safely and efficiently, fitting seamlessly into any standard 2-inch receiver. For professionals and serious hobbyists who demand a single, reliable solution capable of interfacing with diverse trailer types and operating effectively in challenging conditions, this clevis ball mount represents a strategic investment in efficiency, safety, and long-term performance. It is not just a component; it is a versatile foundation for a multitude of towing endeavors, engineered to perform consistently when it matters most.
