Adjustable Ball Mounts from Buyers Products are the ultimate time savers when you have a variety of hitch heights. Two models easily adjust to four height positions for different trailers and coupler heights. They feature either a 2 in. tubular or a solid shank, and are rated to 6,000 or 10,000 lb, respectively. A third model with a 2 in. tubular shank features three positions and is rated to 6,000 lb. All of the mounts feature welded steel construction and corrosion-resistant black powder-coated finish.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.00 |
| Length (in.) | 12.90 |
| M.G.T.W. (lbs) | 6,000 |
| M.V.L. (lbs) | 600 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 11.00 |
| Maximum Rise (in.) | 9.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 2.00 |
| Shank Type | Tubular |

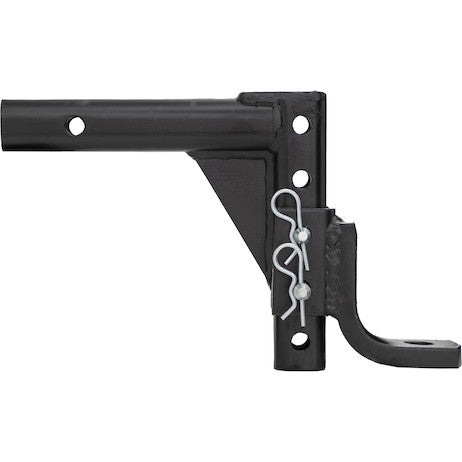

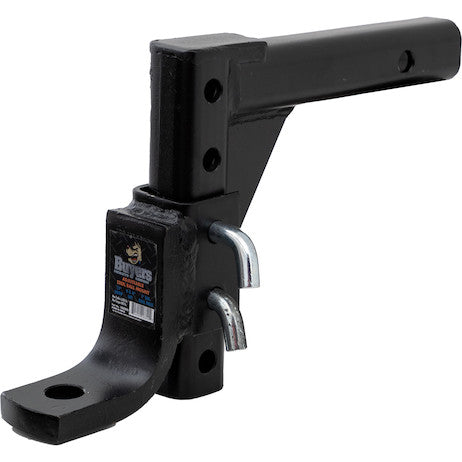

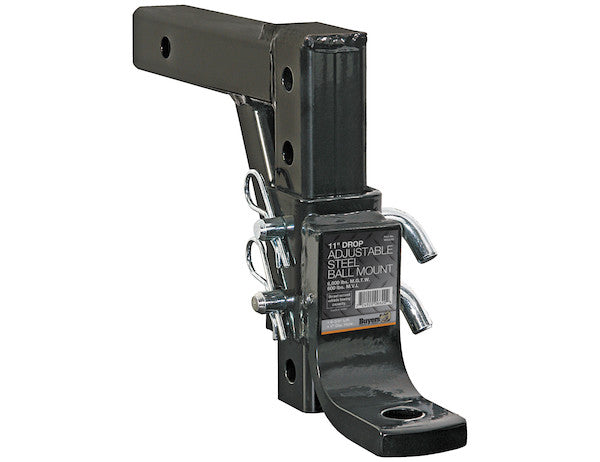

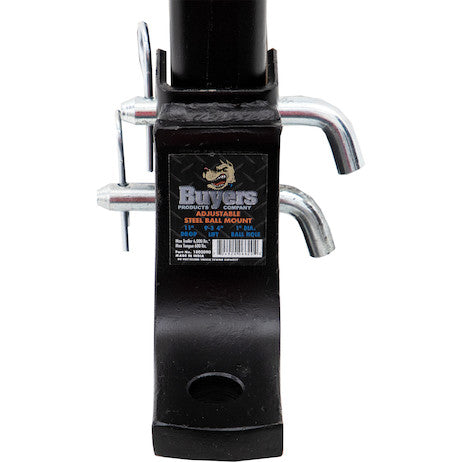

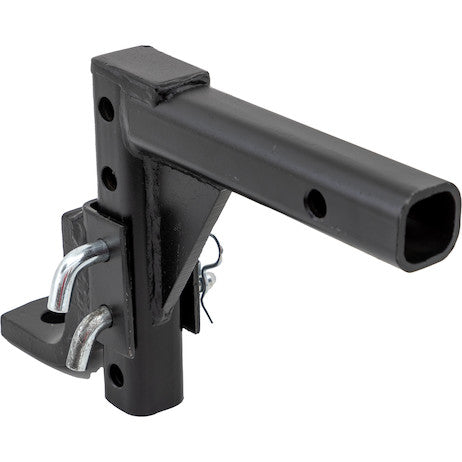

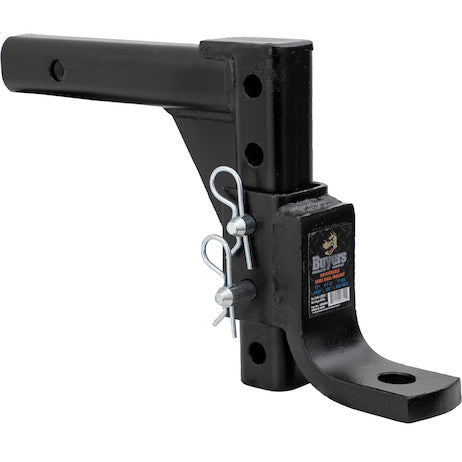

Optimizing Towing Dynamics with the 4-Position 2-Inch Tubular Shank Adjustable Ball Mount
In the demanding landscape of modern towing, efficiency, safety, and adaptability are paramount. The 4-Position 2-Inch Tubular Shank Adjustable Ball Mount, a distinguished offering from Buyers Products, represents a pinnacle of engineering designed to meet these exact requirements. This robust towing accessory is not merely a component; it is a meticulously engineered solution crafted to optimize towing dynamics across a diverse range of applications, from commercial fleets managing varied cargo to recreational users seeking unparalleled versatility.
Precision Engineering for Dynamic Towing Requirements
The core utility of any ball mount lies in its ability to establish a level towing plane, thereby ensuring stability, reducing wear on both the tow vehicle and trailer, and enhancing overall safety. The inherent challenge arises when a single tow vehicle is tasked with hauling multiple trailers, each possessing unique coupler heights, or when varying load conditions alter the tow vehicle's suspension dynamics. The 4-Position Adjustable Ball Mount directly addresses this complexity by offering a high degree of vertical adjustment, negating the need for an inventory of multiple fixed-height ball mounts. This single, versatile unit serves as a critical asset, allowing for rapid, precise height adjustments to achieve optimal trailer alignment.
Central to its design is the innovative 4-position adjustability. This mechanism allows the user to quickly and securely modify the ball height, accommodating significant variations in trailer coupler elevations. Whether the requirement is for a substantial drop to connect with a low-slung utility trailer or a considerable rise for a high-axle cargo trailer, this mount provides the necessary flexibility. The specifications detail a remarkable maximum drop of 11.00 inches and a maximum rise of 9.75 inches. This expansive range ensures that virtually all standard trailer configurations can be accommodated with precision, minimizing the stresses associated with unlevel towing, such as uneven tire wear, compromised braking performance, and reduced directional stability. The adjustability is particularly beneficial for professionals who frequently switch between different trailers or for owners of multi-purpose vehicles.
Robust Construction and Material Science
Durability and structural integrity are non-negotiable attributes for any towing component, especially one designed to manage significant loads. This adjustable ball mount is constructed from high-grade carbon steel, a material renowned for its exceptional tensile strength and yield properties. The use of carbon steel ensures that the mount can withstand the rigorous forces encountered during towing, including dynamic loading, torsional stresses, and abrupt accelerations or decelerations. The inherent strength of carbon steel provides a foundation of reliability, ensuring long-term performance under demanding operational conditions.
Further enhancing its structural integrity is the welded steel construction. Rather than relying on bolted assemblies for primary load-bearing connections, this ball mount features expertly executed welds. Welding creates a monolithic structure, effectively fusing components into a single, cohesive unit, thereby eliminating potential points of failure often associated with mechanical fasteners under extreme vibration or repetitive stress. The precision of these welds is a testament to the rigorous manufacturing standards upheld by Buyers Products, guaranteeing a robust and dependable connection between the shank and the adjustable upright.
Optimized Load Capacity and Safety Parameters
The 4-Position 2-Inch Tubular Shank Adjustable Ball Mount is engineered to handle substantial payloads, boasting a Maximum Gross Trailer Weight (M.G.T.W.) rating of 6,000 lbs and a Maximum Vertical Load (M.V.L.), commonly referred to as tongue weight, of 600 lbs. These ratings are crucial indicators of the mount's capacity and are critical for ensuring safe towing operations. The M.G.T.W. signifies the maximum total weight of a fully loaded trailer that the ball mount is designed to safely tow. Exceeding this limit can lead to catastrophic failure, hence strict adherence to this specification is imperative. Similarly, the M.V.L. rating dictates the maximum downward force that can be exerted on the hitch ball by the trailer's tongue. Maintaining proper tongue weight—typically between 10-15% of the M.G.T.W.—is fundamental for preventing trailer sway, ensuring stable handling, and preserving steering control of the tow vehicle. This ball mount's ratings make it suitable for a wide array of medium-duty towing tasks, including utility trailers, small to medium recreational vehicles, boat trailers, and various commercial equipment trailers.
The receiver tube size of 2.00 inches is a ubiquitous standard in the towing industry, ensuring broad compatibility with a vast majority of tow vehicles equipped with a Class III or Class IV hitch receiver. This standardization streamlines equipment management and simplifies the integration of this adjustable ball mount into existing towing setups. The design also specifies accommodation for a ball with a 1.00-inch shank size, allowing users to select the appropriate hitch ball diameter (e.g., 1-7/8", 2", 2-5/16") that precisely matches their trailer coupler, further enhancing versatility without compromising safety.
Superior Corrosion Resistance and Aesthetic Longevity
Towing equipment is perpetually exposed to harsh environmental elements, including moisture, road salts, abrasive debris, and fluctuating temperatures. To counteract these corrosive forces, the 4-Position Adjustable Ball Mount features a durable black powder-coated finish. Powder coating is a superior finishing process that provides a significantly more resilient and aesthetically pleasing surface than traditional liquid paints.
The process involves electrostatically applying a fine powder made of polymer resins, pigments, and curatives onto the carbon steel surface. The part is then cured under heat, causing the powder to melt and flow into a smooth, uniform, and extremely tough film. This molecular bonding results in a finish that is highly resistant to chipping, scratching, fading, and, critically, corrosion. The black color not only provides a professional, understated appearance but also offers excellent UV resistance, preventing degradation from prolonged sun exposure. This robust protective layer ensures that the ball mount maintains its structural integrity and visual appeal for an extended operational lifespan, even when subjected to the most challenging weather conditions and road environments. The consistency of the powder-coat finish across all external surfaces, as indicated by the "Mount Finish_1: Powder-Coat" specification, underlines a commitment to comprehensive protection.
Understanding the Tubular Shank Advantage
The "2-inch tubular shank" design is a deliberate engineering choice that offers distinct advantages. Tubular steel, while appearing lighter than a solid shank of equivalent outer dimensions, often provides an exceptional strength-to-weight ratio. This design optimizes material distribution, concentrating strength where it is most needed to resist bending and torsional forces, while reducing overall mass. A lighter shank can contribute to a marginally reduced tongue weight on the tow vehicle when the trailer is uncoupled, and it can also make the unit easier to handle during installation and removal. Furthermore, the tubular construction ensures a precise fit within standard 2-inch receiver tubes, minimizing play and providing a more secure connection. While solid shanks excel in extreme heavy-duty applications, the tubular design for a 6,000 lb M.G.T.W. offers an optimal balance of strength, weight, and cost-effectiveness.
Dimensional Precision and Ergonomic Design
With an overall length of 12.90 inches, the ball mount is designed for optimal clearance and maneuverability. This length ensures that the trailer tongue clears the rear bumper of the tow vehicle during tight turns, while also allowing sufficient space for hitch pin insertion and securing the ball mount within the receiver. The dimensions are carefully balanced to provide functional reach without introducing excessive leverage that could strain the receiver hitch or chassis of the tow vehicle. The design considers not just the strength of the material but also the geometric properties required for effective and safe towing.
The ease of adjustment is an ergonomic highlight. The 4-position system typically employs a robust pin-and-clip mechanism, allowing for swift and secure changes in height without the need for specialized tools. This user-friendly design significantly reduces downtime during trailer hook-ups, a crucial factor for operations where efficiency directly impacts productivity. The ability to achieve precise height matching in mere moments is a testament to the intelligent design behind this adjustable ball mount.
Applications Across Diverse Industries
The versatility of this 4-Position 2-Inch Tubular Shank Adjustable Ball Mount makes it indispensable across a multitude of sectors:
- Commercial Fleets: For businesses that utilize a variety of trailers—from landscaping flatbeds to enclosed cargo trailers or equipment haulers—this single mount simplifies logistics and ensures correct tongue height for every vehicle combination, reducing equipment inventory.
- Construction: Hauling mini-excavators, dump trailers, or material transport trailers often requires precise adjustments to maintain stability on uneven construction sites or during transport.
- Agriculture: Farmers frequently tow various implements and trailers. An adjustable mount ensures proper height for different tractors or trucks, and for diverse agricultural equipment.
- Recreational Use: Enthusiasts towing boats, campers, ATVs, or utility trailers benefit immensely from the ability to quickly adapt the hitch height to different vehicles or terrain, enhancing comfort and safety on family trips or outdoor adventures.
- Rental Businesses: Equipment rental companies can offer a universal towing solution to their customers, regardless of the customer's tow vehicle or the specific trailer being rented.
Commitment to Quality and Professional Standards
Buyers Products has long been recognized for its dedication to producing high-quality, durable equipment that meets the rigorous demands of professionals. This 4-Position 2-Inch Tubular Shank Adjustable Ball Mount is a prime example of their engineering excellence, combining robust materials, thoughtful design, and superior finishes to deliver a product that exceeds expectations. Adherence to strict manufacturing tolerances ensures a precise fit and reliable performance, instilling confidence in every tow. While specific compliance standards like SAE J684 are not explicitly listed, the robust design and specified load capacities imply an adherence to industry best practices for safety and performance.
Conclusion
The 4-Position 2-Inch Tubular Shank Adjustable Ball Mount from Buyers Products stands as an essential component for anyone requiring adaptable and reliable towing capabilities. Its meticulously engineered 4-position adjustability, robust carbon steel construction with welded joints, and protective black powder-coated finish provide a superior combination of versatility, durability, and corrosion resistance. With a substantial 6,000 lb M.G.T.W. and 600 lb M.V.L., this mount is perfectly suited for a wide range of medium-duty towing applications, promising enhanced safety, operational efficiency, and long-term value. By mitigating the challenges associated with disparate trailer coupler heights and dynamic towing conditions, this adjustable ball mount empowers users to achieve optimal towing alignment, thereby preserving equipment, ensuring cargo security, and fostering safer road travel.
