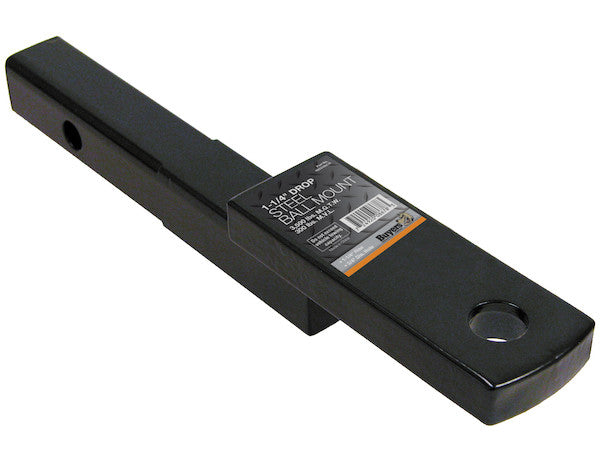

The 1-1/4 Inch Flat Ball Mount from Buyers Products is ideal for towing light duty loads such as utility trailers, garden trailers, ATV or bike trailers, or similar loads. Choose the rise and drop size to fit your trailer height. The solid steel, black powder-coated mount is rated to 3,500 lb and fits 1-1/4 in. receiver tubes. It's durable and corrosion-resistant for years of use. Use it with 3/4 in. shank diameter towing balls.
Specifications
| Ball Diameter | - |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 0.75 |
| Length (in.) | 9.00 |
| M.G.T.W. (lbs) | 3500 |
| M.V.L. (lbs) | 300 |
| Material | Carbon Steel |
| Maximum Drop (in.) | 1.25 |
| Maximum Rise (in.) | 0.75 |
| Mount Finish_1 | Powder-Coat |
| Receiver Tube Size | 1.25 |
| Shank Type | Solid |
The 1-1/4 Inch Basic Fixed Flat Ball Mount in Black from Buyers Products represents an engineered solution for a broad spectrum of light-duty towing applications. Designed with precision and manufactured to rigorous standards, this ball mount provides a robust and reliable interface between a towing vehicle and its trailer, specifically tailored for 1-1/4 inch receiver hitch systems. Its fundamental purpose is to establish a secure, level connection, ensuring optimal towing dynamics and load distribution for trailers up to 3,500 pounds Gross Trailer Weight (GTW) and 300 pounds Maximum Vertical Load (MVL), commonly known as tongue weight. This comprehensive description will delve into the technical specifications, material science, design considerations, and practical implications of this essential towing component.
Receiver Hitch Compatibility: The 1-1/4 Inch Standard
The designation "1-1/4 Inch" refers to the nominal internal dimension of the receiver tube on the towing vehicle, corresponding to a Class I or Class II hitch. Class I hitches are typically rated for up to 2,000 lbs GTW and 200 lbs tongue weight, while Class II hitches can handle up to 3,500 lbs GTW and 350 lbs tongue weight. This ball mount, with its 3,500 lb GTW and 300 lb MVL rating, is perfectly suited for most Class II applications, though it can also be safely utilized with Class I hitches provided the combined trailer weight and tongue weight do not exceed the lower rating of the hitch or the vehicle. The 1-1/4 inch receiver size is frequently found on smaller SUVs, crossovers, sedans, and compact trucks, making this ball mount an ideal choice for owners of such vehicles needing to tow light recreational or utility trailers. Proper fitment into the receiver tube is critical for safety and performance, ensuring minimal play and maximizing the structural integrity of the connection. The precise manufacturing of this ball mount’s shank guarantees a snug fit, reducing wear on both the receiver and the ball mount while mitigating the potential for dynamic stresses and vibrations during transit.
Material Science and Engineering: Solid Carbon Steel Construction
At the core of this ball mount's structural integrity is its solid carbon steel construction. Unlike some lighter-duty or hollow designs, the use of solid carbon steel provides superior strength, rigidity, and resistance to deformation under load. Carbon steel is an iron alloy with carbon content typically ranging from 0.05% to 2.0% by weight. The specific grade of carbon steel chosen for this application is optimized for its tensile strength, yield strength, and fatigue resistance, properties that are paramount in components subjected to dynamic loads and stresses like those encountered during towing. The manufacturing process involves forging or precision machining to achieve the desired form factor, followed by heat treatment if necessary to enhance specific mechanical properties. The inherent density and homogeneity of solid steel construction translate into a product that is not only robust but also capable of dissipating forces efficiently across its structure, minimizing stress concentrations that could lead to material failure. This solid design ethos ensures a higher factor of safety compared to hollow alternatives, providing peace of mind for the operator.
Protective Finish: The Black Powder-Coat Advantage
To complement its robust steel core, the ball mount is finished with a high-quality black powder-coat. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto an electrically grounded surface. The charged powder particles adhere to the part until melted and fused into a smooth, uniform coating in a curing oven. This process results in a finish that is significantly more durable and environmentally friendly than traditional liquid paint applications. The advantages of powder coating in a towing application are manifold:
- Superior Corrosion Resistance: The thick, continuous layer of polymer acts as an impenetrable barrier against moisture, road salts, chemicals, and other corrosive agents, preventing rust and preserving the structural integrity of the steel. This is especially crucial for components exposed to diverse environmental conditions, including rain, snow, and humid climates.
- Enhanced Abrasion Resistance: The resilient nature of powder coating makes it highly resistant to chips, scratches, and abrasions that can occur from road debris, coupling and uncoupling trailers, or general handling, thereby maintaining the protective layer intact.
- UV and Fade Resistance: The finish is engineered to resist degradation from ultraviolet (UV) radiation, ensuring the black color remains vibrant and does not chalk or fade over extended periods of outdoor exposure.
- Aesthetic Appeal: The uniform, sleek black finish contributes to the product's professional appearance, seamlessly integrating with the aesthetics of most towing vehicles.
Fixed Flat Design: Precision and Simplicity
The "Fixed Flat" designation signifies a non-adjustable ball mount design. Unlike adjustable ball mounts which offer multiple height settings, a fixed mount provides a specific rise or drop. This design choice offers several inherent advantages, particularly for light-duty applications:
- Simplicity and Reliability: With fewer moving parts, fixed ball mounts inherently possess greater mechanical reliability. There are no pins, bolts, or articulation points to wear out or loosen, reducing maintenance requirements and potential points of failure.
- Optimized Strength: The single-piece, monolithic structure of a fixed mount allows for optimized material distribution and eliminates the need for complex joints, often resulting in a stronger component for a given material volume.
- Cost-Effectiveness: The simpler manufacturing process contributes to a more economical product, offering excellent value for applications where adjustability is not a frequent requirement.
Towing Capacity: Gross Trailer Weight (GTW) and Maximum Vertical Load (MVL)
Understanding the weight ratings of any towing component is paramount for safe operation. This ball mount is rated for:
- Gross Trailer Weight (M.G.T.W.): 3,500 lbs. The GTW is the total weight of the trailer plus all its cargo. This rating indicates the maximum combined weight that the ball mount is engineered to safely pull. Exceeding this limit can lead to catastrophic failure of the hitch components, compromising vehicle control and safety.
- Maximum Vertical Load (M.V.L. / Tongue Weight): 300 lbs. The MVL, commonly referred to as tongue weight (TW), is the downward force exerted by the trailer coupler onto the hitch ball. Proper tongue weight is crucial for trailer stability and safe handling. As a general rule, tongue weight should be between 10% and 15% of the GTW for conventional trailers. For this ball mount's 3,500 lb GTW rating, a 300 lb MVL falls precisely within the recommended range (350 lbs at 10% being the ideal lower end, though 300 lbs is acceptable for lighter loads). Insufficient tongue weight can cause trailer sway, while excessive tongue weight can overload the towing vehicle's rear axle, affecting steering, braking, and tire wear. The 300 lb MVL rating signifies the maximum static vertical load the mount can safely bear, ensuring the structural integrity of the component under the dynamic forces experienced during towing.
Optimal Trailer Leveling: Rise and Drop Adjustments
The ability to achieve a level trailer is a critical factor for safe and efficient towing. This ball mount provides options for a maximum rise of 0.75 inches and a maximum drop of 1.25 inches.
- Rise: When the trailer coupler sits higher than the towing vehicle's receiver, the ball mount can be inverted to provide a "rise." The 0.75-inch rise elevates the hitch ball by three-quarters of an inch from the receiver's centerline, helping to level trailers with lower couplers when paired with a slightly higher vehicle hitch point.
- Drop: Conversely, if the trailer coupler is lower than the receiver, the ball mount is used in its standard orientation to provide a "drop." The 1.25-inch drop lowers the hitch ball by an inch and a quarter, accommodating trailers with higher couplers or vehicles with lower hitch points.
Interoperability: 0.75 Inch Ball Shank Diameter
This ball mount is specifically designed for use with towing balls that feature a 0.75 inch (3/4 inch) shank diameter. The ball shank is the threaded portion of the hitch ball that passes through the mounting hole on the ball mount. This particular shank size is common for light to medium-duty hitch balls, typically associated with 1-7/8 inch or 2-inch diameter balls that are used for the 3,500 lb class of trailers. It is imperative that the hitch ball's shank diameter precisely matches the hole on the ball mount to ensure a secure and robust connection. A mismatch can lead to excessive movement, premature wear, or catastrophic failure. When selecting a hitch ball, not only must the shank diameter align, but also the ball diameter must correspond to the trailer's coupler size, and the ball's weight rating must meet or exceed the trailer's GTW.
Optimal Length for Clearance and Maneuverability: 9.00 Inches
The overall length of the ball mount, measured from the center of the hitch pin hole to the center of the ball hole, is 9.00 inches. This dimension is carefully balanced to provide adequate clearance between the trailer and the towing vehicle, particularly during turns, while minimizing the leverage arm effect that longer ball mounts can introduce. A well-proportioned length prevents the trailer from making contact with the vehicle's bumper or tailgate during tight maneuvers. Simultaneously, by avoiding excessive length, this ball mount maintains the trailer close enough to the vehicle to prevent undue strain on the hitch system or the creation of an overly long "lever" that can amplify trailer sway or affect the vehicle's handling dynamics. This 9-inch length is a standard and effective dimension for light-duty applications, ensuring both safety and convenience.
Versatile Applications and Operational Utility
The 1-1/4 Inch Basic Fixed Flat Ball Mount is engineered for a diverse range of light-duty towing applications. Its robust construction and precise specifications make it suitable for:
- Utility Trailers: Hauling gardening equipment, construction debris, or general household items.
- Garden and Landscaping Trailers: Transporting lawnmowers, trimmers, and other landscaping tools.
- Recreational Trailers: Including ATV, UTV, dirt bike, or bicycle trailers, enabling enthusiasts to transport their gear to trails and recreation areas.
- Small Boat/Jet Ski Trailers: For personal watercraft or very small fishing boats, within the 3,500 lb GTW limit.
- Small Cargo Trailers: For personal moves, camping gear, or light commercial deliveries.
Installation and Maintenance Best Practices
Proper installation and routine maintenance are crucial for the long-term safety and performance of any towing component. Installation involves inserting the ball mount's shank into the vehicle's 1-1/4 inch receiver tube and securing it with a properly rated hitch pin and clip (not included). The hitch pin must be of the correct diameter to fit the receiver's pin hole and strong enough to withstand the shear forces exerted during towing. Once the ball mount is secured, the appropriate hitch ball (with a 0.75-inch shank) must be installed onto the ball mount's platform and tightened to the manufacturer's specified torque, typically using a large wrench. Regular inspection should include checking for:
- Wear and Damage: Look for cracks, bends, excessive rust, or deformation on the ball mount itself.
- Finish Integrity: While highly durable, inspect the powder-coat for any significant chips or areas where the base metal might be exposed, which could be touched up to prevent corrosion.
- Secureness: Ensure the hitch pin is properly seated and the hitch ball is tightly secured on the mount, re-torquing as necessary.
Commitment to Towing Safety
Buyers Products prioritizes safety in the design and manufacture of its towing accessories. This 1-1/4 Inch Basic Fixed Flat Ball Mount exemplifies this commitment by adhering to industry standards for strength and durability. However, the ultimate responsibility for safe towing lies with the operator. It is imperative to:
- Never Exceed Ratings: Always ensure the combined weight of the trailer and its cargo (GTW) and the tongue weight (MVL) do not exceed the lowest rating of any component in the towing system – the ball mount, the hitch, the vehicle's tow capacity, or the hitch ball.
- Proper Load Distribution: Distribute the trailer's cargo correctly to achieve the recommended tongue weight for stability.
- Pre-Trip Inspection: Conduct a thorough inspection before each trip, checking all connections, lights, and tires.
- Driving Practices: Adjust driving habits for towing, including increased braking distances, wider turns, and reduced speeds.
Conclusion
The 1-1/4 Inch Basic Fixed Flat Ball Mount in Black from Buyers Products is a meticulously engineered, highly durable, and economically advantageous solution for light-duty towing requirements. Its foundation in solid carbon steel, protected by an advanced black powder-coat finish, ensures exceptional strength and longevity against the rigors of use and environmental exposure. Designed for seamless integration with Class I and Class II 1-1/4 inch receiver hitches, it offers a specific rise and drop to facilitate level trailer towing for loads up to 3,500 lbs GTW and 300 lbs MVL. Optimized for use with 3/4-inch shank diameter hitch balls, its fixed flat design embodies reliability through simplicity. Whether for personal recreational activities or light commercial utility, this ball mount stands as a testament to functional design, material integrity, and a steadfast commitment to providing dependable towing solutions for the discerning customer. Its professional-grade construction and adherence to critical safety parameters make it an indispensable component for any light-duty towing setup, promising years of secure and efficient service.
