Buyers Products Heavy Duty 3 Inch Forged Ball Mounts fit any industry-standard 3 in. receiver. The forged steel mounts feature a 21,000 lb gross trailer weight rating with a sturdy solid shank design. Available in a variety of drop lengths to accommodate different trailer heights.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| For Ball Shank Size (in.) | 1.25 |
| Hitch Pin Type | 1.25 |
| Length (in.) | 9 |
| M.G.T.W. (lbs) | 21,000 |
| M.V.L. (lbs) | 2,100 |
| Material | Forged Steel |
| Maximum Drop (in.) | 4 |
| Maximum Rise (in.) | 2.5 |
| Receiver Tube Size | 3 |
| Shank Type | Solid |

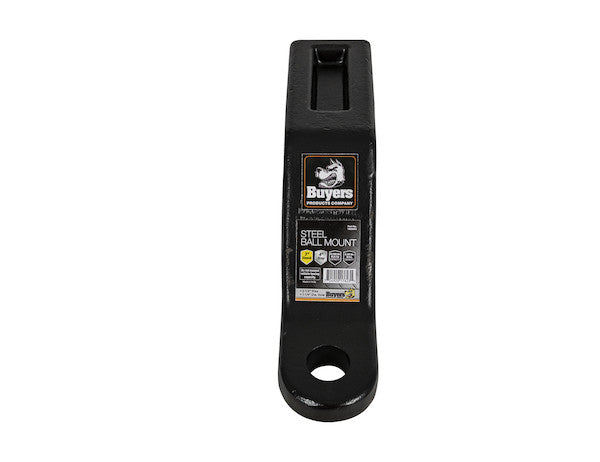

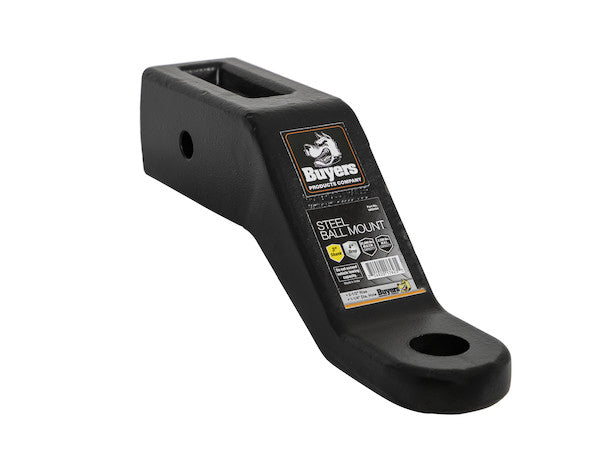

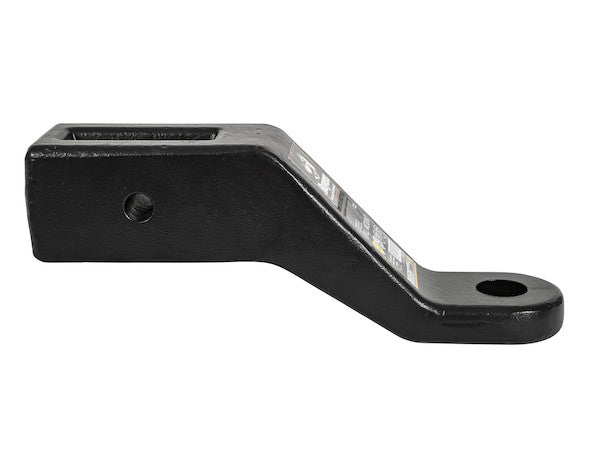

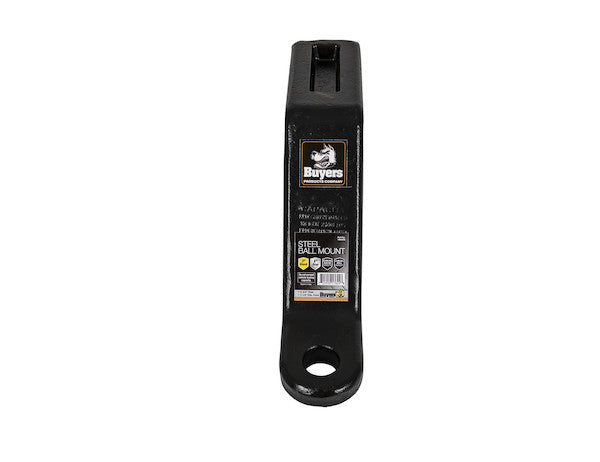

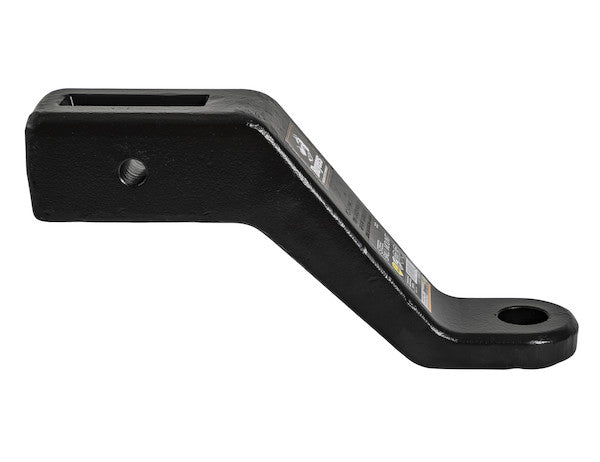

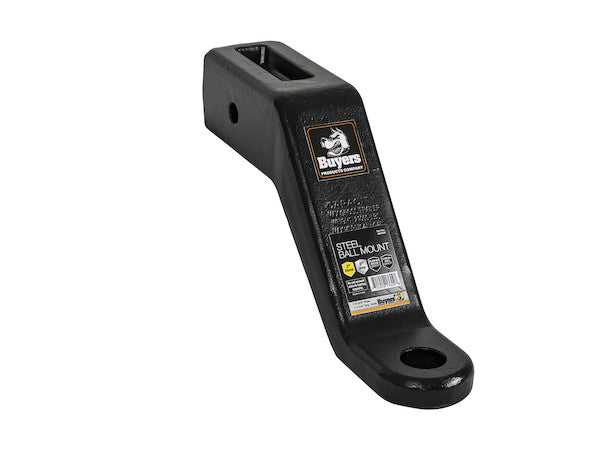

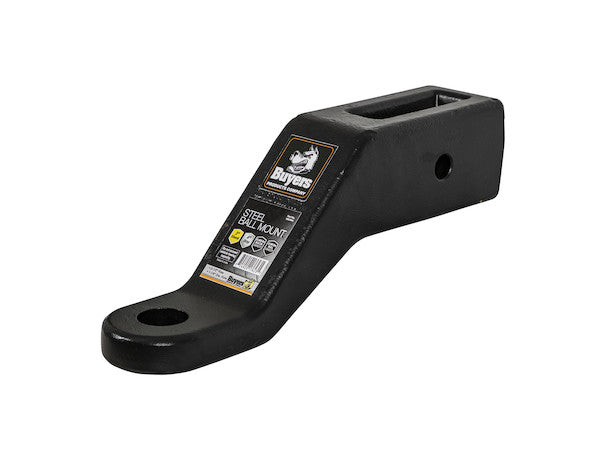

The Buyers Products Heavy Duty 3 Inch Forged Ball Mount with a 4 Inch Drop represents a pinnacle of towing accessory engineering, designed to meet the rigorous demands of professional and heavy-duty towing applications. This specialized component is meticulously crafted to ensure optimal performance, unparalleled safety, and exceptional durability when integrating a trailer with a tow vehicle equipped with a 3-inch receiver hitch. The current model, featuring a 4-inch drop, is a critical component for achieving proper trailer leveling across a wide array of vehicle and trailer configurations.
At the core of this product's superior performance is its construction from high-grade forged steel. The forging process, a metallurgical technique involving the shaping of metal through localized compressive forces, fundamentally alters the material's grain structure. Unlike casting, which involves pouring molten metal into a mold, or welding multiple pieces of metal, forging creates a continuous grain flow that follows the contour of the part. This results in a material that exhibits significantly enhanced strength-to-weight ratio, superior fatigue resistance, and increased impact toughness. The inherent density and homogeneity of forged steel minimize internal defects, such as porosity or inclusions, which are common in other manufacturing methods and can compromise structural integrity under extreme loads. For a critical towing component like a ball mount, where dynamic stresses and cyclic loading are constant, the intrinsic properties of forged steel translate directly into a higher degree of reliability and a substantially longer service life.
The "Heavy Duty" designation is not merely a descriptor but a testament to the engineered capacity and robust construction of this ball mount. With a Gross Trailer Weight Rating (GTWR) of 21,000 lbs, this unit is engineered to manage substantial towing tasks, making it suitable for a diverse range of heavy industrial, commercial, and recreational applications. This impressive GTWR signifies the maximum allowable weight of a fully loaded trailer that the ball mount is certified to safely handle. Complementing this, the Maximum Vertical Load (MVL), commonly known as tongue weight, is rated at 2,100 lbs. The MVL is a critical parameter, representing the downward force exerted by the trailer coupler onto the hitch ball. Maintaining a tongue weight within the recommended range (typically 10-15% of the GTWR for conventional trailers) is paramount for ensuring towing stability, preventing trailer sway, and optimizing vehicle handling characteristics. Exceeding or falling below the specified MVL can lead to dangerous towing conditions, emphasizing the importance of accurate trailer loading and the selection of a ball mount rated for the specific application.
The design incorporates a solid shank, a feature that significantly contributes to its heavy-duty rating and overall structural integrity. In contrast to hollow shanks, a solid shank provides a continuous cross-section of material, eliminating potential weak points that could arise from welding seams or internal voids. This monolithic construction offers superior resistance to bending, torsion, and shear forces experienced during acceleration, braking, and cornering, which are all transferred through the ball mount. The solid shank minimizes flex under load, translating into a more stable and predictable towing experience, reducing wear on the hitch receiver, and extending the lifespan of the entire towing system. The length of the ball mount, specified at 9 inches, is engineered to provide an optimal balance between maneuverability and adequate clearance between the tow vehicle and the trailer, allowing for tighter turns without interference while maintaining appropriate tongue weight distribution.
Compatibility with an industry-standard 3-inch receiver tube is a key functional attribute. Three-inch receivers are predominantly found on heavy-duty pickup trucks (e.g., Class V and higher), commercial vehicles, and some large SUVs, indicative of their intended use for extreme towing requirements. The precise fitment within the receiver hitch is essential for minimizing slack and ensuring efficient transfer of towing forces. The ball mount is designed for a hitch pin type of 1.25 inches, indicating the diameter of the hitch pin required to secure the ball mount within the receiver. Utilizing the correct size and type of hitch pin, such as a high-strength steel pin with a secure clip or a locking pin, is crucial for preventing accidental disengagement during transit.
The "4 Inch Drop" specification refers to the vertical offset provided by the ball mount, positioning the hitch ball 4 inches lower than the top of the receiver tube. This specific drop is vital for achieving a level towing configuration when the tow vehicle's hitch receiver height is considerably higher than the trailer's coupler height. Proper leveling is not merely an aesthetic consideration; it is fundamental to safe and efficient towing. A level trailer distributes weight evenly across all its axles, optimizing tire wear, braking performance, and suspension loading. An improperly leveled trailer can lead to adverse effects such as excessive tongue weight (nose-down trailer, causing vehicle sag and poor steering), insufficient tongue weight (nose-up trailer, leading to trailer sway and loss of control), or uneven tire wear. The availability of various drop lengths ensures that users can select the precise configuration necessary to achieve perfect parallelism between the trailer frame and the ground, accommodating variations in tow vehicle suspension, tire size, and trailer design. Additionally, this ball mount offers a maximum rise of 2.5 inches, providing versatility for scenarios where the trailer coupler height is higher than the tow vehicle's receiver, allowing the ball mount to be flipped and used in an upward orientation to achieve proper leveling.
The aesthetic and protective qualities of the ball mount are enhanced by a black powder-coat finish. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded surface of the forged steel. The item is then cured under heat, causing the powder to melt and flow into a smooth, durable finish. This process creates a significantly more robust and chip-resistant coating compared to traditional liquid paints. The powder-coat finish provides exceptional resistance to corrosion, abrasion, and harsh environmental elements such as road salt, moisture, and UV radiation, which are frequently encountered in towing operations. This protective layer ensures the longevity of the ball mount, maintaining its structural integrity and aesthetic appeal over extended periods of use, even in demanding outdoor conditions.
Regarding compatibility with hitch balls, the ball mount features a precision-machined hole designed to accommodate a hitch ball with a 1.25-inch shank size. It is imperative to select a hitch ball that not only matches the shank diameter but also possesses a GTWR that meets or exceeds the GTWR of the ball mount and the trailer. The hitch ball, typically sold separately, is secured to the ball mount using a washer and a heavy-duty nut, which must be torqued to the manufacturer's specified value to prevent loosening under load. The precise fit and secure attachment of the hitch ball are critical for maintaining a safe and reliable connection between the tow vehicle and the trailer.
The engineering philosophy behind the Buyers Products Heavy Duty 3 Inch Forged Ball Mount adheres strictly to industry best practices and safety standards. While specific SAE standards like J684 for trailer hitches and balls are implicitly addressed through the robust design and rigorous testing, the overall construction emphasizes safety through material selection, manufacturing process, and adherence to specified load ratings. Users are advised to consistently inspect the ball mount, hitch ball, and hitch pin for any signs of wear, corrosion, cracks, or deformation before each towing operation. Regular maintenance, including cleaning and ensuring proper torque on fasteners, is essential to prolong the life of the component and guarantee safe towing.
The target demographic for this heavy-duty ball mount includes professionals in construction, landscaping, agriculture, and municipal services who regularly tow large equipment, multi-axle trailers, or heavy cargo. It is also an indispensable component for serious recreational haulers of large boats, car haulers, or substantial fifth-wheel travel trailers that utilize a conventional hitch setup. The 4-inch drop is particularly advantageous for newer model heavy-duty trucks, which often feature higher suspension clearances, requiring a significant drop to achieve optimal trailer leveling for utility trailers, dump trailers, or certain types of flatbed trailers.
In summary, the Buyers Products Heavy Duty 3 Inch Forged Ball Mount with a 4 Inch Drop is a professionally engineered towing solution characterized by its forged steel construction, substantial 21,000 lb GTWR, robust solid shank design, and durable powder-coat finish. Its precise 3-inch receiver compatibility and 1.25-inch ball shank hole cater to high-capacity towing systems, while the specific 4-inch drop (and 2.5-inch rise capability) ensures optimal trailer leveling for enhanced safety and performance. This product exemplifies a commitment to quality, durability, and functional precision, providing reliable and secure connections for the most demanding towing challenges.
