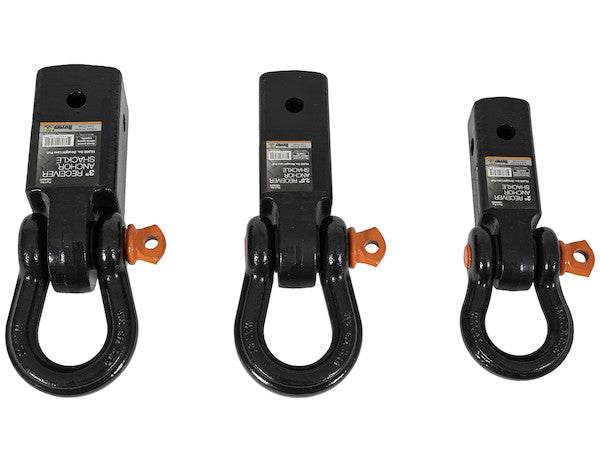

Buyers Products Anchor Shackles for Hitch Receivers are ideal for recovery towing purposes. The shackles are available to fit 2 in., 2-1/2 in., and 3 in. receivers. They feature durable steel construction with a corrosion resistant black powder-coated finish. The heavy duty shank can handle straight line pulling of 10,000 - 18,000 lb depending on model. The removable anchor shackles feature a threaded pin for easy installation. They are compatible with tow straps with looped ends.
Specifications
| Capacity (lbs) | 13,000 |
|---|---|
| Color | Black |
| Finish | Powder-Coat |
| Material | Carbon Steel |
| Mount Type | Hitch Receiver |
| Reciever Tube Size (in.) | 2-1/2 |
Advanced Technical Overview: 2-1/2 Inch Receiver Anchor Shackle for Demanding Recovery Operations
The 2-1/2 Inch Receiver Anchor Shackle represents a critical component in advanced vehicle recovery and towing applications, engineered to provide a robust, secure, and reliable anchor point for a wide range of demanding tasks. This specialized attachment is meticulously designed to integrate seamlessly with standard 2-1/2 inch square hitch receivers, transforming a conventional towing interface into a versatile recovery point. Constructed from high-strength carbon steel and finished with a resilient black powder-coating, this shackle is built to withstand extreme mechanical stresses and harsh environmental conditions, ensuring optimal performance and longevity.
Engineered for Superior Performance and Safety
At the core of its design, the 2-1/2 Inch Receiver Anchor Shackle is developed to meet the rigorous demands of professional and recreational recovery scenarios. With a specified capacity of 13,000 lbs for straight-line pulling, this unit is far more than a simple accessory; it is a vital safety mechanism designed to distribute significant loads effectively and prevent equipment failure during critical operations. The stated capacity represents the Working Load Limit (WLL), which is typically a fraction of the ultimate breaking strength (UBS) – often 1/4 to 1/5 – providing a substantial safety factor crucial for dynamic recovery situations where shock loads can momentarily exceed static capacities. This design philosophy underscores a commitment to operational safety, minimizing risks associated with improper or inadequate attachment points during high-stress recovery efforts.
Material Science and Structural Integrity: Carbon Steel Construction
The selection of carbon steel as the primary material for this receiver anchor shackle is deliberate and founded on established metallurgical principles. Carbon steel is renowned for its exceptional balance of tensile strength, yield strength, and ductility, making it an ideal choice for components subjected to high static and dynamic loads. The specific grade of carbon steel utilized is carefully selected to ensure that the shackle can resist deformation under substantial pulling forces, while also possessing sufficient toughness to absorb energy without fracturing under shock loading conditions. Manufacturing processes, typically involving hot forging, further enhance the material's grain structure, eliminating internal voids and aligning the material fibers along the lines of greatest stress. This forging process improves fatigue resistance and overall structural integrity, critical attributes for a component that will endure repeated stress cycles in challenging recovery environments.
The heavy-duty shank, which interfaces with the vehicle's receiver tube, is engineered with precise dimensions to ensure a snug fit within a 2-1/2 inch receiver. This dimensional accuracy is crucial for minimizing play and maximizing the efficient transfer of force from the shackle to the vehicle's chassis. The shank's wall thickness and internal structure are optimized to prevent bending, twisting, or shearing under maximum rated load, reinforcing the shackle's ability to serve as a dependable anchor point. The design accommodates a standard hitch pin, securing the shackle within the receiver and preventing accidental disengagement during recovery operations.
Advanced Corrosion Protection: The Powder-Coat Finish
Environmental exposure is a significant factor in the degradation of recovery equipment, particularly in off-road, marine, or industrial settings where moisture, road salts, chemicals, and abrasives are prevalent. To counteract these corrosive forces, the 2-1/2 Inch Receiver Anchor Shackle features a durable black powder-coated finish. This advanced coating technique offers superior protection compared to conventional liquid paints due to its robust application process and inherent material properties. Powder coating involves applying a finely ground, dry plastic powder electrostatically to the surface of the steel, which is then cured under heat. This process fuses the powder into a smooth, thick, and highly resistant layer.
The benefits of a powder-coat finish are multifaceted:
- Enhanced Durability: The cured powder coat forms a much harder and more durable layer than paint, providing superior resistance to chipping, scratching, abrasion, and impact damage. This is essential for equipment frequently used in rugged conditions.
- Superior Corrosion Resistance: The continuous, non-porous layer created by powder coating acts as an excellent barrier against moisture, salt, and chemicals, significantly extending the lifespan of the steel component by preventing rust and oxidation.
- UV Resistance: The specific formulation of the black powder coat is designed to resist fading and degradation from ultraviolet (UV) radiation exposure, maintaining its aesthetic and protective properties over time even with prolonged outdoor use.
- Environmental Friendliness: Powder coating is an environmentally responsible choice, as it contains no volatile organic compounds (VOCs) and produces minimal hazardous waste during application.
- Aesthetic Appeal: The uniform black finish provides a professional, understated appearance that complements most vehicle and equipment aesthetics.
Operational Versatility and Compatibility
The design of this receiver anchor shackle prioritizes versatility, making it compatible with a broad spectrum of recovery gear. Its primary interface, the removable anchor shackle (often referred to as a D-ring or bow shackle), is specifically designed to accommodate tow straps, snatch straps, tree savers, and synthetic ropes equipped with looped ends. This secure, closed-loop connection method is critically important in recovery scenarios for several reasons:
- Enhanced Safety: Unlike open-ended hooks, which can accidentally disengage under load or when slack occurs, the closed-loop design of a shackle with a threaded pin ensures a constant, secure connection. The threaded pin provides an extra layer of security, requiring manual loosening to remove, thereby preventing accidental release.
- Optimized Load Distribution: The rounded bow of the shackle allows for better distribution of forces across the loop of a recovery strap, reducing point loading and potential damage to the strap itself. This smooth contact surface minimizes wear and tear on valuable recovery gear.
- Reduced Risk of "Flying Missiles": In the event of an overloaded or improperly connected hook, the sudden release can turn the hook into a dangerous projectile. Shackles, by maintaining a secure connection, significantly mitigate this risk, contributing to a safer recovery environment.
Applications Beyond Standard Towing
While ideally suited for recovery towing, the 2-1/2 Inch Receiver Anchor Shackle extends its utility to various other applications:
- Off-Road Recovery: Essential for self-recovery or assisting other vehicles stuck in mud, sand, snow, or challenging terrain. It provides a reliable front or rear recovery point for winching or snatching.
- Construction and Industrial: Can be used as a temporary anchor point for pulling small equipment, positioning materials, or securing loads in non-highway environments where a hitch receiver is available.
- Agricultural Use: Useful for moving farm implements, pulling out stuck tractors, or securing loads on utility vehicles.
- Utility and Emergency Services: Provides a critical attachment for specialized equipment or for recovery in challenging access areas.
Rigorous Quality Control and Compliance
Buyers Products maintains stringent quality control protocols throughout the manufacturing process of this 2-1/2 Inch Receiver Anchor Shackle. From the selection of raw carbon steel to the final powder-coating, each stage is subjected to rigorous inspection and testing to ensure compliance with design specifications and industry standards. This commitment to quality ensures that every shackle meets the advertised capacity and durability, providing users with a reliable and safe tool for their recovery needs. Adherence to industry best practices in material sourcing, fabrication, and finishing guarantees a product that not only performs as expected but also withstands the test of time and severe operational conditions.
Installation, Maintenance, and Longevity
Proper installation and routine maintenance are paramount to maximizing the longevity and operational safety of the 2-1/2 Inch Receiver Anchor Shackle. Installation involves sliding the shackle's shank into the 2-1/2 inch receiver tube and securing it with an appropriate hitch pin and clip (not included, but standard for receiver hitches). The anchor shackle itself is attached to the shank via its threaded pin; users should ensure this pin is fully threaded and tightened, then backed off slightly (typically 1/4 to 1/2 turn) to prevent "freezing" under extreme load, which can make it difficult to remove after use. This slight loosening ensures the pin doesn't seize due to metal deformation or galling under pressure.
Regular inspections are recommended before and after each use. Operators should check for any signs of wear, such as:
- Deformation: Bending, twisting, or stretching of the shackle body or pin.
- Cracks: Hairline fractures on the steel surface or within the powder coat.
- Corrosion: Significant rust or pitting, especially on the threaded pin.
- Thread Damage: Stripped, galled, or damaged threads on the pin or shackle body.
- Powder Coat Integrity: Extensive chipping or flaking that exposes bare metal, indicating a need for re-protection if corrosion is becoming an issue.
Conclusion: A Foundation of Reliability for Critical Tasks
The 2-1/2 Inch Receiver Anchor Shackle stands as a testament to engineering excellence in vehicle recovery equipment. Its robust carbon steel construction, precision manufacturing, and advanced black powder-coated finish combine to deliver an unparalleled level of strength, durability, and corrosion resistance. With a substantial 13,000 lbs capacity for straight-line pulling and a design optimized for secure, safe connections with looped recovery gear, this shackle is an indispensable tool for anyone involved in demanding towing, winching, or recovery operations. It transforms a standard hitch receiver into a professional-grade anchor point, providing peace of mind through its unwavering reliability and adherence to safety-conscious design principles. For off-road enthusiasts, commercial operators, or anyone requiring a superior attachment solution, this shackle offers the performance and confidence needed to tackle the toughest recovery challenges.
