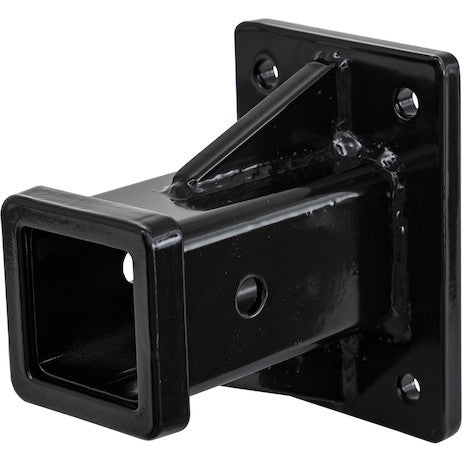

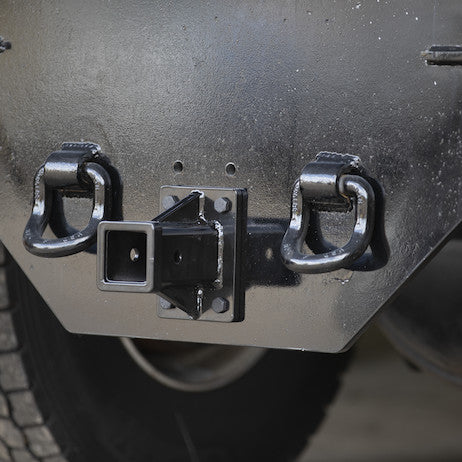

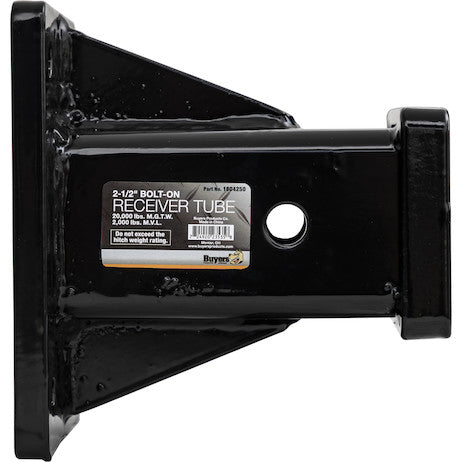

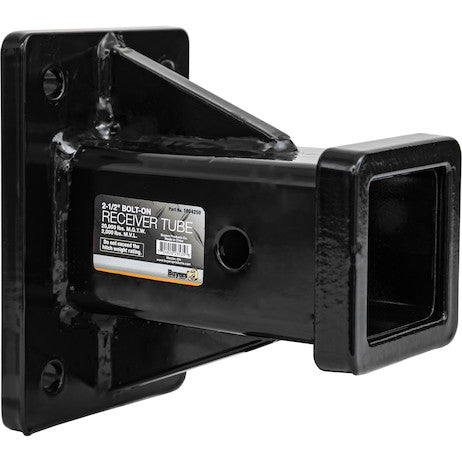

The Bolt-On Receiver Tube from Buyers Products allows towing flexibility in switching from a ball hitch to a pintle hook. It bolts directly into any hitch plate that has standard pintle hook hole patterns. This receiver tube (available for 2 in. and 2-1/2 in. receivers) is welded to a 1/2 in. steel mounting plate, and black powder-coated for corrosion resistance. It features a sturdy cast steel collar and a standard 5/8 in. hitch pin hole. The bolt-on tube is 7 inches long and is rated to 20,000 lb. The tube requires Buyers Products hardware kit 8520 for mounting.
Specifications
| Color | Black |
|---|---|
| Finish | Powder-Coat |
| M.G.T.W. (lbs) | 20,000 |
| M.V.L. (lbs) | 2,000 |
| Material | Carbon Steel |
| Receiver Size (in.) | 2.50 |
Advanced Technical Overview: Bolt-On Receiver Tube for 2-1/2 Inch Receivers
The Bolt-On Receiver Tube from Buyers Products represents a pinnacle of engineering and design in the heavy-duty towing accessory market, specifically tailored for 2-1/2 inch receiver applications. This meticulously designed component offers unparalleled towing flexibility, allowing seamless transitions between a conventional ball hitch and a robust pintle hook system. Engineered for professional-grade performance and durability, this receiver tube is a critical asset for commercial fleets, construction companies, agricultural operations, and any enterprise requiring versatile and reliable towing solutions. Its design philosophy centers on maximizing utility while upholding the highest standards of safety and structural integrity.
At its core, the utility of this bolt-on receiver tube lies in its ability to adapt. Modern towing operations frequently encounter diverse trailer types, each demanding specific hitching mechanisms. From enclosed utility trailers utilizing a ball hitch to heavy equipment trailers requiring the security and robustness of a pintle hook, the need for rapid, secure, and compliant conversion is paramount. This product addresses precisely this challenge, providing a universal interface that integrates with existing standard pintle hook hole patterns found on a vast array of commercial hitch plates. This ensures that operators can optimize their towing setup for the task at hand without the need for multiple, dedicated vehicles or complex, time-consuming modifications.
Precision Engineering and Robust Construction
The structural integrity of the Bolt-On Receiver Tube is a testament to its superior engineering. The primary receiver tube, designed to accept 2-1/2 inch hitch accessories, is robustly welded to a substantial 1/2 inch thick steel mounting plate. This integration ensures a cohesive unit capable of withstanding extreme dynamic loads encountered during heavy-duty towing. The material selection is critical: high-grade carbon steel, known for its exceptional tensile strength and fatigue resistance, forms the foundation of this component. The use of carbon steel in conjunction with precision welding techniques—likely employing advanced processes such as Gas Metal Arc Welding (GMAW) or Shielded Metal Arc Welding (SMAW)—guarantees deep penetration and strong, homogeneous welds that can endure repetitive stress cycles and harsh operational environments without compromising structural integrity.

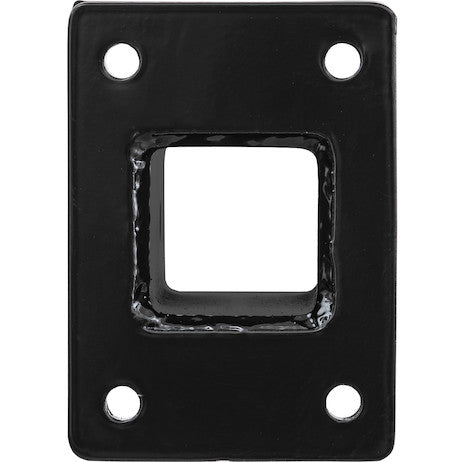

The 1/2-inch thick mounting plate is not merely a support structure; it is an integral load-bearing component. Its thickness is strategically chosen to distribute the forces exerted by the trailer across the vehicle's hitch plate, minimizing stress concentrations and preventing deformation. The standardized pintle hook hole patterns on this plate ensure universal compatibility, facilitating a straightforward, bolt-on installation onto virtually any heavy-duty hitch plate designed for pintle hooks. This design choice underscores the product's commitment to user convenience and operational efficiency, eliminating the need for custom fabrication or specialized mounting hardware beyond the specified Buyers Products hardware kit 8520.
Advanced Corrosion Protection: The Powder-Coat Finish
Durability in towing components is not solely about material strength; it is equally dependent on resistance to environmental degradation. The Bolt-On Receiver Tube features a premium black powder-coat finish, an advanced coating technology superior to conventional liquid paints in demanding applications. The powder coating process involves electrostatically applying a dry powder (a mixture of finely ground plastic particles, pigments, and resins) onto the carbon steel substrate. The charged powder adheres to the grounded metal surface, after which the component is placed in a curing oven. During curing, the powder melts, flows, and then chemically cross-links to form a continuous, durable, and uniform layer. This process creates an incredibly tough finish that is significantly more resistant to chipping, scratching, fading, and abrasion than traditional wet paints.
Beyond its aesthetic appeal, the black powder coat provides exceptional protection against corrosion. In severe outdoor environments where towing equipment is exposed to moisture, road salts, chemicals, and UV radiation, untreated carbon steel would rapidly succumb to rust. The powder coat acts as an impermeable barrier, sealing the steel from corrosive elements. This enhances the operational lifespan of the receiver tube, reduces maintenance requirements, and preserves the component's structural integrity over years of service. This meticulous attention to surface protection is indicative of Buyers Products' commitment to delivering long-lasting and reliable solutions for the commercial trucking and towing industry.

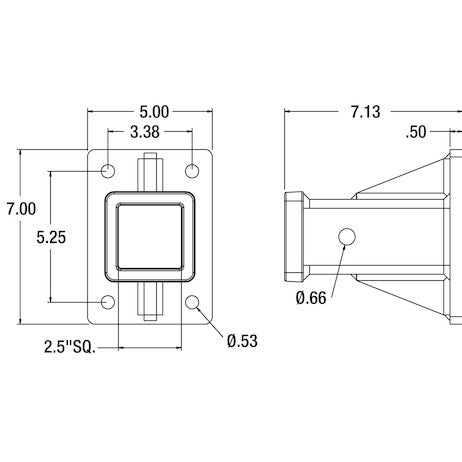

Critical Dimensions and Load Capacities
Understanding the precise specifications of towing equipment is paramount for safe and compliant operation. The Bolt-On Receiver Tube for 2-1/2 inch receivers is engineered with specific dimensions and rigorously rated capacities to meet the demands of heavy-duty towing:
- Receiver Size (2.50 in.): This designates the internal dimension of the receiver tube, designed to perfectly accommodate 2-1/2 inch square shanks of various towing accessories, including ball mount assemblies, pintle hitches, and other specialized attachments. The 2-1/2 inch standard is common in Class V (V-5) hitches and above, signifying suitability for substantial loads.
- Tube Length (7 inches): The overall length of the bolt-on tube, 7 inches, is optimized to provide sufficient extension and clearance for a variety of towing accessories while maintaining a compact profile that minimizes leverage stress on the mounting plate. This length facilitates adequate space for hitch pins and trailer tongue components, preventing interference during coupling and uncoupling.
- Maximum Gross Trailer Weight (M.G.T.W.) (20,000 lbs): This critical rating specifies the maximum allowable weight of a fully loaded trailer that the receiver tube is designed to safely tow. A 20,000 lb M.G.T.W. positions this receiver tube firmly in the heavy-duty category, suitable for transporting large utility trailers, construction equipment, agricultural implements, and other substantial loads. Adhering to this rating is essential for safety, stability, and preventing structural failure of the towing system.
- Maximum Vertical Load (M.V.L.) (2,000 lbs): Also known as Tongue Weight, the M.V.L. indicates the maximum downward force that can be exerted by the trailer tongue onto the receiver tube. A proper tongue weight, typically 10-15% of the M.G.T.W. for conventional trailers, is vital for maintaining vehicle stability and control. A 2,000 lb M.V.L. capacity ensures that even heavily loaded trailers can be safely supported without overstressing the receiver tube or the vehicle's hitch system.
Structural Reinforcement: The Cast Steel Collar
A distinctive feature contributing to the exceptional durability and load-bearing capacity of this receiver tube is its sturdy cast steel collar. Positioned at the opening of the receiver, this collar provides critical reinforcement where the highest stresses are concentrated during towing operations. Cast steel offers superior strength, rigidity, and wear resistance compared to fabricated or welded collars made from sheet steel. The casting process allows for the creation of complex geometries with optimized material distribution, enhancing the overall strength and fatigue life of the receiver opening. This collar helps to prevent deformation, ovaling, or cracking of the receiver tube over time, especially under dynamic loading conditions and constant insertion/removal of hitch accessories. It is a crucial element in ensuring the long-term reliability and safety of the product, preventing premature wear and maintaining the precise fit for 2-1/2 inch shanks.
Standardized Hitch Pin Hole
The incorporation of a standard 5/8 inch hitch pin hole further emphasizes the product's commitment to universal compatibility and ease of use. This common diameter accommodates a wide range of industry-standard hitch pins, including bent-pin styles, straight pins with R-clips, and various locking hitch pins. The precise drilling and finishing of this hole ensure a snug fit for the hitch pin, minimizing play and providing a secure connection between the receiver tube and the chosen hitch accessory. Proper selection and installation of a high-strength hitch pin, ideally matching or exceeding the shear strength of the receiver's rated capacity, is essential for maintaining the integrity of the entire towing assembly.
Seamless Integration and Operational Benefits
The bolt-on design, facilitated by compatibility with standard pintle hook hole patterns, allows for quick and efficient installation or removal. This modularity offers significant operational advantages:
- Rapid Configuration Changes: Fleet managers can swiftly reconfigure vehicles for different towing tasks, reducing downtime and enhancing logistical efficiency. A single truck can serve multiple purposes simply by swapping out the receiver tube and attachment.
- Enhanced Versatility: The ability to seamlessly switch between a ball hitch for standard trailers and a pintle hook for heavy-duty, off-road, or military-style trailers makes this receiver tube indispensable for diverse operations.
- Simplified Maintenance: Being a bolt-on component, the receiver tube can be easily inspected, maintained, or replaced if necessary, without requiring extensive fabrication or welding work on the vehicle's primary hitch plate.
- Cost-Effectiveness: Instead of purchasing multiple dedicated vehicles or undergoing costly custom modifications, a single investment in this adaptable receiver tube provides a flexible solution for varying towing needs.
Installation Protocol and Required Hardware
For optimal performance and safety, the Bolt-On Receiver Tube necessitates the use of Buyers Products hardware kit 8520 for mounting. This specific hardware kit is engineered to provide the correct grade, size, and type of fasteners required to achieve the specified torque values and secure the receiver tube effectively. Using aftermarket or mismatched hardware can compromise the structural integrity of the connection, potentially leading to loose components, accelerated wear, or catastrophic failure. The installation process typically involves aligning the mounting plate with the existing pintle hook hole patterns on the vehicle's hitch plate, inserting the bolts from the hardware kit, and securing them with the appropriate nuts and washers. Adherence to manufacturer-specified torque settings is crucial to ensure a rigid, secure connection that can withstand the dynamic forces of towing without loosening or causing stress concentrations.
Quality Assurance and Compliance
Buyers Products is renowned for its commitment to manufacturing excellence and product reliability. Each Bolt-On Receiver Tube undergoes rigorous quality control checks throughout the production process, from material sourcing to final finishing. This dedication ensures that every unit meets the stated load capacities and dimensions, providing users with a dependable component that complies with industry expectations for heavy-duty towing equipment. While specific regulatory standards (e.g., SAE J684 for trailer hitches) are not explicitly detailed in the brief description, the robust design, material selection, and rigorous testing methodologies employed by Buyers Products inherently align with the principles of safe and effective towing component design.
Conclusion
In summation, the Bolt-On Receiver Tube for 2-1/2 Inch Receivers from Buyers Products is a sophisticated, heavy-duty towing accessory designed for discerning professionals. Its technical superiority stems from a combination of robust carbon steel construction, precision welding, an ultra-durable powder-coat finish, and a structurally reinforced cast steel collar. With impressive M.G.T.W. and M.V.L. ratings of 20,000 lbs and 2,000 lbs respectively, it stands as a reliable solution for the most demanding towing applications. The inherent flexibility to transition between ball hitches and pintle hooks, coupled with its straightforward bolt-on installation using the specified Buyers Products hardware kit 8520, makes this receiver tube an indispensable tool for enhancing operational efficiency, safety, and versatility across diverse industries. It represents a strategic investment in durable, adaptable towing infrastructure, engineered to perform consistently under extreme conditions and provide long-term value.
